Monoblockfull automatikus mágneses szivattyú illóolajok dezodor üveghenger -palack töltőcímkéző csomagoló vonal
Rendes ár
$16,098.00 USD
Rendes ár
Eladási ár
$16,098.00 USD
Megtakarítás $-16,098 USD
/
- Egyéves garancia
- Felhasználói kézikönyv
- Egy-egy videocsevegési támogatás
- Telepítse és hibakeresési videó
- Egyedi csomagoldat
- Helyi szolgáltatás helye （Románia /Szerbia /Kazahsztán /Mexikó /Indonézia bel
This packaging system consist of monoblock machine and label applicator. It can finish filling, capping and labeling work at the same time.This packaging system is good for packaging liquid products into roller ball bottles like perfume oil, deodorant etc.
Parameter
Monoblock Filling Capping Machine
- Machine Model: ZS-AFC11
- Voltage: 220V/110V 50-60Hz
- Power: 2500W
- Filling Pump: 316 Stainless Steel Magnetic Pump
- Working Speed: 25-30 bottles/min(depending on bottle size and liquid)
- Max Flow Rate: 4L/min*2(based on water)
- Suitable Bottle Size: Customized
- Bottle Cap Diameter: Customized
- Package Size: About 2040*1660*1650mm
- Package Weight: About 535kg
Labeling Machine
- Model: ZS-TB260R
- Power supply: AC220V 50Hz/60Hz 1000 W
- Labeling capacity(bottles/min): 25-50 bottles/min(depends on bottle size)
- Labeling accuracy(mm): ±1.0 mm
- Suitable Bottle Size: Φ=30-100 mm H=30-200mm
- Label size(mm): (L)20-300 mm (H)12-130 mm(Can be customized)
- Roll inside diameter(mm): Φ76mm
- Roll outside diameter(mm): Φ350mm
- Conveyor Size: 112*2000mm(W)
- Machine size: About (L)2000*(W)820*(H)1380(mm)
- Machine weight: About 180kg
- Packing Size: About (L)2100*(W) 890*(H)1520(mm)
- Package weight: About 250 kg
Control Panel
Touch screen control panel makes parameter setting more intuitively, simple machine operation and debugging.
Touch screen control panel makes parameter setting more intuitively, simple machine operation and debugging.
Filling Capping Structure
Starwheel is customizable based on bottle size, compact machine body saves working space
Starwheel is customizable based on bottle size, compact machine body saves working space
Filling Structure
Equipped with 316 stainless steel magnetic pumps, it can fill liquid accurately.
Equipped with 316 stainless steel magnetic pumps, it can fill liquid accurately.
Sensor
Each working station has a sensor to detect passing by bottles and realize automated work.
Each working station has a sensor to detect passing by bottles and realize automated work.

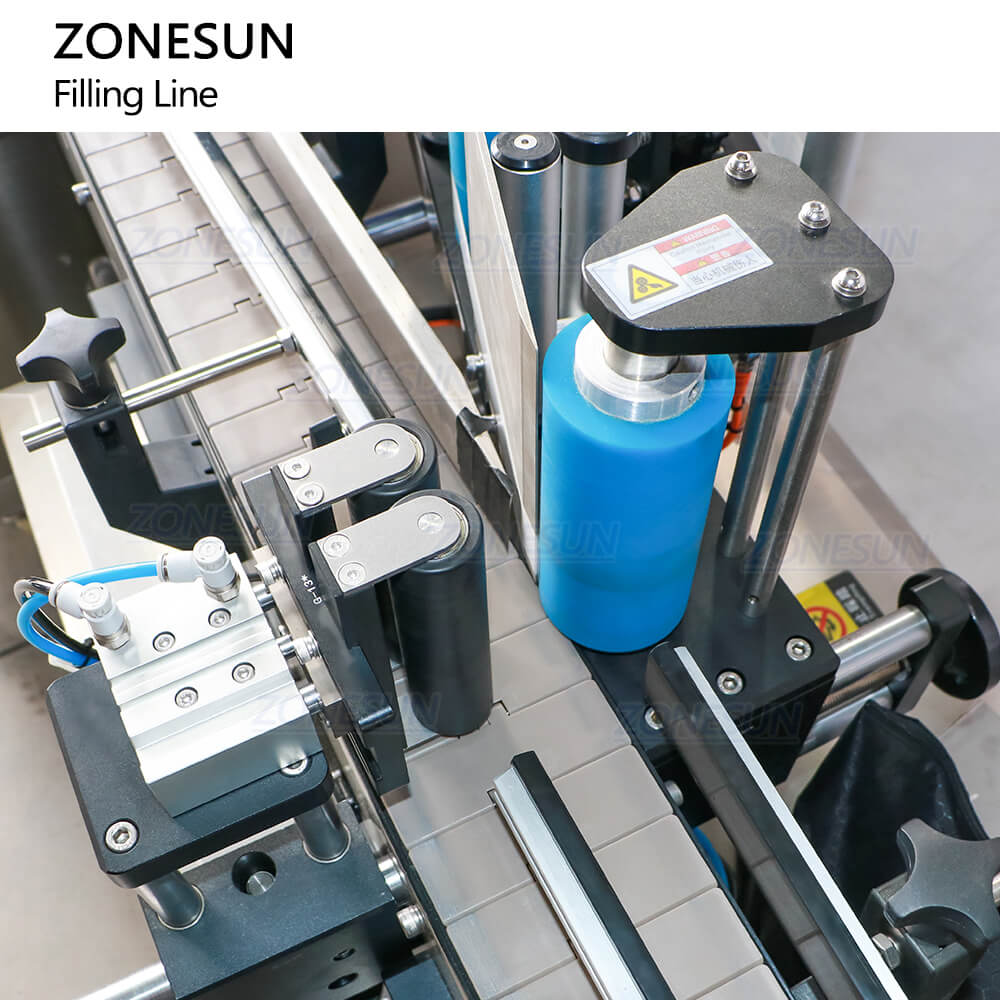

Labeling Structure
Use three rollers to stick labels on bottles, it suits single side, double sides and wrap-around labeling.
Use three rollers to stick labels on bottles, it suits single side, double sides and wrap-around labeling.
Circuit
Electric circuit are connected neatly, ensures machine work stably.
Electric circuit are connected neatly, ensures machine work stably.
