مضخة مغناطيسية أوتوماتيكية بالكامل أحادية الكتلة للزيوت العطرية مزيل العرق الزجاجي الأسطوانة خط تعبئة الملصقات

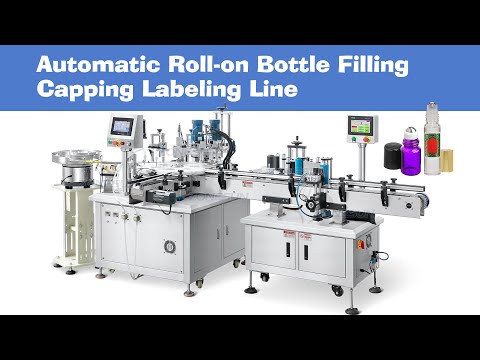

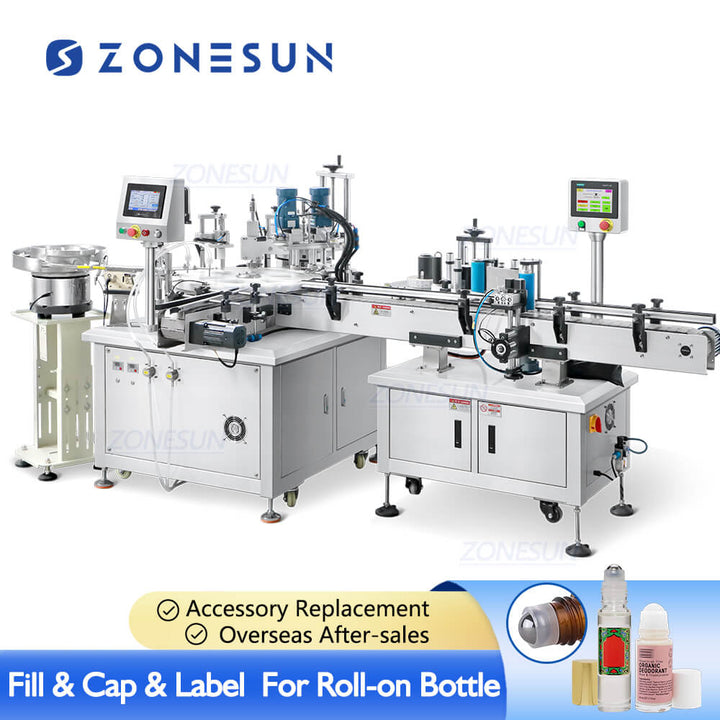

This packaging system consist of monoblock machine and label applicator. It can finish filling, capping and labeling work at the same time.This packaging system is good for packaging liquid products into roller ball bottles like perfume oil, deodorant etc.

Parameter

Monoblock Filling Capping Machine

• Machine Model: ZS-AFC11

• Voltage: 220V/110V 50-60Hz

• Power: 2500W

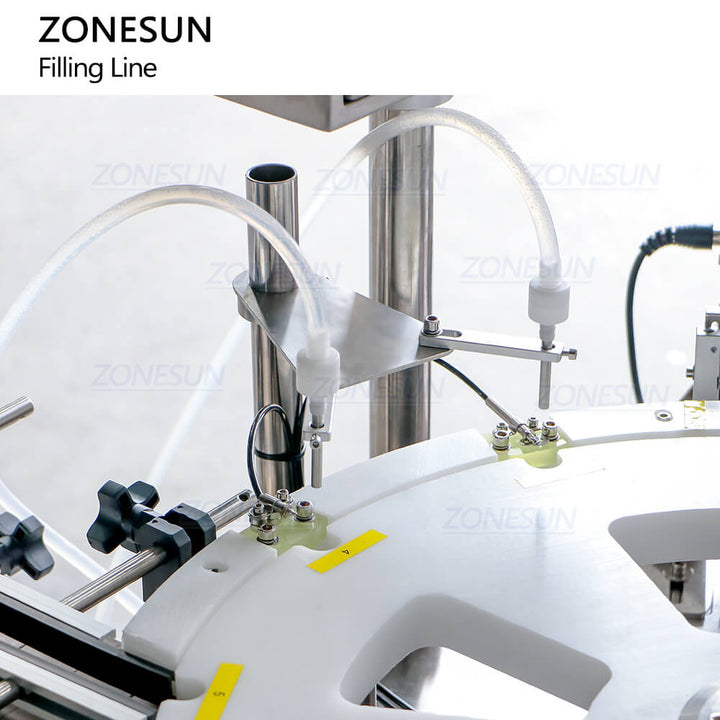

• Filling Pump: 316 Stainless Steel Magnetic Pump

• Working Speed: 25-30 bottles/min(depending on bottle size and liquid)

• Max Flow Rate: 4L/min*2(based on water)

• Suitable Bottle Size:  Customized

• Bottle Cap Diameter: Customized

• Package Size: About 2040*1660*1650mm

• Package Weight: About 535kg

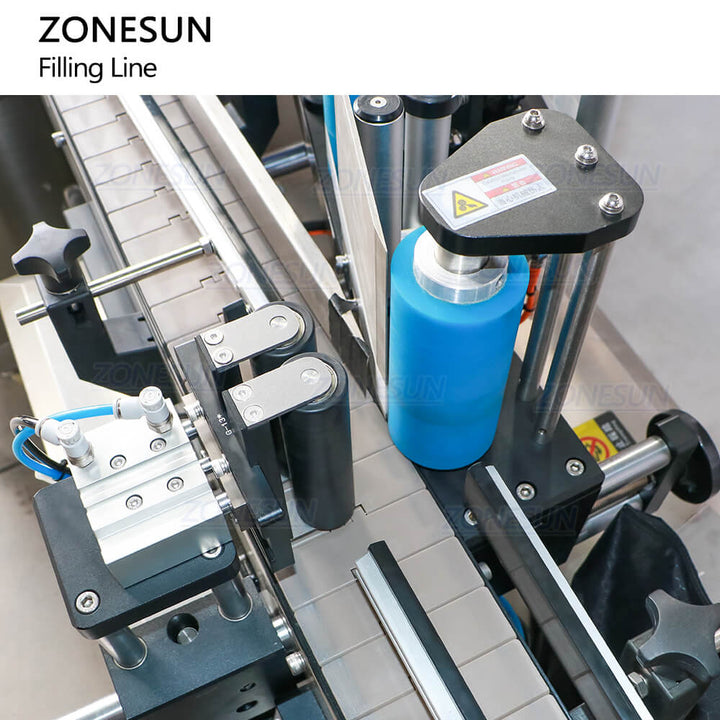

Labeling Machine

• Model: ZS-TB260R

• Power supply: AC220V 50Hz/60Hz 1000 W

• Labeling capacity(bottles/min): 25-50 bottles/min(depends on bottle size)

• Labeling accuracy(mm): ±1.0 mm

• Suitable Bottle Size: Φ=30-100 mm H=30-200mm

• Label size(mm): (L)20-300 mm (H)12-130 mm(Can be customized)

• Roll inside diameter(mm): Φ76mm

• Roll outside diameter(mm): Φ350mm

• Conveyor Size: 112*2000mm(W)

• Machine size: About (L)2000*(W)820*(H)1380(mm)

• Machine weight: About 180kg

• Packing Size: About (L)2100*(W) 890*(H)1520(mm)

• Package weight: About 250 kg
