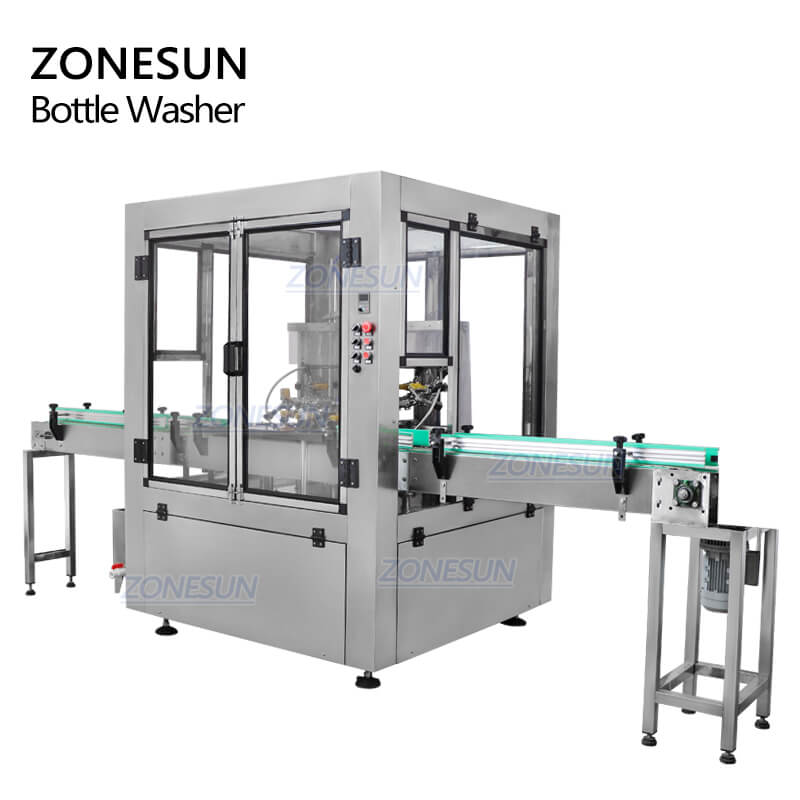

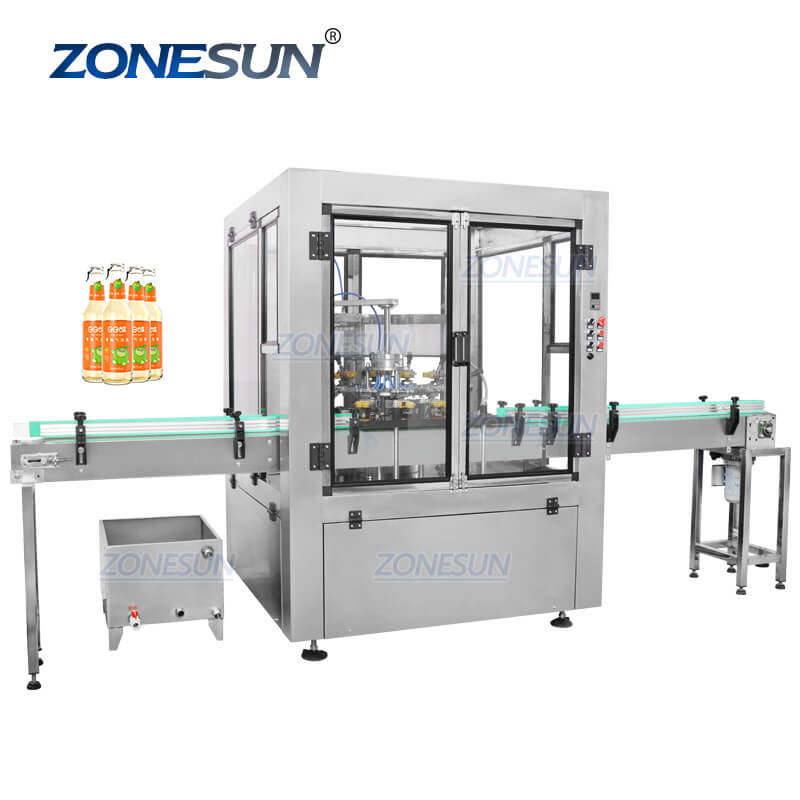

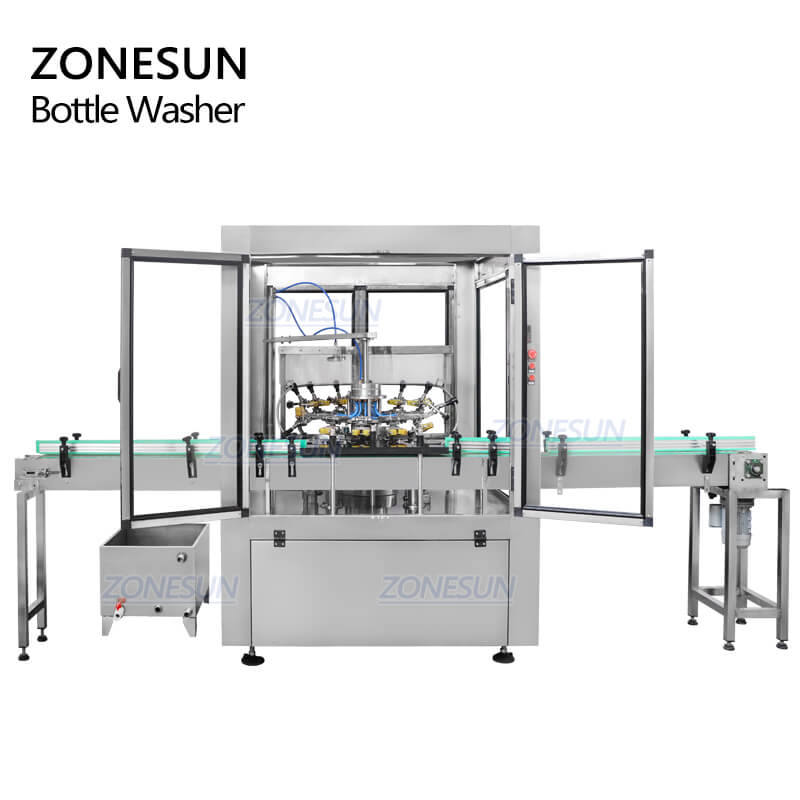

ZS-WB12 Automatic 12 Heads Rotary Milk Wine Beverage Bottle Washer Plastic Glass PET Bottle Rinsing Washing Cleaning Machine

Voltage
Price
Regular price $9,399.00 USD
Regular price Sale price $9,399.00 USD
Save $-9,399 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Click Video Link For Video

The machine can continuously and automatically complete the cleaning procedures such as feeding, overturning, washing bottle and draining water. It is one of the indispensable hosts in the filling line and the ideal flushing equipment.

Parameter

Machine model:ZS-WB12
Voltage:110/220V
Nozzle quantity:12
Conveyor size:Abou3560*100mm
Power:0.75KW
Working speed:About 2800/h
Machine size:About 3560*1400*1915mm
Package size:About 1560*1540*2130mm
Package weight:About 821kg

Automatic Bottle Washing Machine

Application of Automatic Bottle Washing Machine

Details of Automatic Bottle Washing Machine

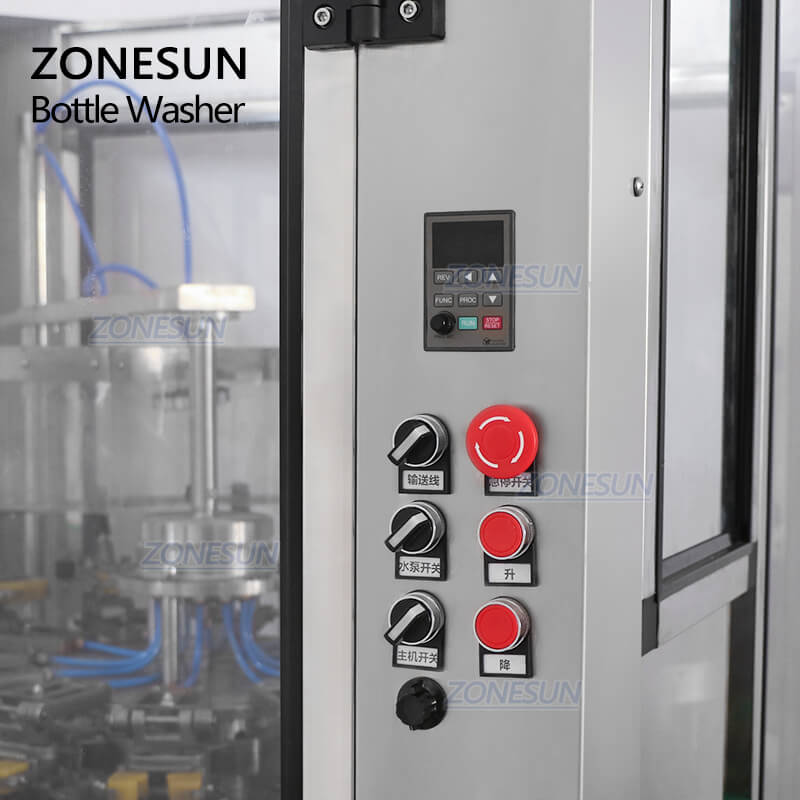

Control Panel of Automatic Bottle Washing Machine

Simple control panel,the working parameter can be adjusted easily and faster.Improve working efficiency.

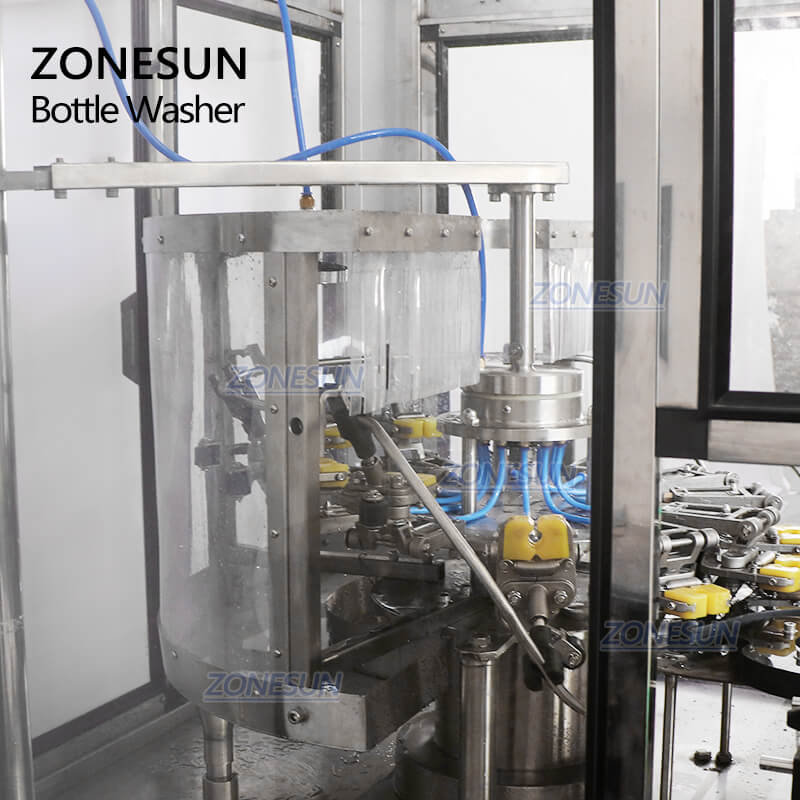

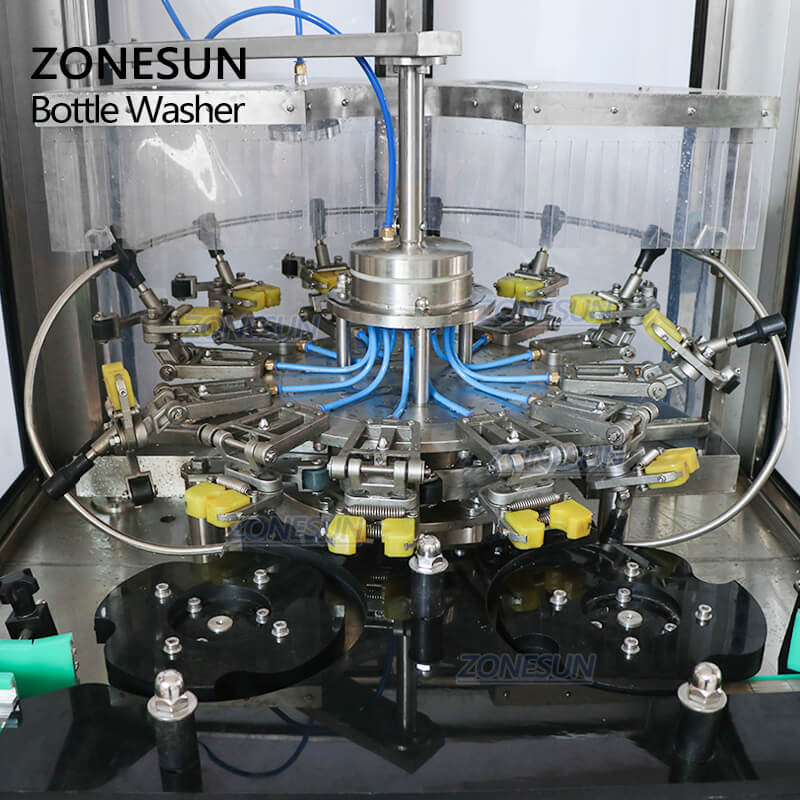

Washing Head of Automatic Bottle Washing Machine

The black rotary plate is customized according to bottle size,this can make it more accurate to clamp and place bottles,reduce production error.

Clamping Head of Automatic Bottle Washing Machine

The manipulator is made of high quality material,the clamping head is with cover which can prevent from scratching bottles during working.
Spray Head of Automatic Bottle Washing Machine
Each clamping head is designed with sprayer,it will wash bottle once the bottles is overturned and place well.The water will be ejected to bottle inside continuously until finishing washing.Improves production quality.

Conveyor Belt of Automatic Bottle Washing Machine

Designed with chain conveyor belt,this can transport bottle smoothly and stably.It can work with automatic filling machine,capping machine and labeling machine to realize automated production.

Automatic Bottle Washing Machine
