ZONESUN ZS-AFC883 3 in 1 Automatic Bottled Juice Rinsing Bottling Packaging Equipment Pure Mineral Water Bottle Filling Capping Machine
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
Machine Video

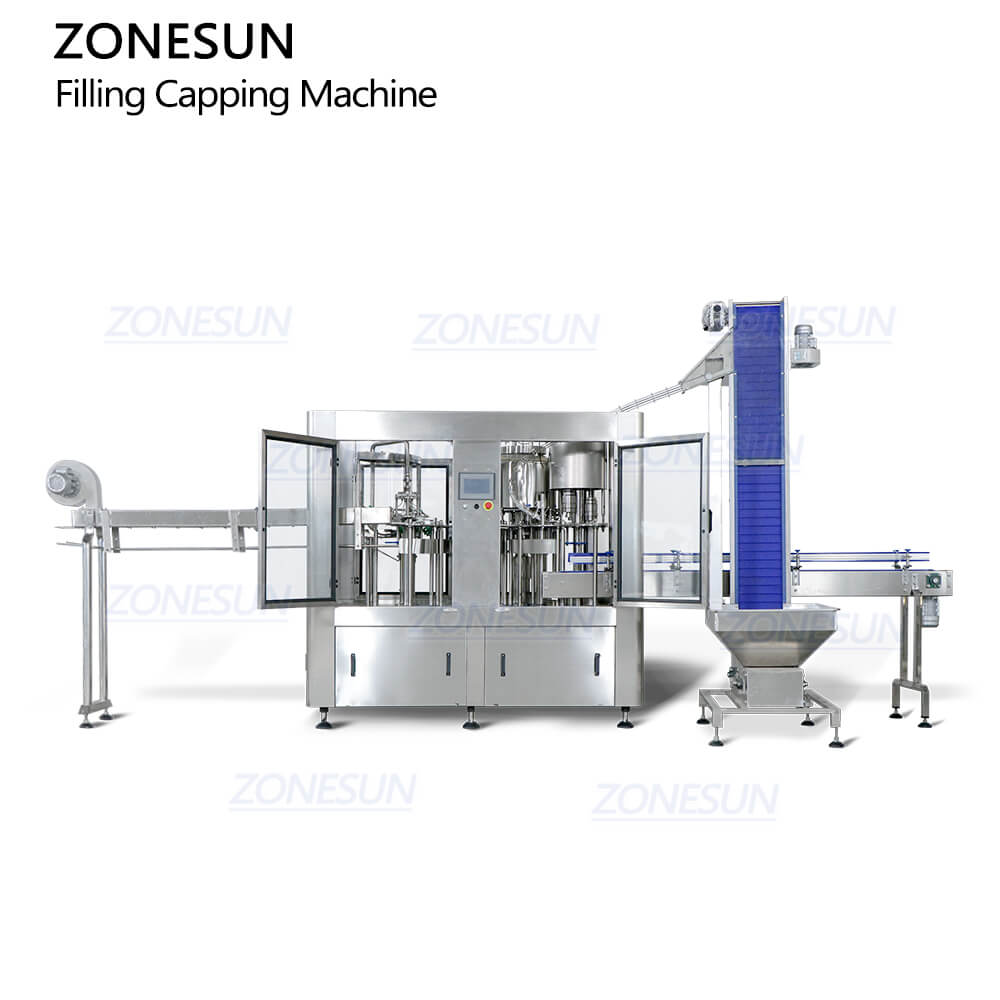

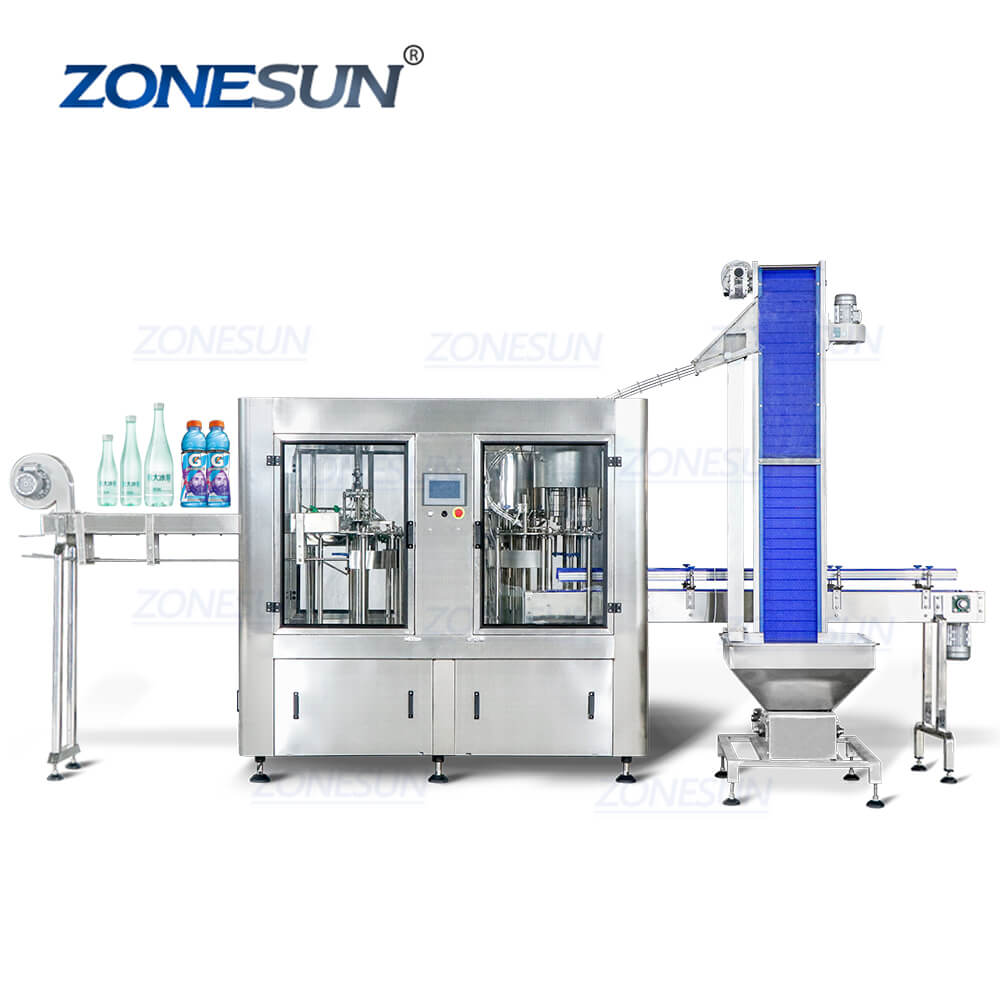

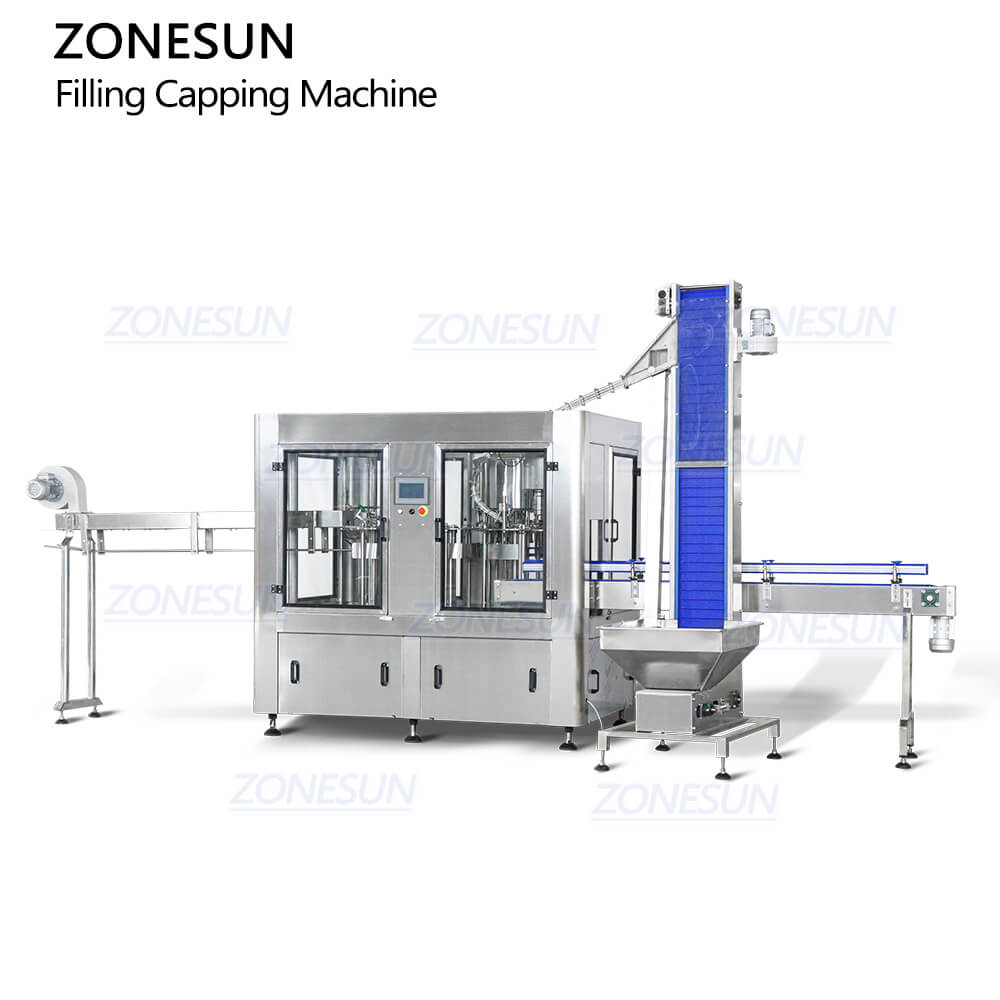

Designed for filling mineral water and juice (without fruit grain) into bottles, this machine can wash bottles, fill liquid, feed bottle caps and tighten bottles automatically.The reasonable design improves your working efficiency as well as saves your working space.
Parameter
- Machine model:ZS-AFC883
- Machine power:1.5KW
- Pressure of supply water:＞0.06MPa ≤0.2Mpa
- Working capacity:2500-3000 bottles/hour(based on 500ml)
- Suitable bottle:Plastic PET Bottles
- Bottle size:50mm≤φ≤115mm 160mm≤H≤320mm
- Machine size:About 2000*1400*2200(L*W*H)
- Machine weight:About 2000kg
Equipped with bottle clamping conveyor,it can transport bottles to the bottle washing process,reduce production error.

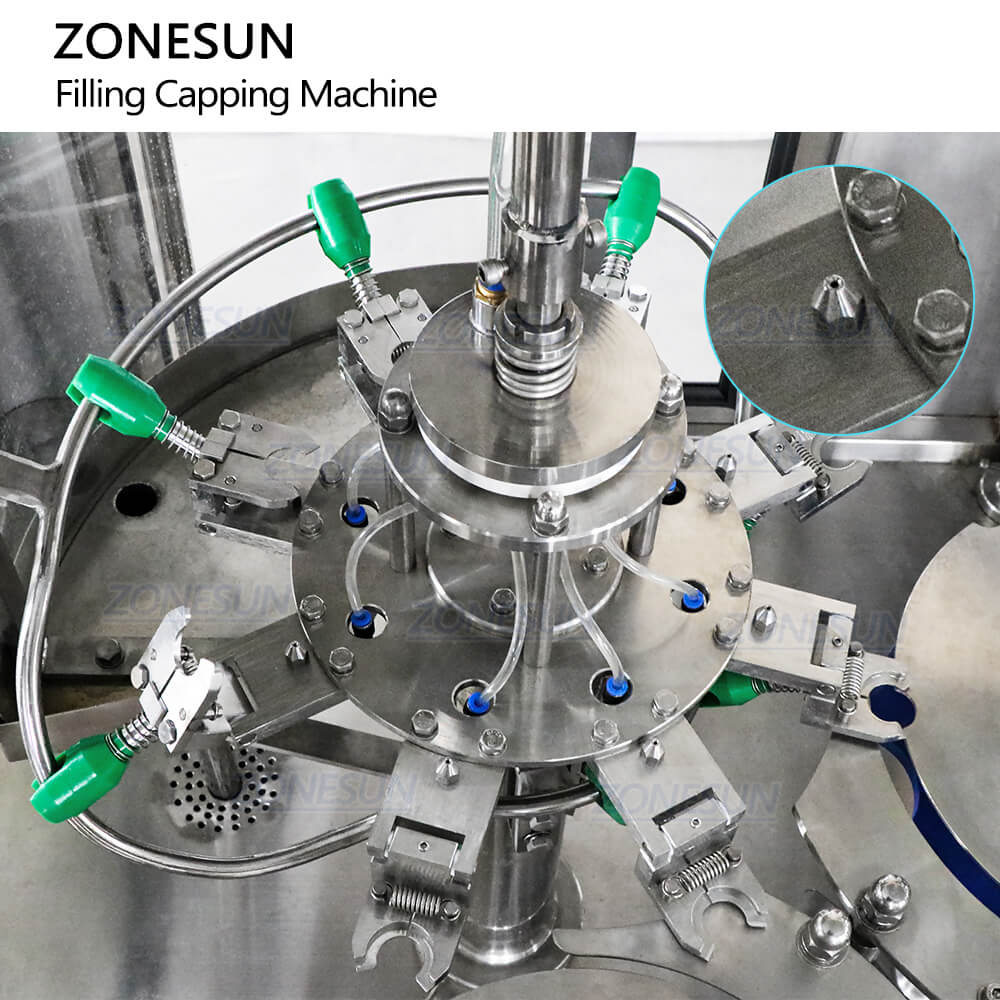

Each clamping head is designed with sprayer,the liquid will be ejected to bottle inside continuously to wash bottles once bottles are overturned and place well.Improves production quality.

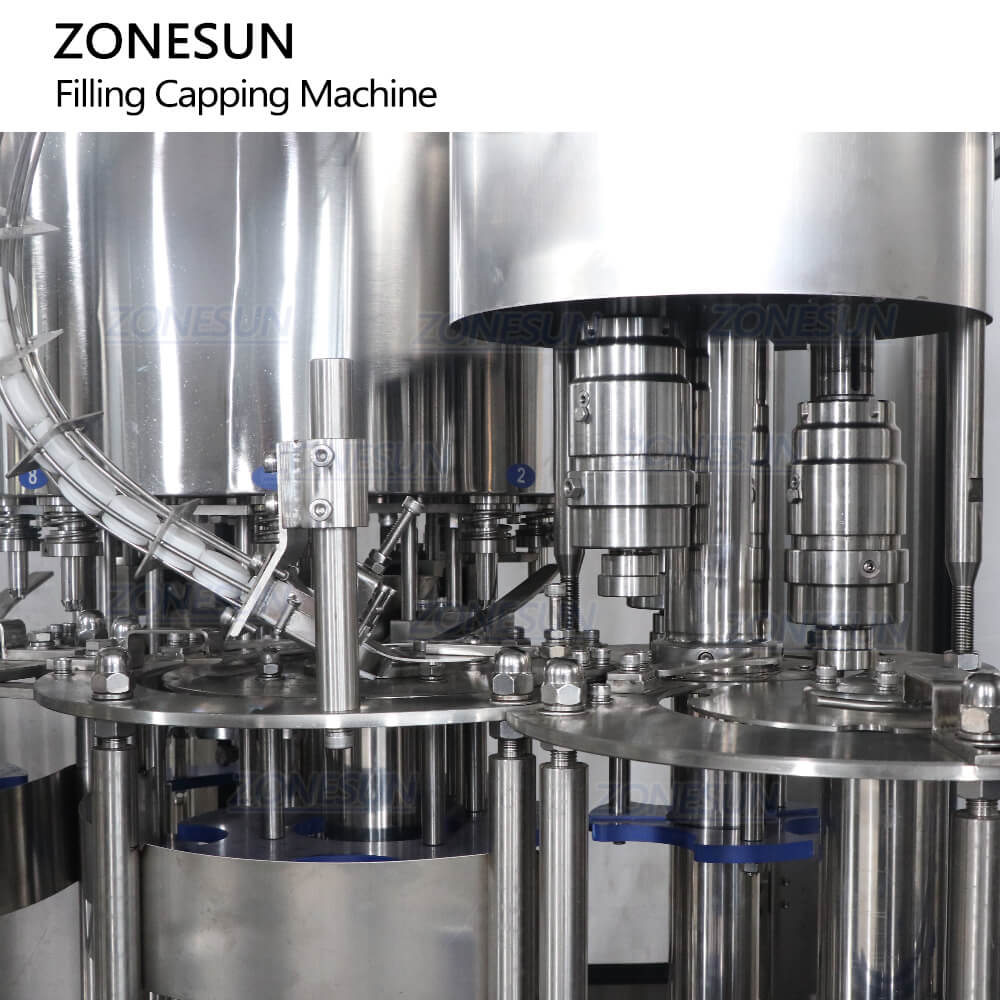

Equipped with high quality capping component,it is suitable for bottles with security ring,reduce production error.
The cap elevator helps to arrange bottle caps orderly,with this equipment,bottle caps can be fed automatically,saves production labor greatly.
