ZONESUN ZS-YT12T-12PX Automatic 12 Heads Piston Pump Sriracha Hot Sauce Salad Dressing Mayonnaise Paste Servo Motor Quantitative Filling Machine
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
Video For Sauce Filling Machine

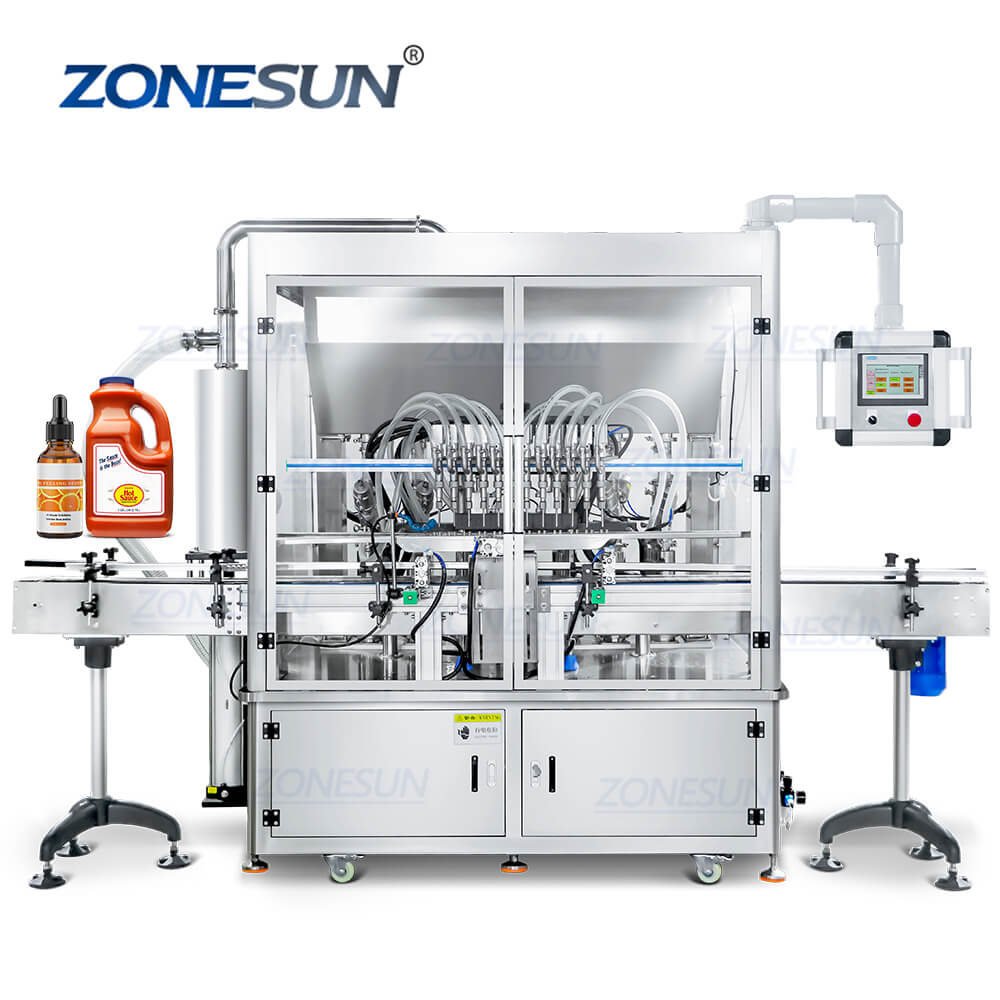

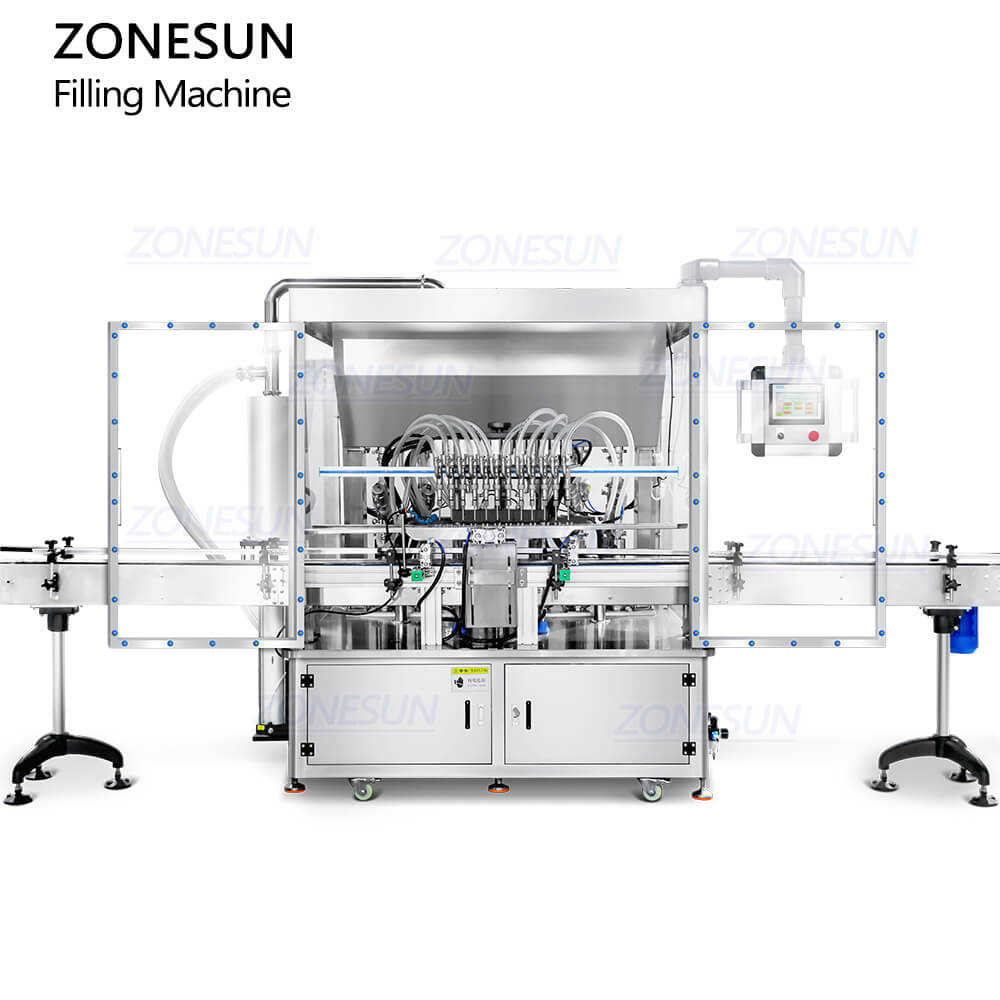

This automatic piston pump filling machine is used for filling thicker liquid or paste into containers, it is controlled by controlled servo motor, the filling accuracy will be higher and machine operation can be more convenient.Extra mixing and heating function can be realized as production need.
Parameter
- Machine Model:ZS-YT12T-12PX
- Voltage:220V/110V 50-60Hz
- Power:2kW
- Filling Heads:12 Heads(Can be customized)
- Filling Range:100-1000ml(Can be customized)
- Filling Speed:About 30-70bottles/min(depending on materials and bottle size)
- Filling Accuracy:±1%
- Air Pressure:0.5-0.8MPa
- Memory Function:Available
- Package Size:About 2240*1390*2270mm
- Package Weight:About 950kg

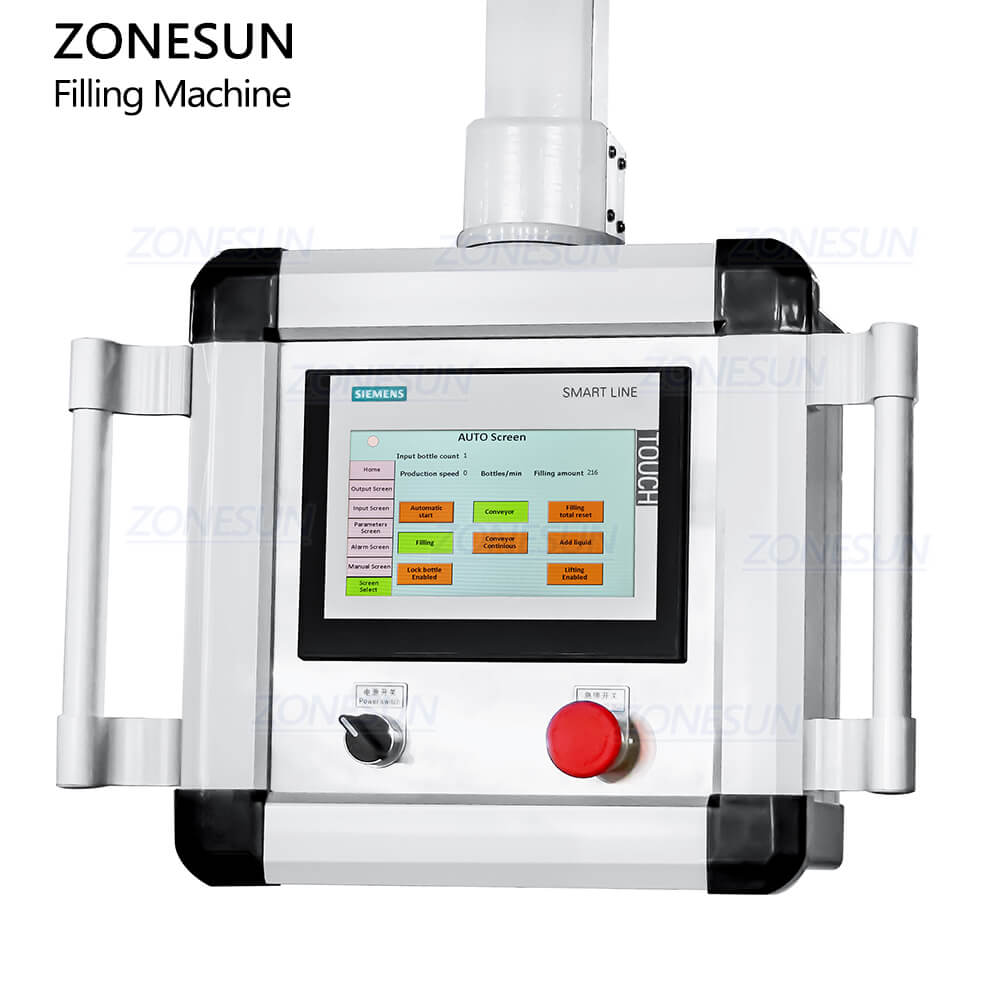

Designed with swing arm touch screen control panel, this is more convenient to watch machine working status and adjust working data.Different kinds of operation language can be adjusted as production need.

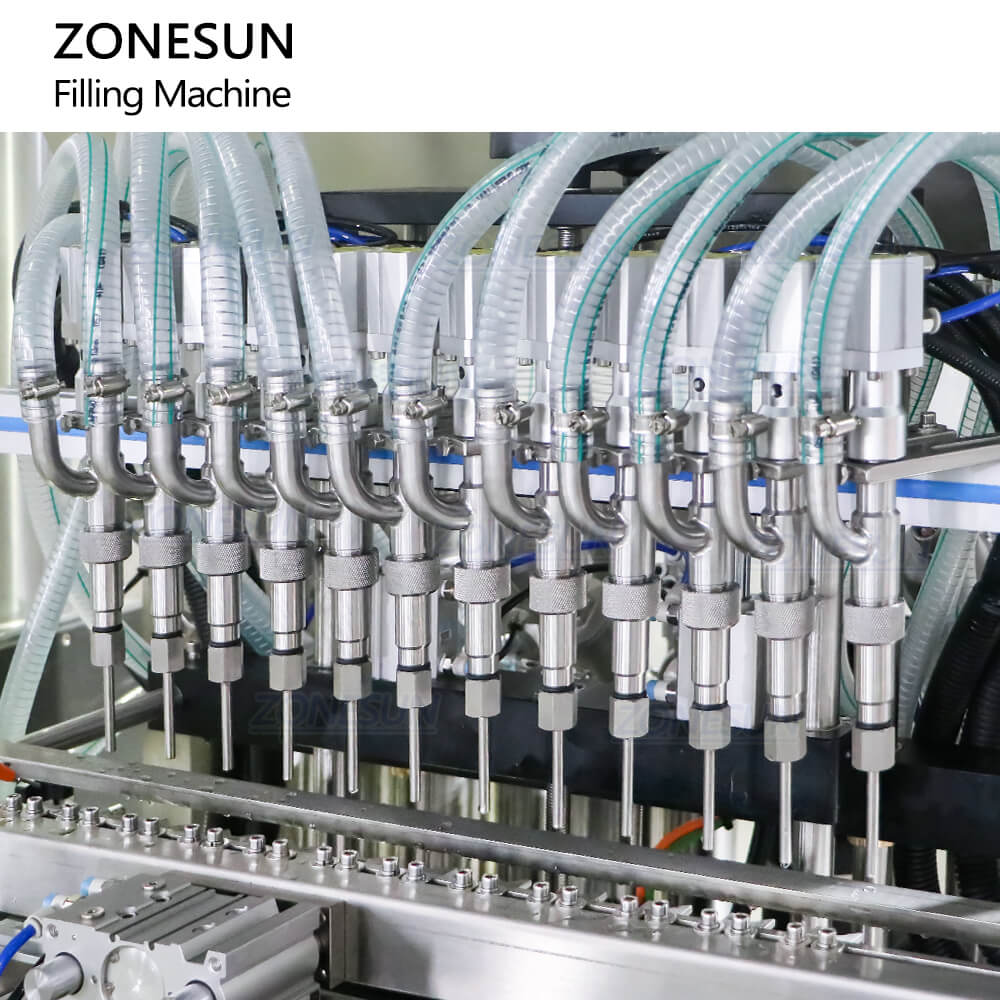

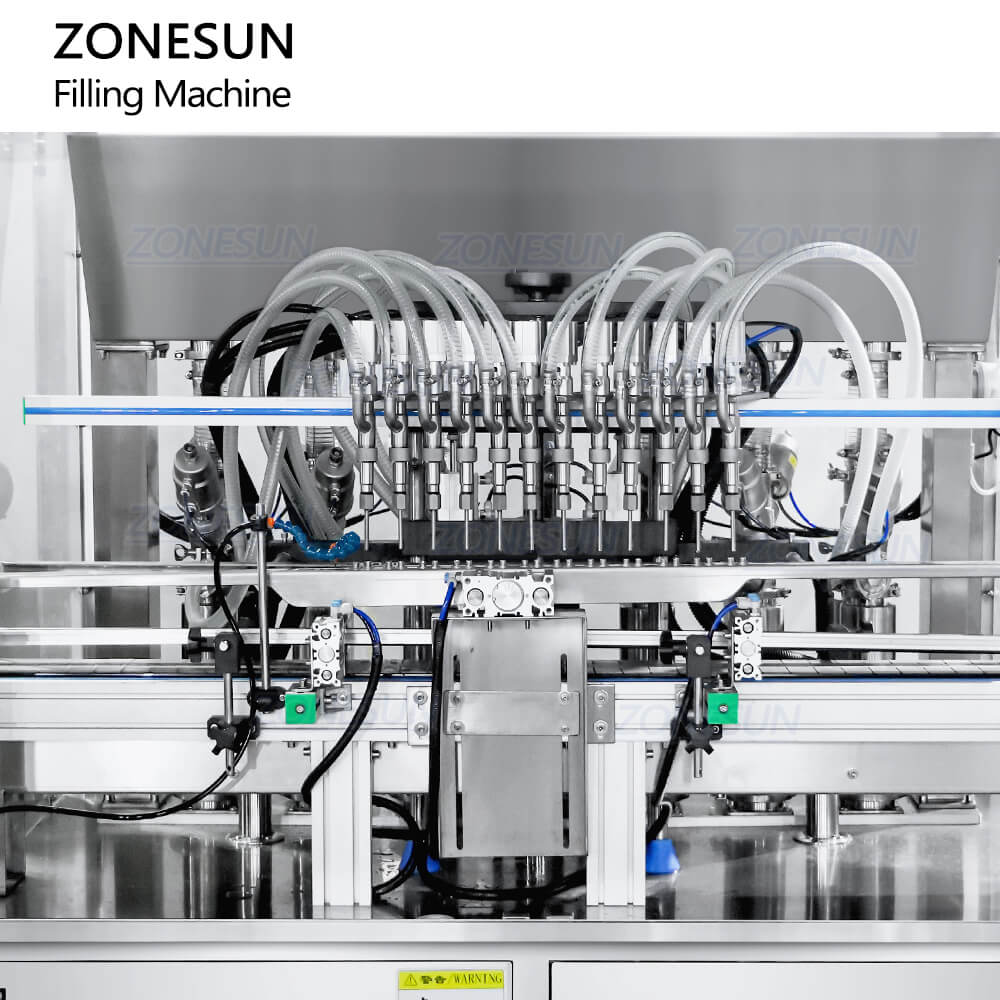

The quantity of filling nozzles can be customized according to production need.Working height of filling nozzle can be adjusted according to bottle size. It is also equipped with anti-dripping tray,which can ensure production quality

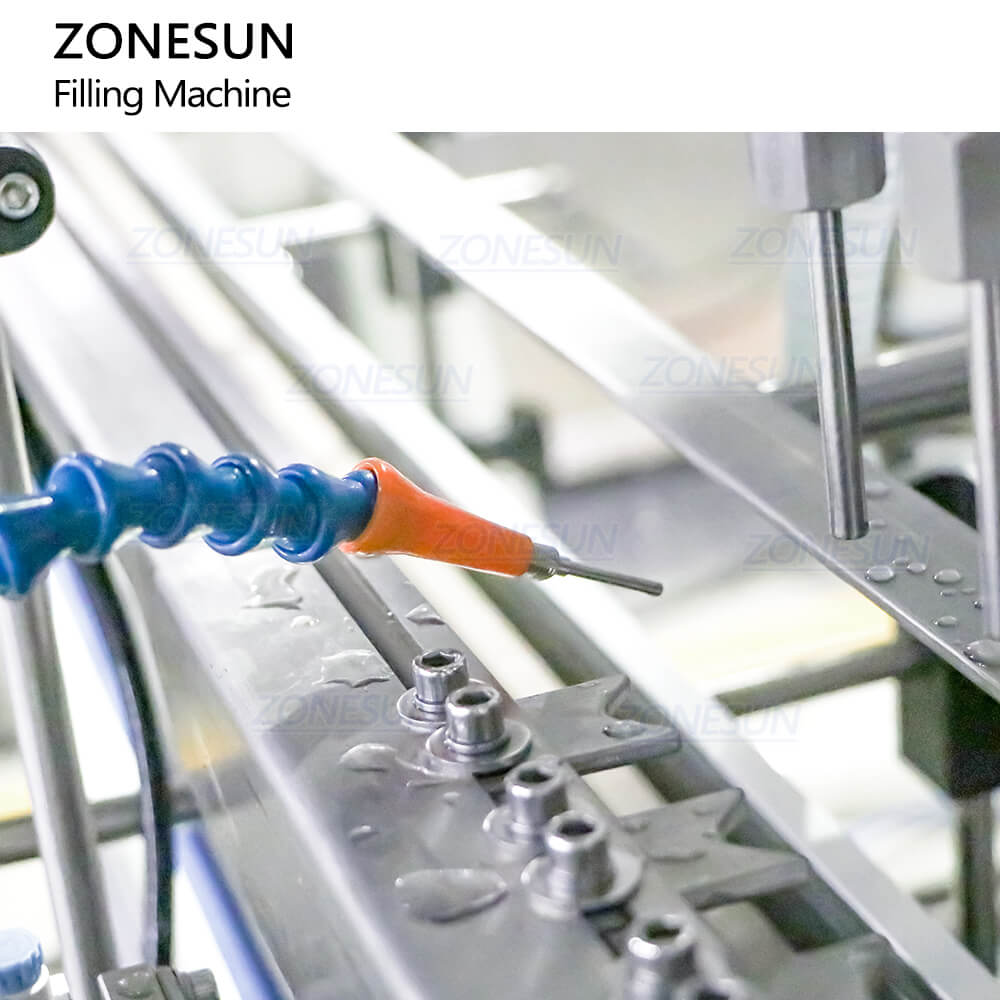

Equipped with electric eye, which can detect passing by bottles and control the machine to work automatically.
Equipped with piston feeding pump, it is powerful and can ensure filling material can be supplied in time, it saves working labor.

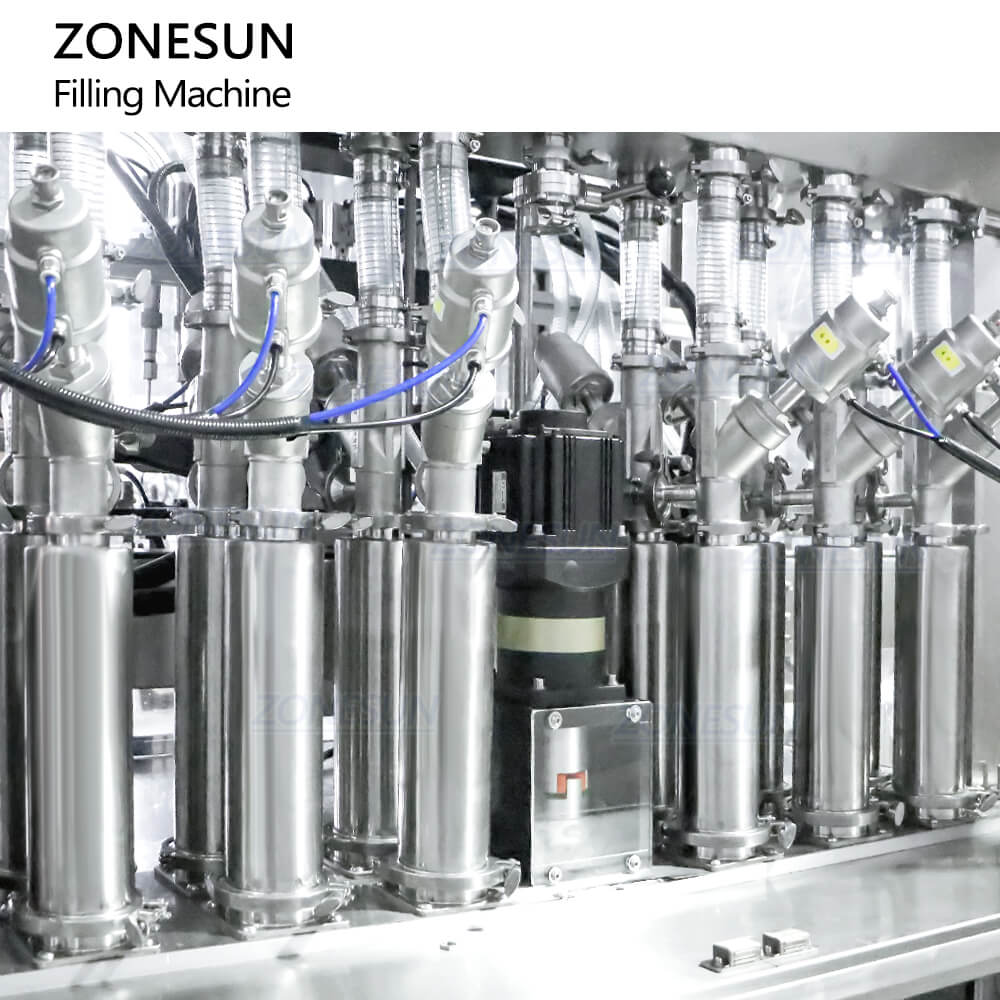

Filling work is controlled by the piston pump, the rotary valve of piston pump can be customized as needed, ensures filling material with soft grains can be filled smoothly.The servo motor makes filling work more accurately and stably.
