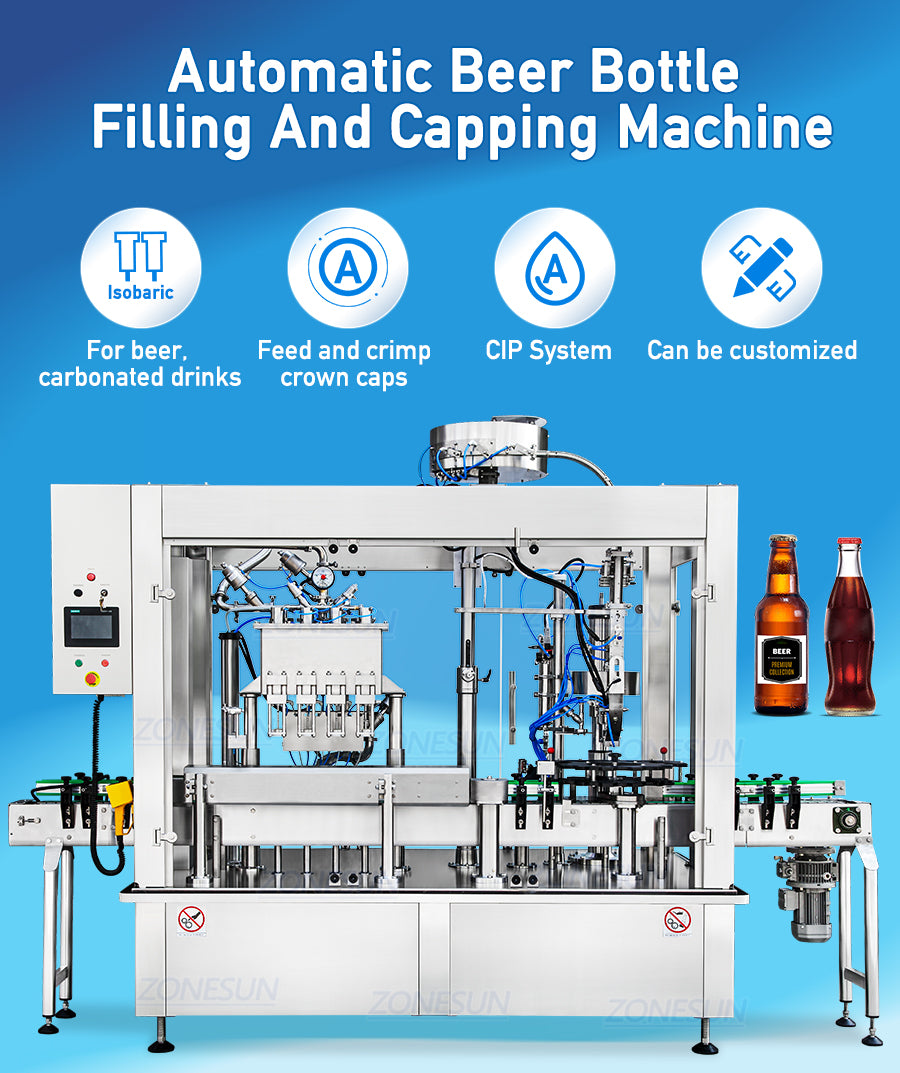

ZONESUN ZS-CFC4 Automatic 4 Heads Beer Soda Carbonated Drinks Glass Bottle Crown Caps Bottling Isobaric Filling Capping Machine

This machine has vacuum, carbon dioxide and liquid filling functions, suitable for carbonated beverages such as beer and soda water. Equipped with automatic feeding and crimping systems to achieve production automation.

Parameter

• Machine Model: ZS-CFC4

• Voltage: 220V/110V 50-60 Hz

• Power: About 5.1 kW

• Production Speed: About 800 BPH (based on 500 ml/bottle)

• Filling Range: 300 ml-1.5 L (Can be customized)

• Filling Method: Isobaric Filling

• Liquid Level Error: ±2.5 mm

• Suitable Bottle Height: 200-320 mm

• Suitable Bottle Diameter: Φ50-Φ100 mm

• Bottle Mouth Inner Diameter: The position 35 mm below the bottle mouth should be >20 mm.

• Bottle Mouth Outer Diameter: <28 mm

• Machine Size: About 2600*1400*2200 mm
