ZONESUN ZS-FAL180V5 Automatic Carton Folding Case Erecting Loading Sealing Packing Packaging Machine Line
Earn 0 points on this purchase.
Regular price
$144,999.00 USD
Regular price
$257,779.00 USD
Sale price
$144,999.00 USD
Save $112,780 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
The automatic cartoning line seamlessly integrates various packaging functions: cartoning, case erecting, case packing, and case sealing. This system ensures a fully automated process from loading products into cartons to the final sealing of the cases. With efficient stacking, precise cartoning, and quick case sealing, it helps reduce labor costs and increase overall efficiency.
Cartoning Machine Parameter
- Machine Power Supply: 220V, 50HZ, 6.5 KW
- Suitable Carton Size: 80-320 mm (L) * 30-180 mm (W) * 15-120 mm (H)
- Paper Quality Range: 300 g/m² < 350 g/m² (Best) ≤ 450 g/m²
- Other Requirements: Carton crease ≥ 0.4 mm, with pre-folding
- Cartoning Capacity: 25-35 cartons/minute
- Machine Dimensions: About 3845 * 1617 * 1478 mm
- Machine Weight: About 1200 kg
Case Erector Parameter
- Machine Power Supply: 220V, 50HZ, 1KW
- Carton Size: 280-500 mm (L) * 150-400 mm (W) * 150-400 mm (H)
- Other Requirements: Carton crease ≥ 0.4mm, with pre-folding
- Erecting Speed: 5-15 pcs/min
- Applicable Tape Width: 48 mm / 60 mm / 75 mm (optional)
- Machine Dimensions: About 2000 * 2110 * 1317 mm
- Machine Weight: About 320 kg
Case Packer Parameter
- Machine Power Supply: 220V, 50HZ, 5.4KW
- Carton Size: 80-320 mm (L) * 30-180 mm (W) * 15-120 mm (H)
- Packing Capacity: 10-20 cases/minute
- Machine Dimensions: About 2918 * 1770 * 1820 mm
- Machine Weight: About 1100 kg
Case Sealing Machine Parameter
- Machine Model: ZS-FK4050
- Machine Power Supply: 0.4 KW
- Case Size: 150-∞mm (L) * 120-400 mm (W) * 200-500 mm (H)
- Other Requirements: Case crease ≥ 0.4 mm, with pre-folding effect
- Belt Speed: 20 meters/minute
- Applicable Tape Width: 48 mm / 60 mm / 75 mm (optional)
- Machine Dimensions: About 1050 * 820 * 1140 mm
- Machine Weight: About 150 kg
Positioning Structure
Can fix packaging materials like bottles in a certain position to realize precise cartoning.
Can fix packaging materials like bottles in a certain position to realize precise cartoning.
Box Holder
Can be adjusted according to box size. Air nozzle help to pull folded box and realize automated work.
Can be adjusted according to box size. Air nozzle help to pull folded box and realize automated work.
Stacking
Precisely stacks boxes and integrate with the rest of the packaging line.
Precisely stacks boxes and integrate with the rest of the packaging line.
Carton Erecting
Robotic arms operate at high speeds, reducing errors and improving packaging quality.
Robotic arms operate at high speeds, reducing errors and improving packaging quality.

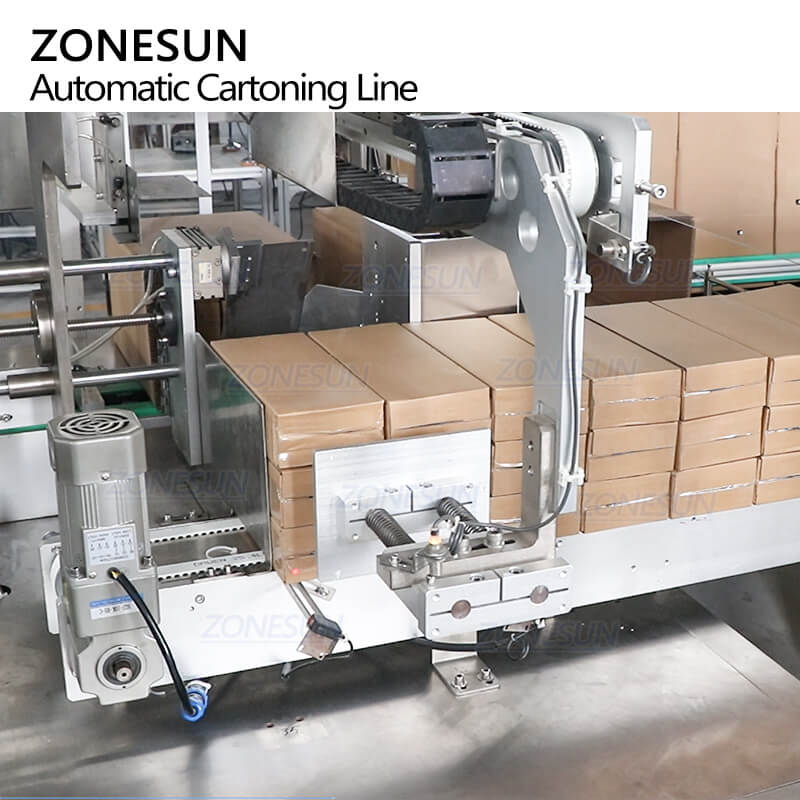

Carton Packing
Horizontally put boxes into case, it ensures accurate and gentle placement.
Horizontally put boxes into case, it ensures accurate and gentle placement.
Carton Sealing
This is customizable based on carton size & sealing type.
This is customizable based on carton size & sealing type.
