ZONESUN ZS-TB833S Automatic Cosmetic Hanging Paper Box Double Sides Corner Tamper Evident Self-adhesive Sticker Labeling Machine
Regular price
$9,399.00 USD
Regular price
Sale price
$9,399.00 USD
Save $-9,399 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

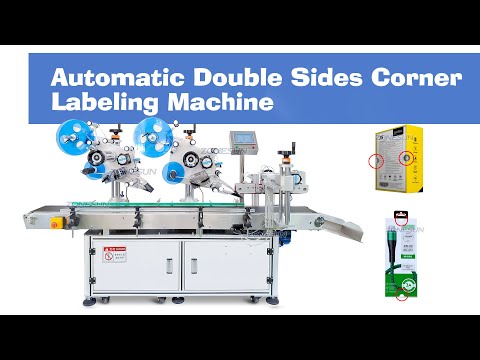

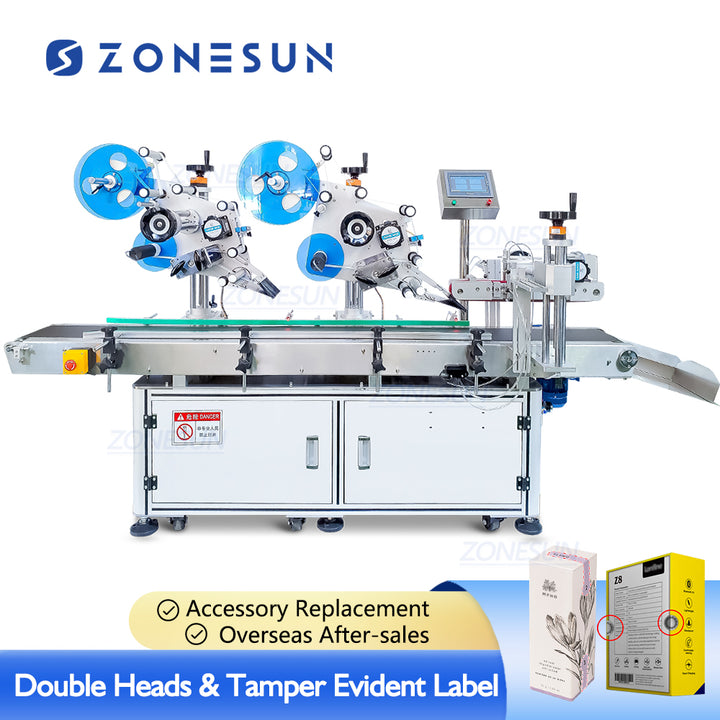

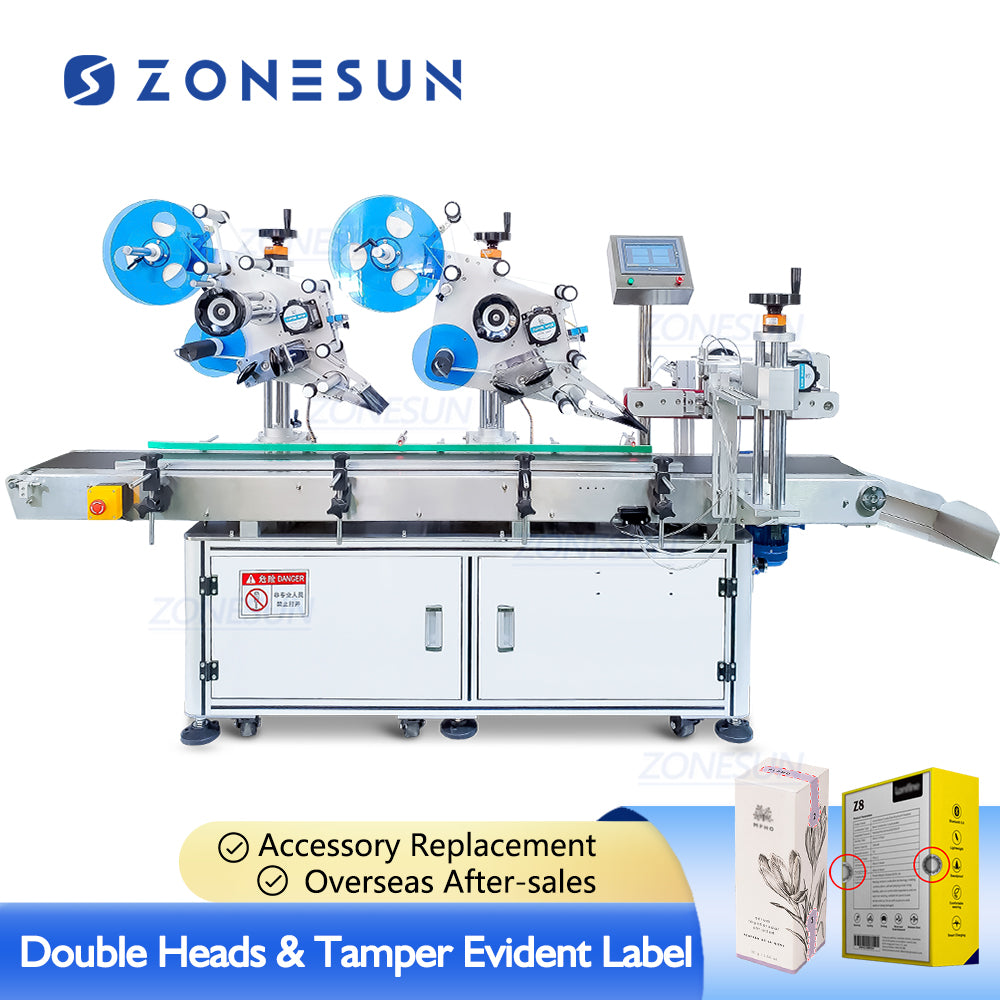

This automatic labeling machine is used for sticking tamper evident labels on the corner of products like electronics, cosmetics. It can label stickers on the double side of products (includes hanging boxes), high labeling accuracy and high working speed.
Parameter
- Machine model: ZS-TB833S
- Power supply: 220V/50HZ
- Labeling accuracy: ±1mm (excluding product and label errors);
- Labeling speed: 30-60 pieces/min(based on product and label size)
- Suitable product size: Customized
- Suitable label size: 15mm-250mm(L)*15mm-150mm(W: backing paper width)
- Machine size: About 2400mm×850mm×1500mm (L*W*H)
- Machine weight: About 330kg
The digital control panel makes working data be visual and can be customized into different kinds of operation language. The PLC control panels makes it more convenient when debugging machine and can watch the working status of the machine in real time.
With double heads labeling structure, these are used for sticking labels on the top side of products. The brush can ensure there is no bubbles under stickers.
This structure is used to fold the extra label (on the top side) of the box edge to the box side and realize the tamper evident labeling. The working height can be adjusted as production need.
The adjusting components are put together and the labeling position can be adjusted easier, this improves labeling accuracy.
The label sensor is designed for detecting labels and control the machine to separate label stickers automatically. The sensitivity of sensor can be adjusted according to the label.
