ZS-AFC9 Automatic FEA15 Monoblock Metal Aluminium Spray Bottle Perfume Filling Capping Crimping Outer Cover Cap Pressing Machine
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
Click
For Video

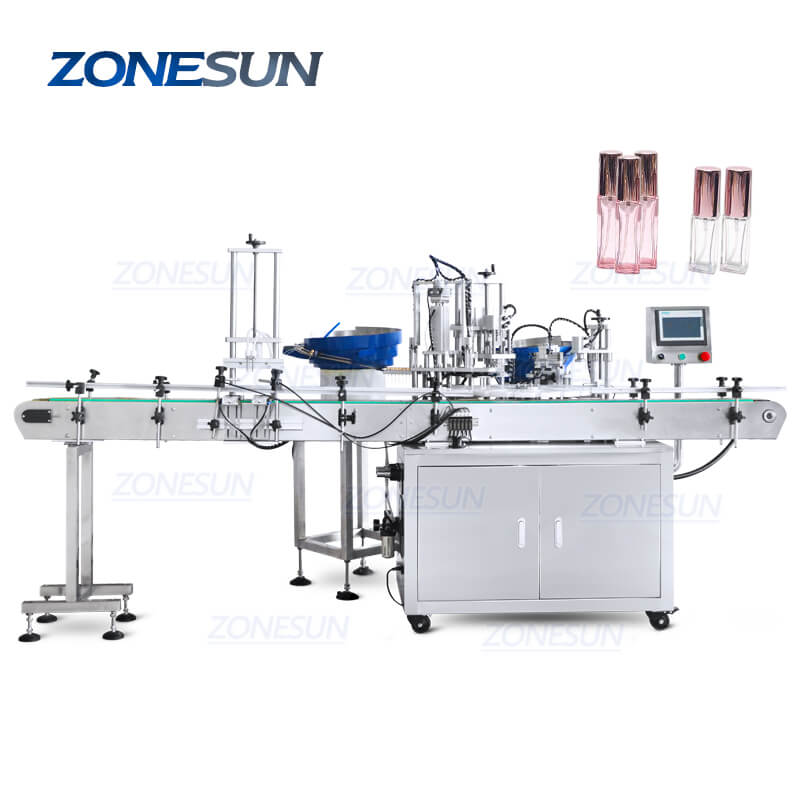

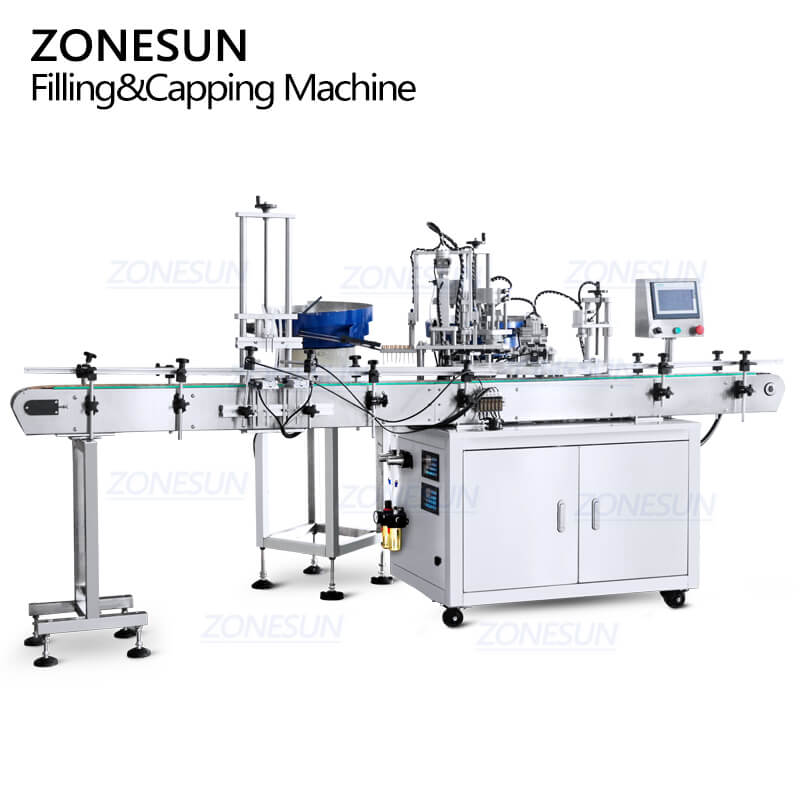

This monoblock filling capping machine can be used to fill liquid, feed caps,capping bottles and press outer cover.The reasonable design saves working space,the rotary plate can be customized according to bottle shape and size.
Parameter
Machine Model:ZS-AFC9
Voltage:220V/110V 50-60Hz
Power:2500W
Machine Pump:316 Stainless Steel Magnetic Pump
Filling Heads:2 Heads(Can be customized)
Production Capacity:About 20-30 bottles/min(depending on filling material and bottle size)
Filling Range:5-3000ml(Can be customized)
Max Flow Rate:4L/min per head(based on water)
Applicable Bottle Size:Can be customized
Applicable Bottle Cap Diameter:Can be customized
Package Size:970*510*850mm(Vibratory Bowl Sorter)
670*540*590mm(Bracket)
1760*1000*1640mm(Machine)
Package Weight:58kg(Vibratory Bowl Sorter)+65kg(Bracket)+425kg(Machine)

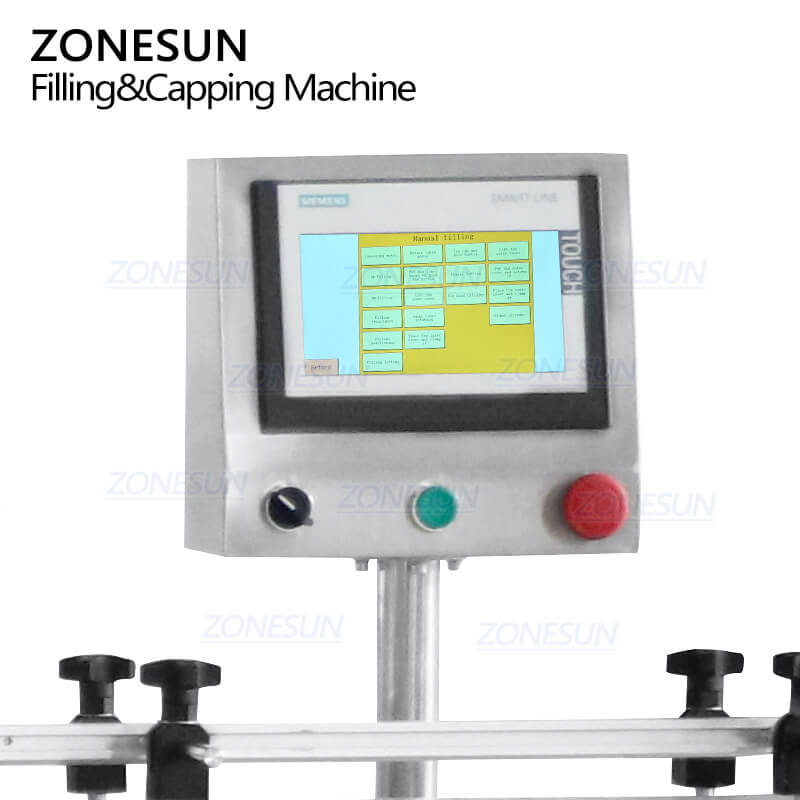

Through PLC control panel, it is easy to set or adjust working parameters. The language of panel can be customized according to customers' need.
With magnetic pumps, it can fill liquid accurately. The filling speed of two heads can be adjusted separately. Quantity of filling heads can be customized according to production need.

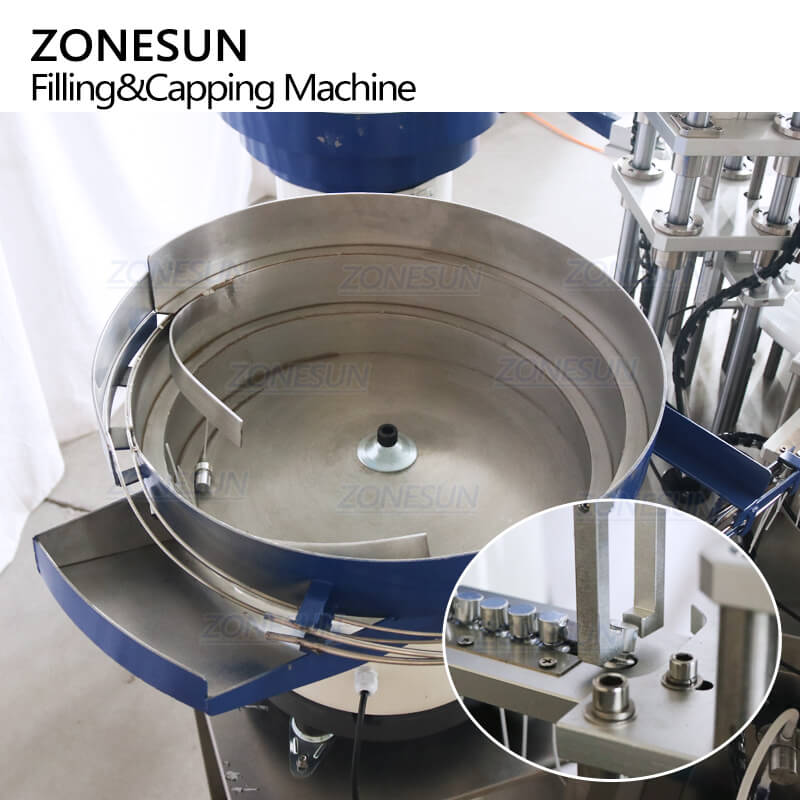

Equipped with two vibratory bowls, it can feed perfume sprayers and bottle covers automatically, saving labor cost. The bowls can be customized. With manipulator to place bottle caps, it can prevent caps from being scratched.

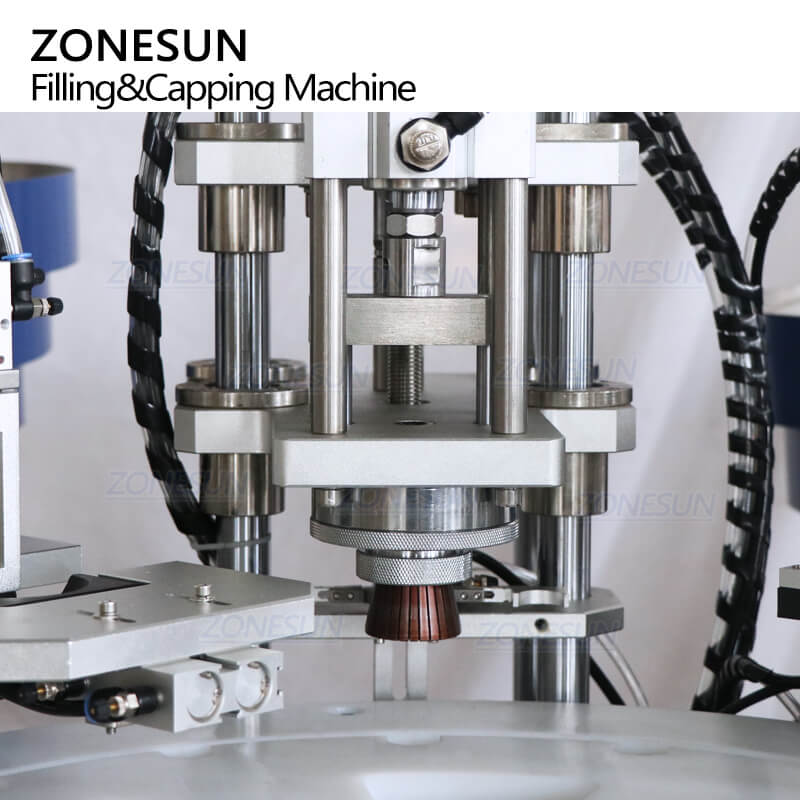

It is designed for crimping perfume sprayers. The crimping head can be changed as needed. It can also be customized according to perfume sprayer size.

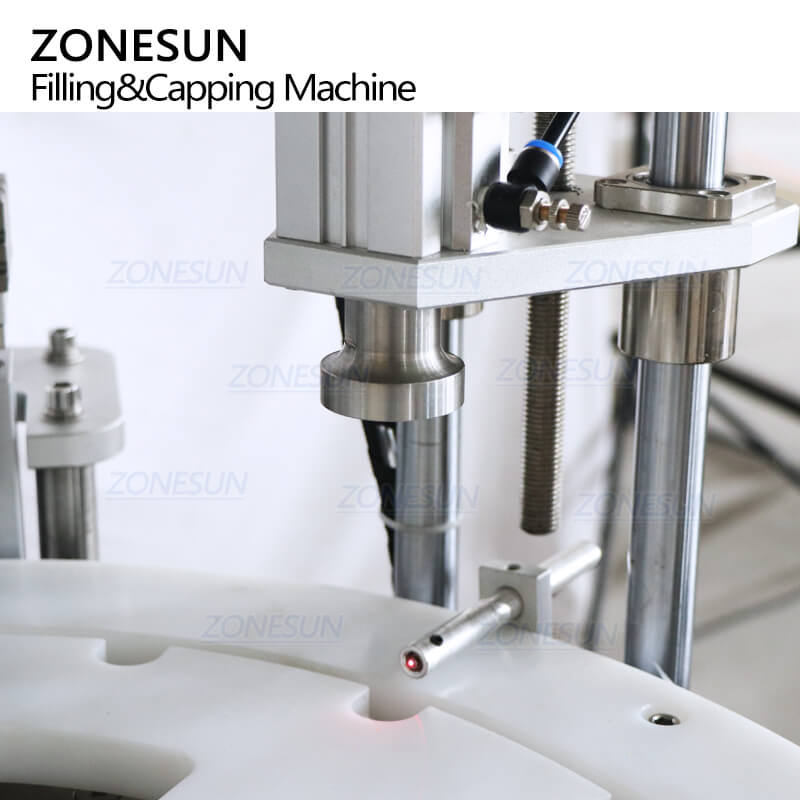

It is designed for pressing bottle covers. The size of cap pressing component can be customized according to your bottle cap size.

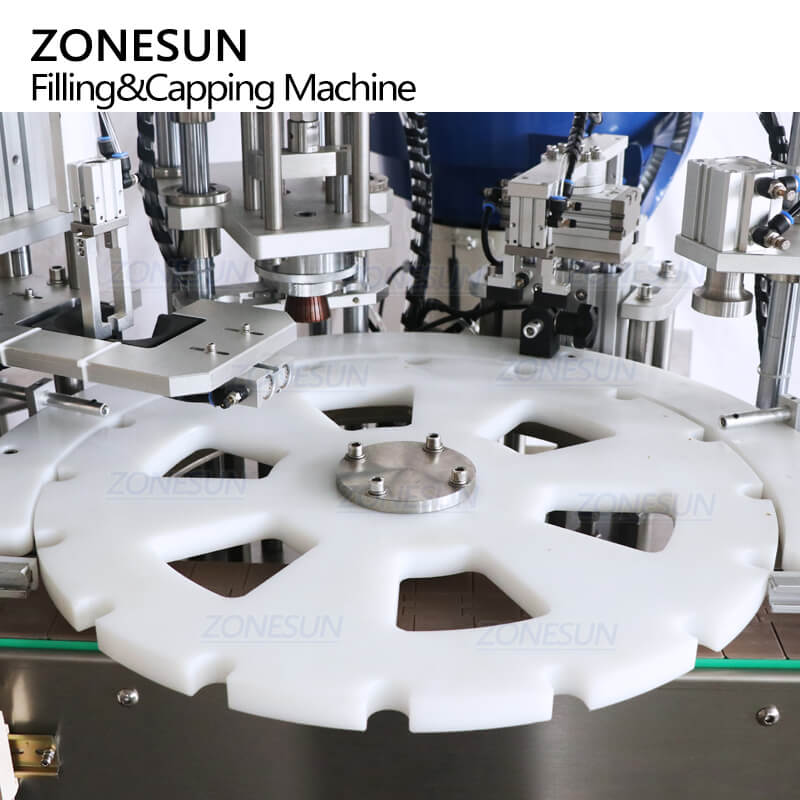

The rotary plate is designed for conveying and fixing bottles during production, preventing bottles from falling down. It can be customized according to bottle size.
