ZONESUN ZS-DTYT2 Automatic Piston Pump Olive Oil Kale Juice Soy Sauce Bottle Liquid Filling Machine
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
Description
This desktop filling machine is equipped with a piston pump, which is suitable for filling liquids. Multiple filling nozzles can be customized according to production needs. This machine is widely used in food, beverage, and pharmaceutical industries.
Parameter
- Machine Model: ZS-DTYT2
- Voltage: 220V/110V 50-60Hz
- Power: 130W
- Filling Range: 10-100/10-200/30-300/50-500/100-1000/50-2500/1000-500 0ml
- Filling Speed: About 20 bottles/min(based on 450 ml water)
- Applicable Bottle Diameter: About 53-100mm
- Filling Accuracy: ≤±1%
- Conveyor Belt Size: 1020*140 mm(L*W)
- Machine Size: 1020*1160*870 mm(L*W*H)
*Specifications are for reference only and may vary by your product. Please confirm with us if required

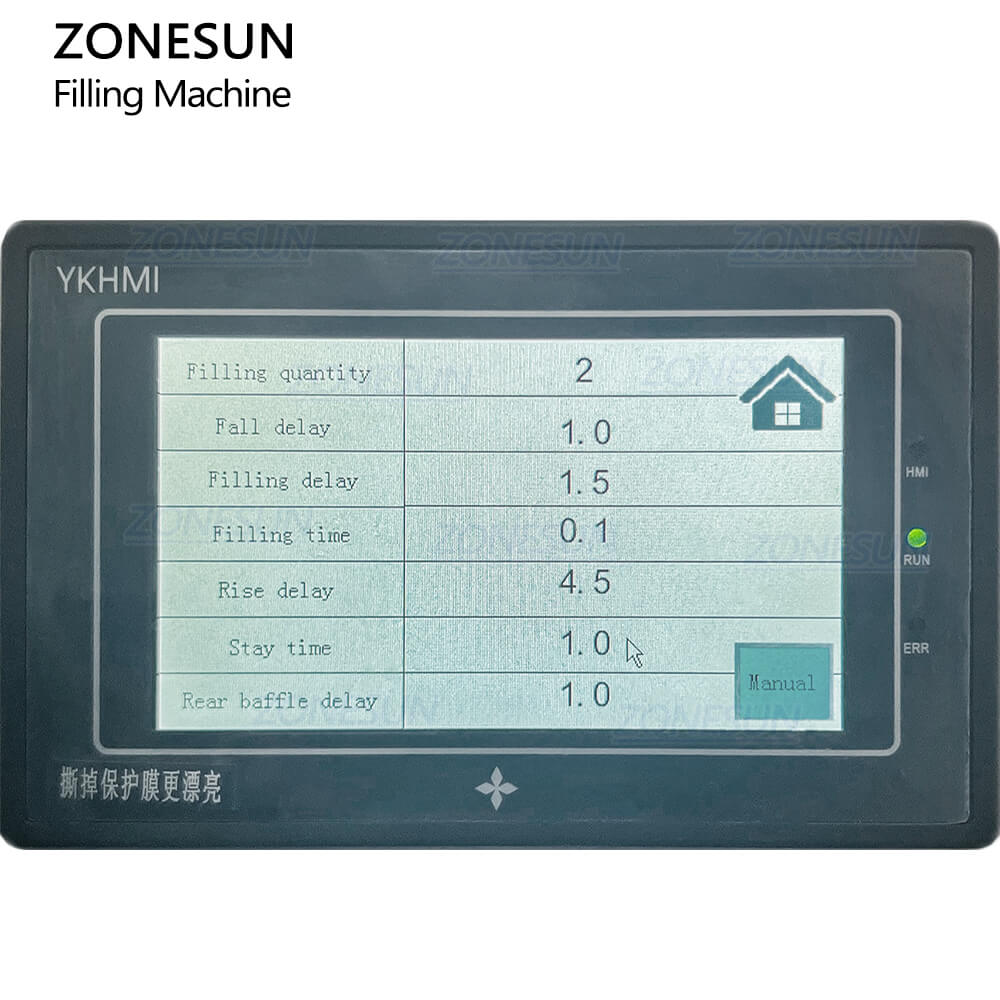

With touch screen panel,it is easy to set or adjust working parameters. The language of panel can be customized as your need.

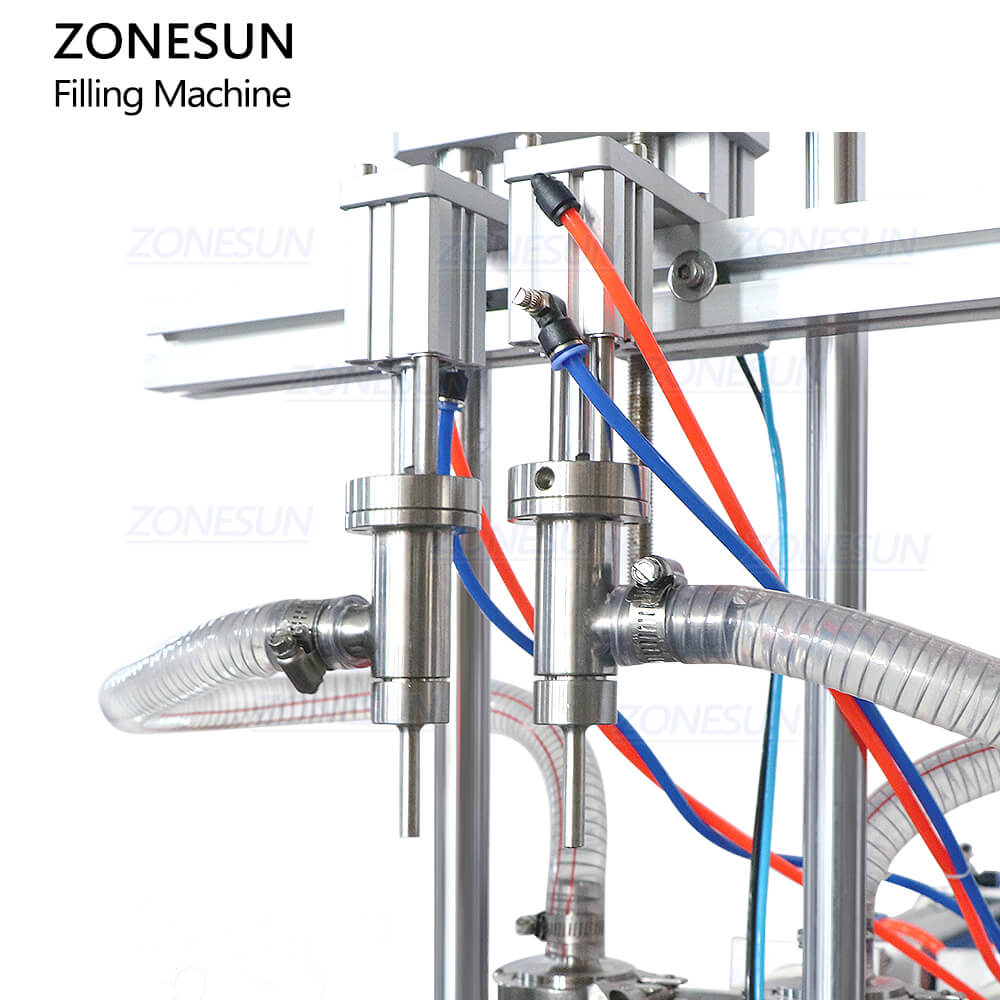

Equipped with pneumatic heads,it can fill thicker liquid like laundry detergent, shampoo. Filling speed of two heads can be controlled separately. The working height can be adjusted according to bottles.
Through rotating the knobs, you can adjust the filling speed and interval time of two heads separately. Easy to operate.

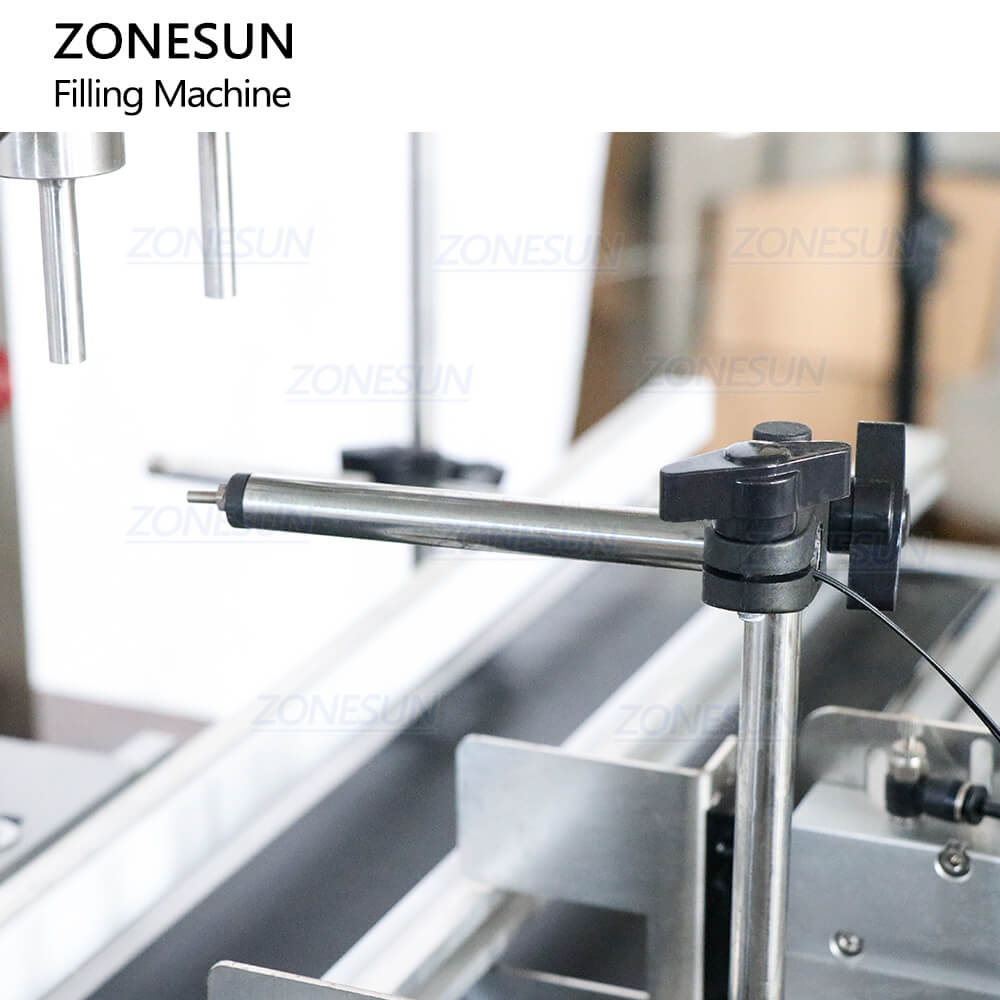

The electric eye is designed for detecting bottles and controlling machine to fill paste automatically. Its sensitivity can be adjusted according to production need.

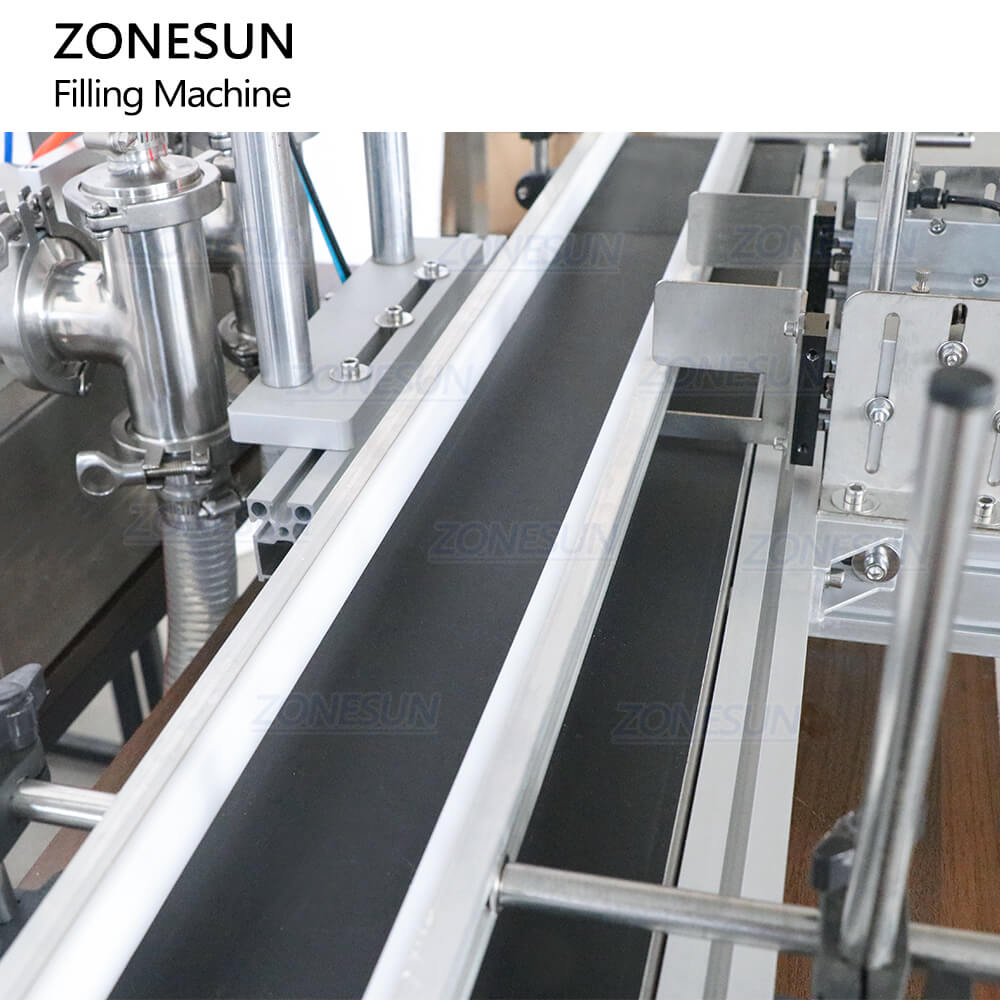

With high-quality conveyor belt, it can transport bottles steadily.The width of conveyor belt and conveying speed can be adjusted according to production need.
