ZONESUN ZS-GFKL520 Automatic Servo System Potato Chips Snacks Roll Film Sachet Nitrogen Filling Sealing Packaging Machine With Date Printer

This sachet packaging machine is used for packaging small chips products into bags like corn chips, rice chips.It regularly work with feeding machine to realize automated production. Different kinds of sealing type (back side sealing,three sides sealing, four sides sealing) can be customized as production need.

Parameter

• Machine model: ZS-GFKL520

• Machine voltage: 110/220V 50-60HZ 2.2KW

• Sealing type: Back side sealing(can be customized)

• Additional function: Nitrogen filling, hanging hole punching, coding

• Suitable package film: OPP/CPP, OPP/CE,MST/PE, PET/PE

• Working capacity: 5-60BPM

• Package film thickness: 0.04-0.08mm

• Package film width: 140-420mm

• Bag making size: 80-300mm*60-200mm(L*W)

• Air pressure: 0.65MPa

• Air comsumption: 0.4m³/min

• Machine size: About 1040*1400*1675mm(L*W*H)

• Package size: About 1400*1170*1480mm(L*W*H)

• Package weight: About 406kg

PLC Control Panel
Shows parameter setting intuitively, more convenient to debug and operate machine.

Filling Hopper
Size can be customized based on production need. Usually work with feeding machine to realize automated material supply.

Bag Forming & Nitrogen Filling
Back side, three sides, and four sides sealing can be customized. It can fill nitrogen to ensure packaging quality.

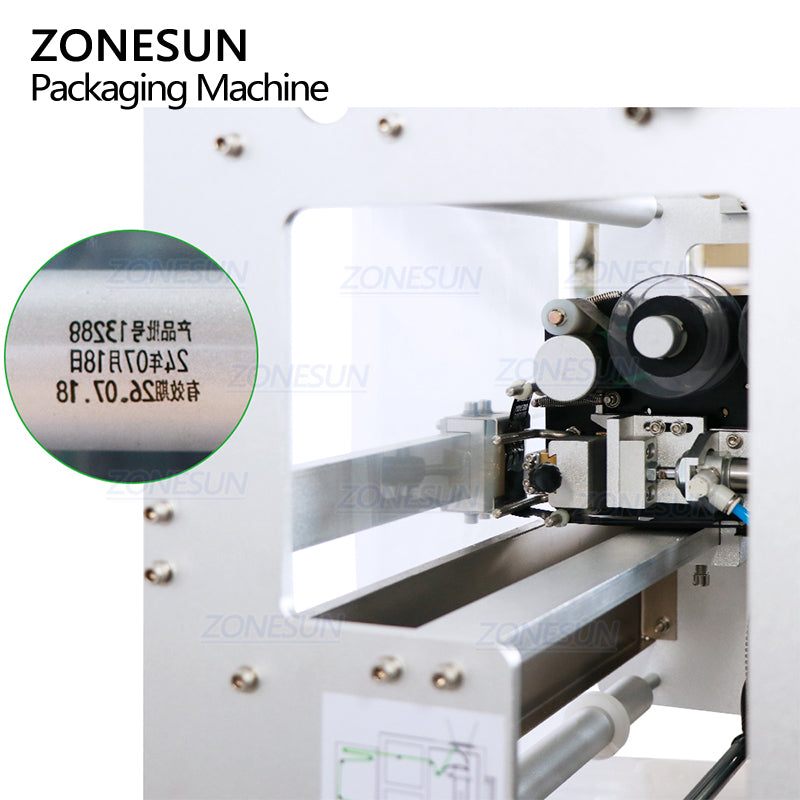

Ribbon Date Coder
Production date and batch number can be coded at the same time. Multi lines information can be coded.

Sealing Cutting & Hole Punching
Sealing temperature can be adjusted easily. Hole punching function can be customized
