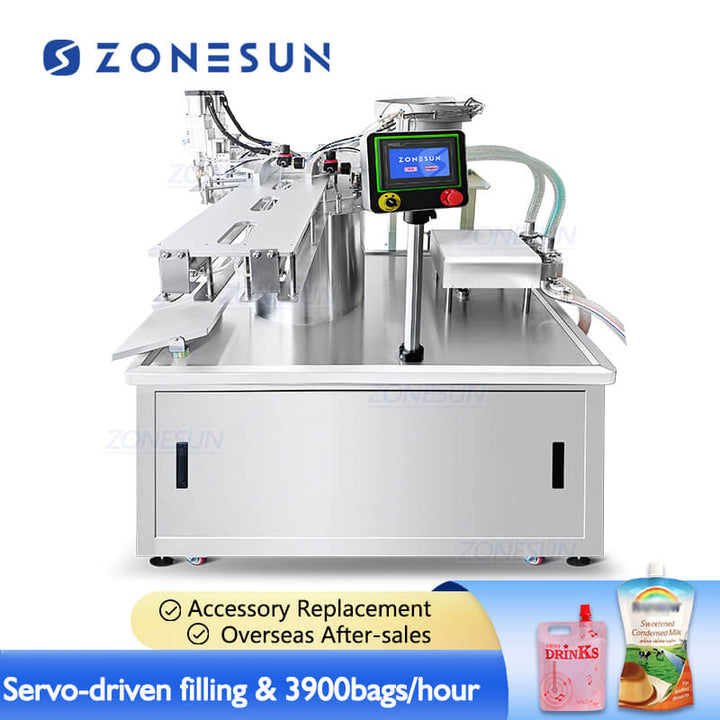

ZONESUN ZS-ZLFC2 Automatic Servo Gear Pump Quantitative Filling Juice Spout Pouch Filling Capping Machine
Earn 0 points on this purchase.
Regular price
$11,999.00 USD
Regular price
$14,500.00 USD
Sale price
$11,999.00 USD
Save $2,501 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

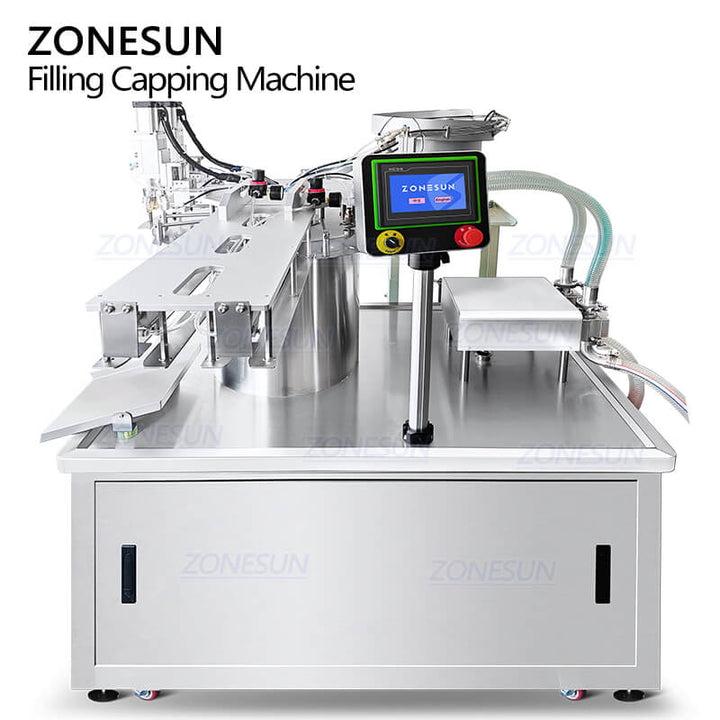

This stand-up pouch filling and capping machine is engineered for high-speed, stable performance. Each filling nozzle is individually driven by a servo motor, ensuring precise and consistent filling accuracy. Designed with ease of maintenance in mind, the gear pump, storage tank, and filling head feature clamp-style connections for quick, tool-free disassembly and cleaning. An automatic cleaning function is available via the main control screen, simplifying routine maintenance and maximizing production efficiency.
Parameter
- Model: ZS-ZLFC2
- Power supply: 220V/50HZ
- Air consumption: 1.5m³/min
- Noise: <85dB
- Speed: 10-65 bags/min (depending on the material)
- Accuracy: ±5%
- Dimensions: 1.2m*1.2m*1.5m
- Weight: About 268 kg

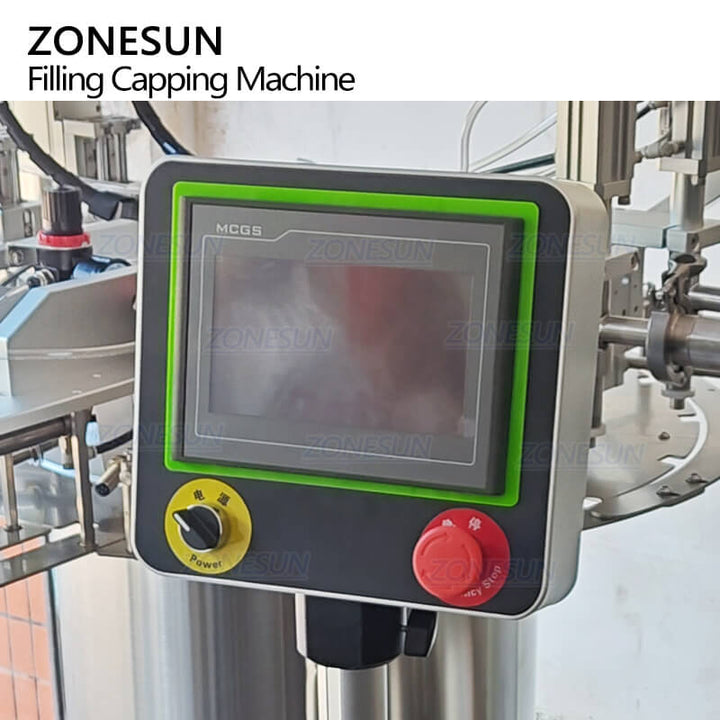

Control Panel
Simple touch screen operation. Adjust filling, capping, and timing easily. Clear interface with real-time status and error alerts.

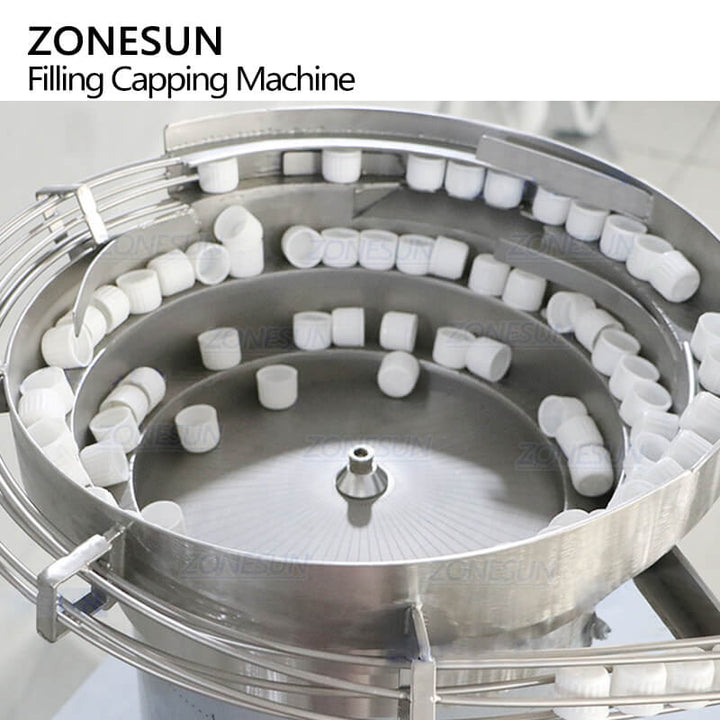

Vibratory Bowl Sorter
Automatically sorts and orients small parts using vibration, ensuring consistent positioning for efficient processing.
Capping Head
Automatically applies and tightens caps to bottles or containers, ensuring a secure seal for efficient packaging.
Automatically applies and tightens caps to bottles or containers, ensuring a secure seal for efficient packaging.

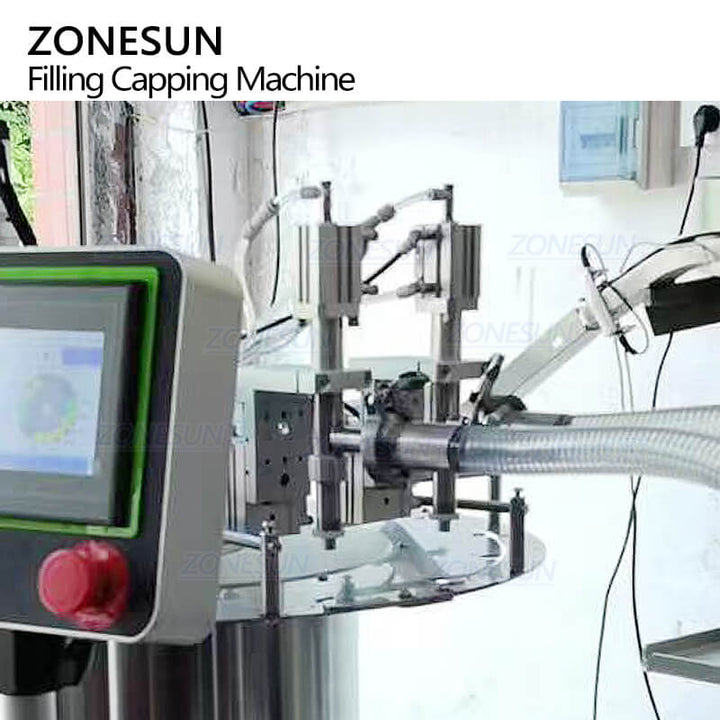

Filling Nozzles
Equipped with gear pumps and dual-head servo control, these nozzles ensure precise and efficient filling of liquids and pastes, offering high accuracy and consistency.

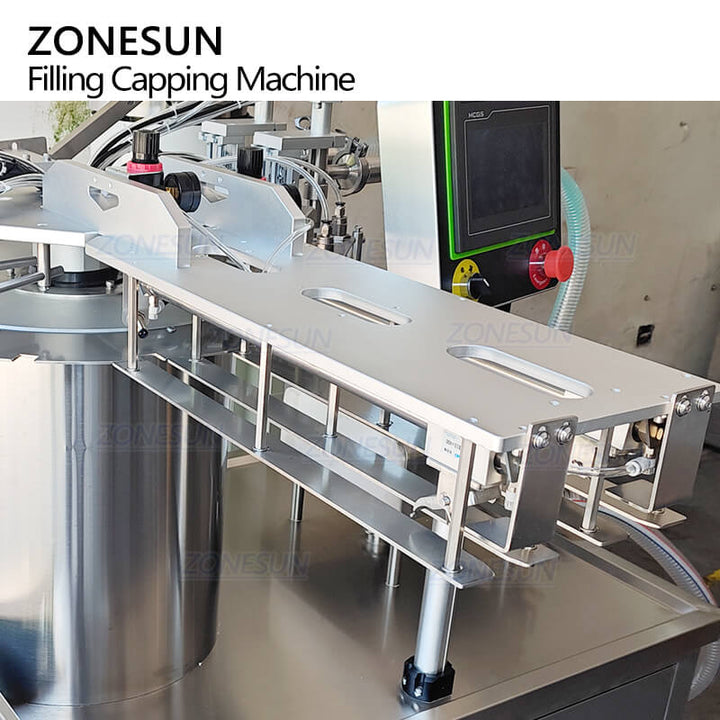

Bag Feeding Structure
Automatic bag feeding increases work speed and reduces errors.
