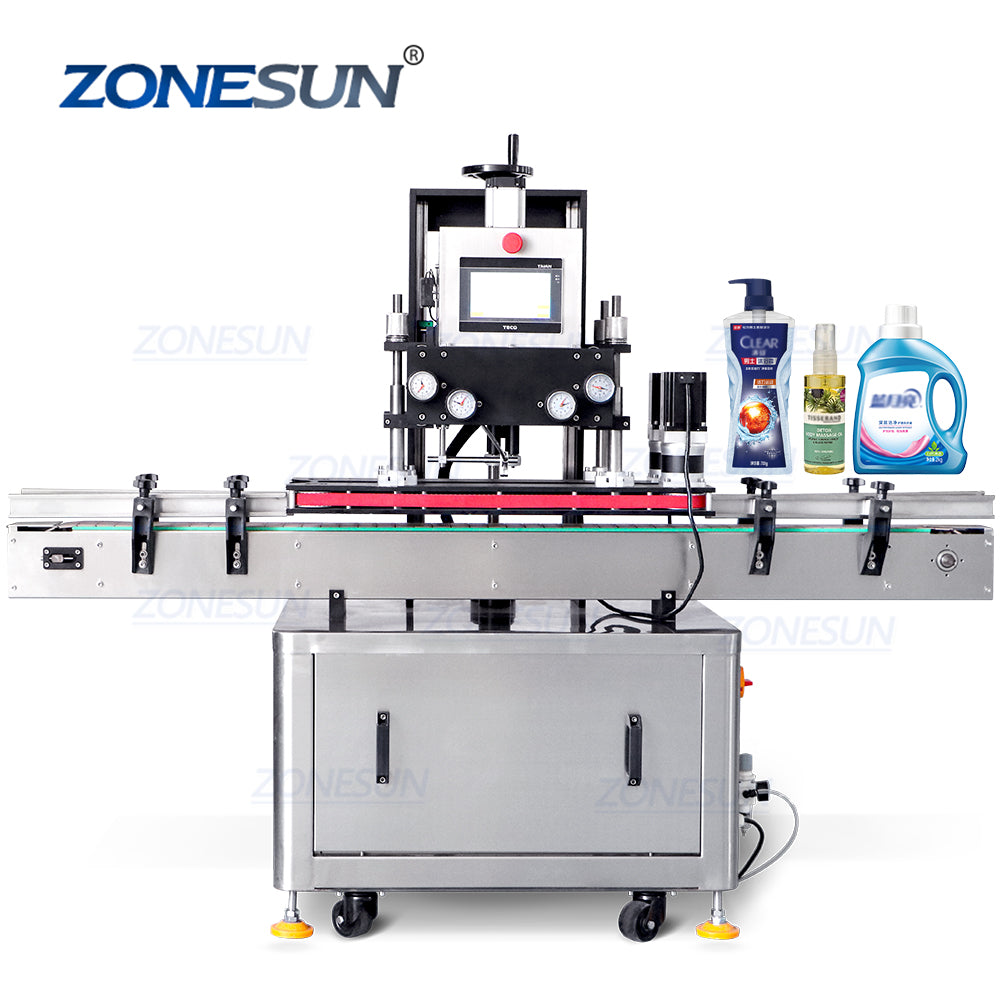

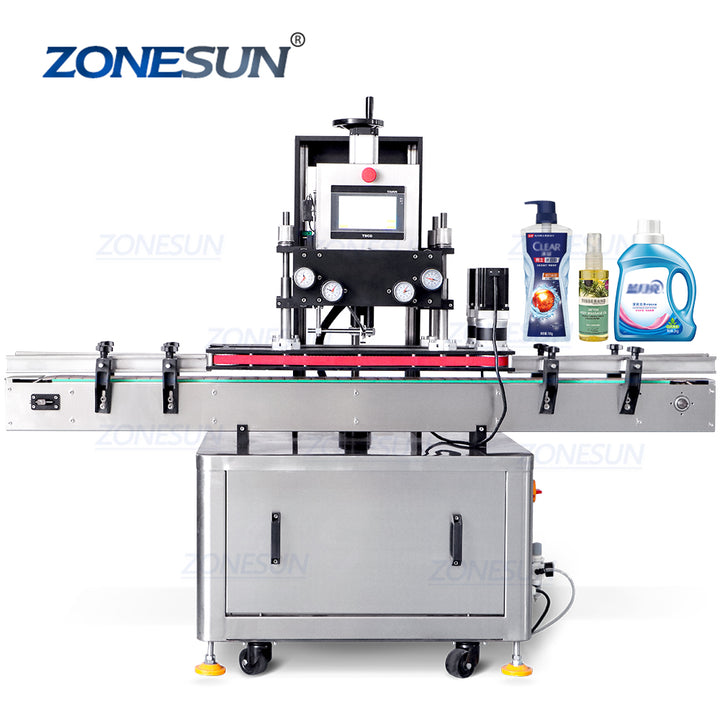

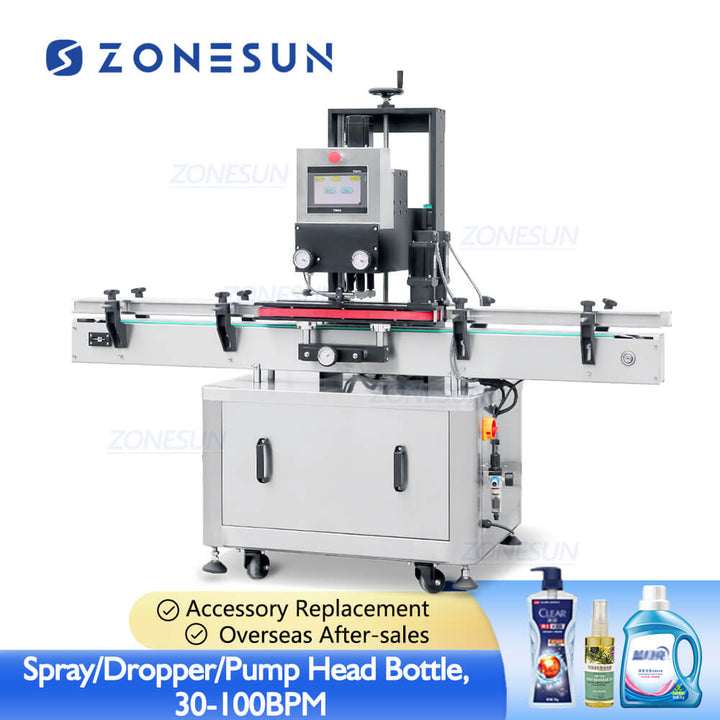

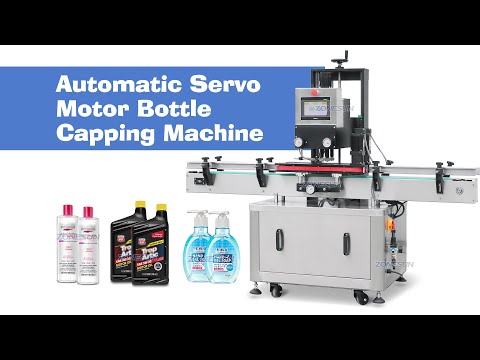

ZS-XG440S Automatic Servo Motor Pump Head Spray Bottle Cap Screwing Capping Machine For Shampoo Essential Oil

This machine is used for automated capping of spray bottle, dropper bottles, trigger pump bottles in cosmetics, food, beverage and daily chemical industries. It can be applied to a variety of bottle types, high production efficiency.

Parameter

• Machine model: ZS-XG440S

• Voltage: 110/220V 50-60HZ

• Machine power: About 2.8 KW

• Suitable bottle size: H=50-300 mm φ=30-120 mm

• Suitable cap size: φ=20-60 mm

• Working speed: About 30-100 bottles/min

• Machine size: About 2000 mm*750 mm*1650 mm
• Machine weight: About 300kg

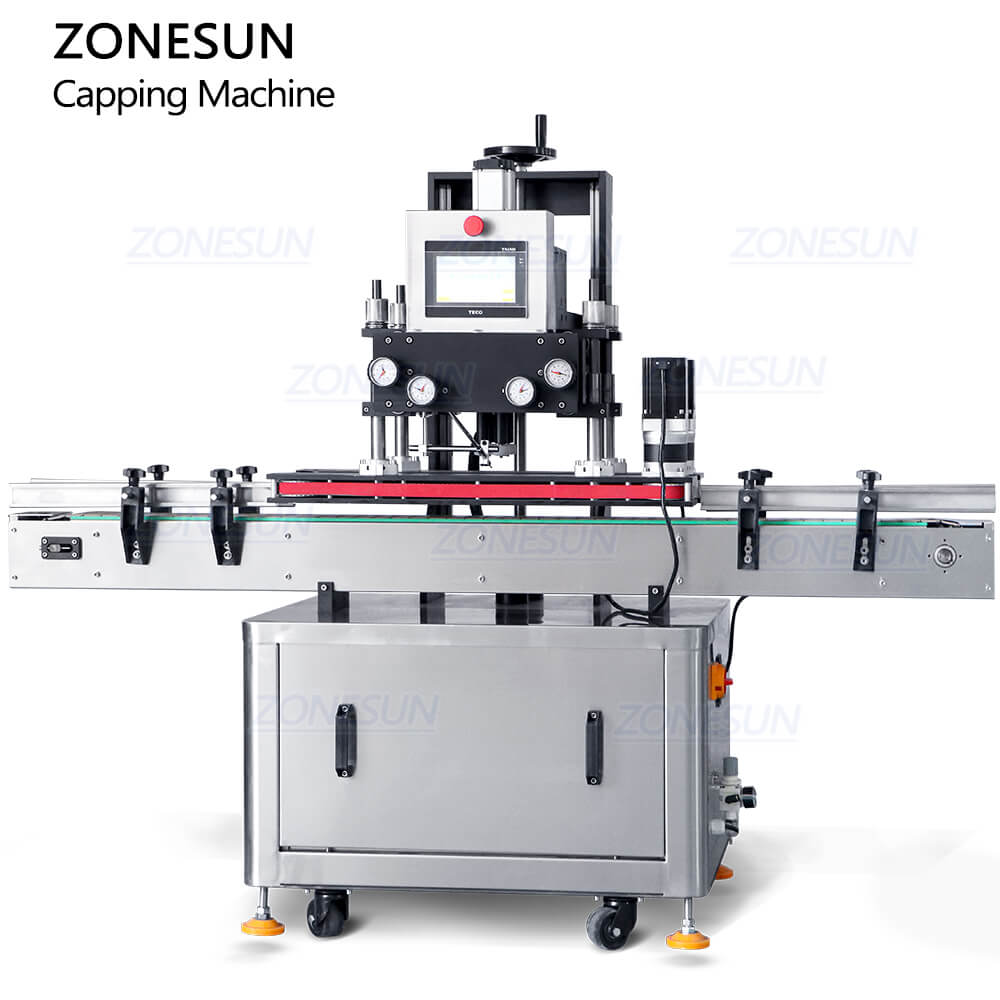

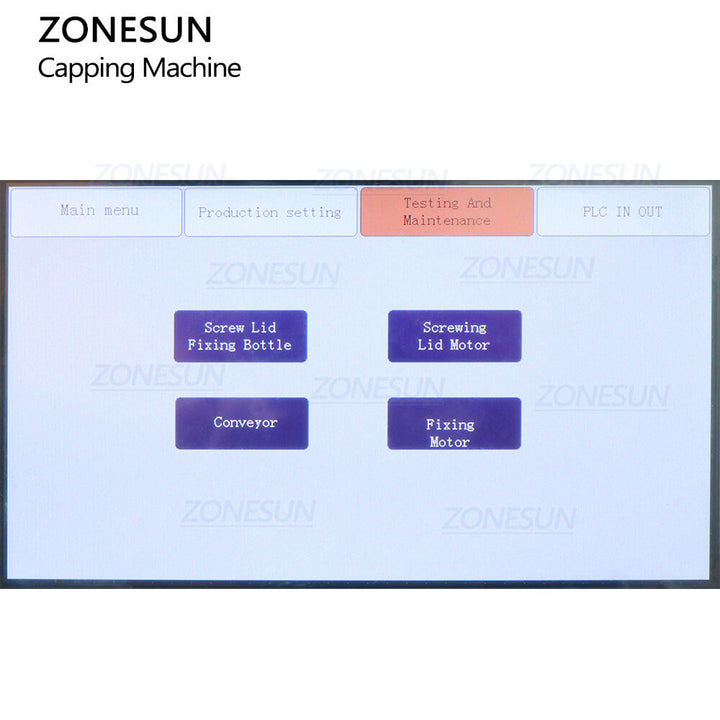

Equipped with touch screen control panel, this makes it more convenient to adjust the machine for new operator.The visual working data helps operator can watch machine status in real time, reduce production error.

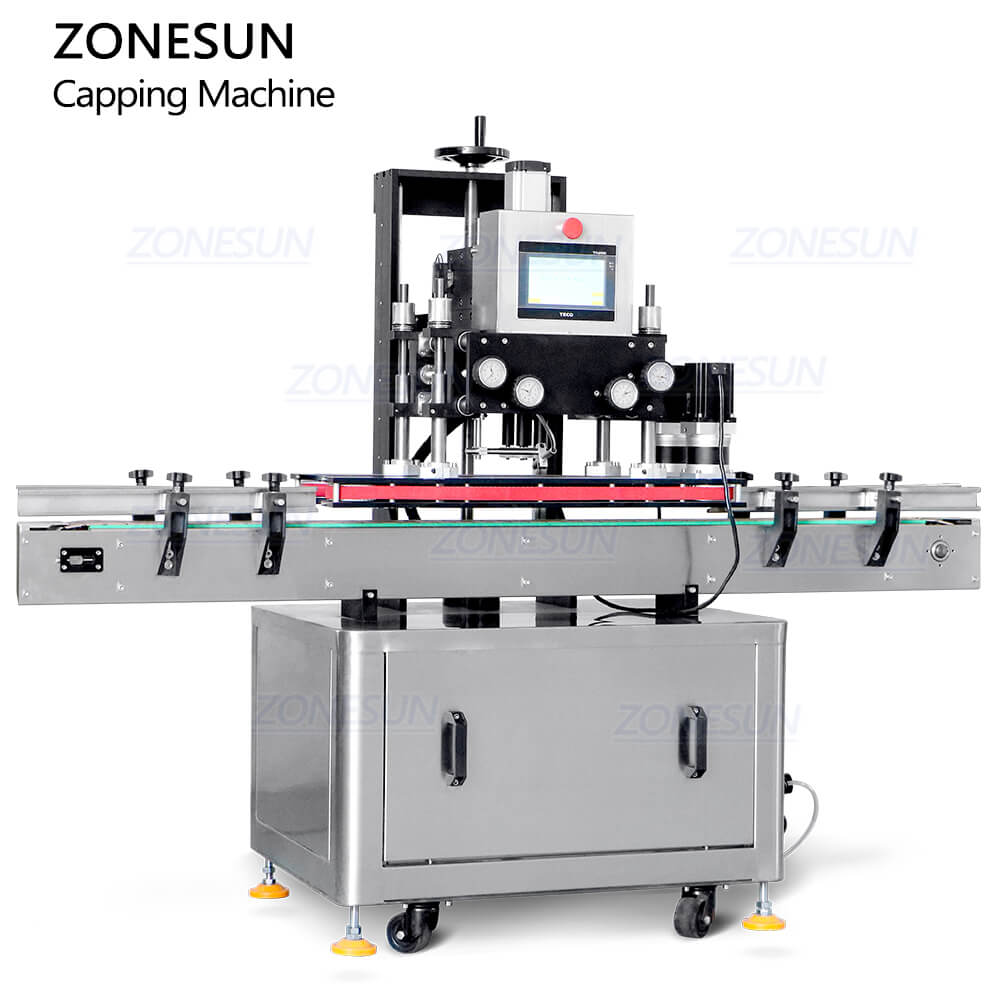

Equipped with bottle guding structure, this can prevent bottles from falling down during transporting,reduce production error.

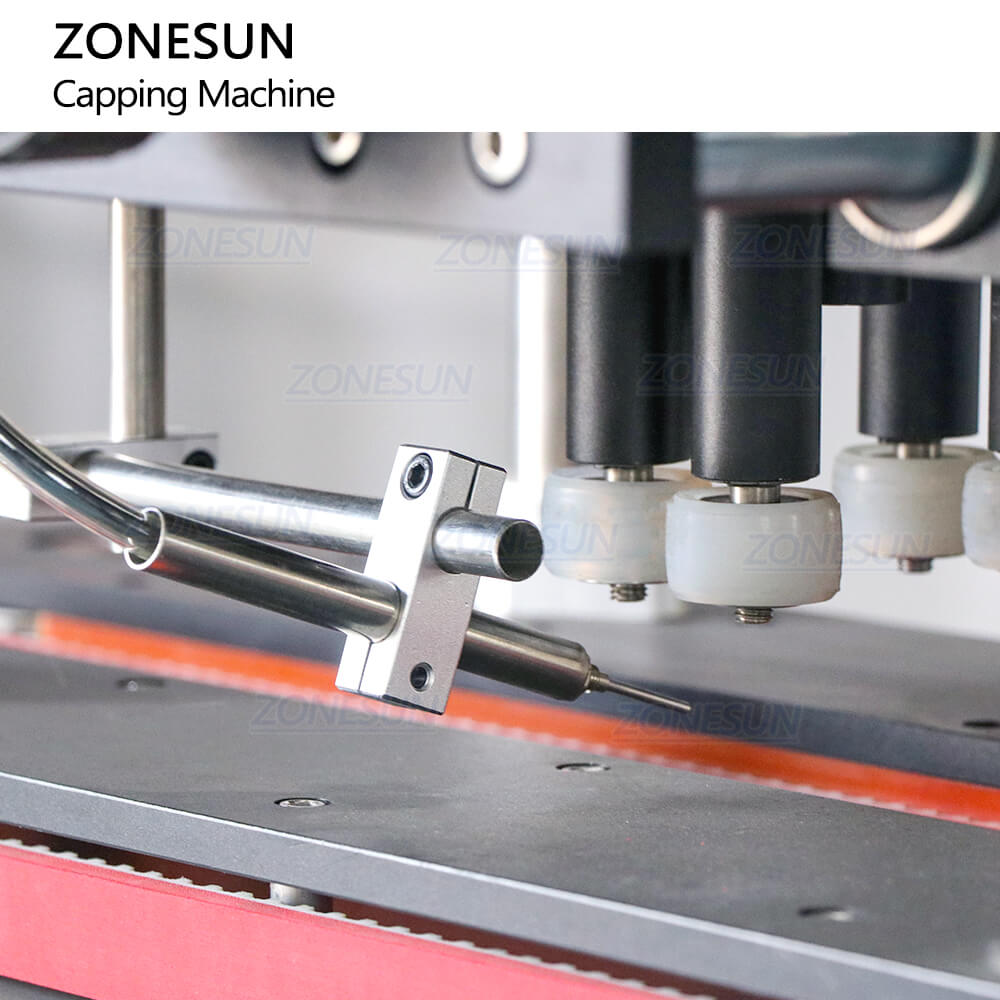

The electric eye is used to detect passing by bottles,it will send signal to the system  and control the machine to start capping work.With this, it realize the automated production.

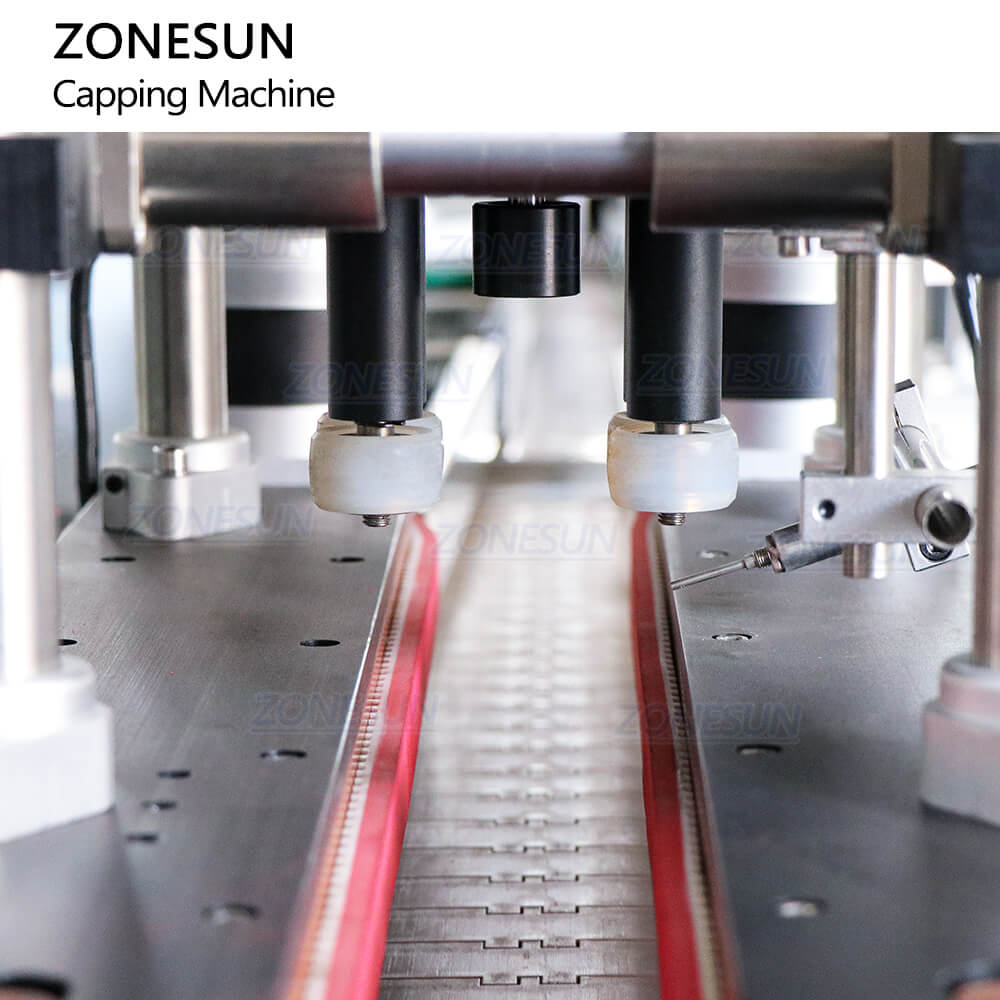

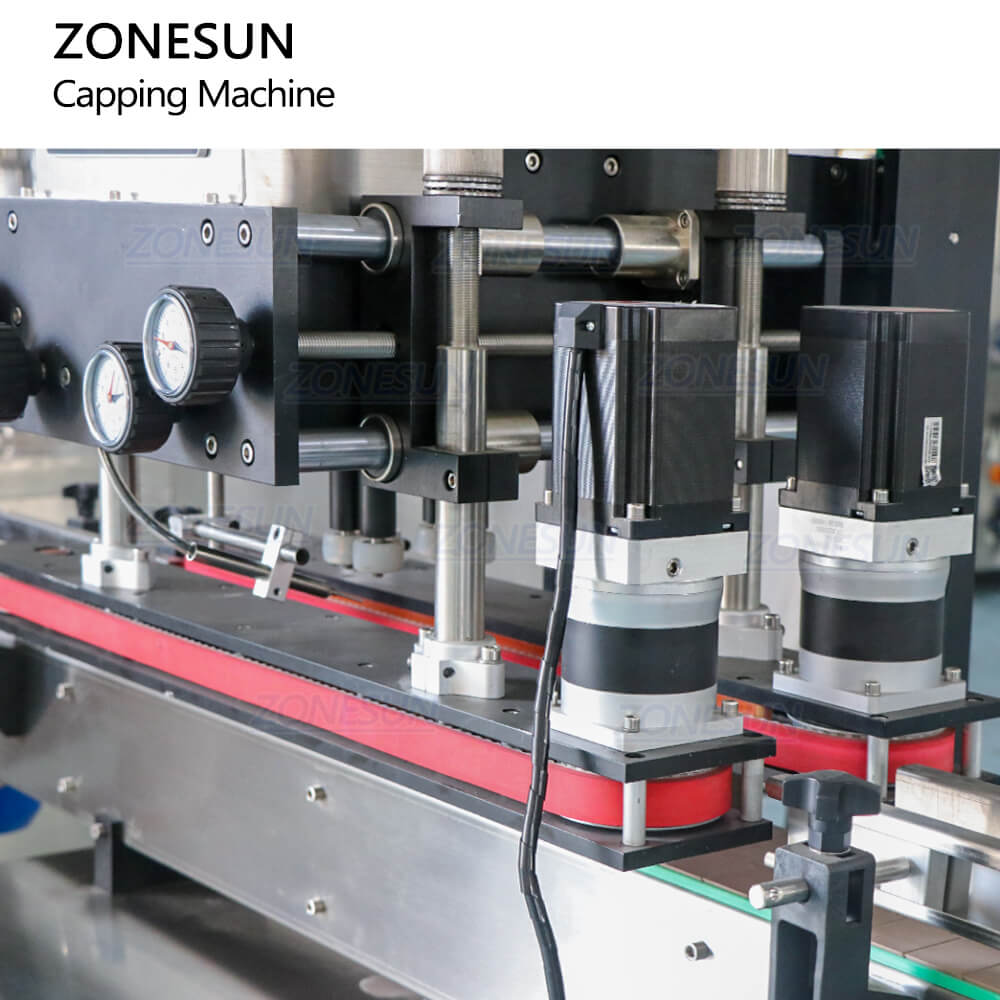

This machine tightens bottle caps by 4 rubber wheels, this kind od capping method is suitable for bottle caps with screw thread like spray bottles, dropper bottles, pump head bottles.

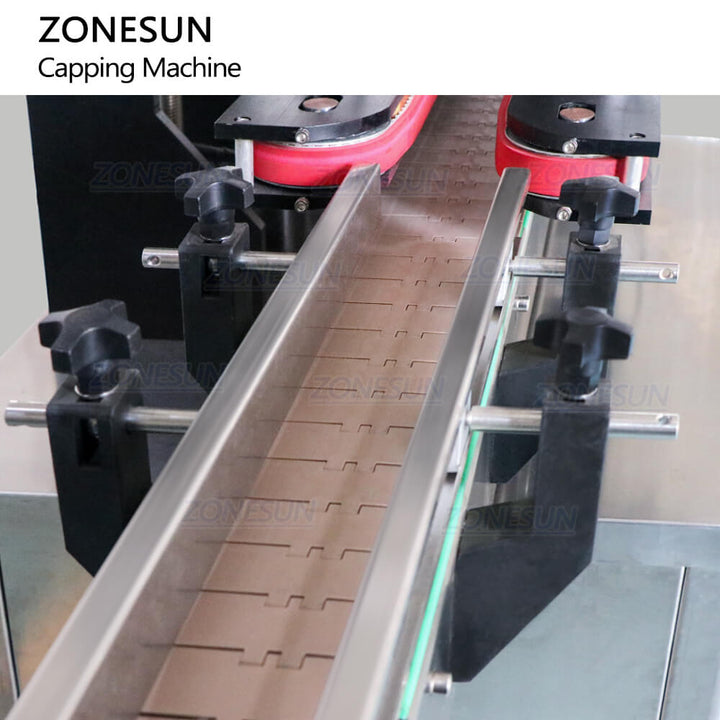

The chain conveyor has larger weight capacity, this ensures bottles can be transported smoothly and faster.The width can be customized as production need.
