ZS-MSZH50L Automatic Vertical Essential Oil Toothpaste Lipstick Cosmetic Cream Lotion Perfume Oil Bottle Boxing Cartoning Machine Cartoner

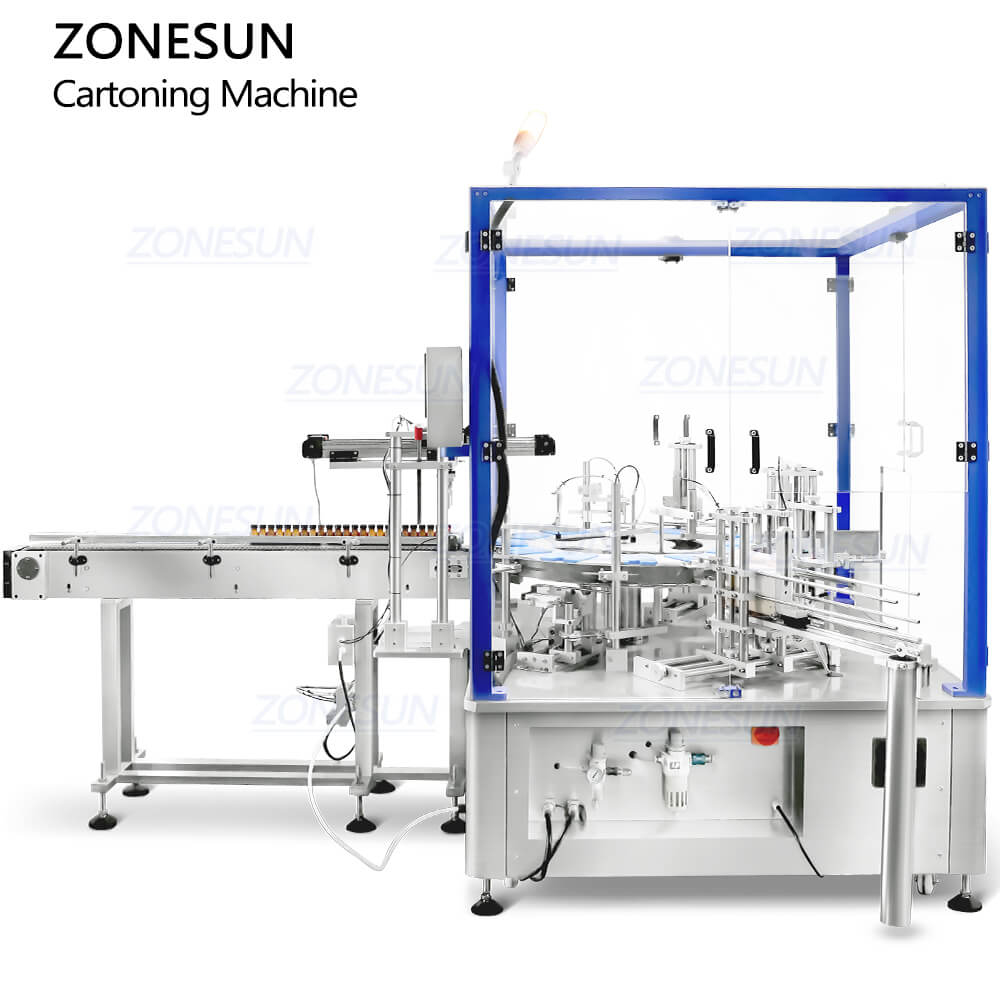

This vertical cartoner is used to form,  load and close cardboard box automatically at one rotary table. It is suitable for packaging essential oil, nail polish, toothpaste, perfume, lipstick, and cosmetic cream etc.

Parameter

• Machine Model:ZS-MSZH50L
• Voltage:220V 50-60Hz  Single Phase
• Motor Power:1.5kW
• Working Speed:About 20-50boxes/min
• Max Size of Box:200*80*80mm
• Minimum Size of Box:60*20*20mm
• Paper Quality of Box:250-350g/m³
• Air Consumption:260L/min
• Air Pressure:0.5-0.8MPa
• Optional Functions:Gluing Function/Leaflet Feeding Function/Date Coding Function
• Machine Size:About 1100*1500*1700mm(L*W*H)
• Machine Weight:About 450kg

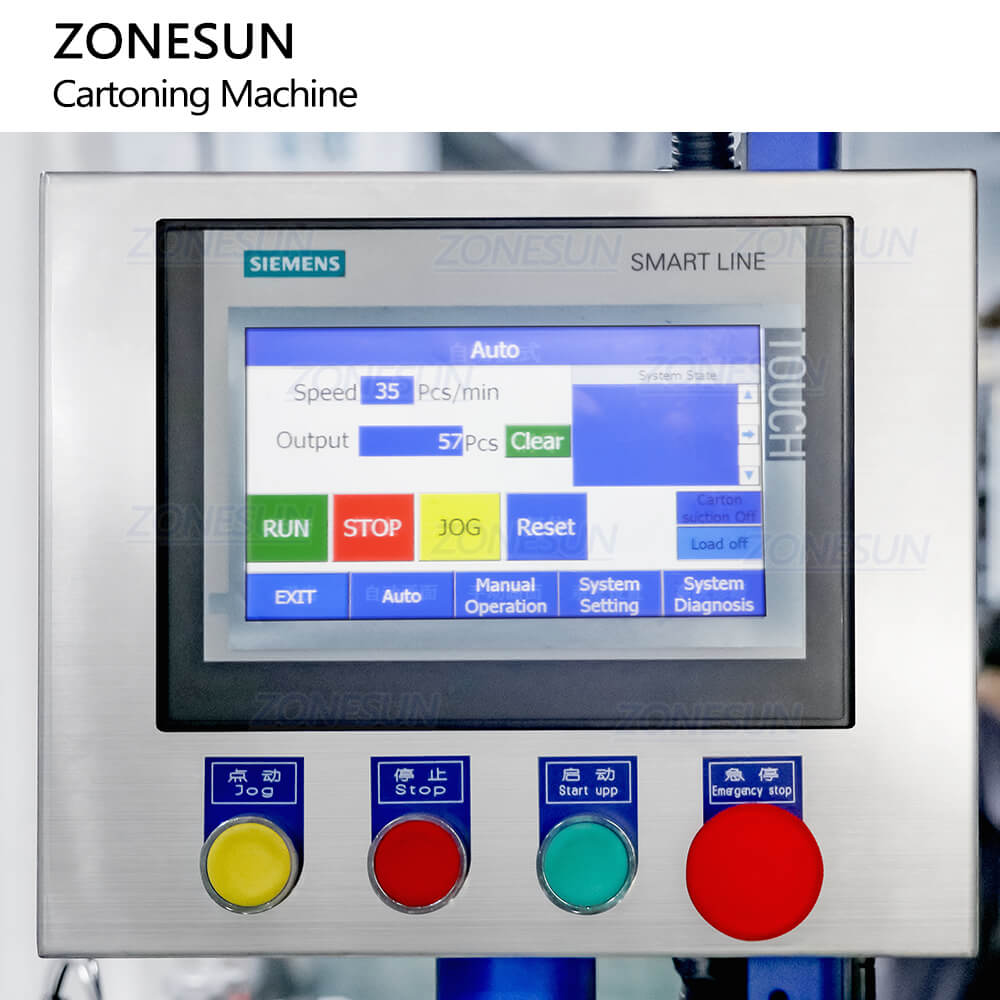

Equipped with PLC control panel, it is more convenient to set and adjust working parameters. Language of panel can be customized as your need.

This component is designed for storing folded boxes. There are suction cups under this component, which can erect boxes automatically, saving labor cost.

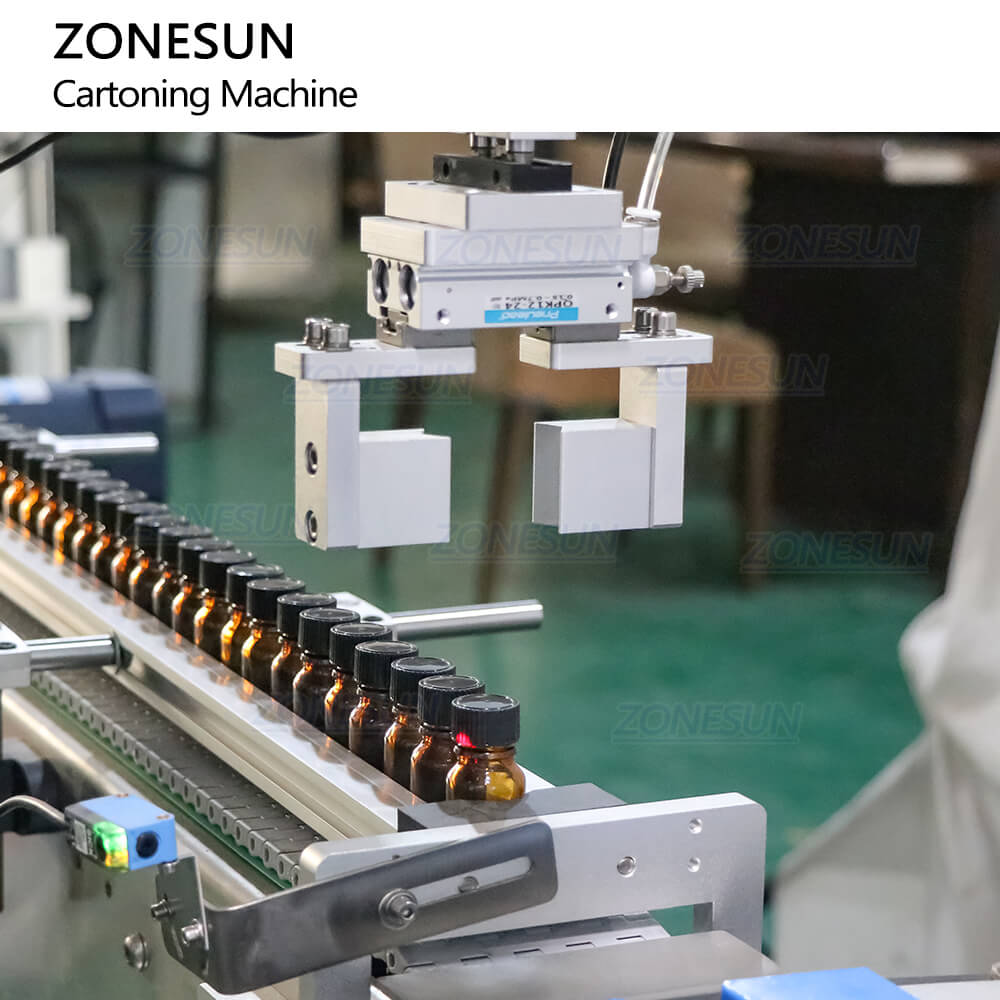

The gripper is designed for picking up bottles and putting them into boxes. It can be customized according to your products.

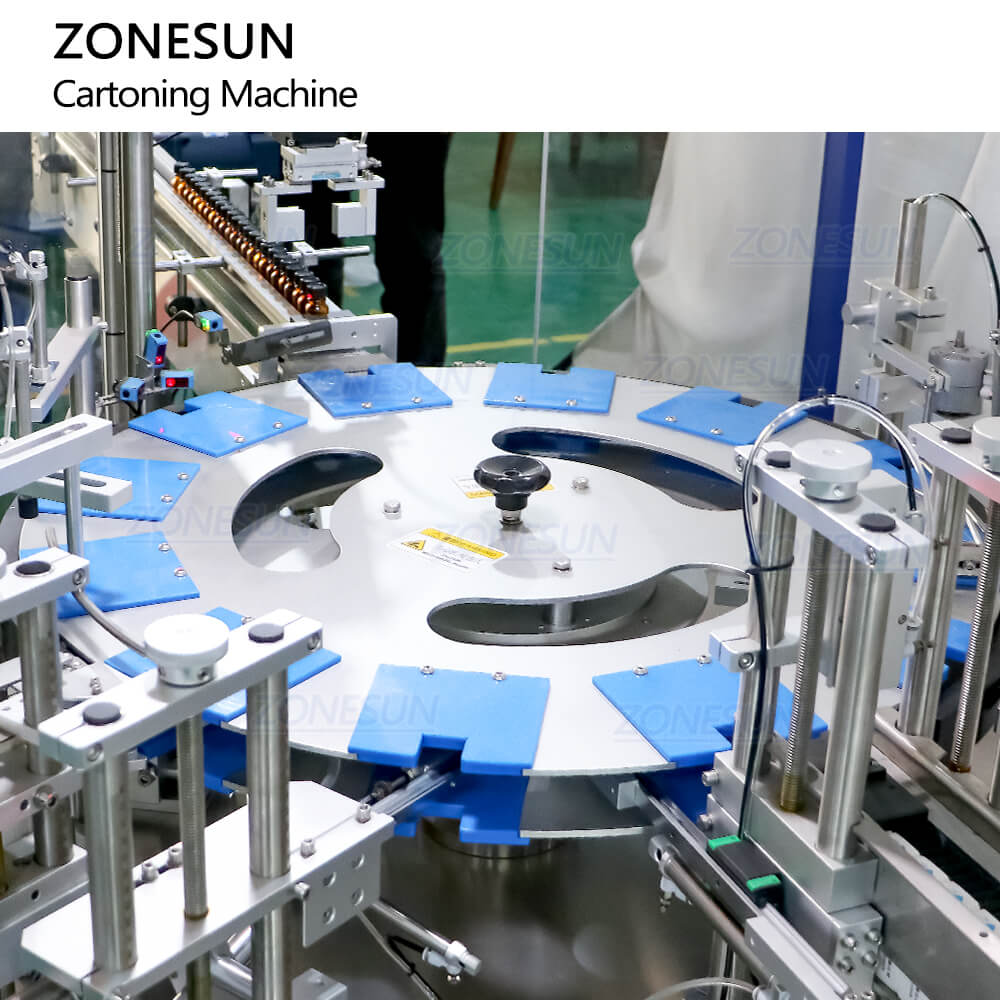

The rotary plate is designed for fixing and conveying boxes during production, improving efficiency. It can be customized according to your products.

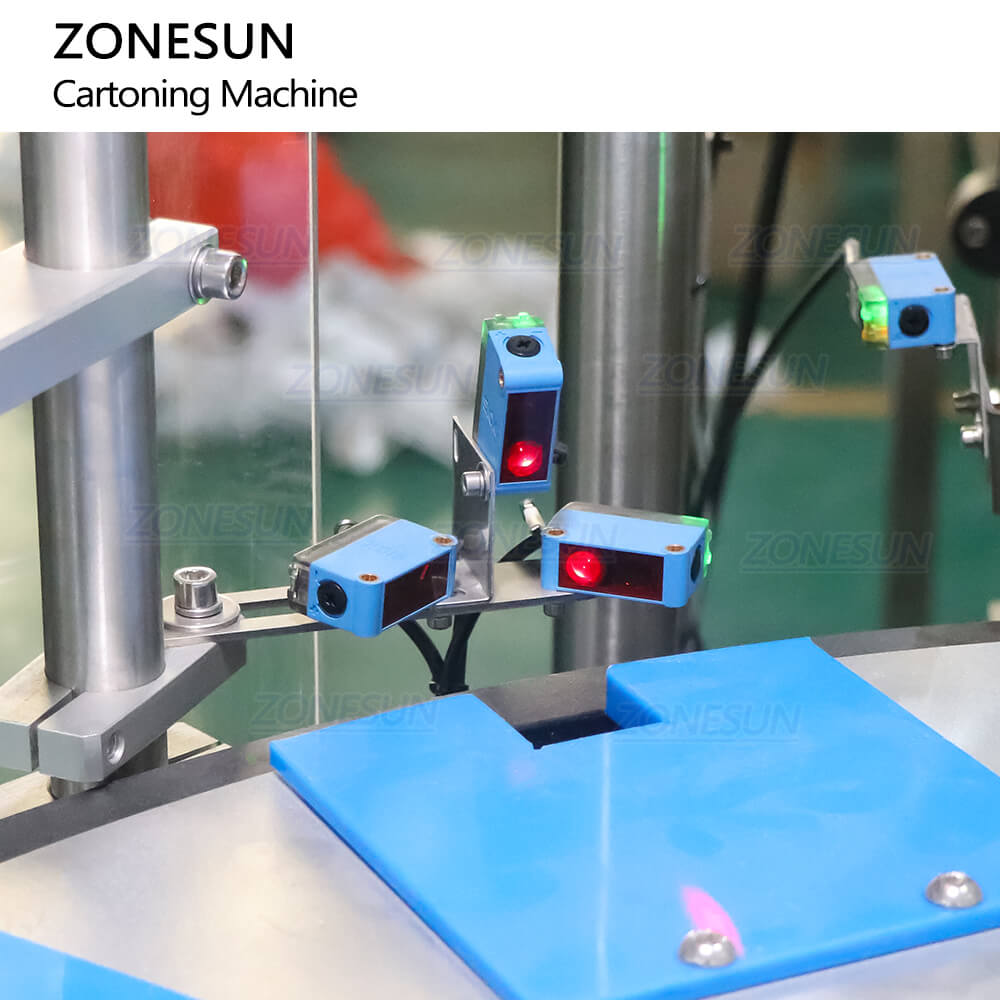

The sensors are used for detecting boxes and controlling the machine to run automatically, intelligent and efficient. Its sensitivity can be adjusted as production need.
