This vertical form filling sealing machine is used to form packaging bags, fill powder into bags, seal packaging bags and cut them separately. It is suitable for small filling volume bagged powder and it is widely used in food, daily chemical, and pharmaceutical industries.
Parameter
- Machine model: ZS-FS250
- Voltage: 110/220V 50-60HZ 1.5KW
- Filling range: 1-100g(can be customized)
- Filling method: Auger Controlled
- Sealing type: Back side sealing(Can be customized)
- Packaging speed: 10-50 bags/min
- Bag size: 30-150 mm(L)*30-110 mm(W)
- Bag material: Heat sealing bags
- Packaging size: About 600*760*1530 mm(L*W*H)
- Packaging weight: About 200 kg

Equipped with touch screen control panel, it has a faster response time than traditional buttons or switches, and it also offer customizable interface, which makes it easier to navigate and use.

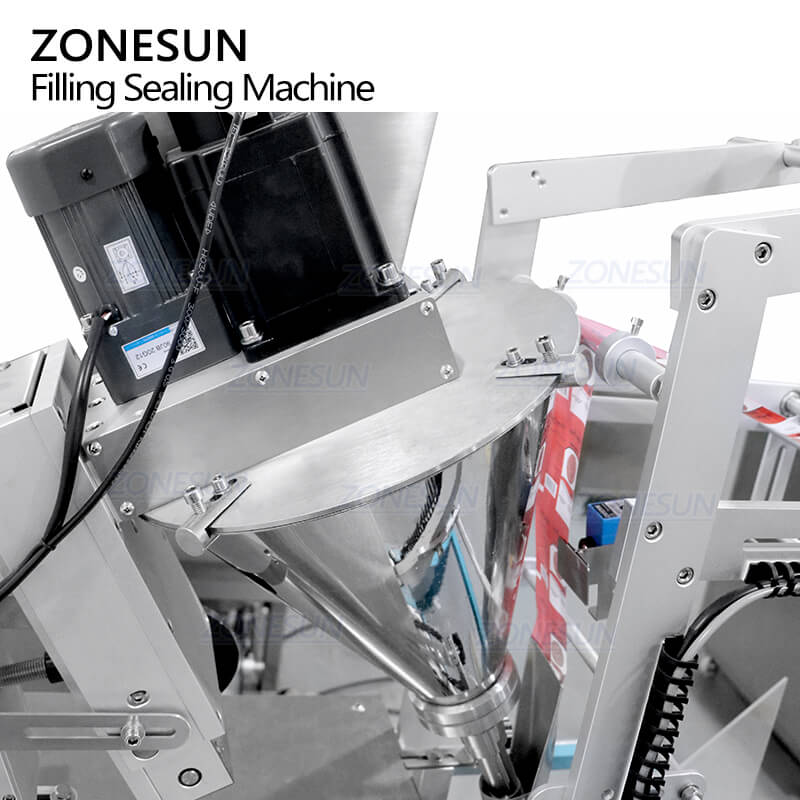

Controlled by auger, it fills material according to controlling predetermined number of revolutions, the outside cylinder is designed into a good shape and size which can work with the auger and prevent from leaking out powder.Improve filling accuracy.
This machine is suitable for heat sealable packaging film like PP, PET. The sealing temperature can be controlled by touch screen control panel easily. It can be customized into different kinds of sealing type like back side sealing, three sides sealing, four sides sealing.
The sensor can detect color mark of packaging film correctly. This can ensure the pattern can be sealed correctly and the automated filling sealing work will be continued smoothly.
