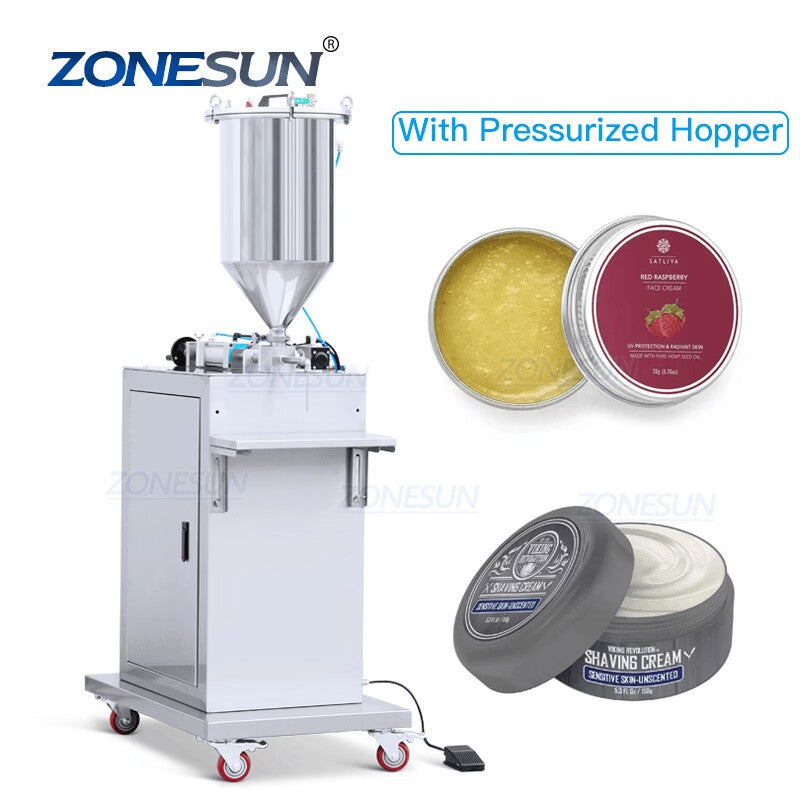

ZONESUN ZS-GTPP1 Semi-automatic 1-20ml Cosmetic Mascara Cream Thicker Shaving Cream Hair Gel Piston Pump Paste Pressurized Hopper Filling Machine

Video For Pressurized Hopper Filling Machine

This semi-automatic paste filling machine is equipped with piston pump, it is designed for the small volume filling like mascara cream,liquid foundation,lip gloss etc.The hopper is equipped with a pressurized hopper, which can make the material evenly stressed during the filling process and ensure the stability of the filling process.Extra mixing and heating function can be customized according to production need.

Parameter

• Machine model:ZS-GTPP1
• Machine voltage:110/220V 50-60HZ 100W
• Air pressure:0.3-0.6MPa
• Hopper size:18L
• Hopper pressure resistance:6kg/cm²
• Filling accuracy:±0.1ml
• Working capacity:1200-1800BPH
• Machine size:About 410*770*1550mm
• Machine weight:About 80kg
• Package size:About 830*570*1630mm
• Package weight:About 85kg

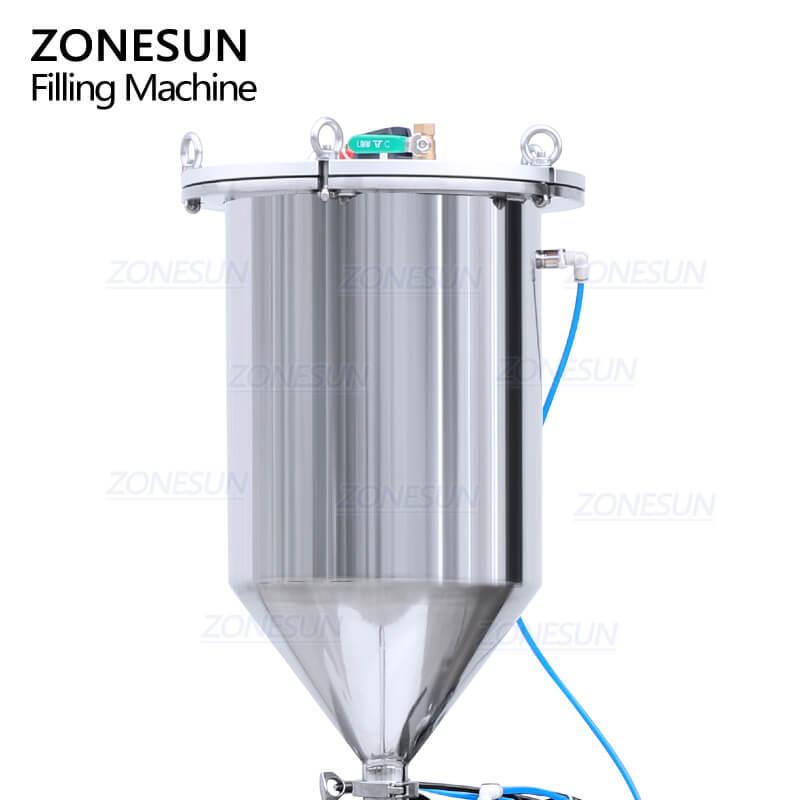

Equipped with 18L material hopper, it is equipped with a pressurizing device, which can make the material evenly stressed during the filling process and ensure the stability of the filling process.

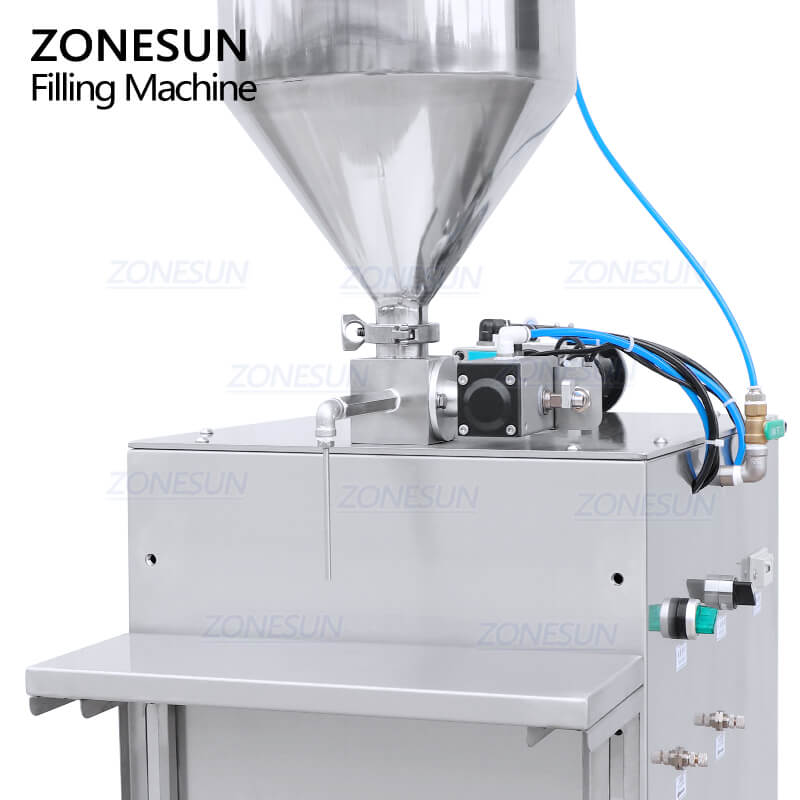

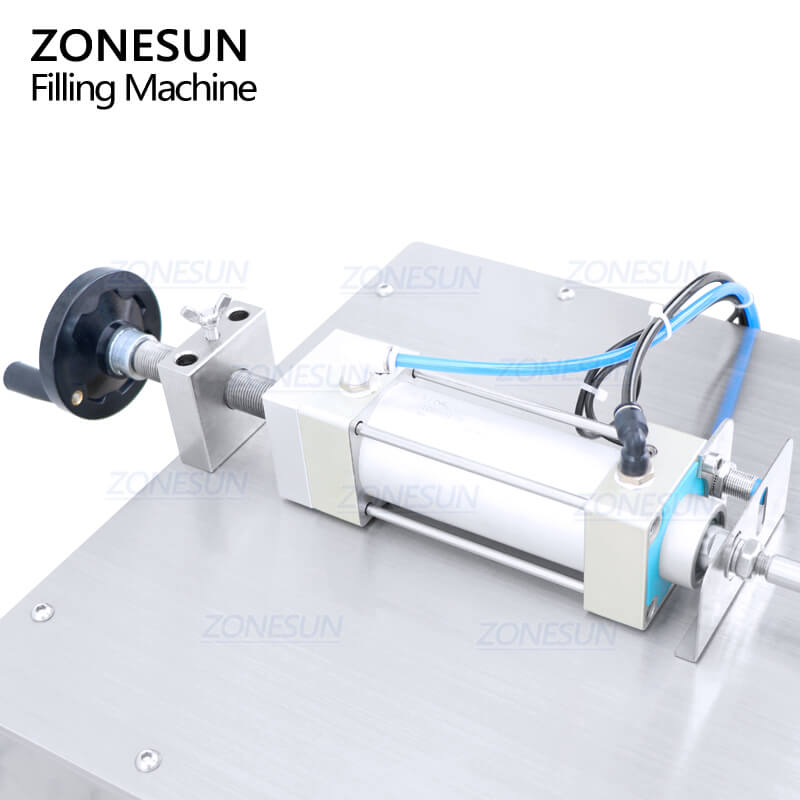

Equipped with piston pump, adjusting the air input and output can control the filling speed and waiting time. The filling volume also can be adjusted as production need

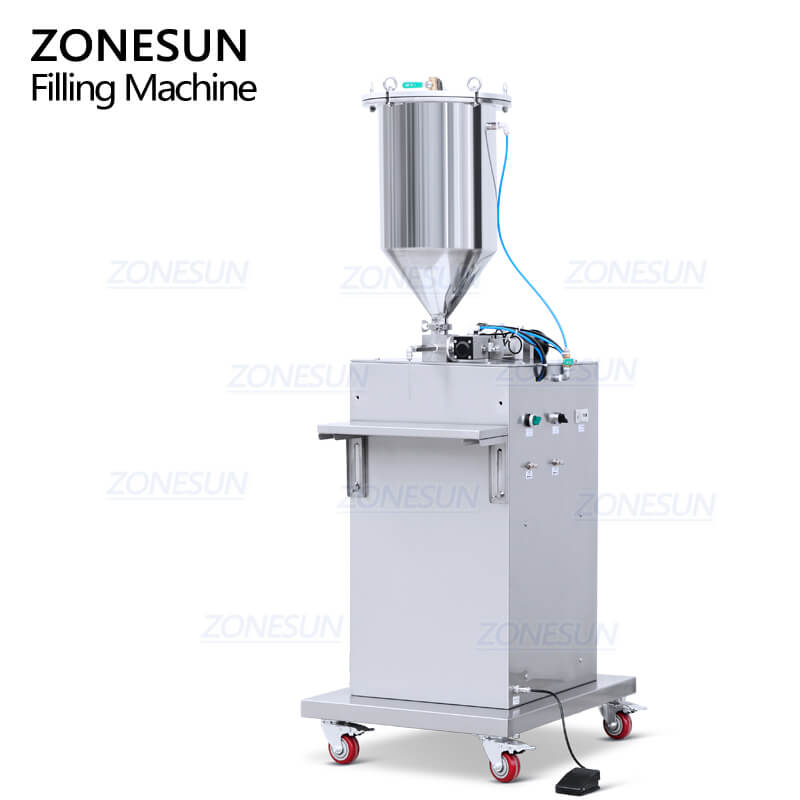

The working height of bottle holder can be adjusted according to bottle size, the quantity of filling nozzles can be customized according to production need.

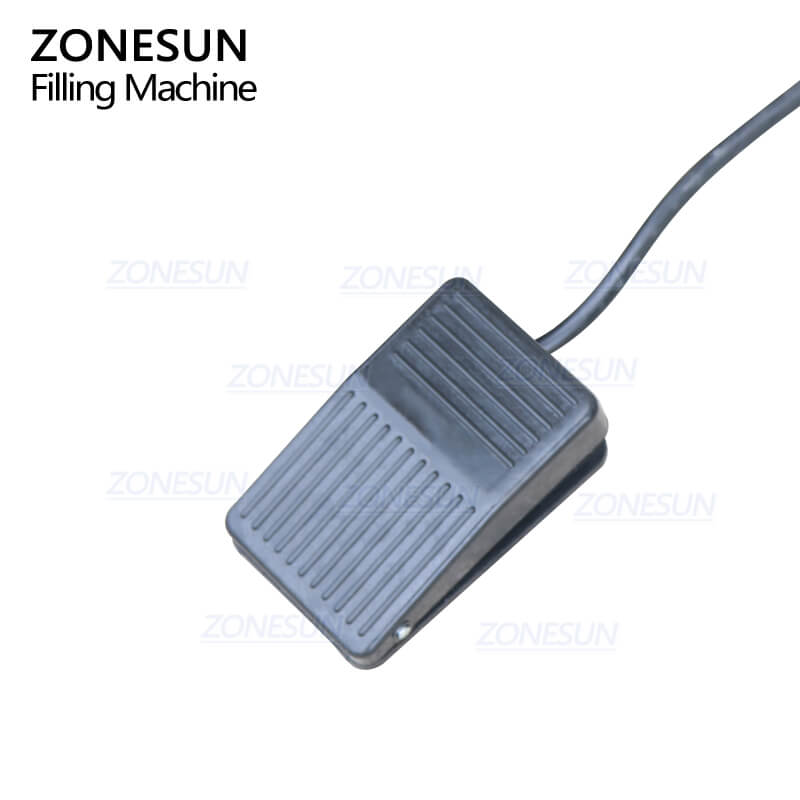

This machine can be controlled by pedal switch, this can free operators’ hands during filling work, it improves working efficiency.
