ZS-DBC800 Semi-automatic Carton Box Stretch Film Wrapping Machine Pallet Packaging Machine

Voltage
Size
Price
Regular price $1,149.00 USD
Regular price Sale price $1,149.00 USD
Save $-1,149 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

The film wrapping machine is used for the packaging requirements of cargo collection,storage, transportation and mechanized loading and unloading operations.It can improve packaging efficiency and prevent goods from being damaged during handling.And play the role of dust,moisture and cleaning.

Parameter

  • Model:ZS-DBC800
  • Voltage:220V, 50~60HZ
  • Power:0.12KW
  • Maximum winding size:900×900×900mm
  • Rotation speed:30r/min
  • Bearing load:≤80Kg
  • Machine size:About 1150*628*1884mm
  • Package size:About 1280*750*920mm
  • Package weight:About 123kg
  • Suitable Film
  • Material:LLDPE stretch film
  • Width:100-900mm
  • Thickness:17-35um
  • Inner core hole of film roll:76.2mm (3 inches)
  • Outer diameter of film roll:≤300mm

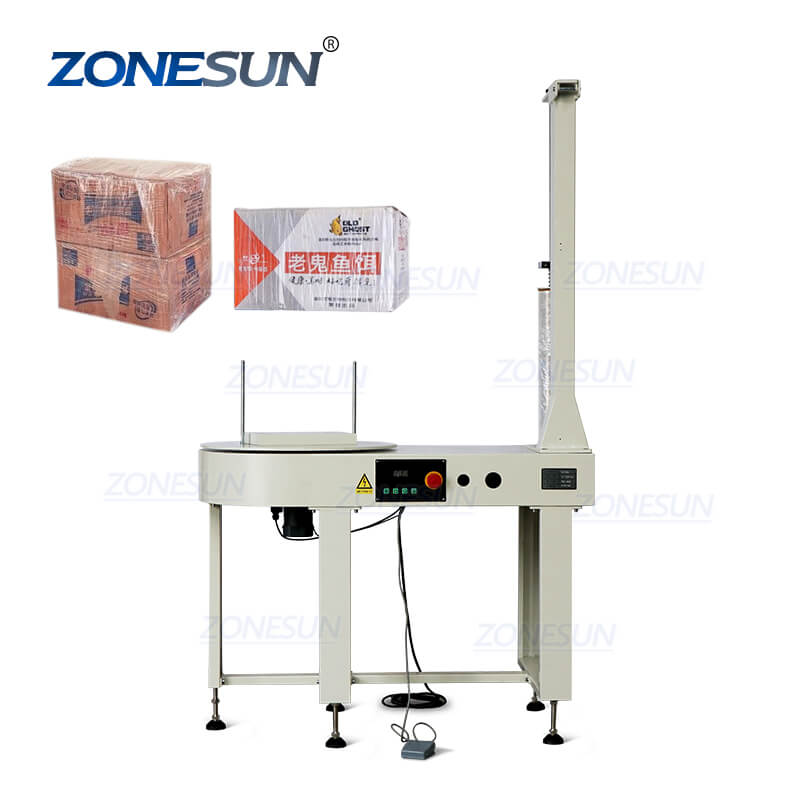

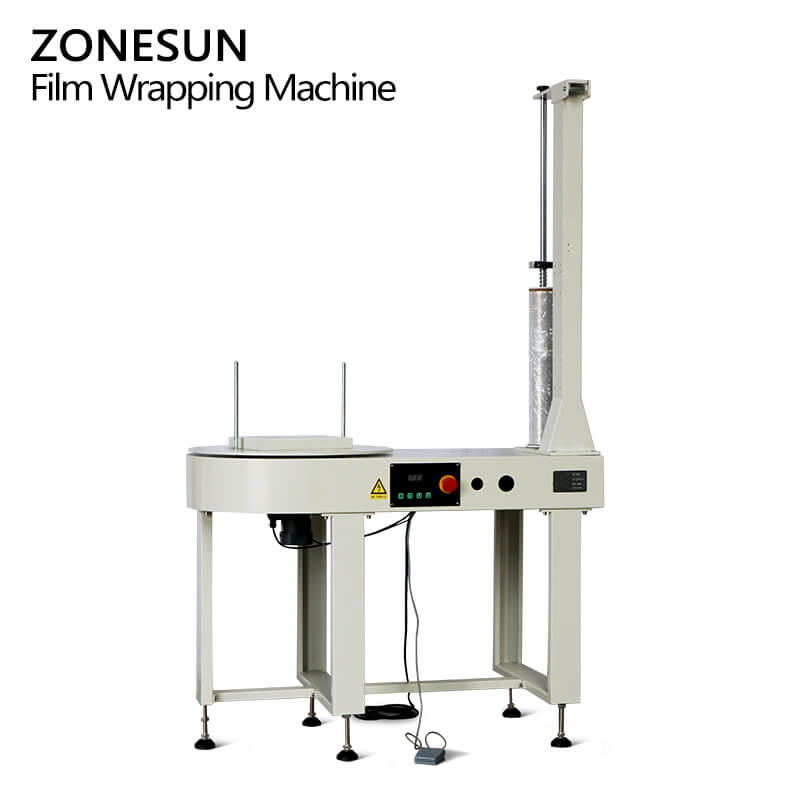

Semi-automatic Stretch Film Wrapping Machine

Application of Stretch Film Wrapping Machine

Machine Details of Stretch Film Wrapping Machine

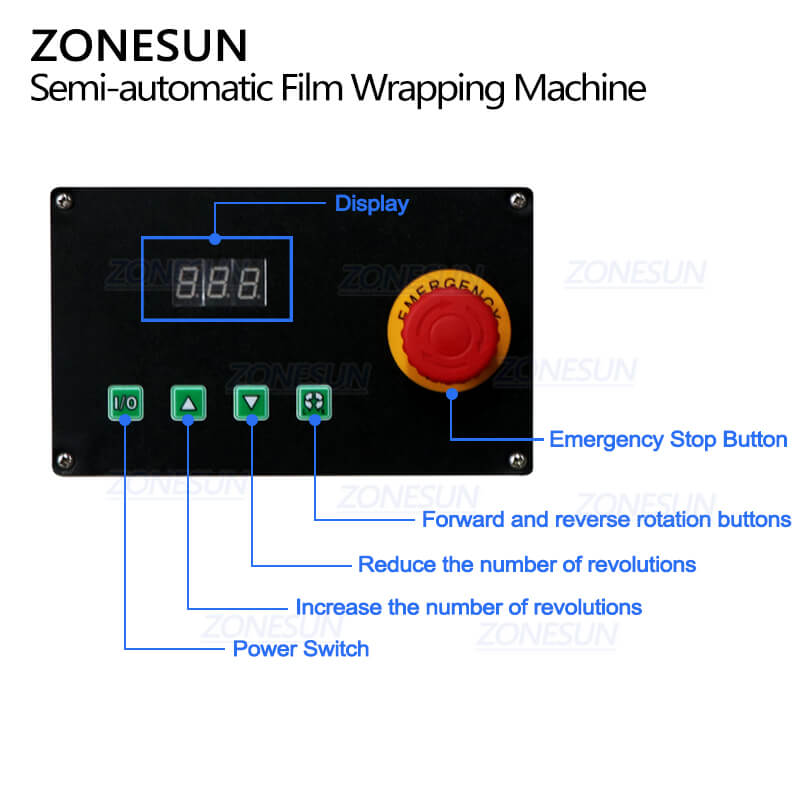

Control Panel of Stretch Film Wrapping Machine


The panel interface is simple and easy to operate.This machine can adjust the number of rotations and forward and reverse.Equipped with emergency stop switch and the control panel can display the number of rotations and forward and reverse directions.Easy to use and safe.

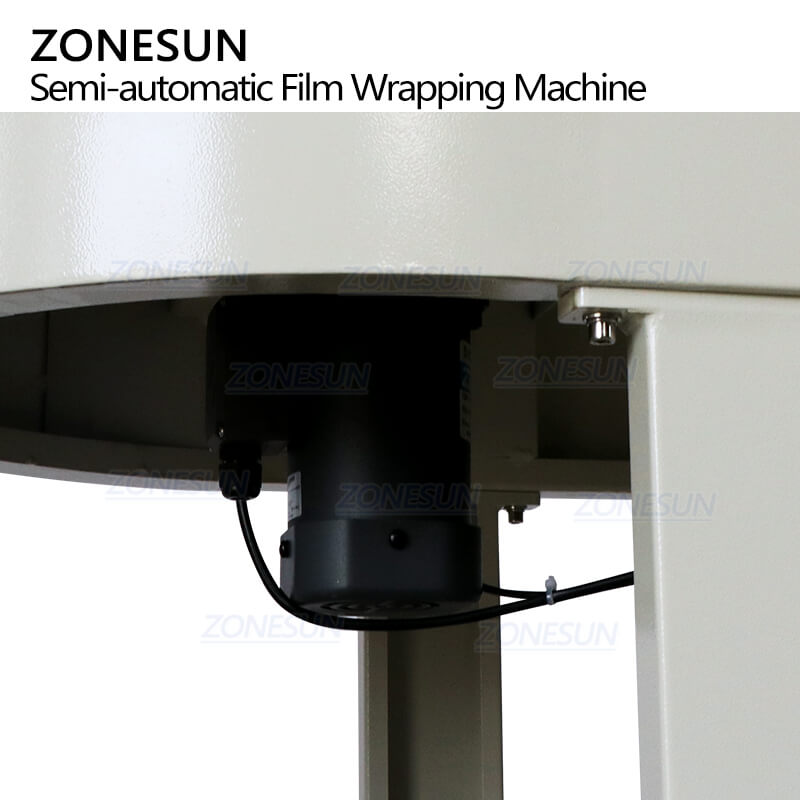

Motor of Stretch Film Wrapping Machine

The power of the motor is strong,which can make the equipment convey more smoothly.It has heavier load capacity, this is durable and good for long-term use.

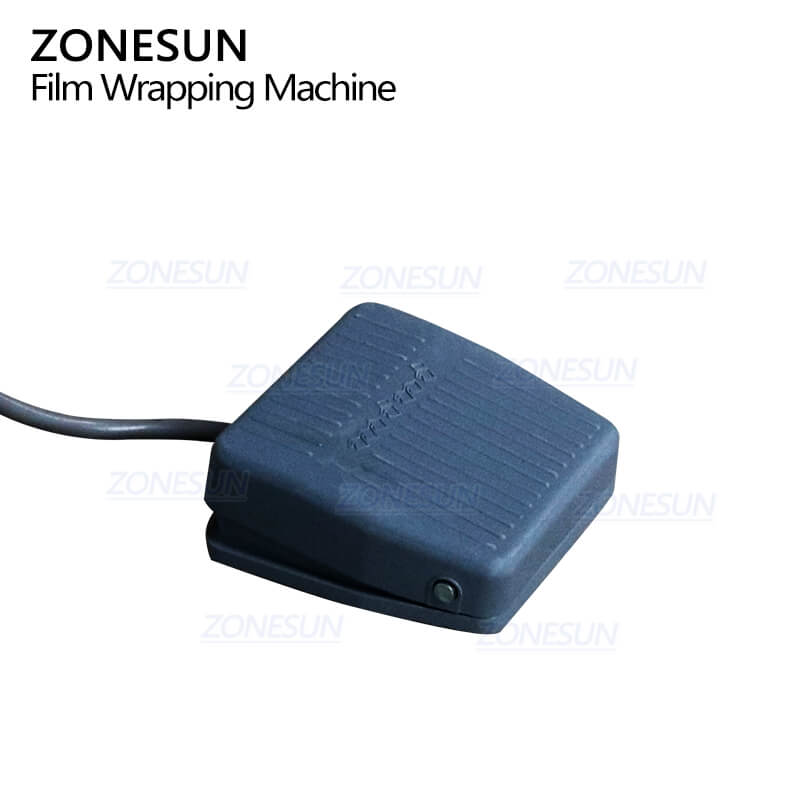

Pedal Switch of Stretch Film Wrapping Machine

Equipped with foot pedal switch.The operator can control the on-off switch of the circuit by stepping on the switch, which is easy to operate and has high safety performance.

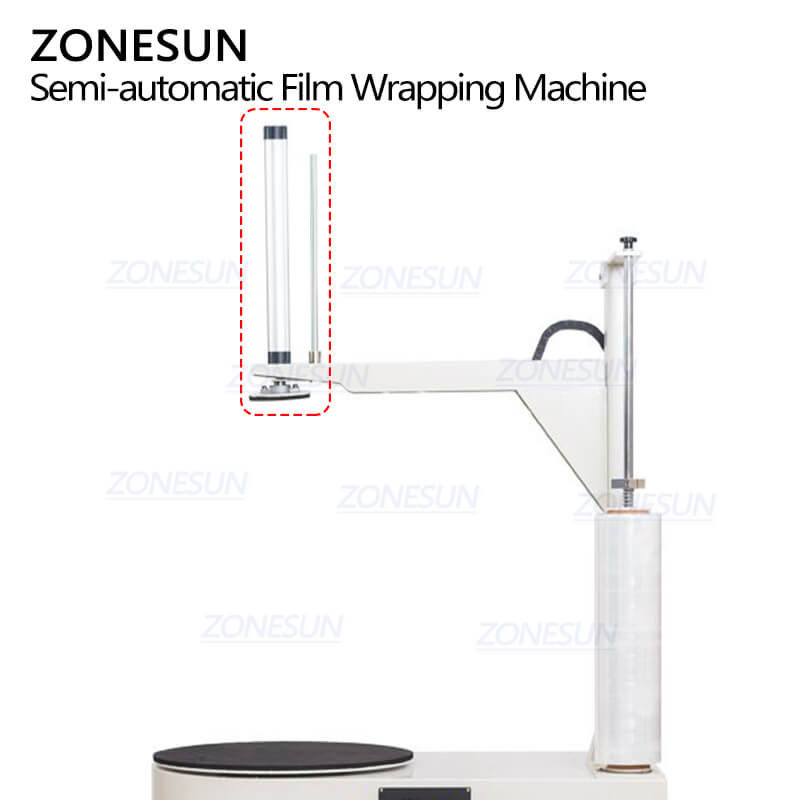

Air Cylinder of Film Wrapping Machine

This machine can be customized with air cylinder,which can help to adjust working height according to package object size.

Semi-automatic Stretch Film Wrapping Machine

Pallet Film Wrapping MachineSemi-automatic Pallet Film Wrapping Machine

Semi-automatic Stretch Film Wrapping Machine
