ZS-YTCR2 Double Heads Plastic Anti Corrosion Toliet Liquid Cleaner Filling Machine

Description

This machine specially designed corrosive liquid like toilet cleaner,all the parts which contact with the toilet are made from plastic. This machine uses a compressor as the power, it can work without any external electric power, it's easy to adjust filling volume and speed, and suitable for caustic liquid like hydrochloric acid.

Parameter

• Machine Model:ZS-YTCR2

• Filling Nozzle:Double Heads

• Filling Range:200-1000mL

• Filling Speed:10-30 bottles/min

• Filling Accuracy:≤土1%

• Air Pressure:0.5-0.8MPa

• Size of Filling Nozzle:OD12mm

• Size of Air Compressor Connector:φ8mm

• Machine Material:Stainless Steel

• Machine Size:About 760*750*1600mm

• Application:Corrosive liquid like toilet cleaner,etc

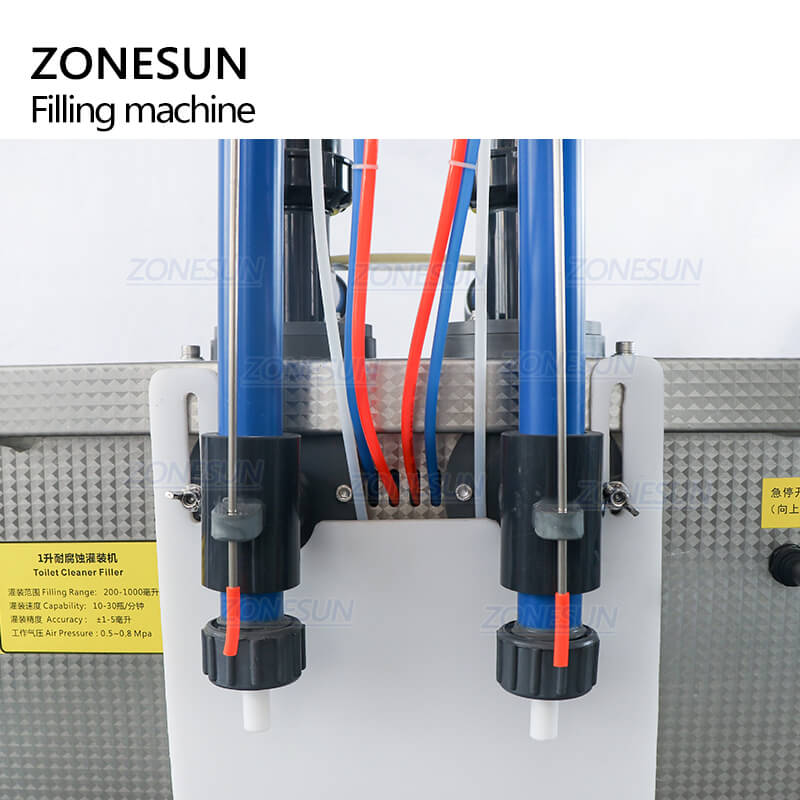

The filling nozzles have anti-dripping function, which ensures the filling accuracy.They are suitable for corrosive liquid like strong acid and alkali.

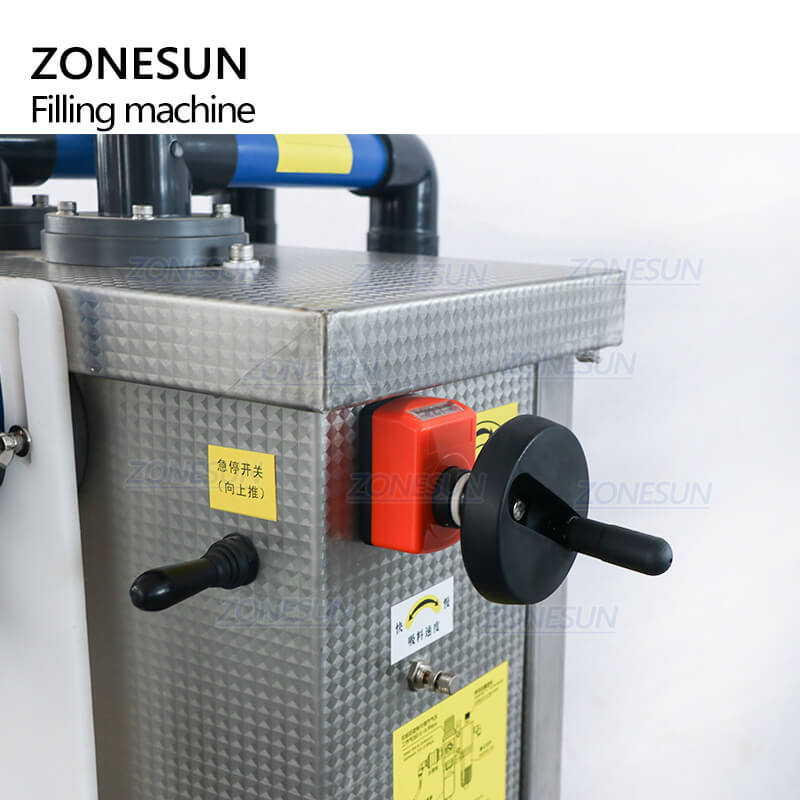

The left knob is designed for adjusting the fling speed. And the right knob is used for adjusting the liquid pumping speed. Easy to operate.

Operator can adjust the fling volume as needed by operating the handle. Easy and convenient.

The filters are with check valve,preventing materials from back flow. They can filter the impurities in the liquid, ensure the quality of the liquid.

It is designed for watching air pressure in real time, ensuring a safe working environment.
