ZONESUN Electrical Liquid Filling Machine Mini Small Bottle Water Digital Pump Perfume Drink Milk Olive Oil 110V 220V Filler
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
Click
For Video
This Updated GFK series numerical control liquid filling machine uses micro-computer to control the mini-pump on filling time and the rotation rate of electric motor so that the machine can fill the liquid fluently and at high accuracy. Separated with the electric motor,the pump is made of a variety of anti-corrosion imported material. There is no mechanical metal part or abrasion inside the pump.
Attention:
We will test all of the filling machine before send out , so it’s normal that the machine pump and tube with water inside when you receive it.
Features
-
Automatic counting function, effectively control filling quantity
-
Import single-chip microcomputer control, high efficiency, low power consumption
-

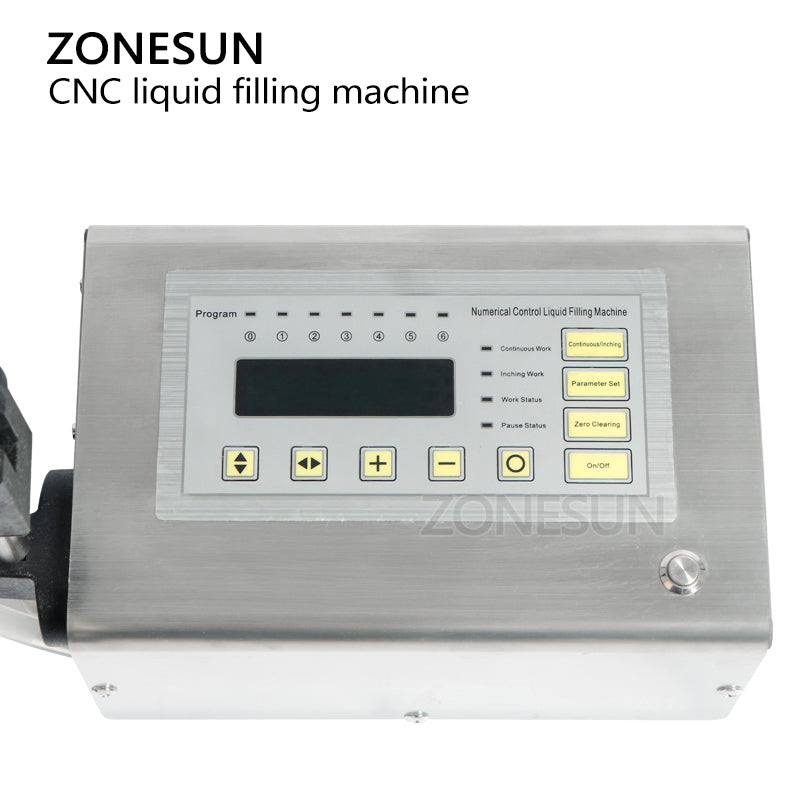

LCD display, touch screen is very easy to operate
-
Filling Accuracy is high, precise volume
-
Wide Voltage range
-
Working performance is stable and can be used for long time
-
Self-suck function, don\'t need to pour
-
The pump can stand acid and alkali
-
Anti-dripping design
-
Reasonable design, made of stainless steel, meet GMP requirement
-
Speed Parameter Range: 1-9, Filling Time Range: 0.01-99.99s, Interval time Range: 0.01-99.99s
-
Save up to 6 sets of parameters for different-sized bottles and can choose from easily
-
Widely used in chemistry, food, beverage, oil, and cosmetics, etc.
-
Suitable for filling low-viscous liquid without pellets
-
The pump can stand oil, heat, acid, alkali, abrasion and chemical products
-
Integrates the advantage of self-suck pump and chemical pump
-
Self suck, heat protect, stable working and continuous idle or load operate for long time
Characteristics
1.Imported single-chip control,high efficiency,low power consumption
2.Automatic counting,control the filling quantity effectively.
3.LCD display,touch screen panel is easy to operate.
4.Filling Accuracy is high,precise volume.
5.Wide voltage use range.
6.Product working performance is stable,long use life.
7.Self-suck function,don't need to pour.
8.Pump can stand the acid and alkali.
9.Anti-dripping design
10.Reasonable construction design,stanless steel shelf,meed GMP requirement.
Technical Parameter
|
Voltage |
AC 180V-260V,110V can be customized |
|
Power |
30W |
|
Filling Range |
5ml-3500ml |
|
Max Flow Rate |
3.2L/min |
|
Package Size |
400X380X200 (mm) |
|
Volume Weight |
8.5kg |
|
Max Suck Distance |
2m |
|
Repeat Error |
<0.5% |
|
Anti-dripping Function |
Available |
|
Memory Function without Electricity |
Available |

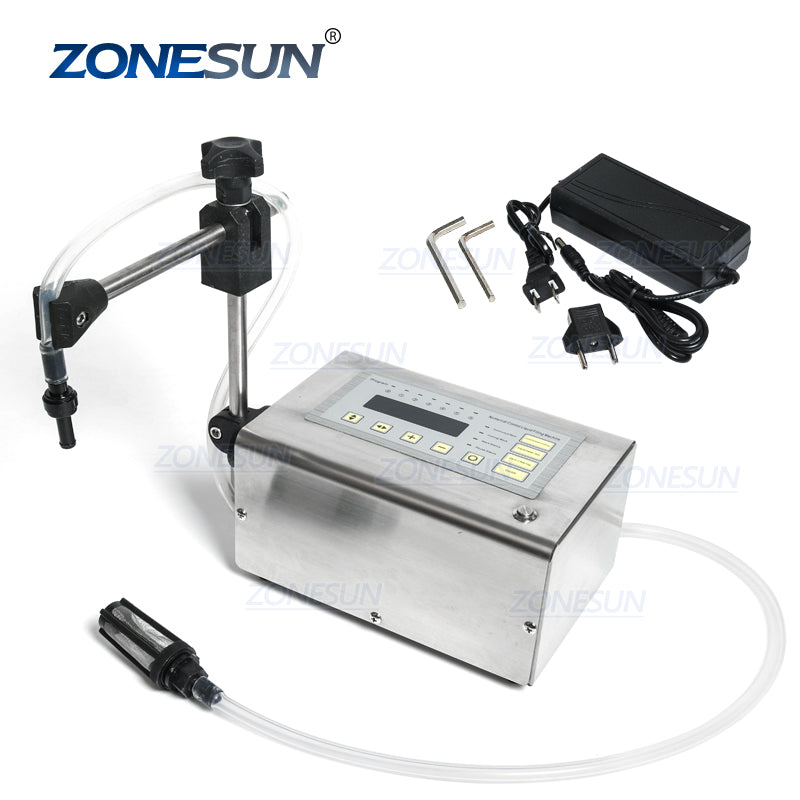

Packing List
|
1.Power Cord 1pcs |
6.Screwdriver 1pcs |
|
2.Pedal Switch 1pcs |
7.Inner hexagonal wrench 1pcs |
|
3.Filling Stand 1pcs |
8.Manual Book 1pcs |
|
4.Filter 1pcs |
9.Guarantee Receipt 1pcs |
|
5.Filling Nozzle 1pcs |
10.Quality Certificate 1pcs |
standard set
