ZONESUN TB-190 Semi-automatic PET Plastic Tin Can Round Glass Water Milk Juicer Bottle Labeling Machine

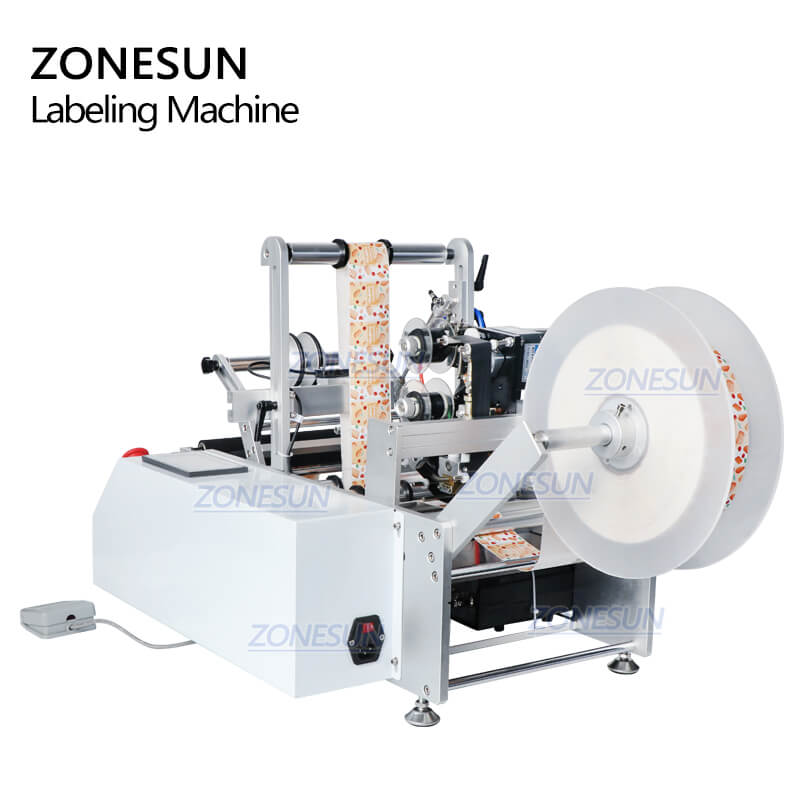

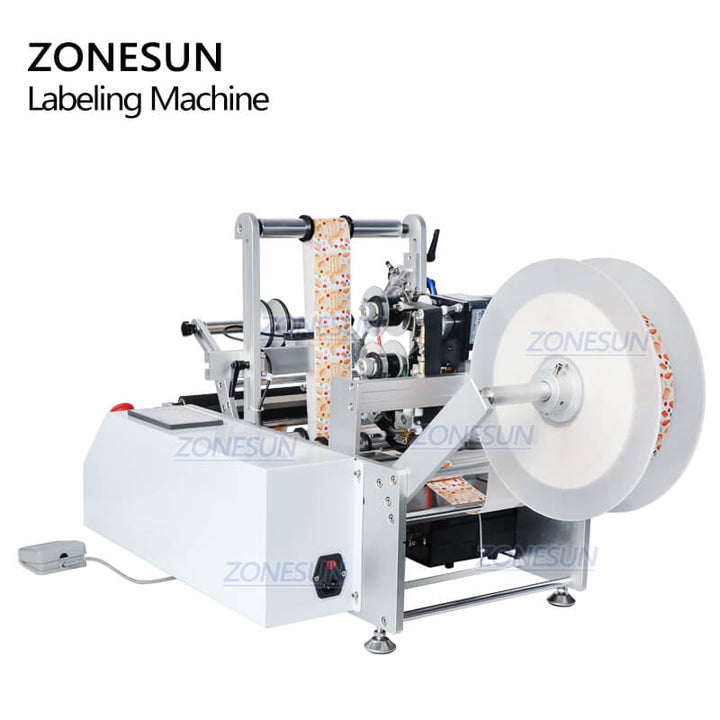

TB-190 Semi-automatic Round Bottle Labeling Machine
Buttons of TB-190 Semi-automatic Round Bottle Labeling Machine

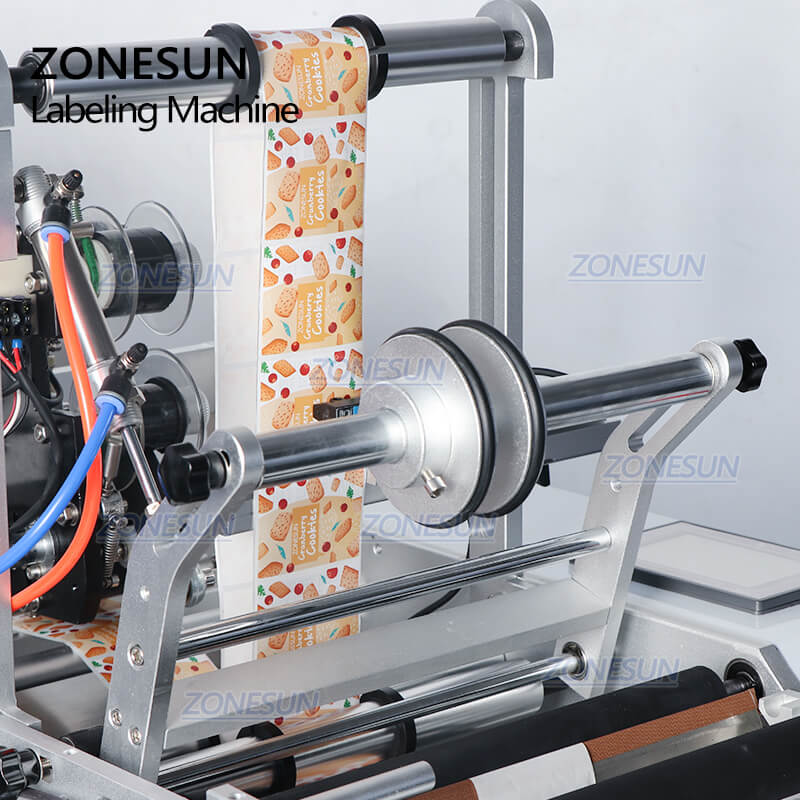

Roller  of TB-190 Semi-automatic Round Bottle Labeling Machine

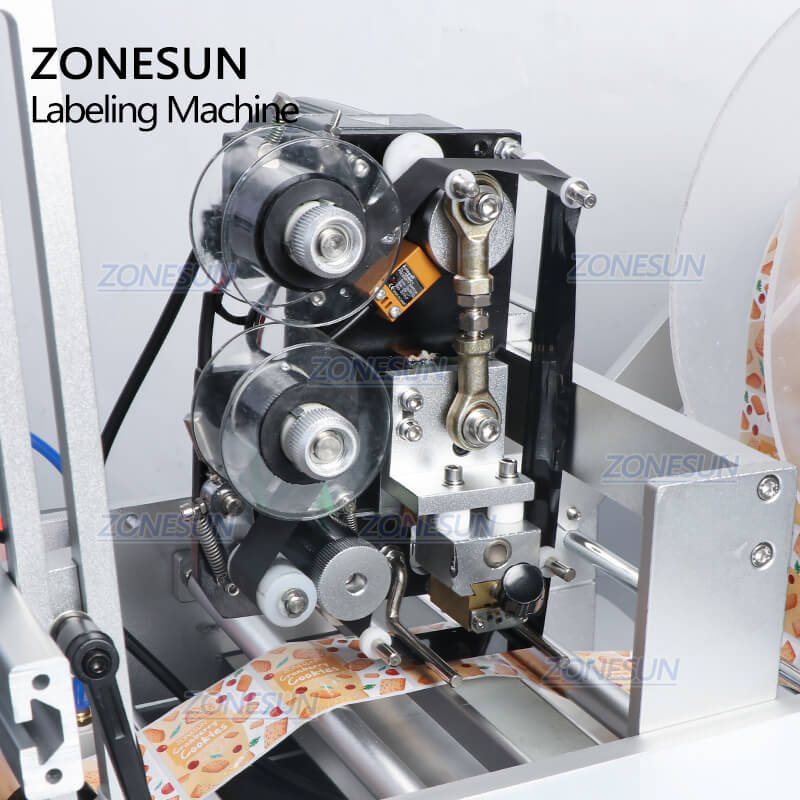

date coder of TB-190 Semi-automatic Round Bottle Labeling Machine

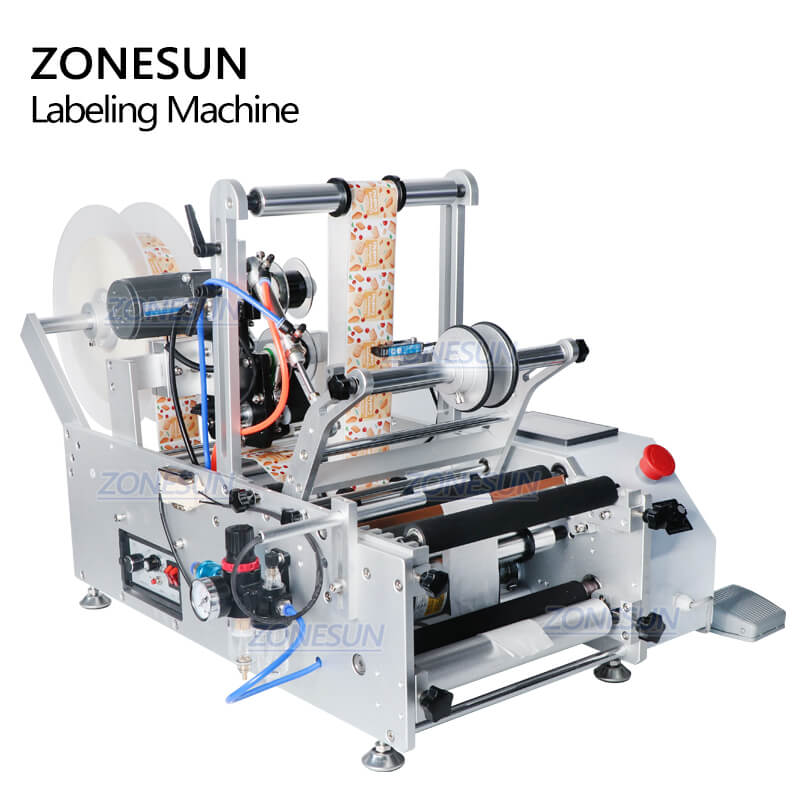

TB-190 Semi-automatic Round Bottle Labeling Machine
TB-190 Semi-automatic Round Bottle Labeling Machine

ZONESUN TB-190 Semi-automatic PET Plastic Tin Can Round Glass Water Milk Juicer Bottle Labeling Machine

Size
Voltage
Regular price $1,399.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Click Video Link For Video

Introduction

This automatic bottle labeling machine has the similar functions like the full automatic labeling machine.It is good for single side labeling and double side labeling.It is with a reasonable design and the dimension is not that large as the full automatic labeling machine.It is the ideal choice for most of suppliers

Parameter

Labeling capacity(pcs/min):15- 35PCS/min
Labeling accuracy(mm) :士1.0mm
Label size(mm) :(W)20-200mm (H)20-300mm
Suitable Bottle Diameter:φ10-φ150mm
Suitable Bottle Height :≤26cm
Roll inside(mm) :φ76mm
Roll outside diameter(mm) :φ250mm
Machine size (mm) :(L)950*(W)540*(H)530(mm)
Weight :35kg
Power supply :AC220V 50Hz/60Hz 250W
TB-190 Semi-automatic Round Bottle Labeling MachineApplication of TB-190 Semi-automatic Round Bottle Labeling MachineTB-190 Semi-automatic Round Bottle Labeling Machine
Sensor of TB-190 Semi-automatic Round Bottle Labeling Machine
The imported electric eye can detect the label/bottle accurately,this prevent from leaking andwasting labels/bottles.

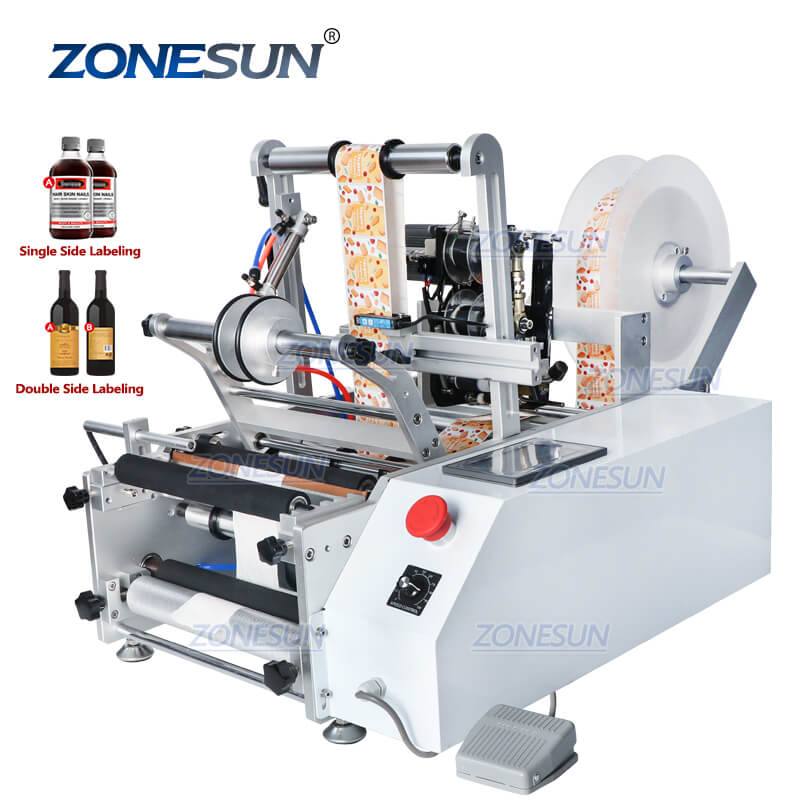

Labeling method of TB-190 Semi-automatic Round Bottle Labeling Machine
This machine can be used for single side or double side labeling.This widen the use range of thismachine.Additionally,English operation panel make it easy to test and use the machine.

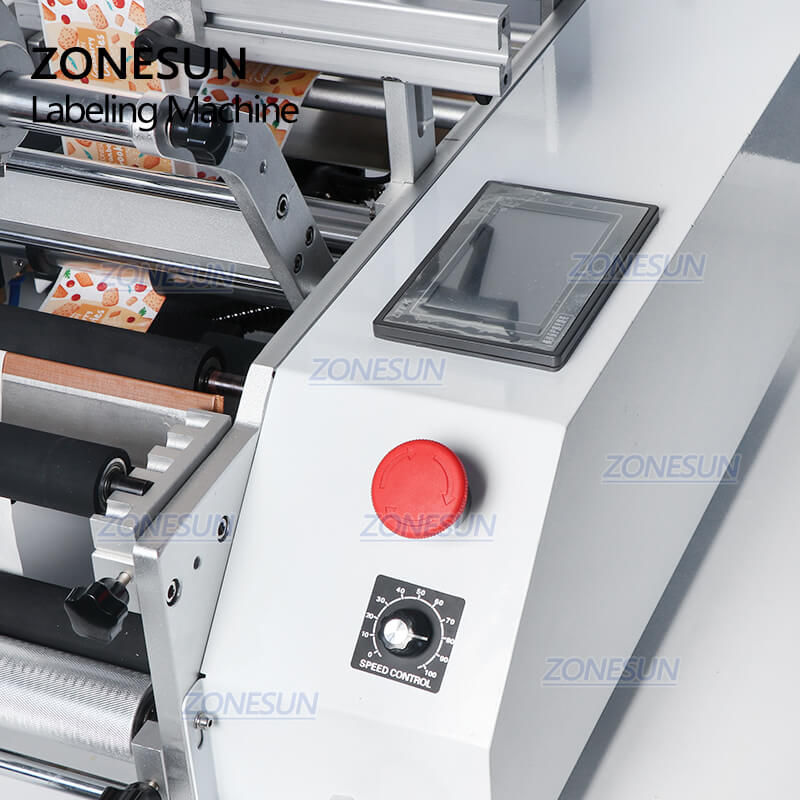

Details of TB-190 Semi-automatic Round Bottle Labeling Machine
With Stop button,can protect the machine from damaged and keep the operator safe duringworking.The labeling speed is also adjustable for control the machine better.
barometer of TB-190 Semi-automatic Round Bottle Labeling Machine
The imported electric eye can detect the label/bottle accurately,this prevent from leaking andwasting labels/bottles.
pedal switch of TB-190 Semi-automatic Round Bottle Labeling Machine
This machine has two working mode,one is automatic working mode.Another one is pedal switchcontrol working mode.Customer can choose the best working mode based on use.
Motor of TB-190 Semi-automatic Round Bottle Labeling Machine
The adjustable-speed motor works stably and efficiently.lt can works for a long time and easy tomaintenance.
Real shot of TB-190 Semi-automatic Round Bottle Labeling Machine
