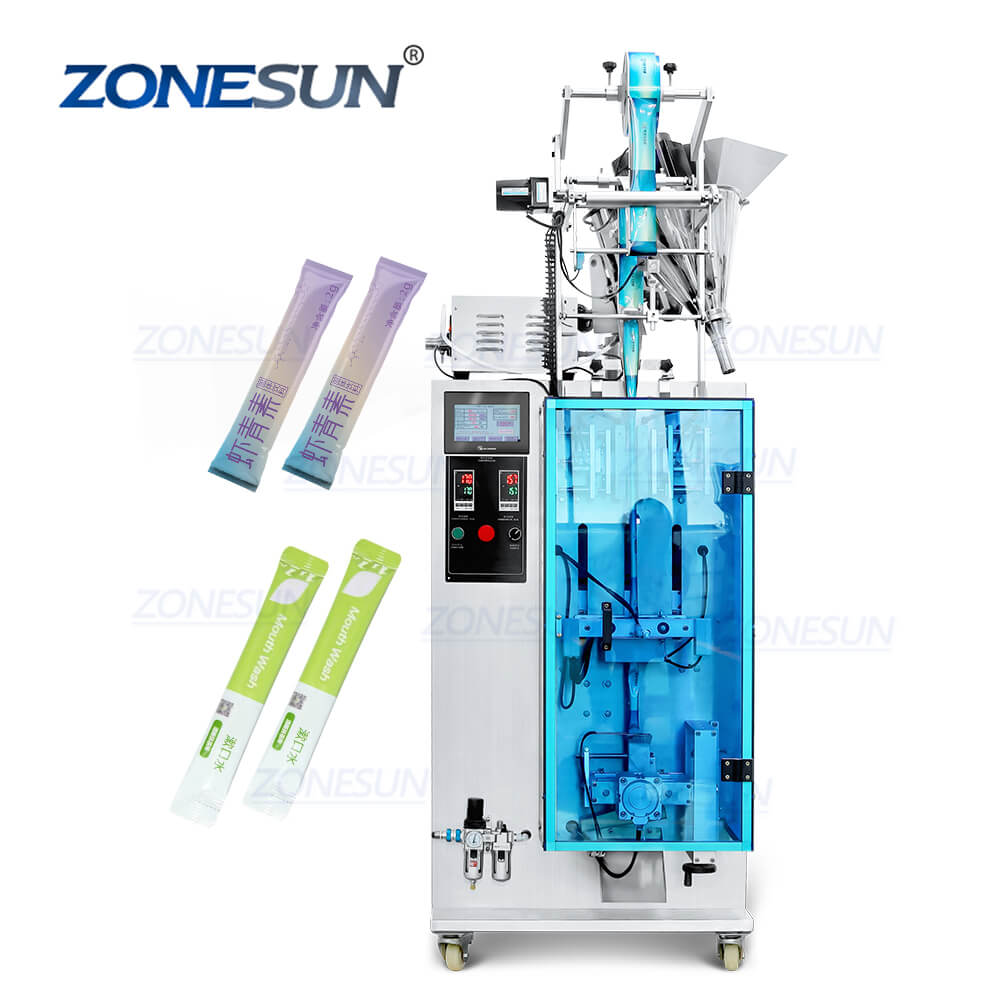

ZS-FS240 Automatic Small Stevia Sachet Drinks Mixes Sachet Organic Tea Vegetable Powder Stick Bag Filling Sealing Machine VFFS Packaging Equipment

This automatic VFFS packaging machine is suitable for filling powder or liquid into pouch,  round corner back side sealing packaging bags.The packaging film pulling structure is controlled by servo motor, packaging accuracy and working speed will be better.This machine is suitable for packaging bagged powder and bagged liquid like coffee powder, ginseng drinks etc.

Parameter

• Machine model:ZS-FS240

• Voltage:110/220V 50-60HZ 2KW

• Filling range:1-30ml(Can be customized)

• Filling method:Magnetic pump/ Auger Controlled

• Sealing type:Back side sealing(Can be customized)

• Control system:PLC control

• Packaging speed:60-130bags/min

• Bag size:30-160mm(L)*15-100mm(W)

• Bag material:Heat sealable bags

• Packaging size:About 850*960*2050mm

• Packaging weight:About 200kg

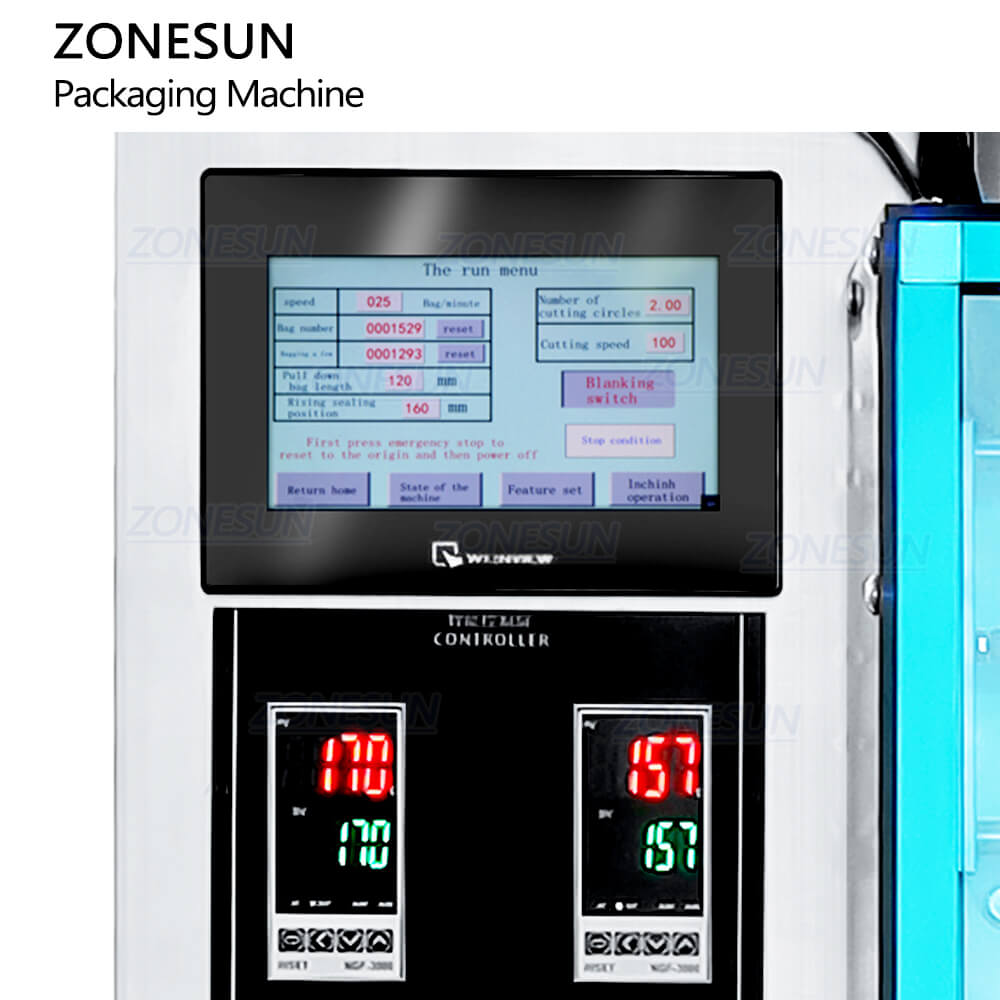

This machine is controlled by PLC touch screen operating panel, the working parameter like filling volume, sealing temperature can be displayed clearly and more directly.This can save time on machine debugging

Magnetic pump liquid filling machine or auger filling structure can be chosen accprding to different kinds of filling material.This machine design widen the application range, it saves production cost when choosing a filling machine.

Magnetic pump liquid filling machine or auger filling structure can be chosen accprding to different kinds of filling material.This machine design widen the application range, it saves production cost when choosing a filling machine.

The permutation of chip and circuit is orderly, this is easier to check and debug machine, and ensures the machine work stably.
