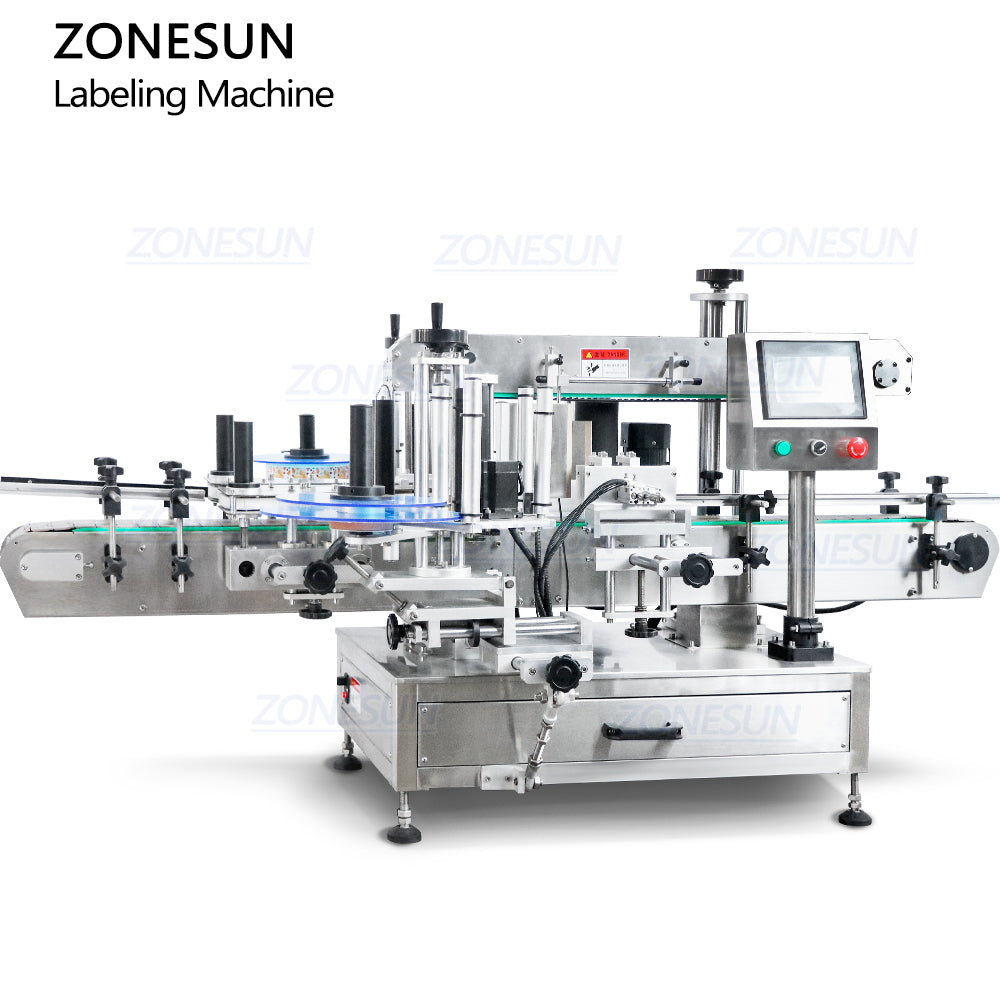

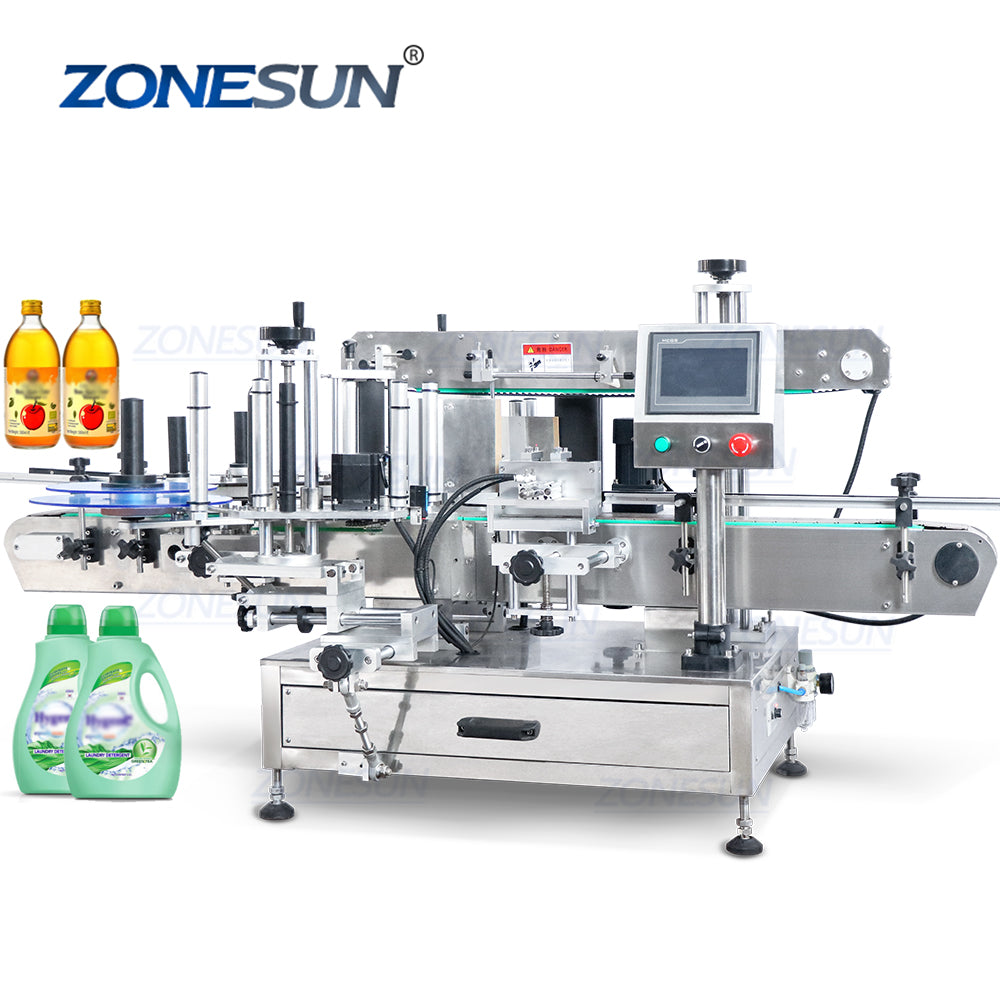

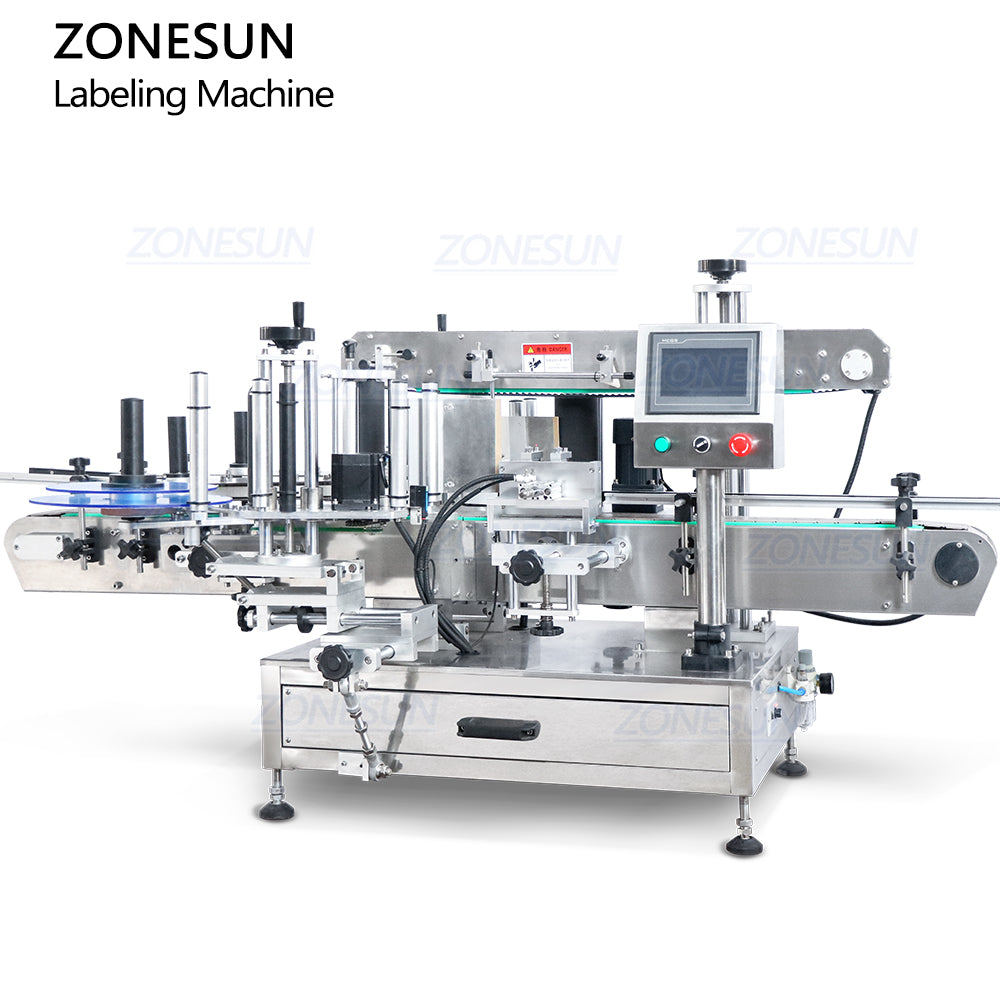

This desktop labeling machine is equipped with two labeling structure,one is for flat bottles,another one is for round bottles.It is suitable for single side and double side labeling.This machine is suitable for beverage daily chemical,and cosmetics industries.

Parameter

Machine model:ZS-TB300N
Voltage:110V-60HZ/220V-50HZ
Power:1.5KW
Working speed:About 30-100 bottles/min
Labeling accuracy:±0.5mm
Suitable labeling Size:≤150mm(W)(Can be customized )
Roll inside diameter(mm):Φ75mm
Roll outside diameter(mm):Φ250mm
Suitable bottle diameter:φ≤100mm H≤350mm
Conveyor size:About 2010*100mm
Machine size:About 2000*1150*900mm(L*H*W)
Machine weight:About 208kg

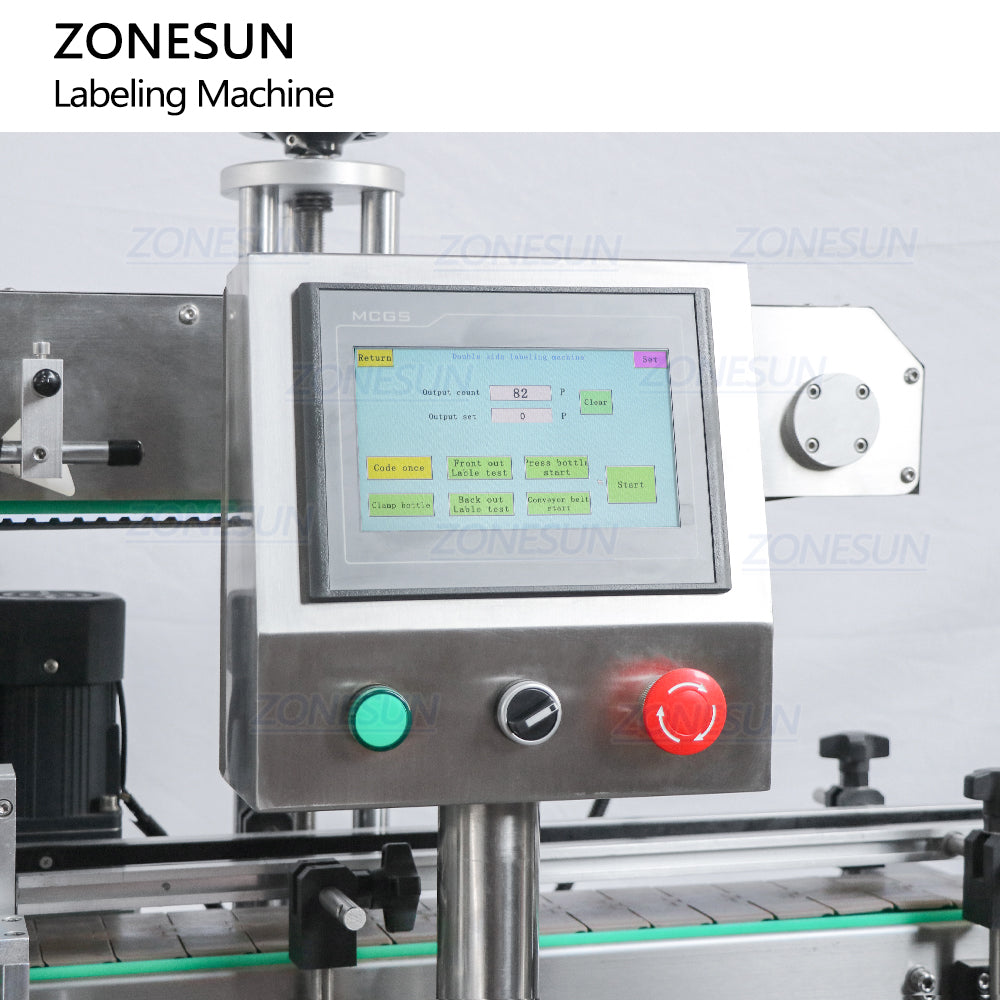

Equipped with intelligent control panel,it is more user-friendly different kinds of languages can be customized as customers need,helps to control the working data easier and more accurately.

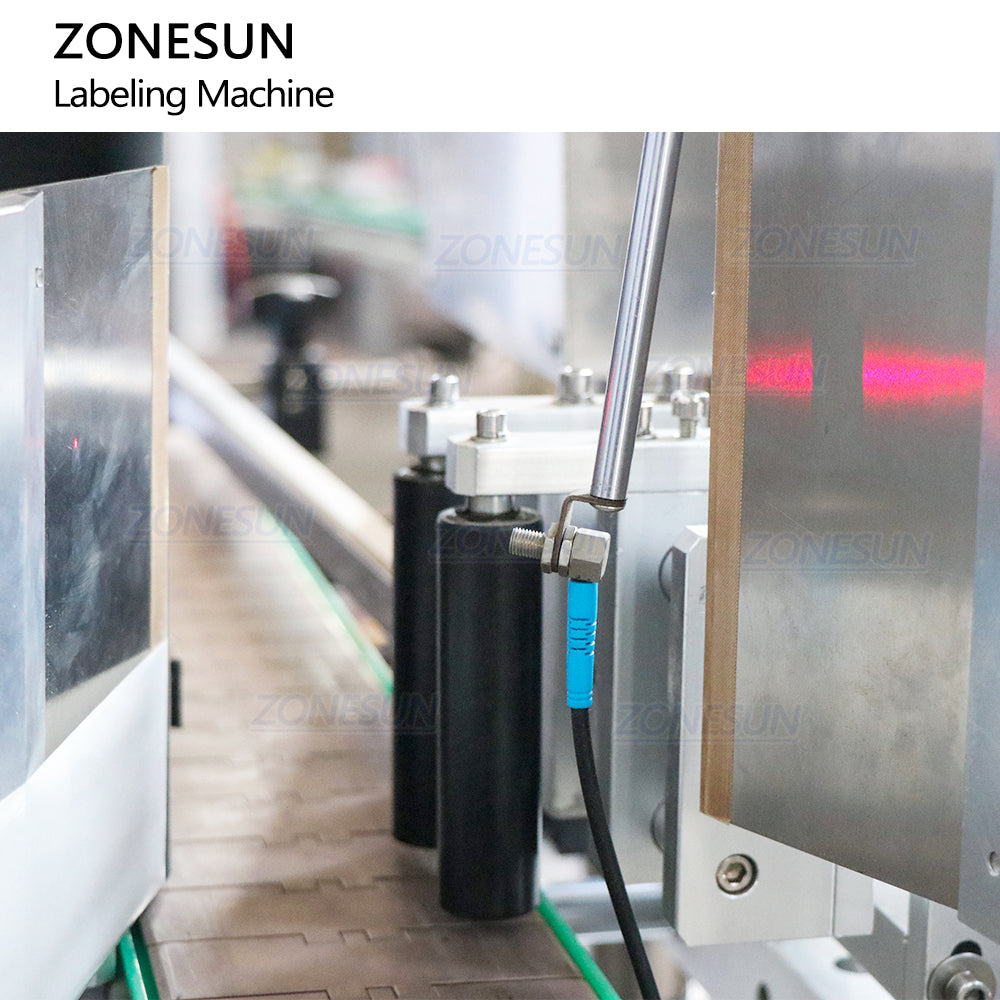

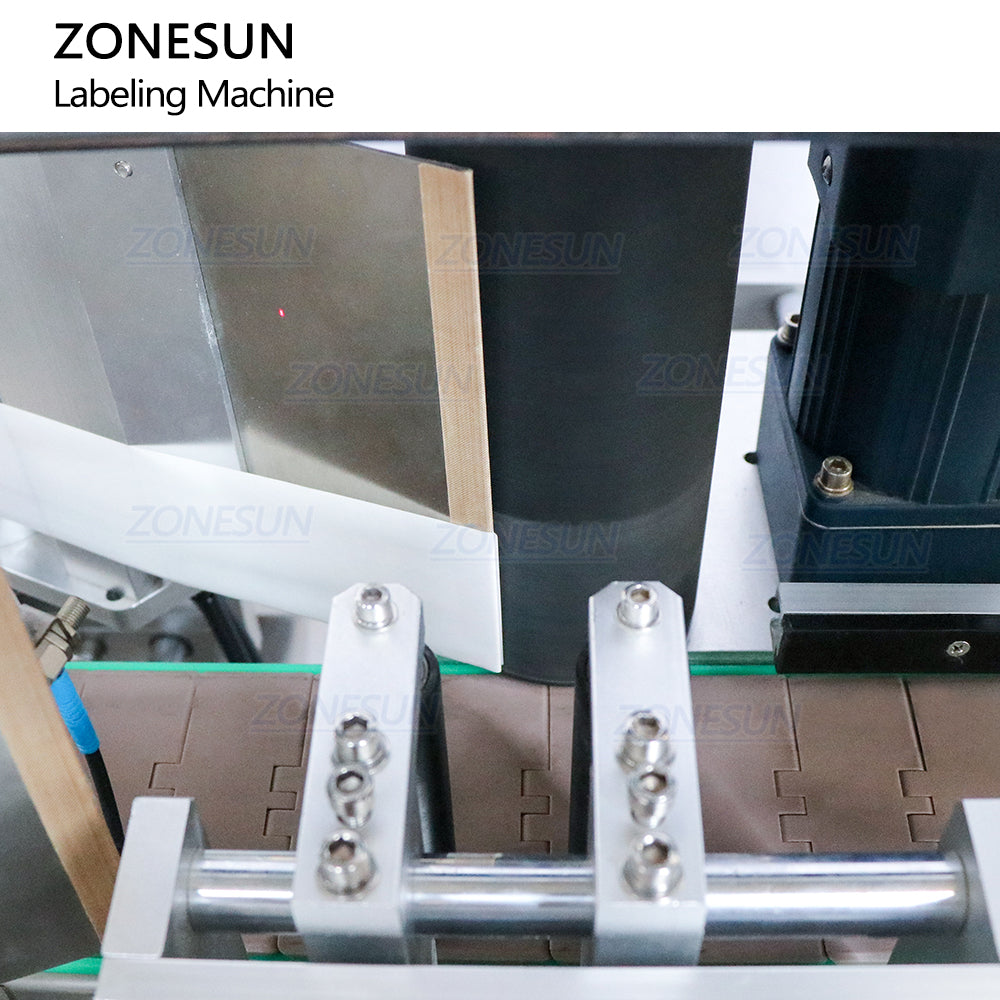

The high quality electric eye can detect labeling objects accurately when they pass by.This labeling structure is used for labeling stickers on flat bottles,not only single side labeling,but also double sides labeling.

These three labeling wheels make bottles rotating and then finish labeling, ensure that there is no bubbles under labels.Ensure the labeling effect.This is suitable for double side labeling.

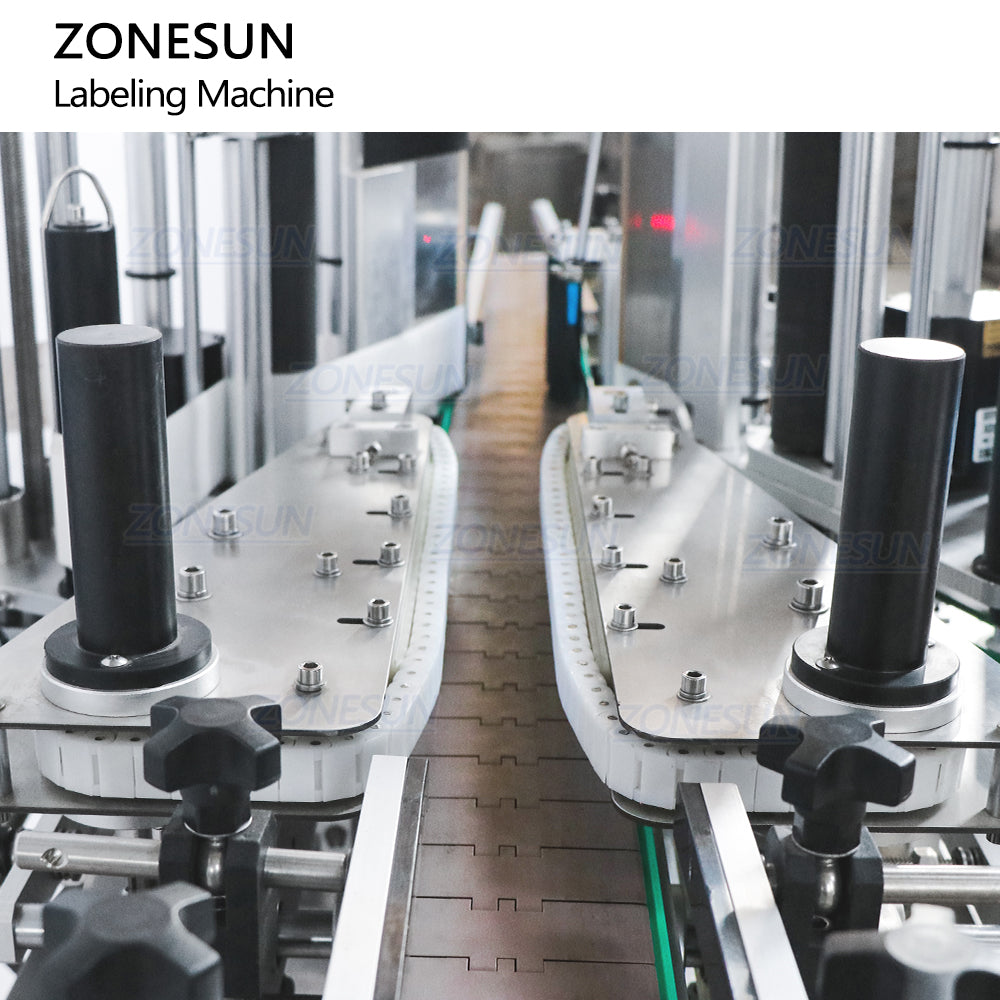

This machine is designed with bottle guiding structure,the width of it can be controlled according to bottle diameter the working speed of it is adjustable make sure the bottle can be transferred stably.

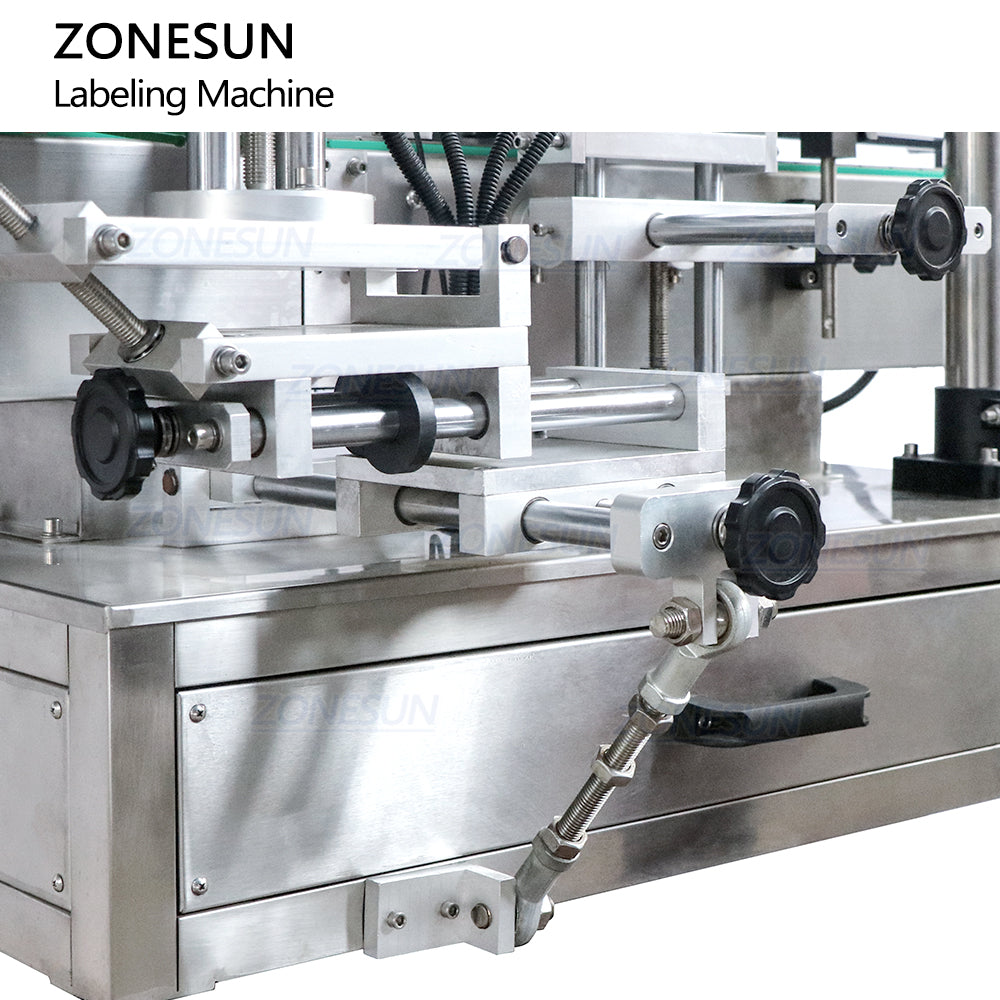

Rotary knobs can be used to controlled the position of the labeling wheel,label separating blade and winding bar,ensure the labeling accuracy and improve labeling quality.
