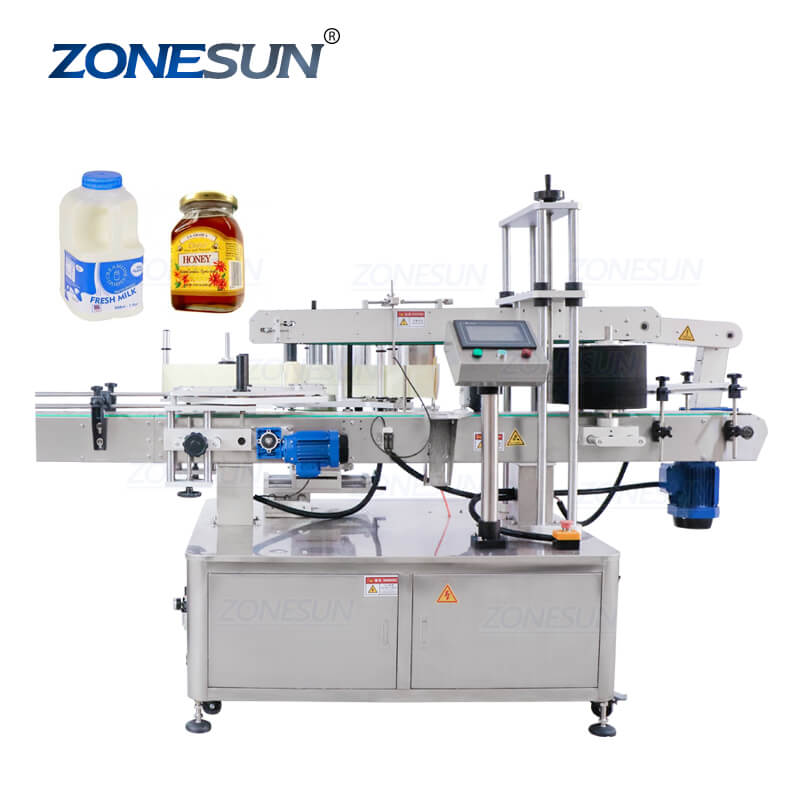

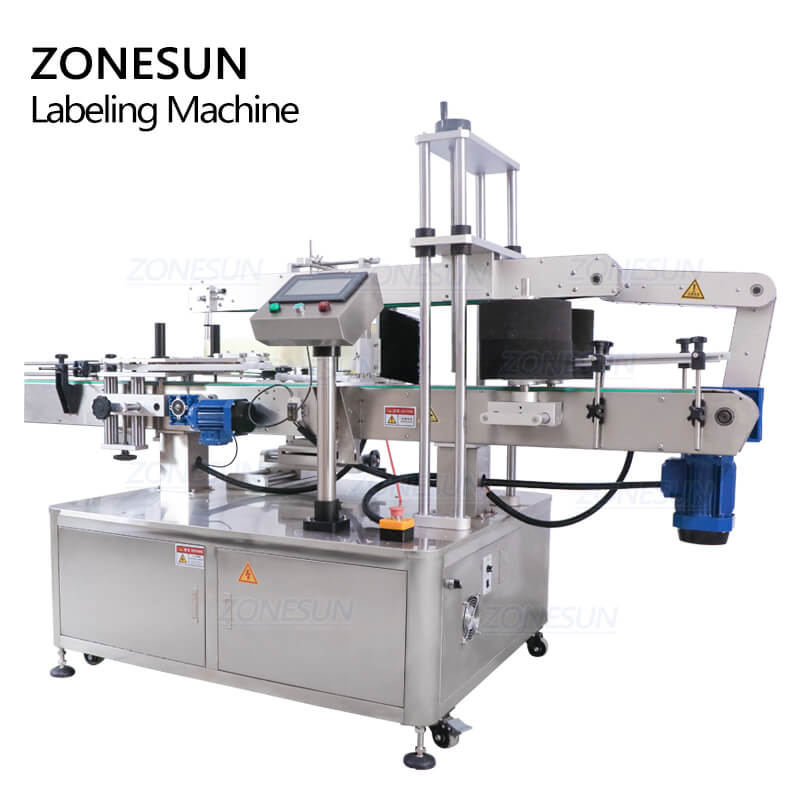

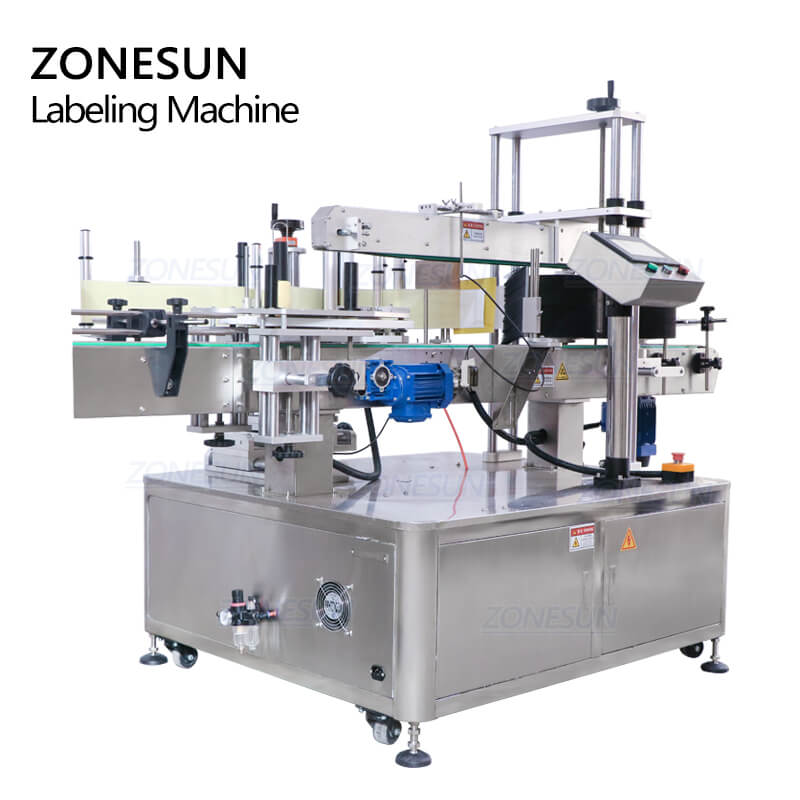

ZONESUN ZS-TB600T Three Side Automatic Flat Perfume Milk Bottle Labeling Machine

Name: ZONESUN ZS-TB600T Three Side Automatic Flat Perfume Milk Bottle Labeling Machine
Availability: InStock

Voltage 110V 220V

Price

Save $-8,799 USD

/

One Year Warranty

User Manual

One-to-one Video Chat Support

Install & Debug Video

Custom Package Solution

Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

Click For Video

This automatic labeling machine is designed for labeling three sides for square bottles like edible oil bottles,health care products and hand sanitizer bottles.The middle side of the label will be pasted and the other two sides will be labeled by the brush.This machine can work with automatic filling and capping machine,it is widely used in food,daily chemical and cosmetics industries.

Parameter

Machine Model:ZS-TB600T
Power supply:AC220V 50Hz/60Hz 1500W
Labeling capacity(pcs/min):60-350PCS /min(depends on bottle size)
Labeling material thickness:20-120mm
Labeling material height:30-350mm
Label size(mm):(L)25- 300mm (H)15-200mm
Flat Bottle:Three Side
Roll inside(mm):Φ76mm
Roll outside diameter(mm):Φ350mm
Machine size (mm):About 1270*1110*1680mm
Packing Size:About 2200*1360*1850mm
Gross weight:About 510kg

Application of ZS-TB600T Three Sides Labeling Machine

Operation Panel of ZS-TB600T Three Sides Labeling Machine

The PLC control panel makes it more convenient to test and adjust working parameter.The language can be customized according to operation need,please contact us if you need this.

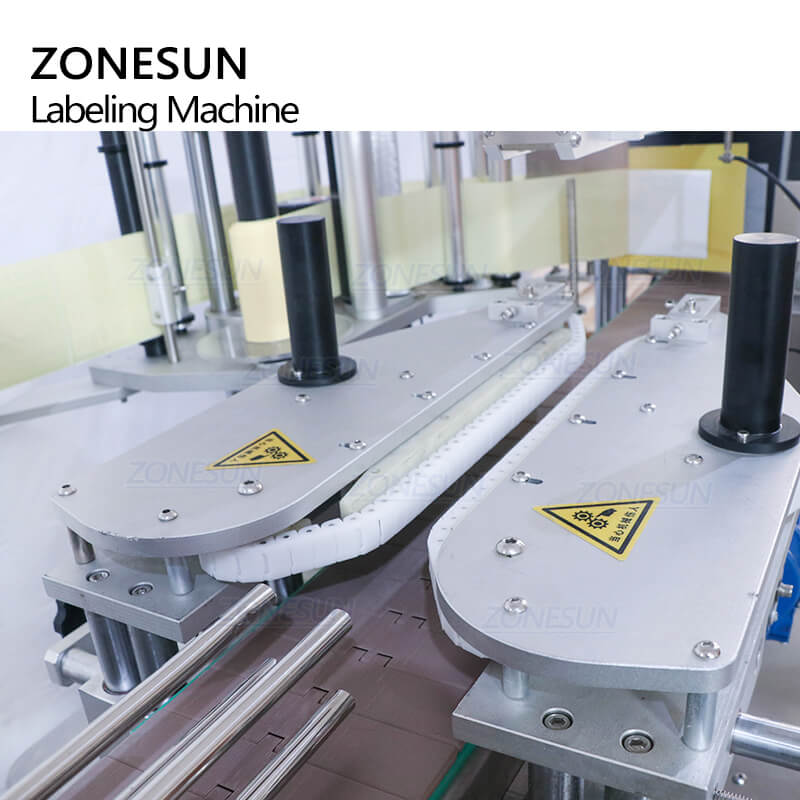

Guiding Structure of ZS-TB600T Three Sides Labeling Machine

The bottle guiding device can make bottles be in order,prevent that bottles fall down during labeling,improve labeling quality.

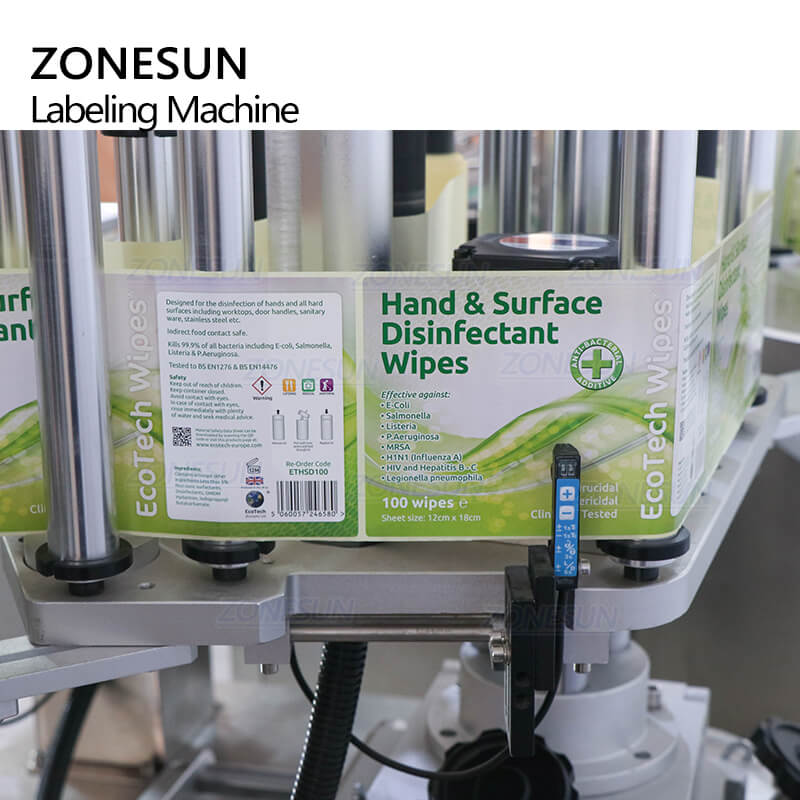

Equipped with high quality label sensor which can prevent from missing or wasting labels.The sensitivity of sensor can be adjusted,this improves labeling accuracy.

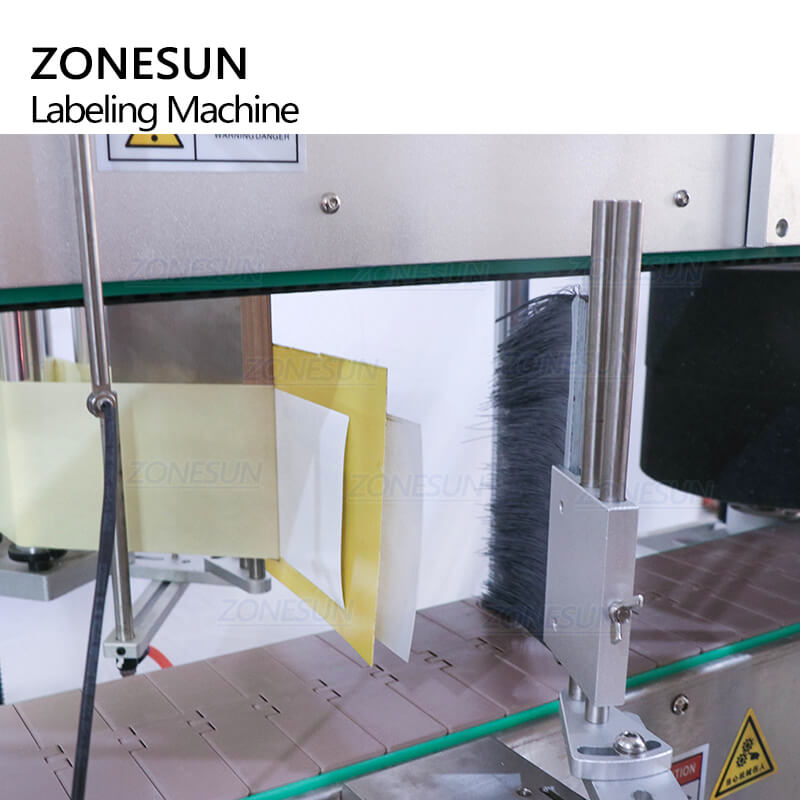

When the bottle pass through,the middle part of label stickers will be pasted,the other two sides will be labeled by the brush and the transparent soft board which can improve the labeling quality greatly.

Conveyor Belt of ZS-TB600T Three Sides Labeling Machine

The high quality conveyor belt can transport bottles smoothly and faster reduce production labor.The width of conveyor belt can be customized according to operation need,if you need this please contact us. Adjusting Structure of ZS-TB600T Three Sides Labeling Machine

Adjusting Structure of ZS-TB600T Three Sides Labeling Machine

The position of labeling structure can be adjusted by rotary knobs,this can make sure the machine can work more perfectly with your products.It is convenient and easy to operate.
