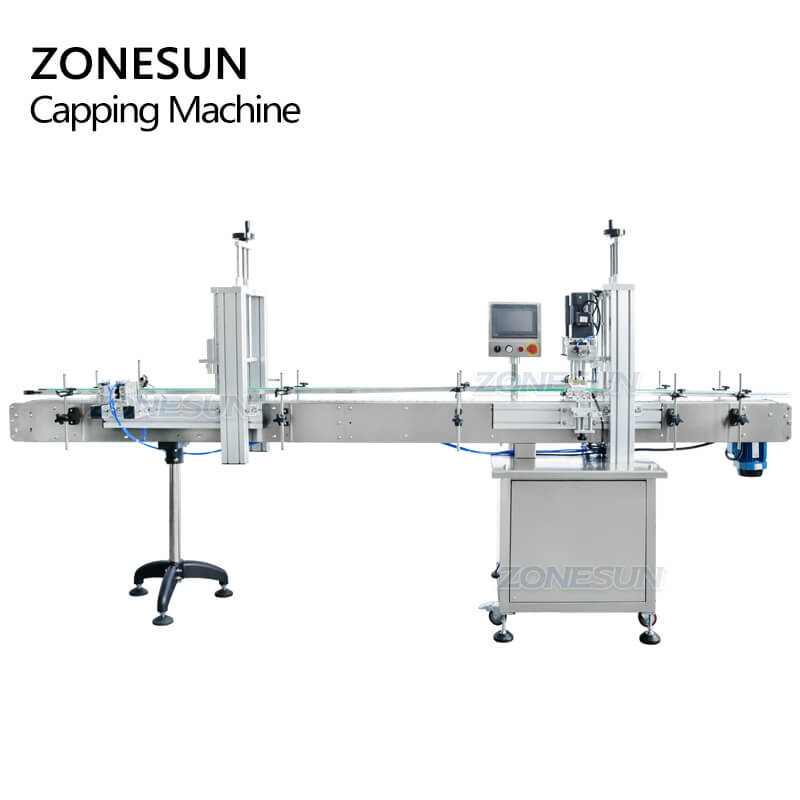

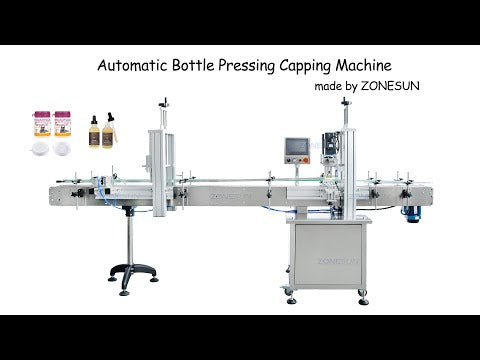

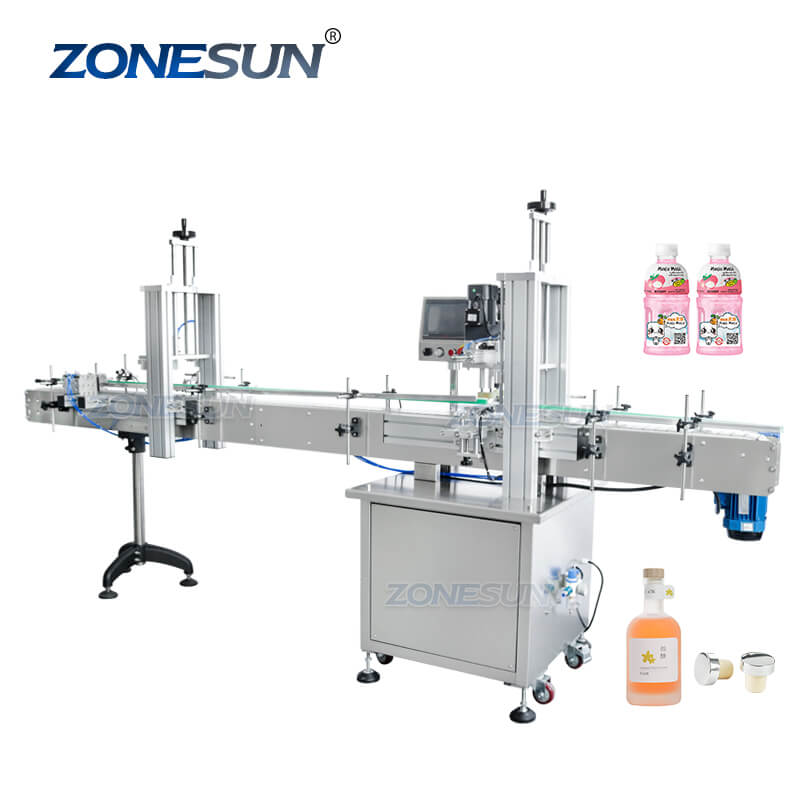

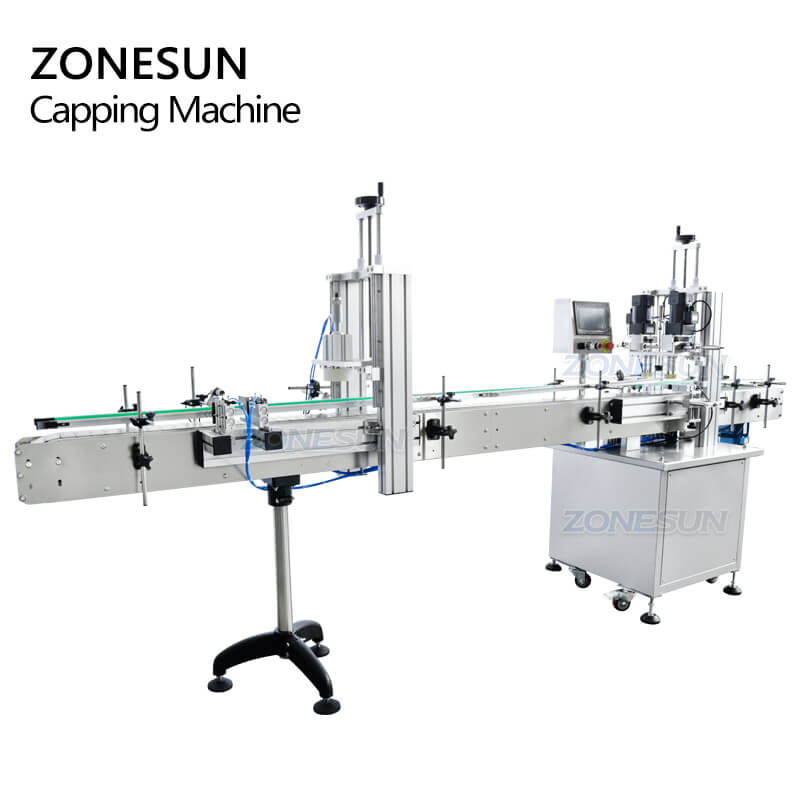

ZS-XG16DV Automatic Essential Oil Face Cream Cosmetic Glass Spray Bottle Caps Capping Machine

This automatic capping machine has functions of pressing and screwing caps.The pressing head and capping head can be used at the same time or choose one of the two.It is easy to adjust and operate,this machine is widely used in food,beverage,cosmetics and daily chemical industries.

Parameter

• Machine model:ZS-XG16DV

• Working voltage:AC220V/110V 50- 60HZ

• Bottle height:30-300mm

• Cap diameter:18-70mm

• Bottle diameter:20-160mm

• Working speed:20-60 bottles/min(depending on bottle and cap size and shape)

• Working pressure:0.4-0.6MPa

• Machine size:About 3360*680*1560mm

• Package size:1970*1170*1735mm

• Net weight/Gross weight:About 157kg /257kg

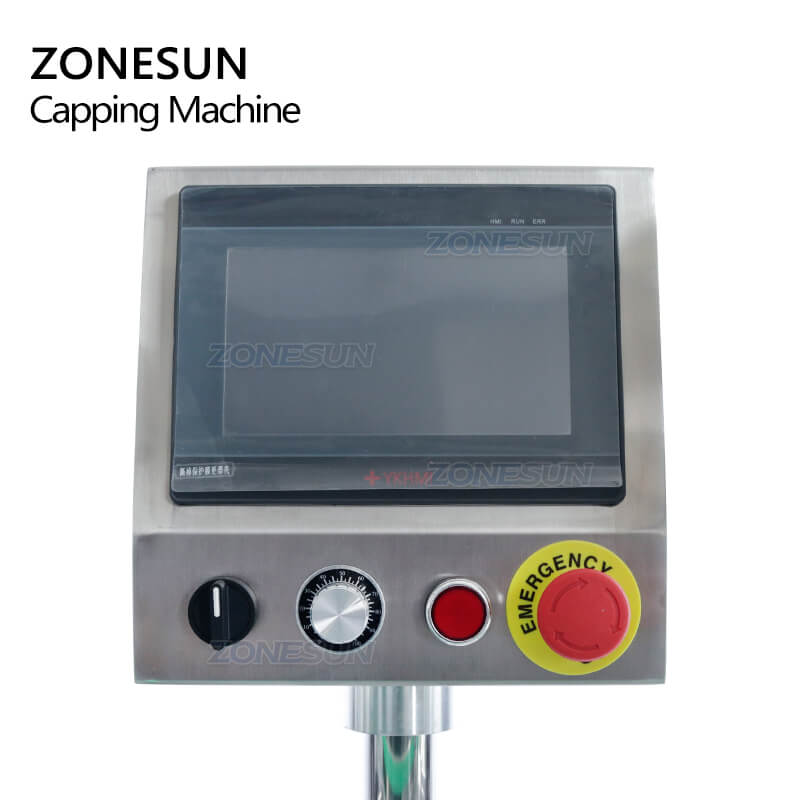

The language of touch screen can be set into English,we can customize different kinds of language according to your operation needs.This operation panel makes data visual,it makes it easier to adjust machine according to working status.

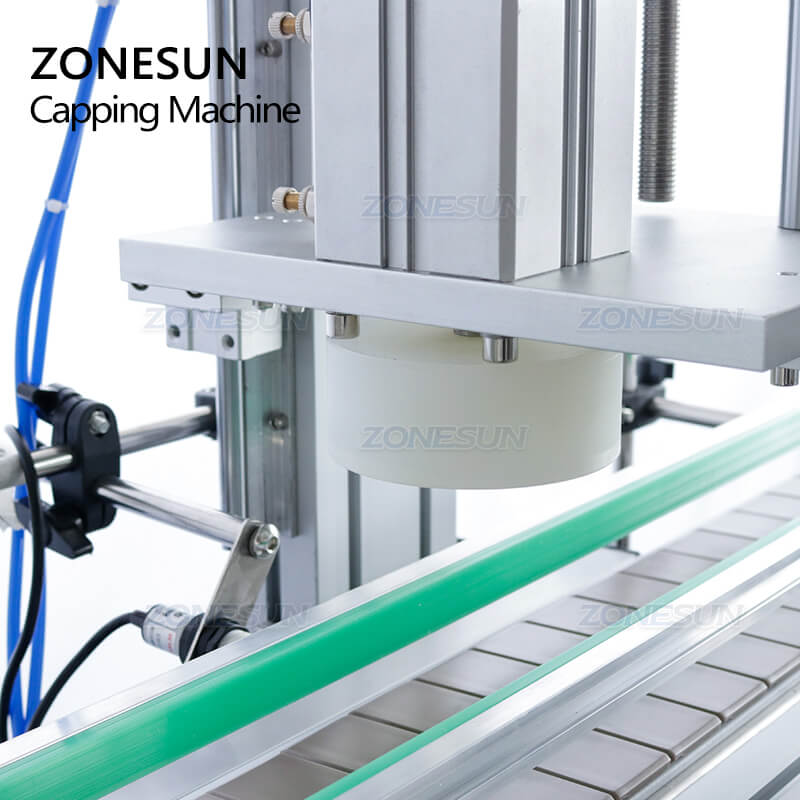

The press head can be customized according to bottle cap size,make sure the machine can work with product perfectly.

High quality electric eye can be used to receive and send out signal to system,it controls the machine work or not.This can prevent from missing bottles,improve working quality.

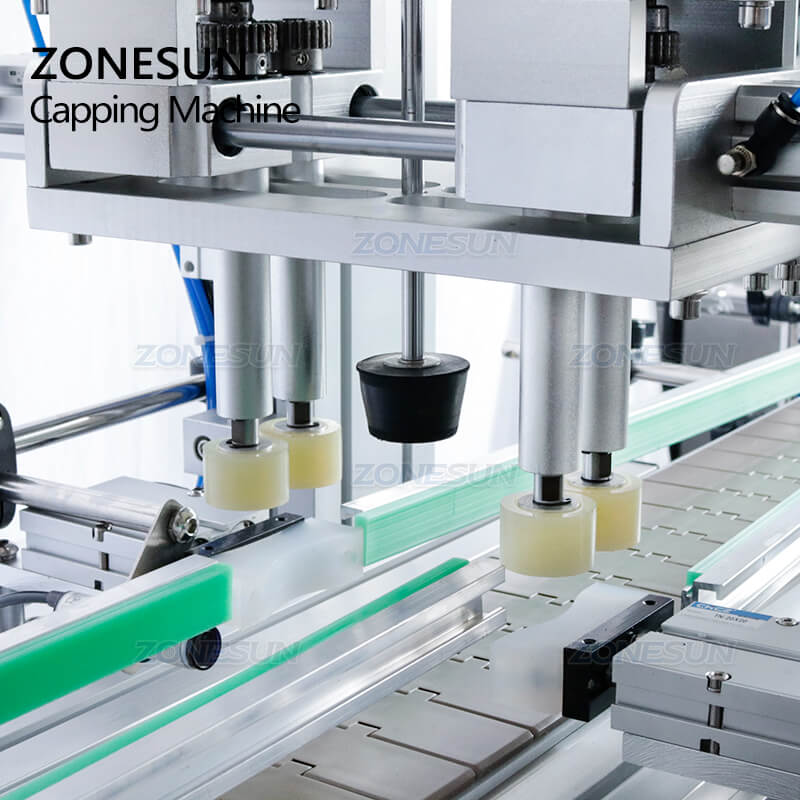

The screw capping head is consist of 4 rubber wheels,this kinds of capping method is suitable for various bottles like trigger pump bottles,spray bottles,dropper bottles.Widen the application range greatly.

Equipped with high quality conveyor belt,it is good for transport bottles stably and smoothly,reduce production error
