ZONESUN Many Filling Range Pneumatic Volumetric Softdrin Liquid Filling Machine Oil Water Juice Honey Soap Cream Paste Filler

Regular price $760.00 $0.00

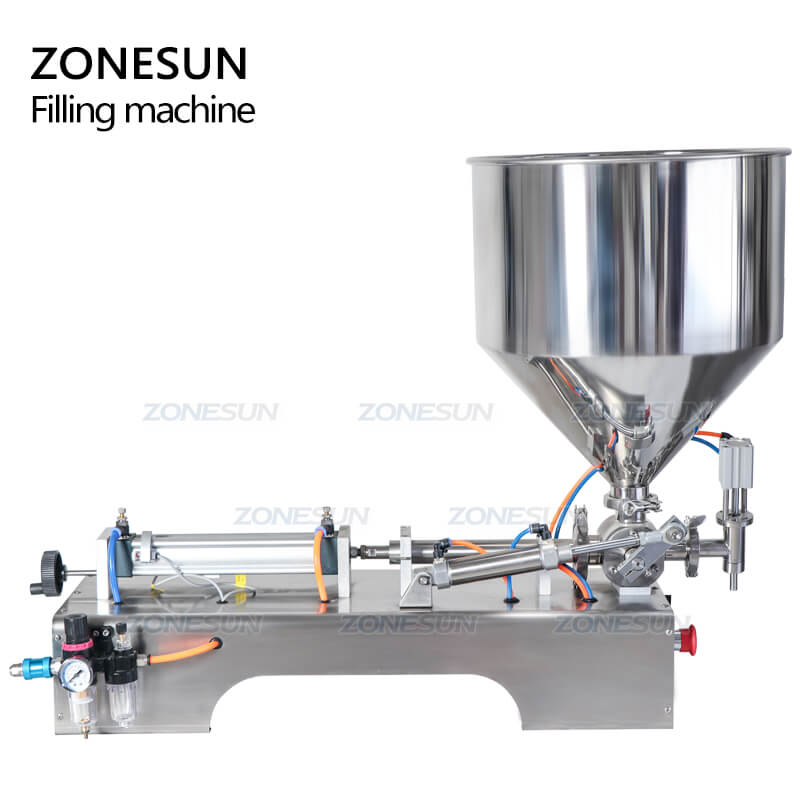

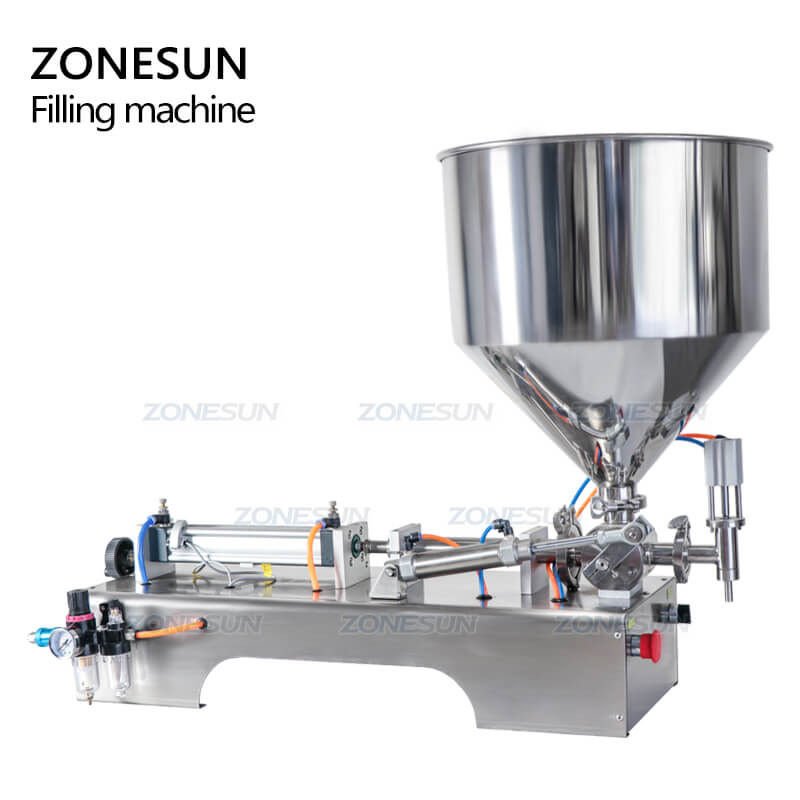

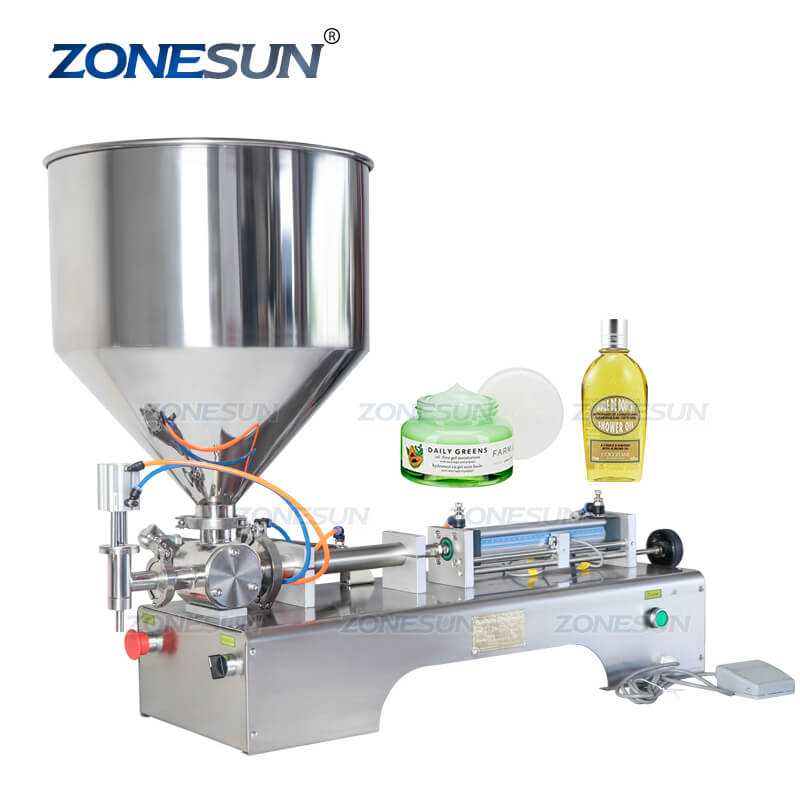

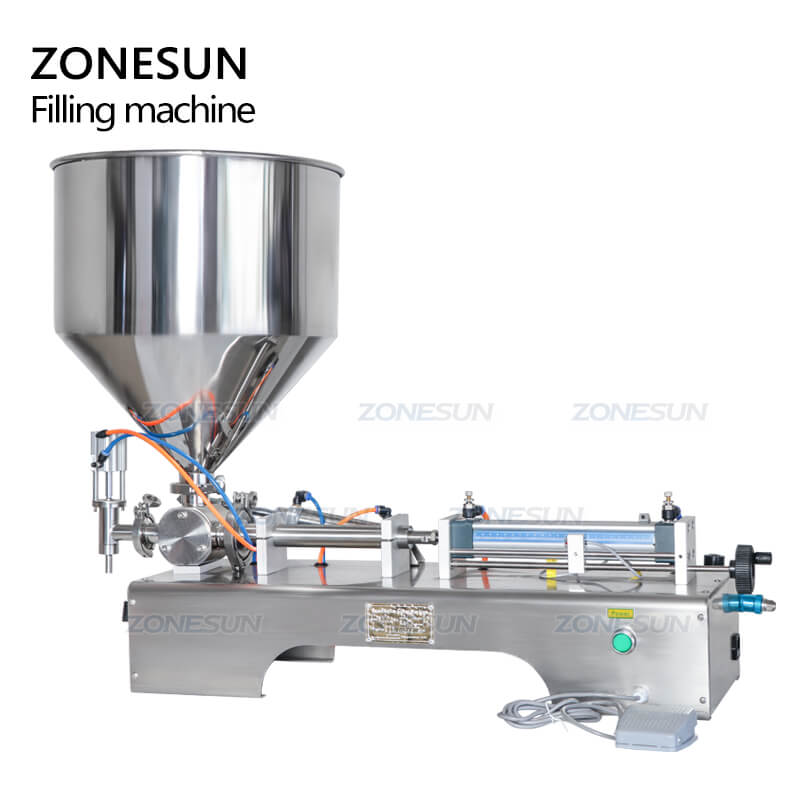

G1 stainless steel horizontal pneumatic paste filling machine automatic filling machine,high viscosity paste filling machine.

(100-1000ml lquid and paste filling machine,single filling noozle)
NOTE:We also have other size filling machine :5-100ml 10-300ml 50-500ml 100-1000ml 300-2500ml 1000-5000ml ,the price is different, clik here to choose the one you need.
Equipment Introduction

This series filling machine is foreign advanced filling machine technology transformation and innovative products, its structure is simple and reasonable precision, easy to operate, user-friendly design more in line with the requirements of the modern enterprise. Widely used in pharmaceutical, cosmetic, food, pesticides and special industries, is a high-viscosity fluid, paste quantitative filling the ideal equipment.

Device Features
The series filling machine structure is reasonable, model compact, reliable, accurate, easy to operate, Material contact parts are made of 304 stainless steel material, meet the GMP certification requirements. According to user needs within the scope of any regulation models filling volume and filling speed, high filling accuracy. Filling head adopts anti-leakage and lifting filling device.
The main impetus for aircraft gas source, customers must bring their own air compressor equipment.

Technical Parameters
Model                                                             G1
Voltage supply                                                220/110V 50/60Hz
Power                                                             10W
Filling accuracy                                               ≤ ± 0.5%
Filling speed                                                   5-20bottles / min
Filling volume                                                 5-100ml,10-300ml,50-500ml,100- 1000ml 300-2500ml 1000-5000ml(choose based on your requirement)
Equipped with air pressure                             0.4-0 .6 MPa
With gas consumption                                    ≥ 0.1m3/min
Machine Weight                                              40KG
Machine size                                                  1150x420x380mm

 _01_02_03_04_05_06_07_08

Features:
220/110V 50/60HZ (if you need 110v , please inform us ,then we will make 110v for you )
· Approximate Speed 20-40 pcs/min (depending on operator speed, product density, draw length, a fill speed, among others)
· All Parts in Contact with Product are Food Grade (SS 304/316)
· Includes one 30Liter Hopper
· Stainless Steel Construction

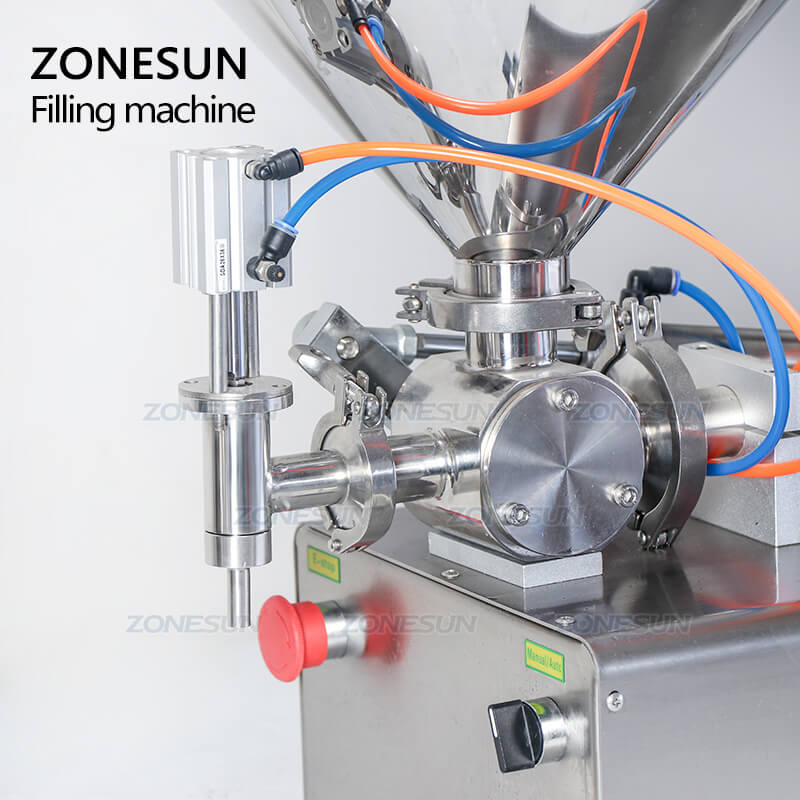

· Rugged Rotary Valve System Design
· Pneumatic Operation
· Silica gel O-ring System(cam bear 200 Celsius degree)

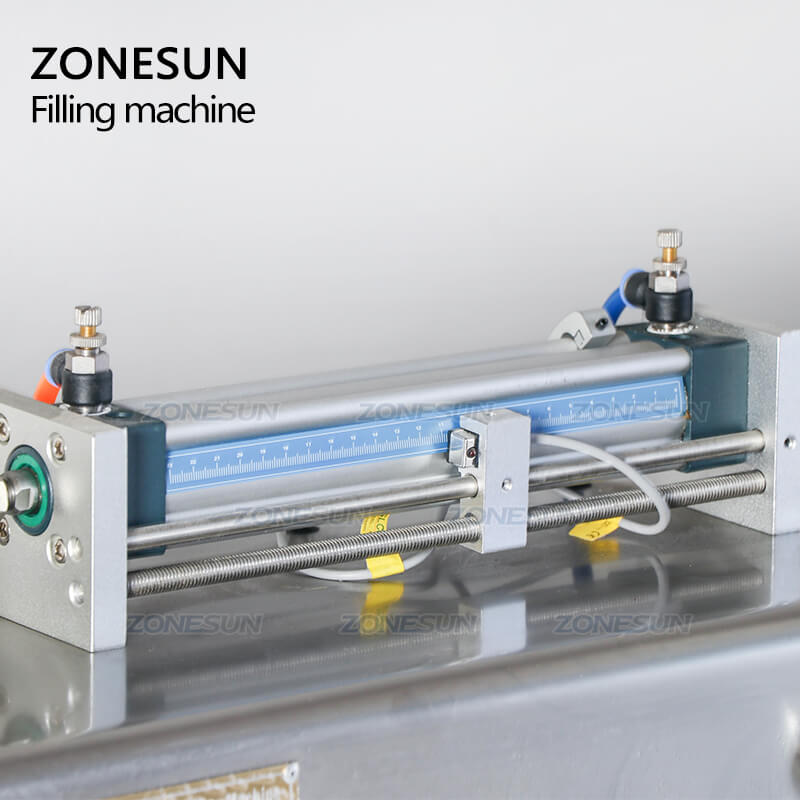

· Piston Feed Speed Adjustment
· No-drip Option Included and Installed
· Extremely Accurate (+/- 1%)
· Extremely Easy to Clean and Maintain
· Sanitary Stainless Steel Quick Disconnect Fittings
· Extremely Easy to Operate
· Quick Connect/Disconnect Pneumatic Fittings.

Control Panel:
· Semi Auto/Continuous Operation Selector Switch
· Air Pressure Gauge
· Air Intake Pressure Adjustment
· Piston Volume Adjust

Accessory
Air Consumption 3-5KG 0.4-0.6MPa
Wearing parts : Silica gel O-ring System (when delivery, we will prepared enough for you use in one year. Customer can buy in the future in their country)
