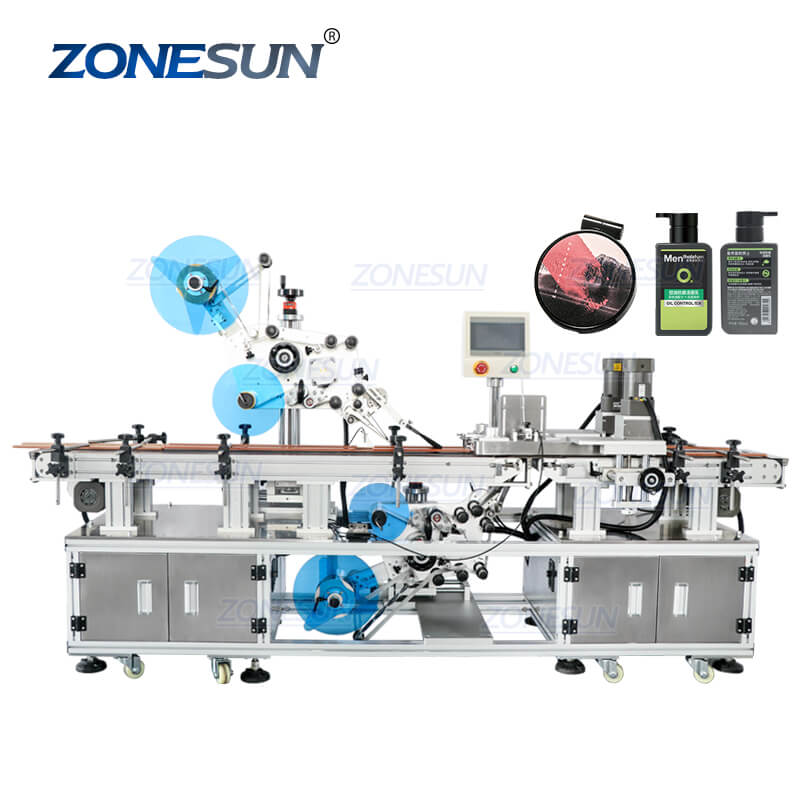

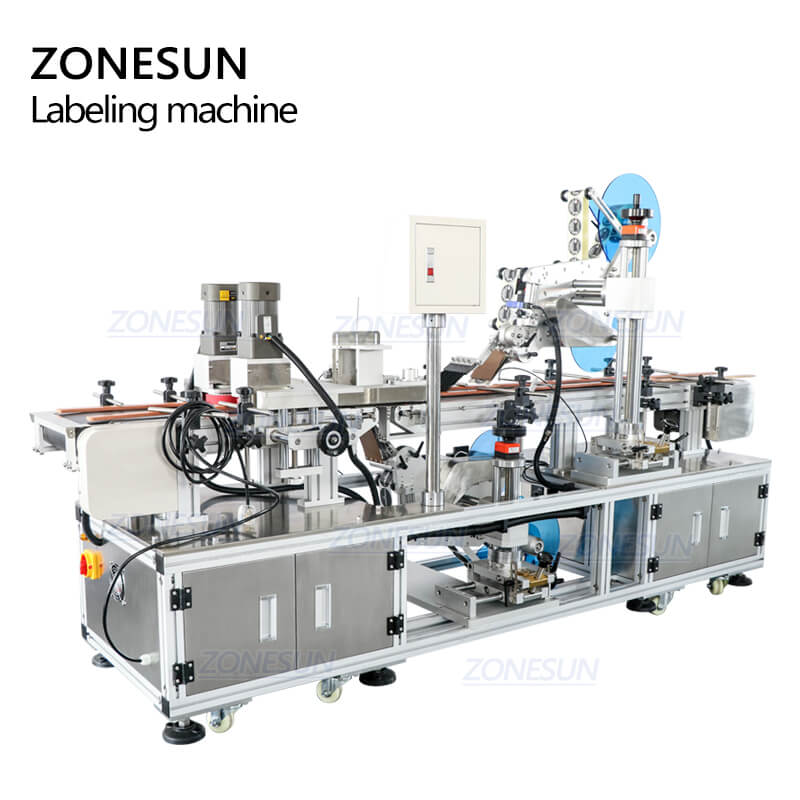

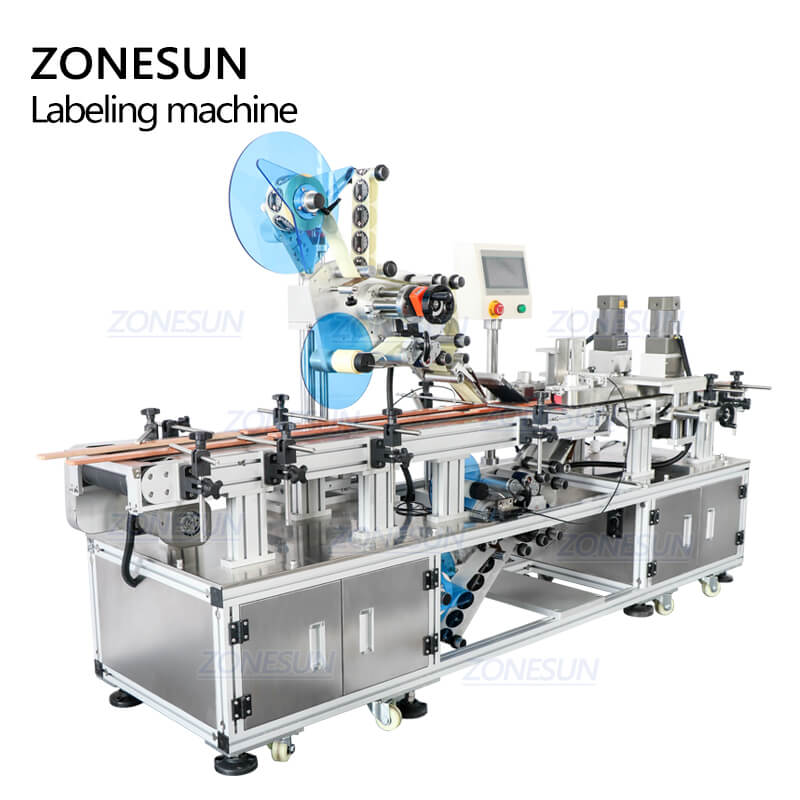

ZS-TB113B Adhesive Sticker Flat Box Surface Bottle Top And Bottom Side Labeling Machines

Description

This labeling machine is designed for labeling stickers on upper and bottom flat surface at the same time,this can improve working efficiency greatly and reduce production error.It is widely used in daily chemical,cosmetics,food and beverage industries.

Parameter

• Machine Model:ZS-TB113B Labeling Machine

• Power Supply:110V/220V 50-60HZ

• Working Speed:20-80 pieces/min(Based on product and label size)

• Labeling Accuracy:±1mm

• Suitable Labeling Object:Customized

• Suitable Label Size:Customized

• Label Roll OD:φ300mm

• Label Roll ID:φ76mm

• Machine Size:About 2490(L)*6250mm(W)*1410mm(H)

• Machine Weight:About 369kg

• Package Size:About 2740(L)*1040mm(W)*1510mm(H)

• Package Weight:About 491kg

Touch screen control panel make the parameter visual,easier to adjust and test the machine.Help you improve labeling accuracy.

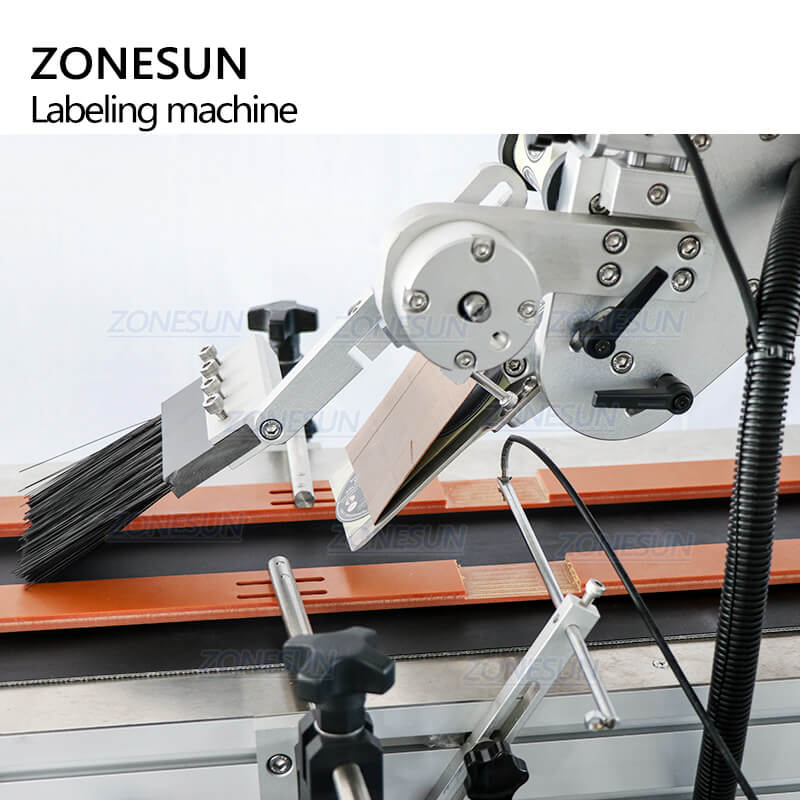

Designed for flat surface,it can be used to label stickers or film on front and back side on your products like laundry detergent bottles,helps you improve working efficiency.

The sensitivity of the label sensor can be adjusted by the machine components,this can ensure the labeling accuracy for different labeling objects.

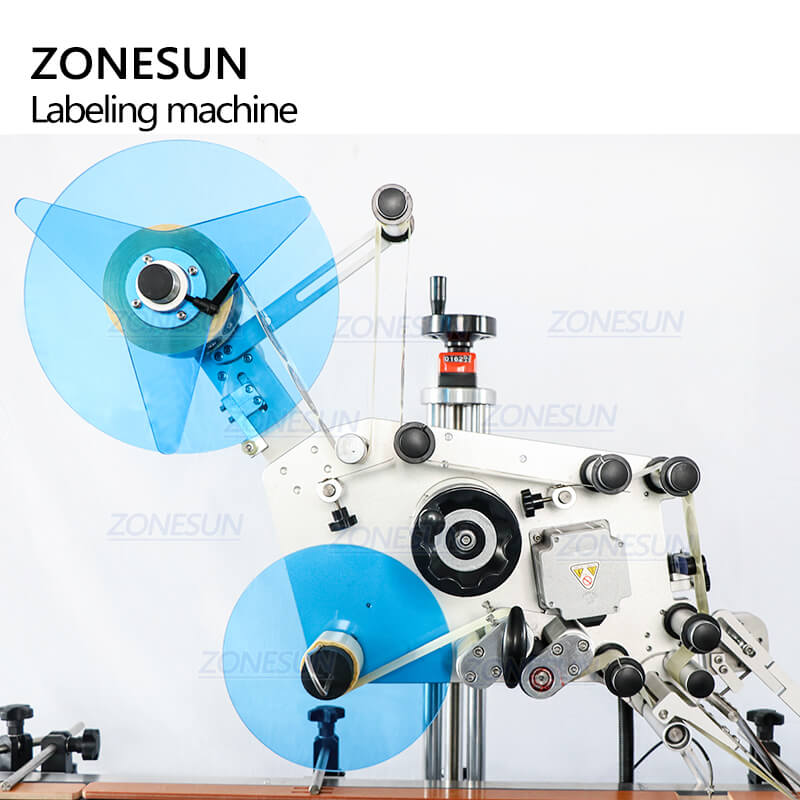

High quality machine components, ensure the label can be pulled flat during working,make it can work for a longer time.

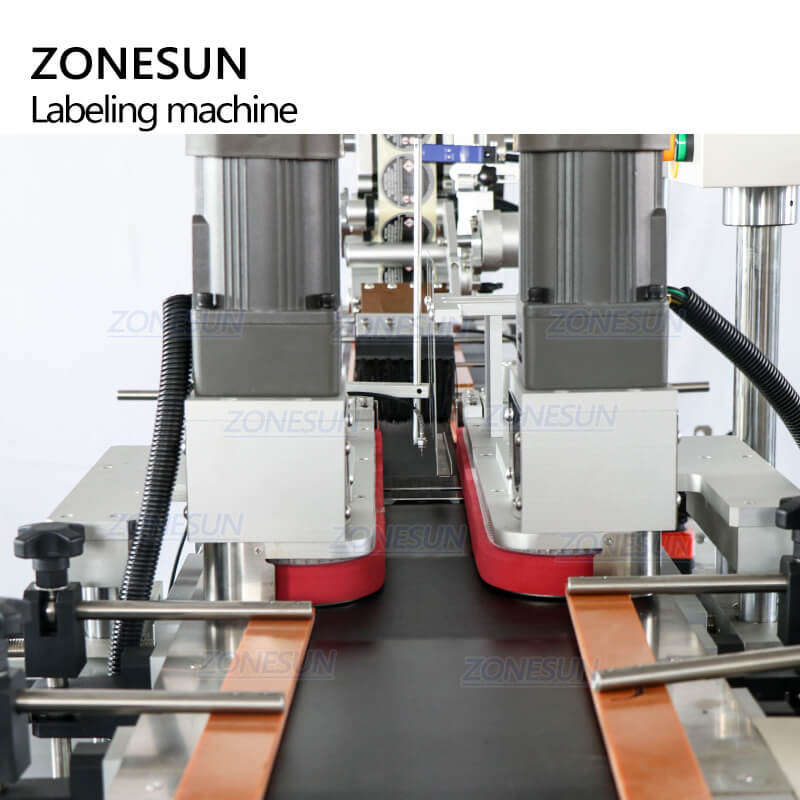

Equipped with conveyor,this machine can transfer labeling objects stably and quickly,improve labeling speed and labeling quality.
