ZONESUN ZS-AFC22 1-10L ATEX Semi-automatic Ex-proof Flammable Liquid Paste Thinner Latex Paint Bucket Weighing Filling Capping Machine

Voltage
Price
Regular price $4,599.00 USD
Regular price Sale price $4,599.00 USD
Save $-4,599 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

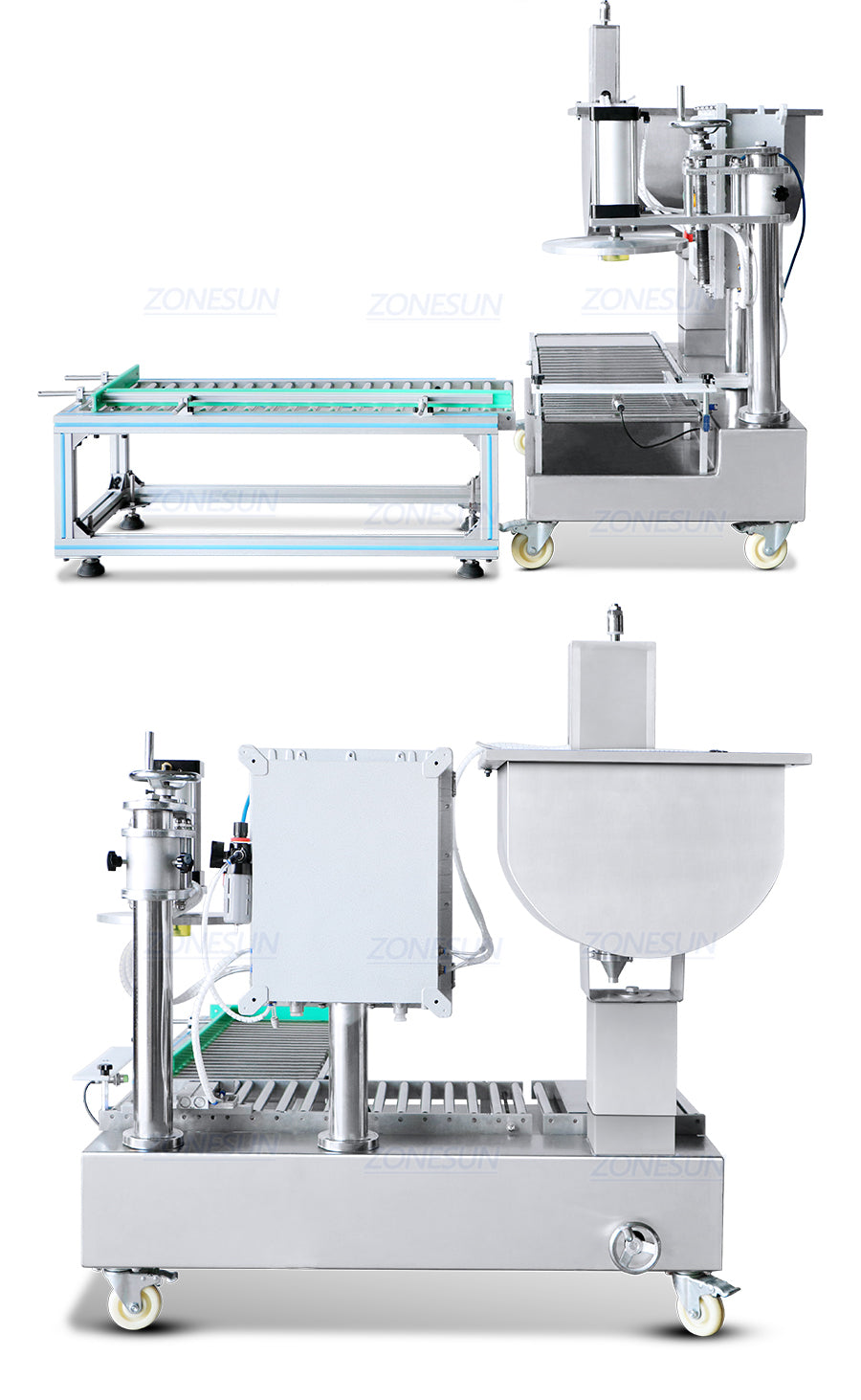

This weighing filling machine is designed for weighing, filling large capacity liquid or paste products filled into buckets (like oil paints, latex paint, thinner etc)  and press caps at the same time. This weighing filling machine has explosion proof function, good for flammable products.

Parameter

  • Machine Model: ZS-AFC22
  • Voltage: 220V/50-60Hz
  • Power: 100W
  • Working Speed: About 4-6 buckets/min(depending on bucket size and filling materials)
  • Filling Method: By weighing
  • Filling Range: 1-10L
  • Filling Accuracy: ±0.1%
  • Weighing Range: ≤10kg
  • Hopper Capacity: 60L
  • Air Pressure: 0.4-0.6 Mpa
  • Air Consumption: 5m³/h
  • Ambient Temperature: -10℃-45℃
  • Machine Size: About 1390*1870*1450mm
bucket weighing filling machine for oil paint
application of bucket weighing filling machine
parameter of bucket weighing filling machine

digital control panel of bucket packaging machine

Digital Control Panel
Intuitive panel for parameter adjustment. The language of panel can be customized.

weighing scale of bucket packaging machine

Weighing Scale
It will stop filling when the bucket weight achieves the set weight, ensuring filling accuracy.

cap press structure of bucket packaging machine

Cap Pressing Structure
The working height can be adjusted according to bucket size. It can be customized as needed.

pushing structure of bucket packaging machine

Pushing Structure
Can push buckets out after finishing cap pressing, saving labor.

bucket weighing filling machine for oil paint-1
bucket weighing filling machine for oil paint-2
