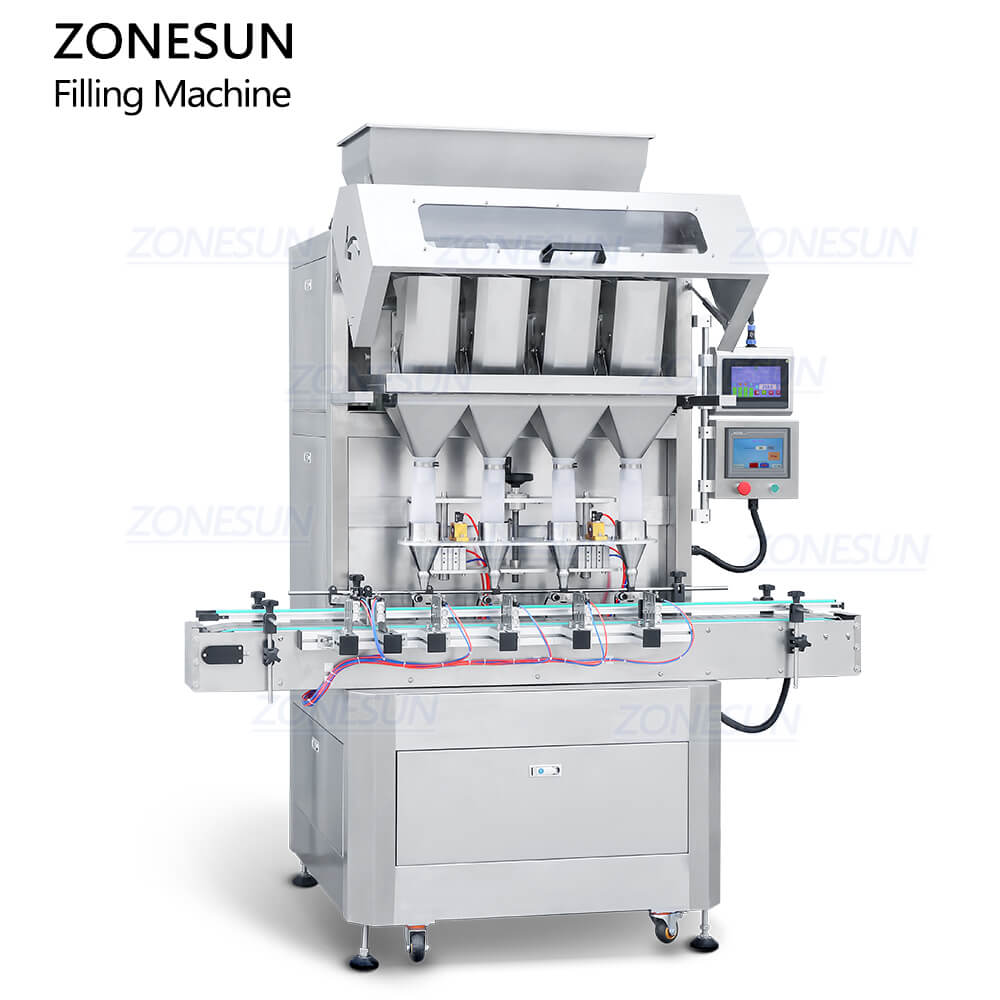

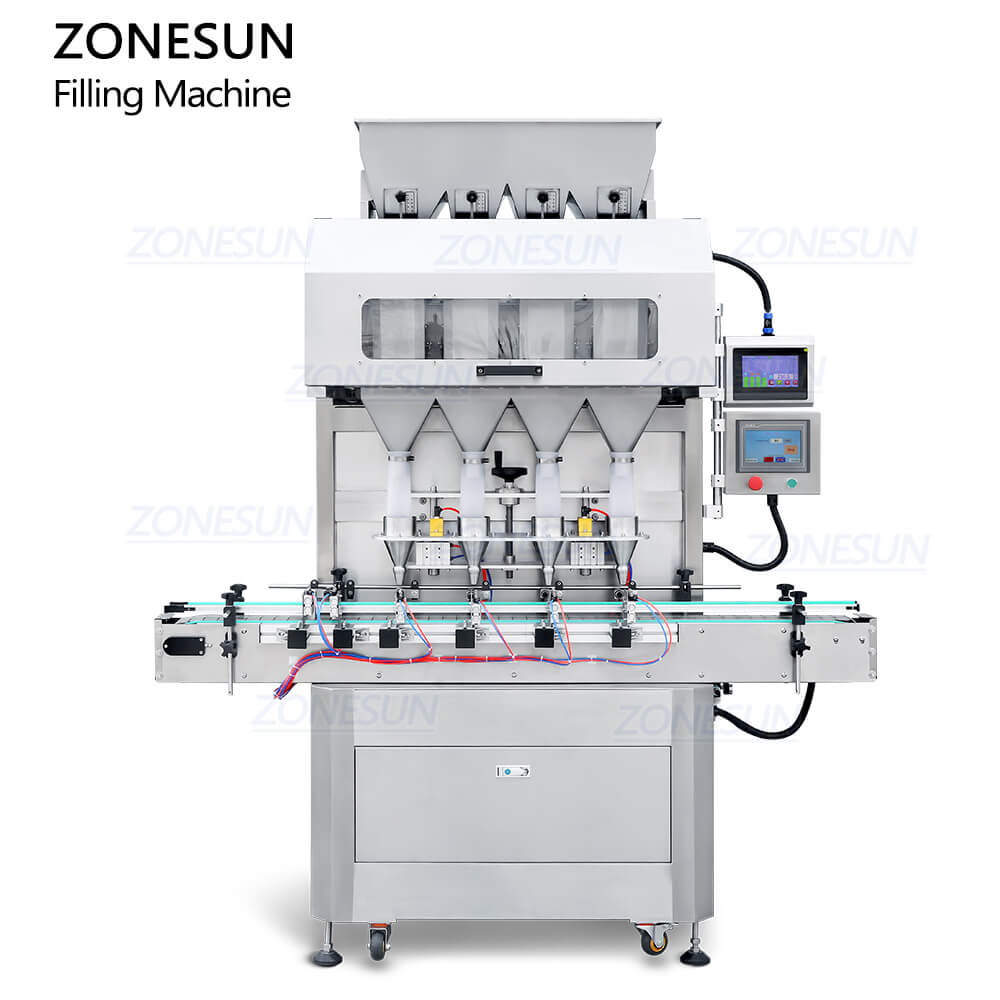

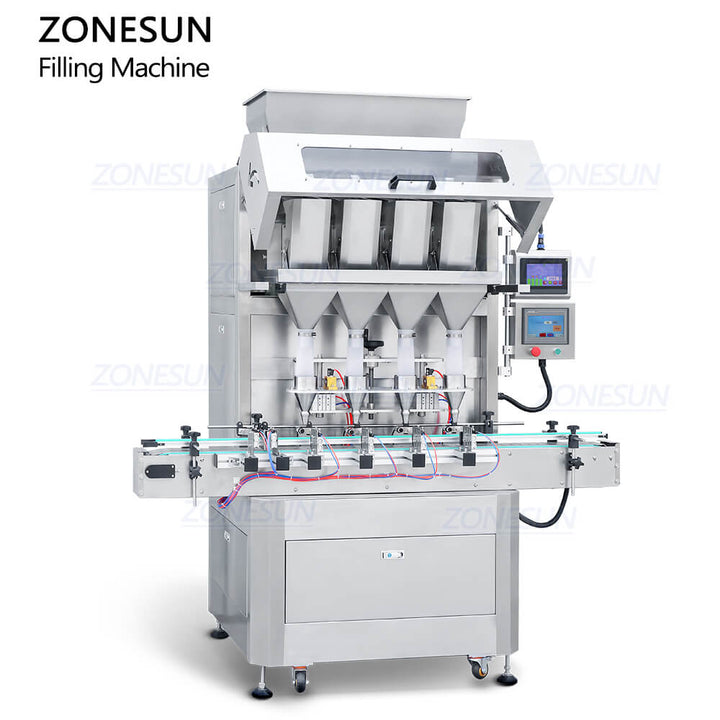

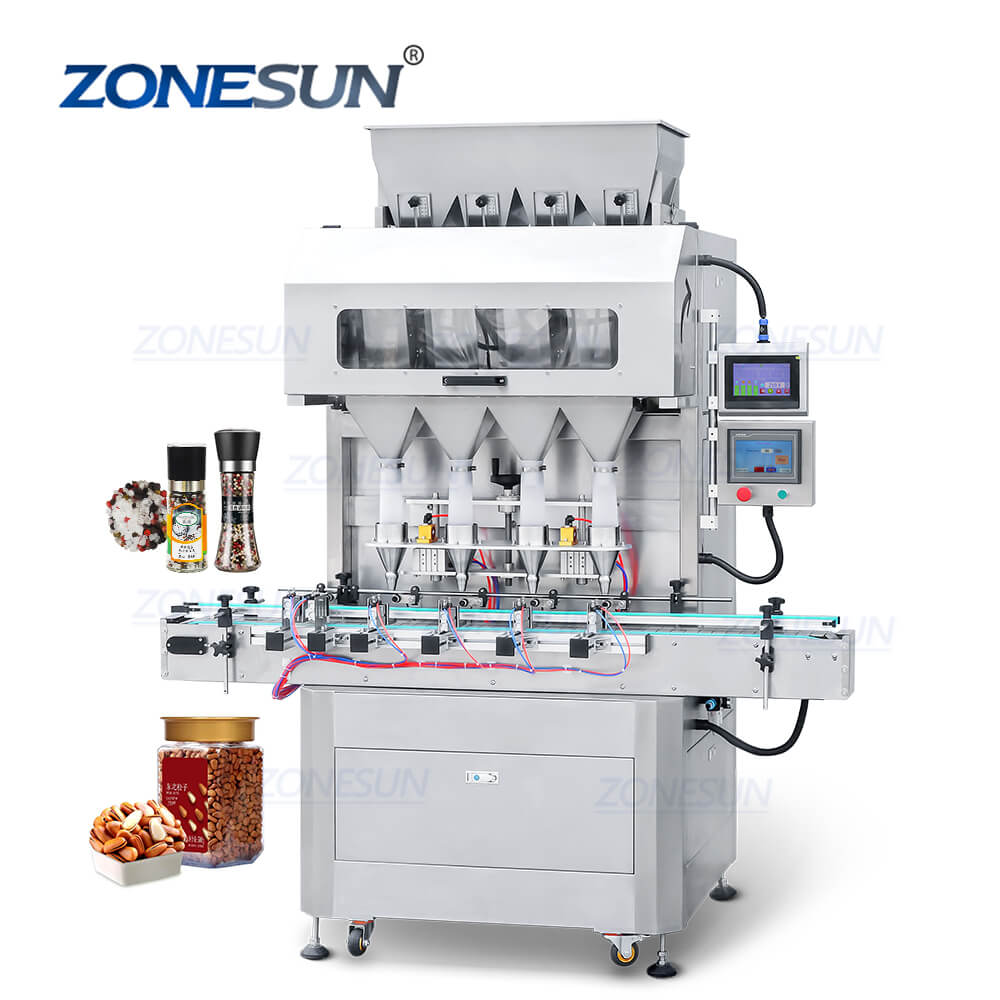

This automatic granule filling machine can control filling volume by setting filling weight, it can pack granular with high density and non-viscous,and good for industries such as food, daily chemicals, and agriculture.

Parameter

• Machine Model:ZS-GW5

• Voltage:110/220V 50-60Hz

• Power About:3kW

• Working Speed:About 20-30 bottles/min (depending on bottle size and filling material)

• Weighing Range:2-50g/10-1000g/10-2000g/10-3000g/100-10000g (can choose other weighing range)

• Weighing Error:±1-2g(depends on filling range)

• Air Pressure:0.4-0.6MPa

• Machine Size:About 1950mm*1100mm*2270mm

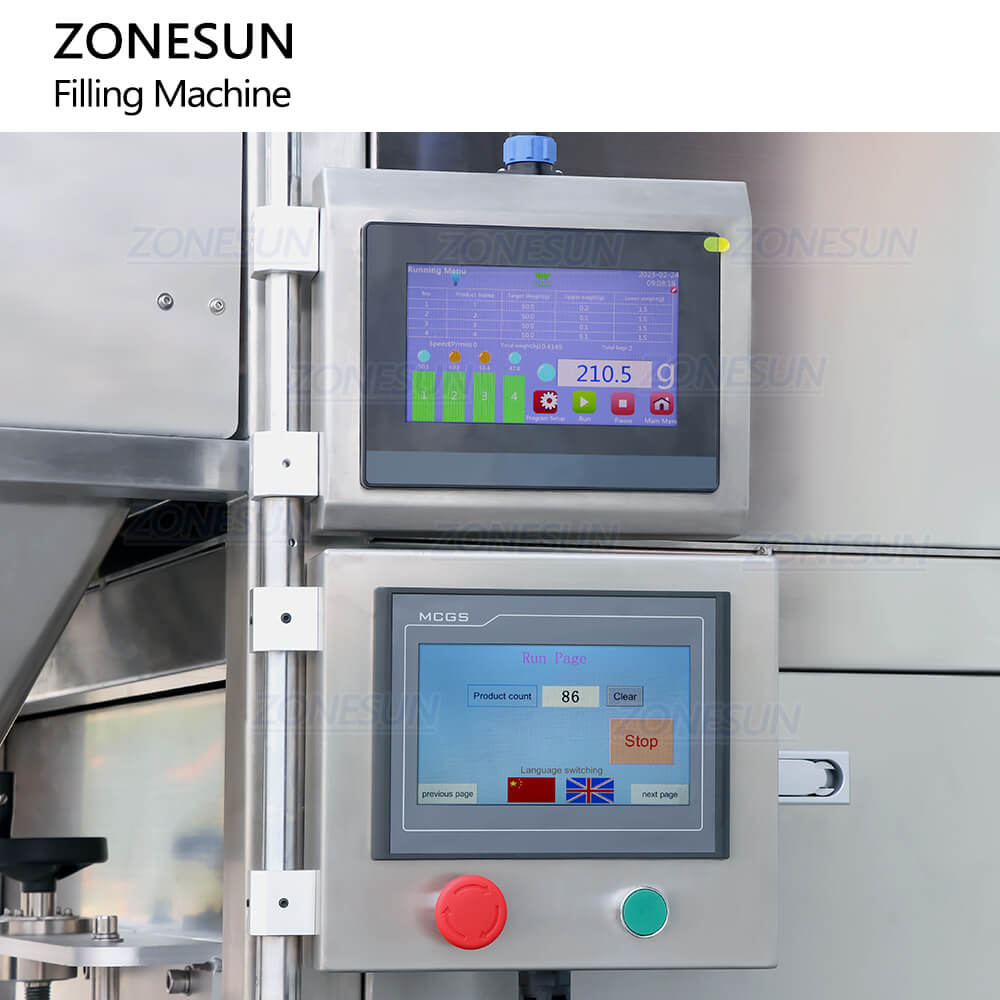

Equipped with 2 touch screen control panel, they are used to control weighing and filling function separately.Visual working paramater simplify the machine debugging, the operation language can be customized as production need

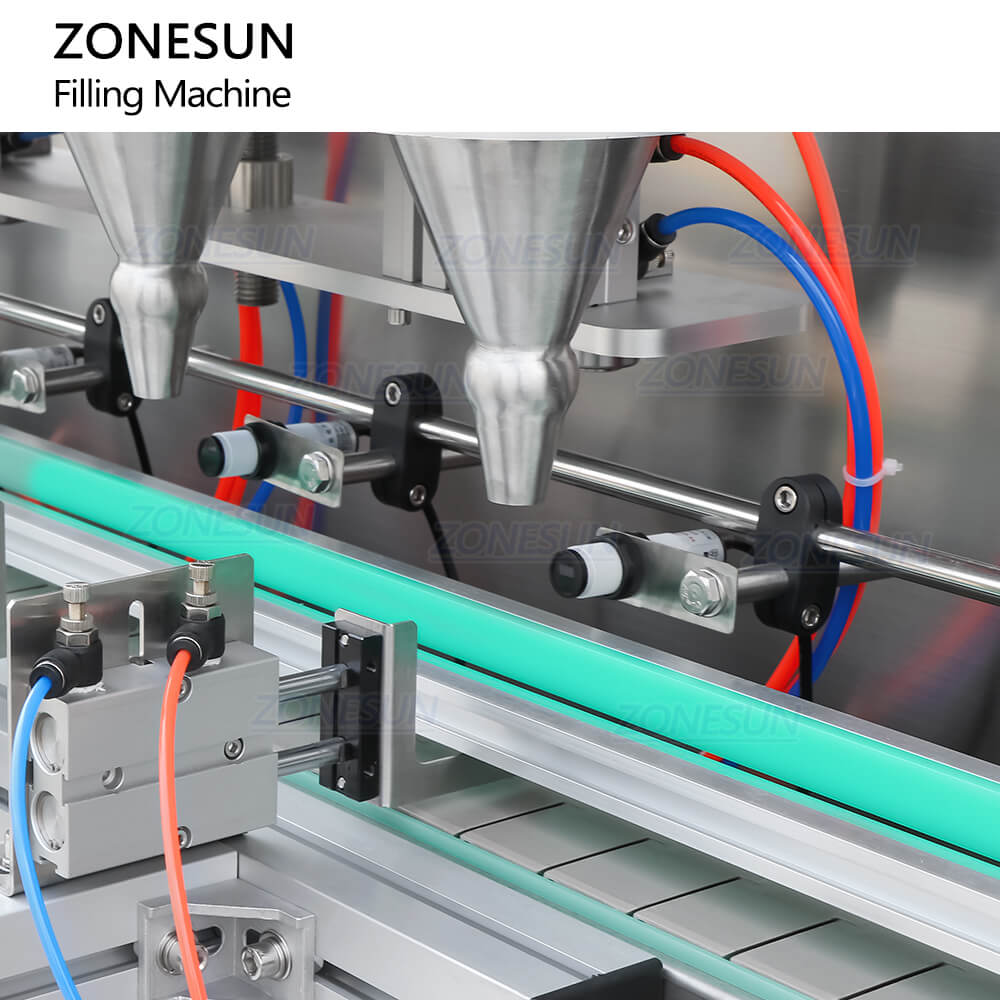

Equipped with 4 heads filling nozzles, the working height of them can be adjusted according to bottle size.Multiple filling nozzles can be customzied as production need.The anti-leakage design can improves filling accuracy.

There are electric eyes detecting passing by bottles and realizing the automated filling.The electric eye can improves working speed and reduce production error.

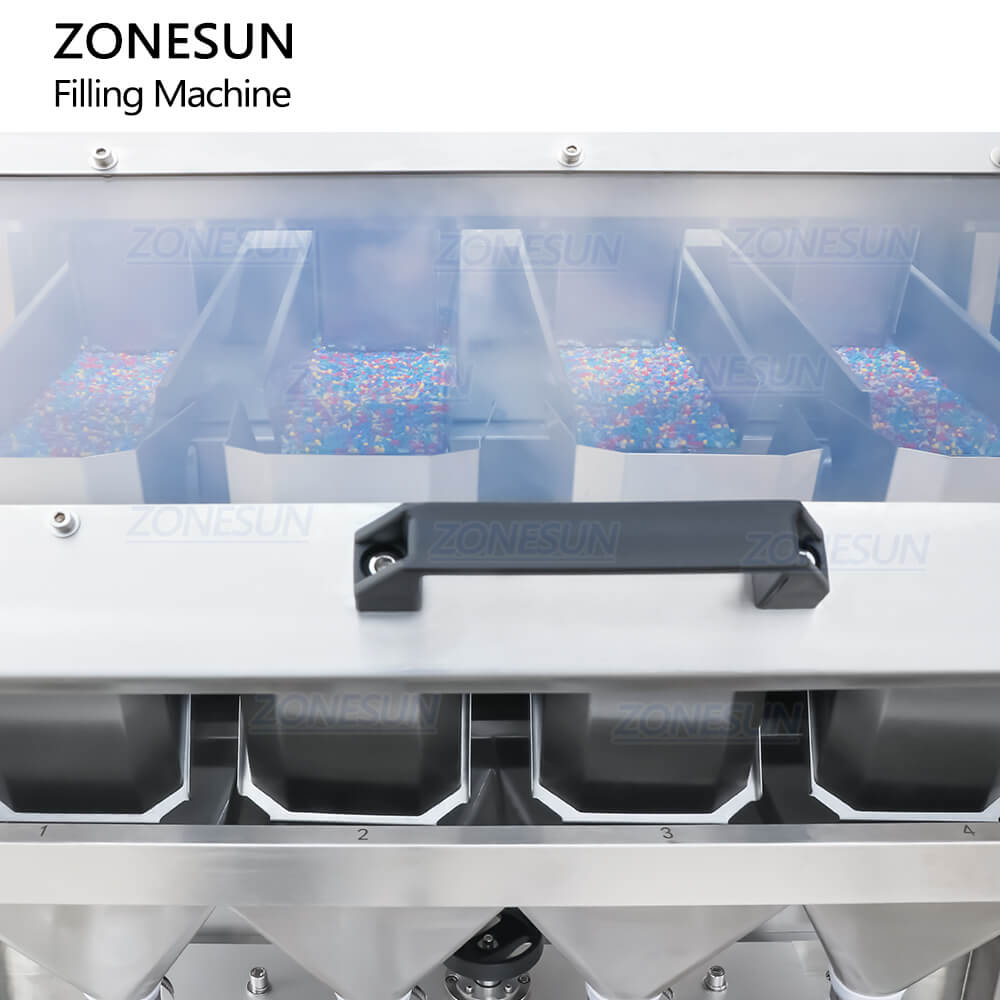

Different range of weighing device can be chosen as production need.It controls filling volume by setting filling weight, this is more accurately for granules.Equipped with dust cover, this ensures the production quality.

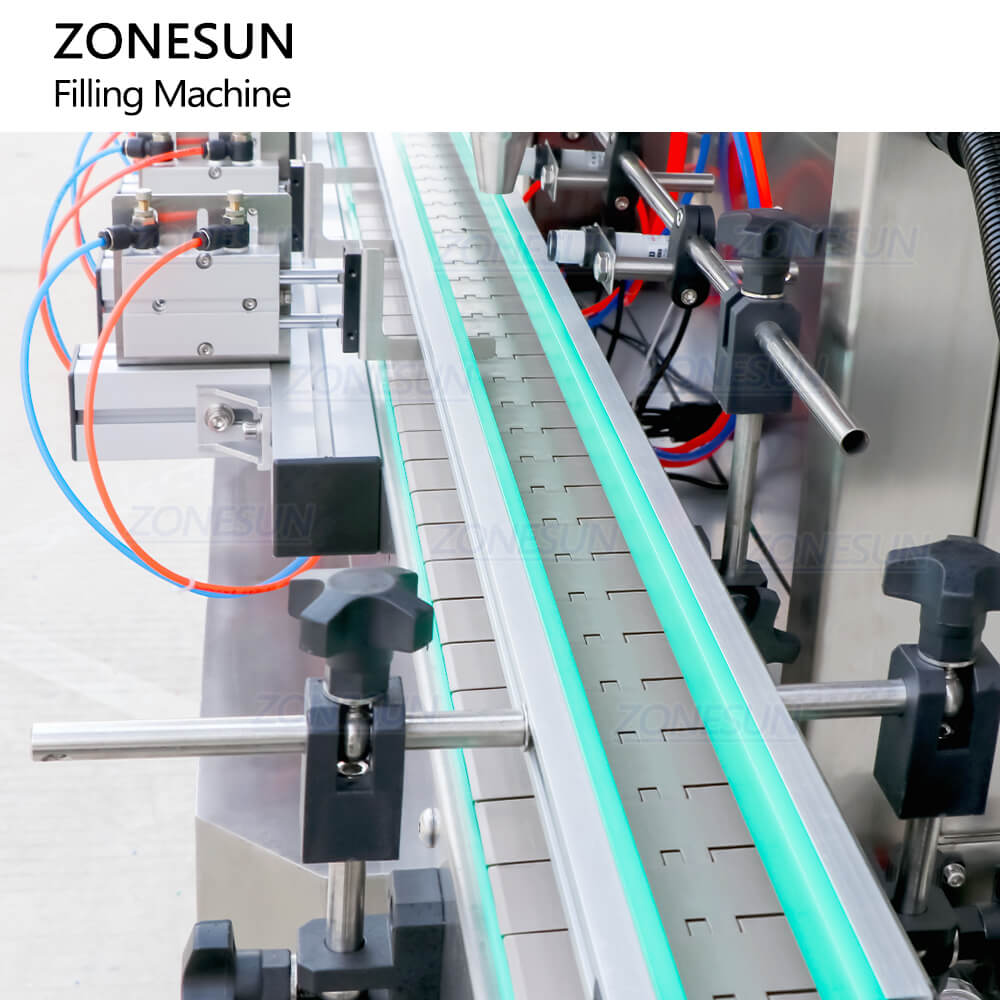

The chain conveyor is with larger weight capacity, width and length can be customized as production need.It can transport products smoothly.
