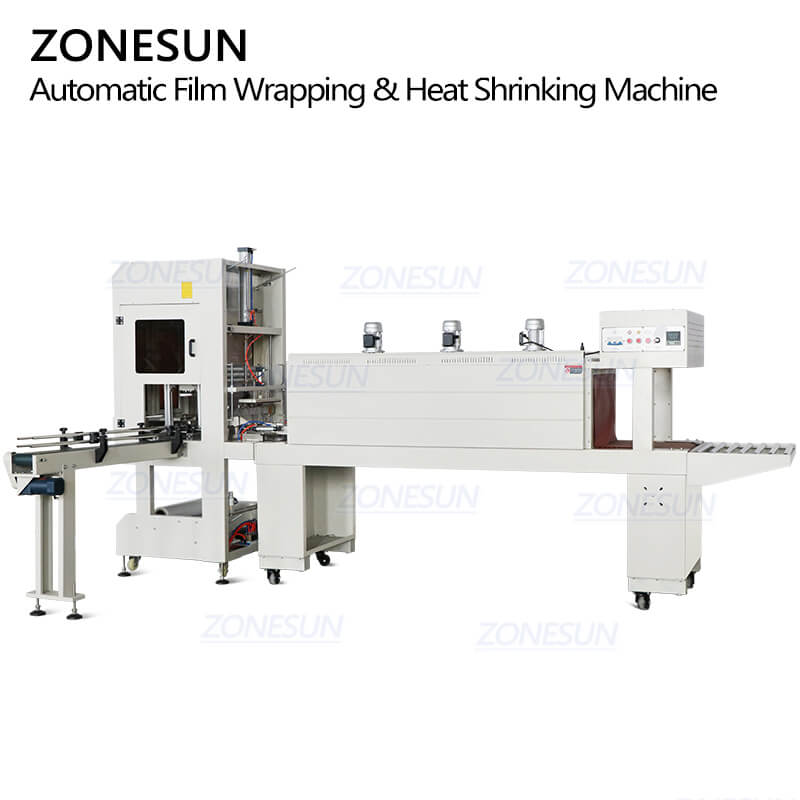

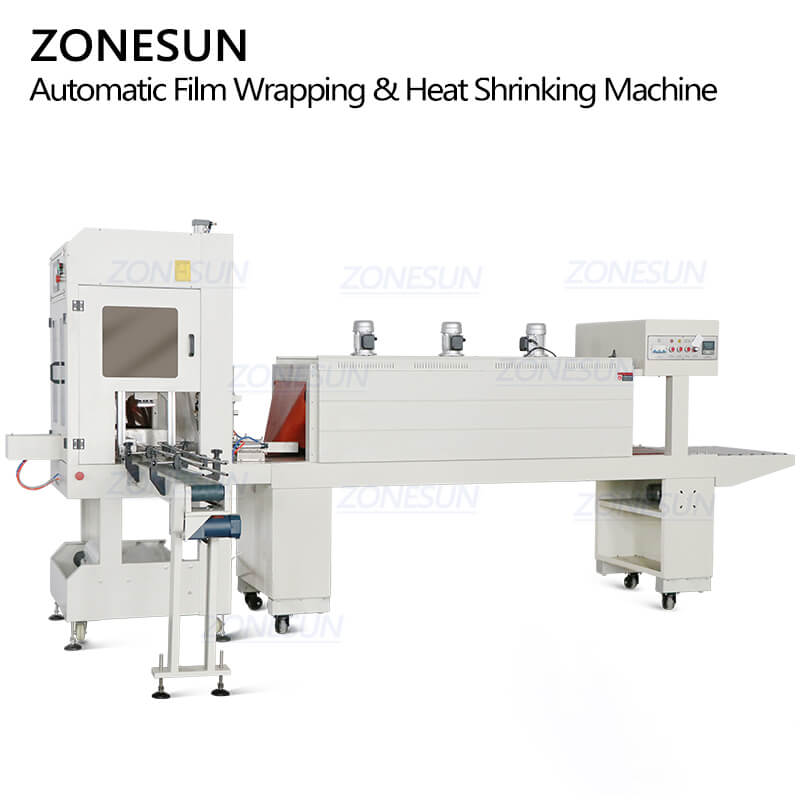

ZS-SPL4 Automatic Bottled Beverage Drinks Mineral Water Sleeve Film Wrapper Cutting Machine Heat Shrink Tunnel Machine
Regular price
$7,799.00 USD
Regular price
$8,999.00 USD
Sale price
$7,799.00 USD
Save $1,200 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

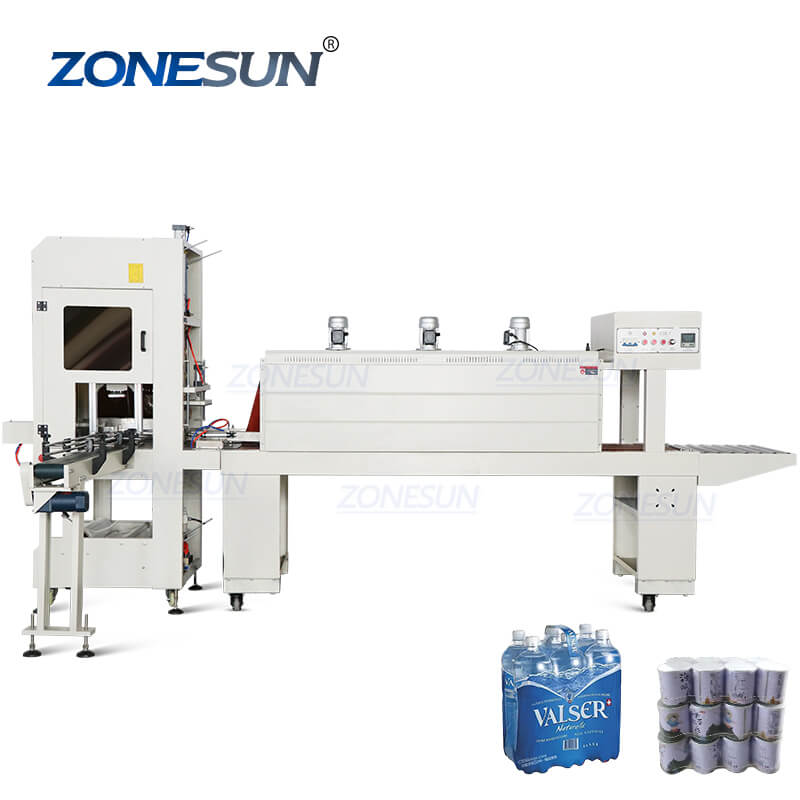

These automatic shrink wrapping machines are suitable for heat shrink packaging of cans,mineral water, beer,glass bottles,beverages and other bottles,cylinders and cuboids without or with bottom support;Make the item achieve the perfect packaging effect.
Parameter
Sleeve Wrapper
- Model: ZS-QZD7040S
- Voltage: 220-240V 50-60Hz
- Power: 2Kw
- Packing speed: 0-6 Packs/min(based on products)
- Working pressure: 4-6kg/cm³
- Bottle size: Diameter: 60-120mm Height: 100-330mm
- Max package size: 400*(120*n)*330mm
- Min package size: 240*120*100mm
- Conveying load: 20Kg
- Conveyor length: 1.5M
- Film width/thickness: Max 560mm/0.03-0.25mm
- Suitable for shrink film: Only PE
- Machine size: About 2150*1200*2020mm
- Machine weight: About 350kg
Heat Shrinking Tunnel
- Machine Model: ZS-BSPN6040
- Voltage: 380V 50-60HZ
- Power: 21KW
- Tunnel Size: About 1800*600*400mm
- Conveying Speed: 0-15m/min
- Transport Load:＜35kg
- Suitable Film: PVC/POF/PE
- Machine Size: About 2800*910*1400mm
- Machine Weight: About 207kg
- Package Size: About 2880*930*1500mm
- Package Weight: About 350kg

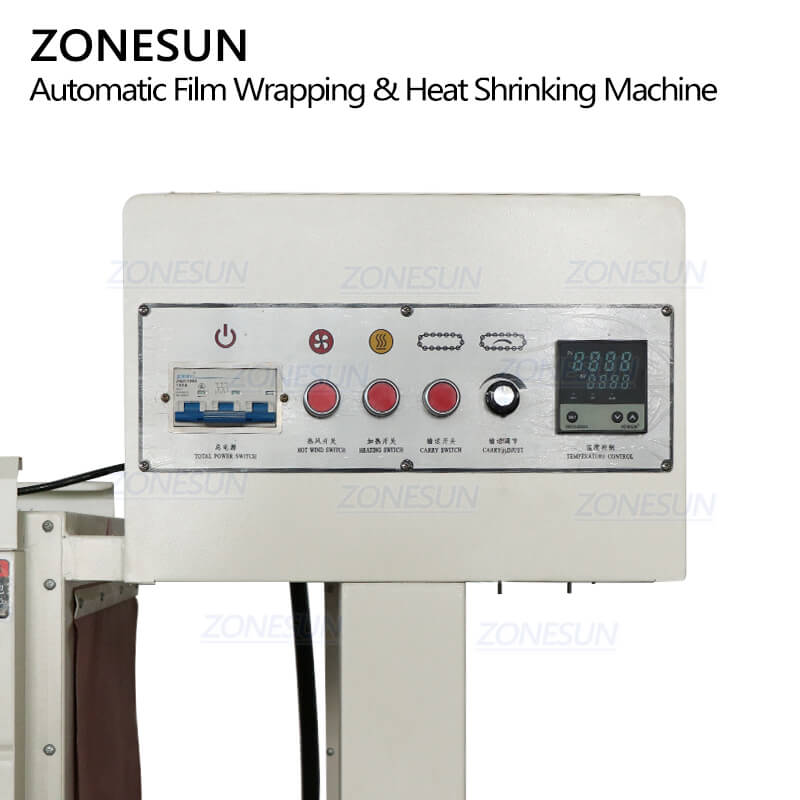

Simple control panel is more conveninet to adjust the working parameter like heating temperature and time.The leakage protection device can ensure the safety operation.

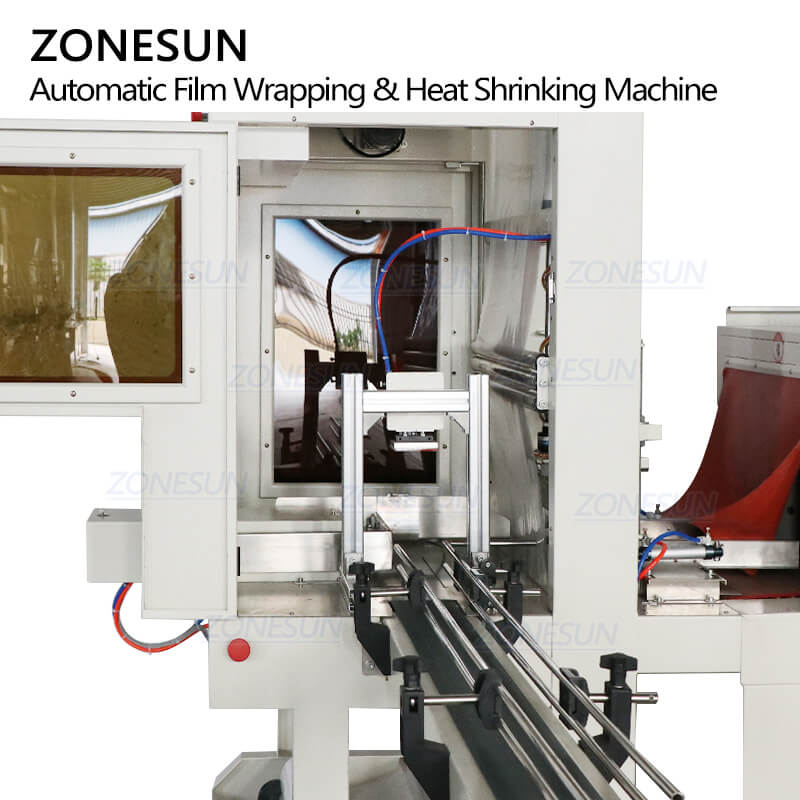

The film cutting and wrapping are integrated,and the items are packaged to have a beautiful appearance,cleanliness dust-proof and moisture-proof,easy to handle and store,greatly reduce product loss,and have the advantage of packaging cost.

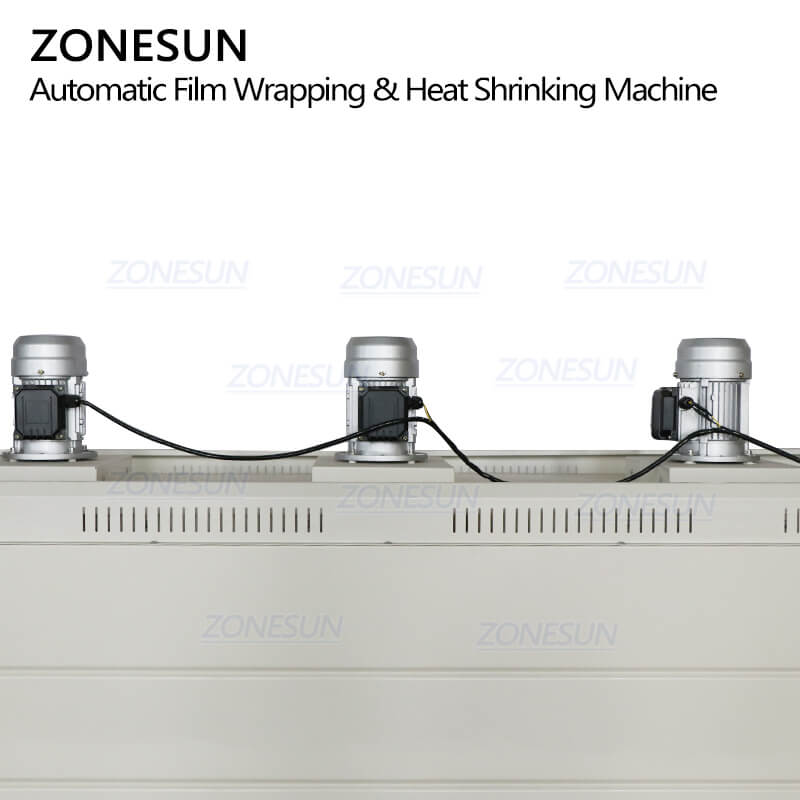

The high-power circulating motor has strong wind power,and the shrink furnace forms a good wind circulation system.The shrink film is heated more evenly,and the shrinkage effect is better and outstanding.

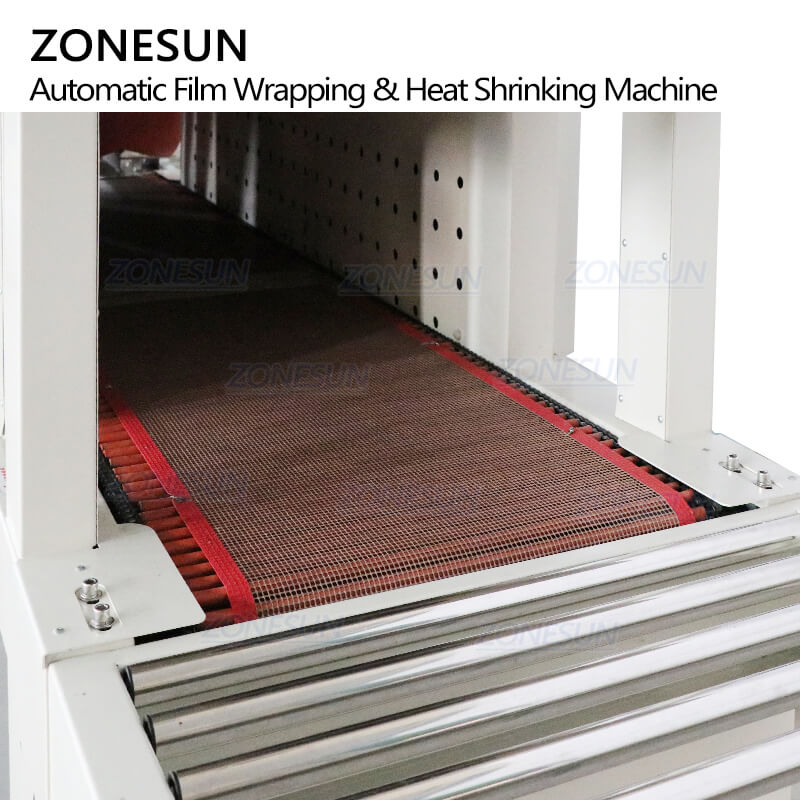

The upgraded version of the conveyor belt transport the goods more smoothly, effectively improves the package quality and work efficiency.
