ZONESUN ZS-KL01S Automatic Particle Grain Rice Spice Sugar Nuts Tea Seeds MeasurinG Cup Bottle Filling Machine

Voltage
Price
Regular price $3,399.00 USD
Regular price Sale price $3,399.00 USD
Save $-3,399 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Machine Video

Using measuring cup to control filling volume , this filling machine is suitable for filling granule or the mixture of granules and powders.It can be connected with automatic capping and labeling machine to realize automated production.It is widely used in daily chemical, food industries.

Parameter

  • Machine model:ZS-KL01S
  • Power supply:110/ 220V/ 50-60Hz
  • Machine power:0.9KW
  • Hopper volume:30L
  • Hopper size:About 320*410mm(Dia*H)
  • Measurement method:Measuring cup
  • Filling weight:1-500g (can be customized)
  • Filling speed:10-30 bottles/min
  • Filling nozzle size:20mm (other sizes can be customized)
  • Machine size:About 2020*670*1960mm(L*W*H)

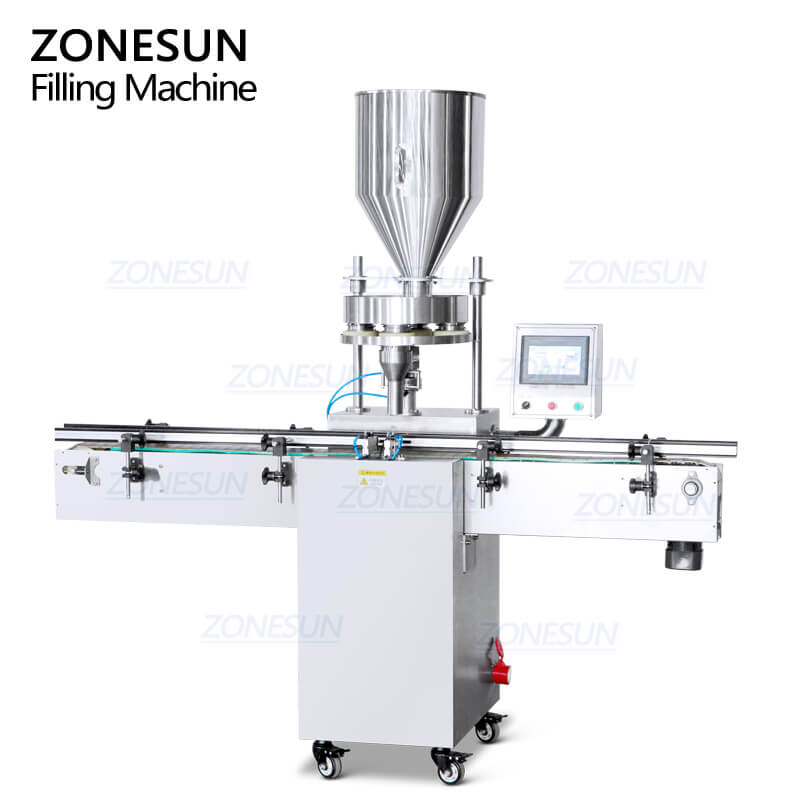

spice filling machine

application of spice filling machine

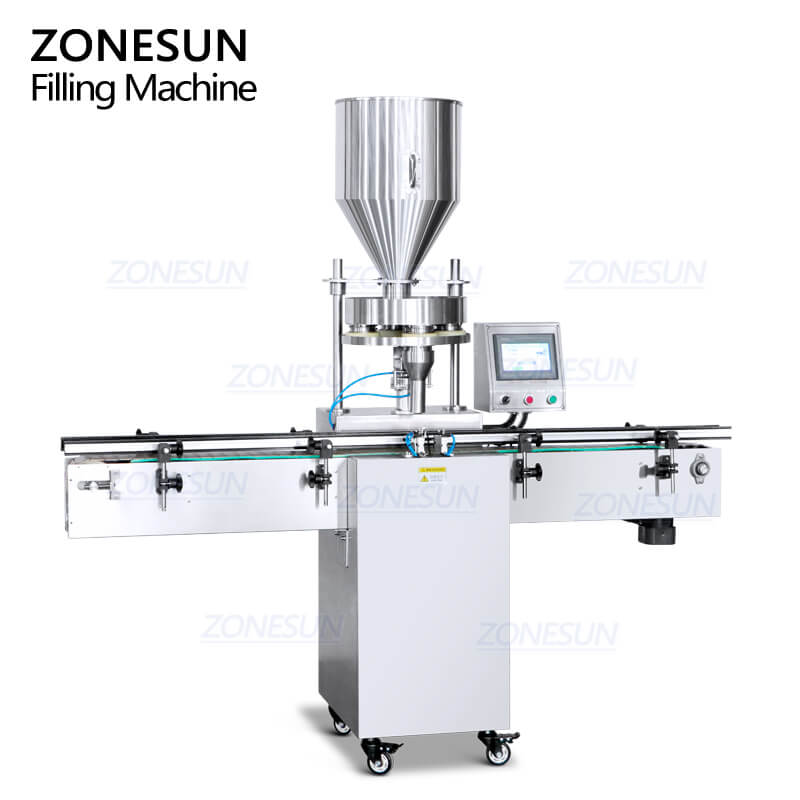

automatic spice filling machine

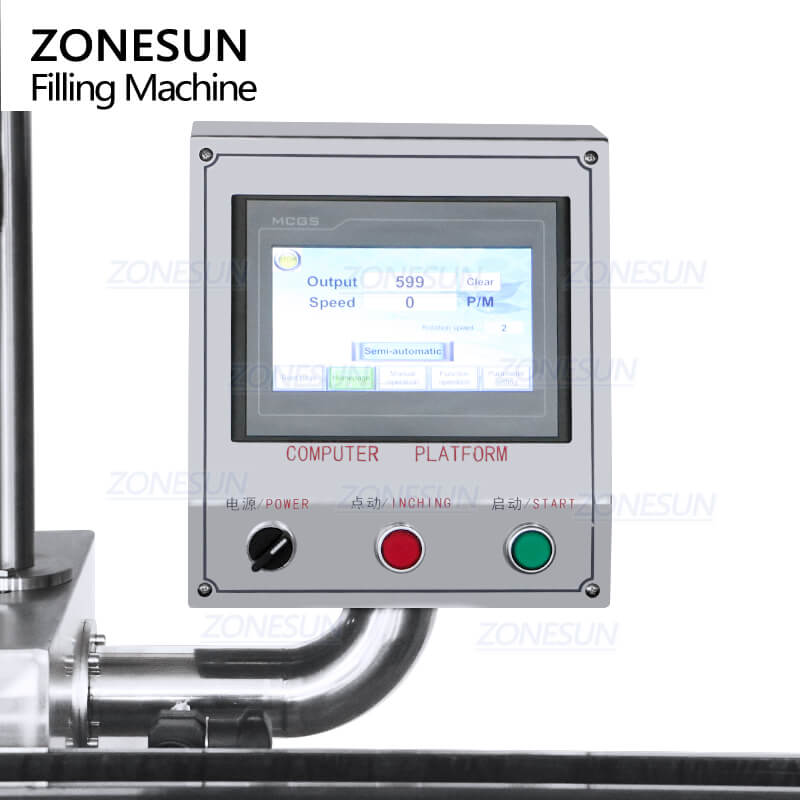

Control panel of spice filling machine

Touch screen control panel makes working data be visual, this will be more convenient to debug machine.Customzable interface simplifies machine operation.

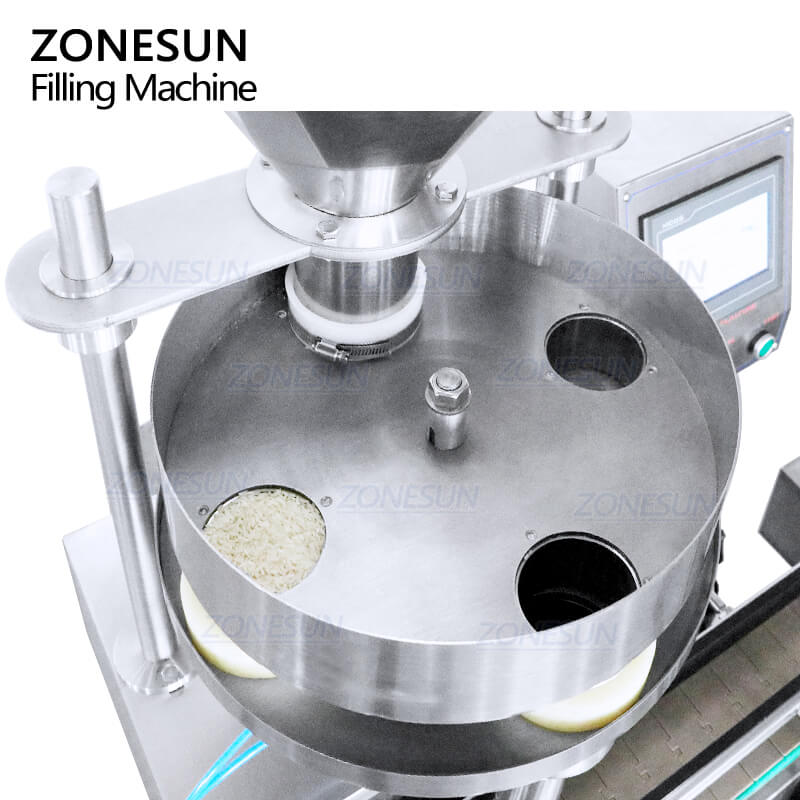

measuring cup of spice filling machine

Use measuring cup to control filling volume.According to the specific gravity of the material, the measuring cup can be replaced for filling.This is suitable for filling granule or the mixture of granules and powders.

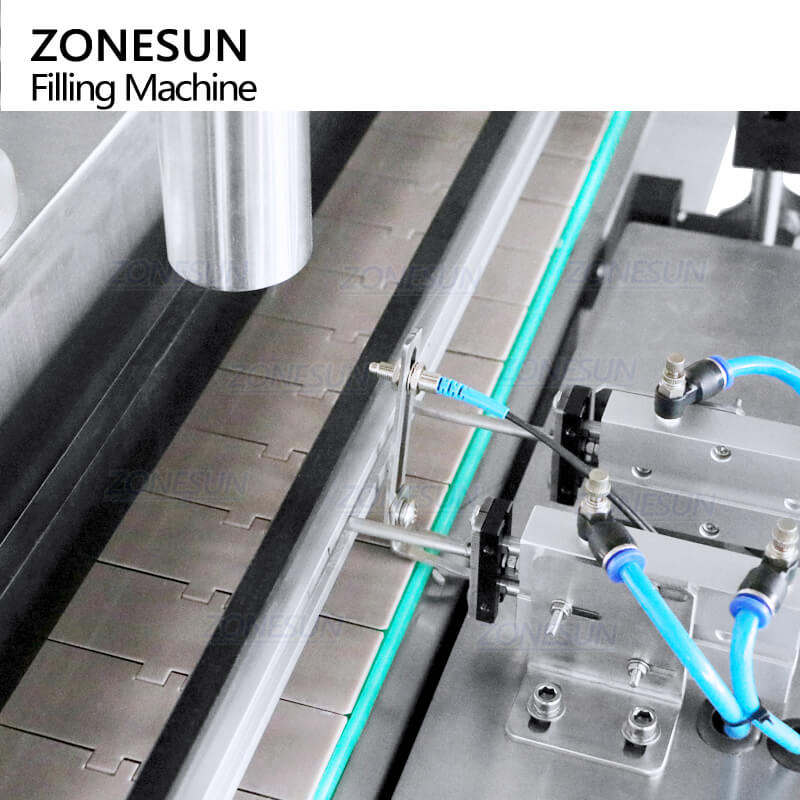

electric eye of spice filling machine

The electric eye can be used to detect passing by bottles, and send signal to system to control the machine to work automatically.With this, the machine can realize automated work

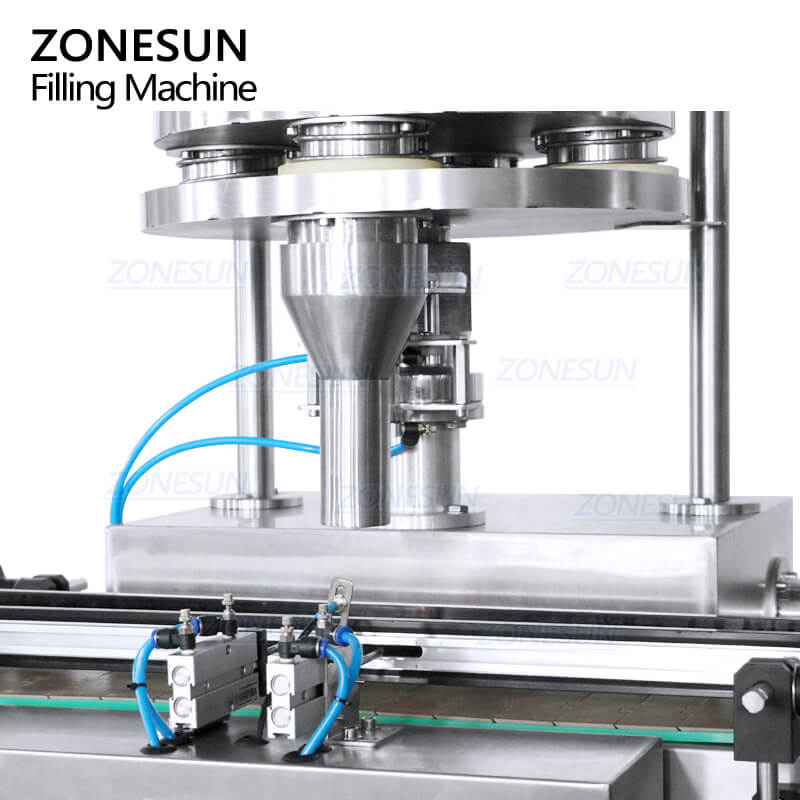

filling nozzle of spice filling machine

The bottle nozzle size can be customized according to bottle mouth size.Multiple filling nozzles can be customized as production need.

particle filling machine
