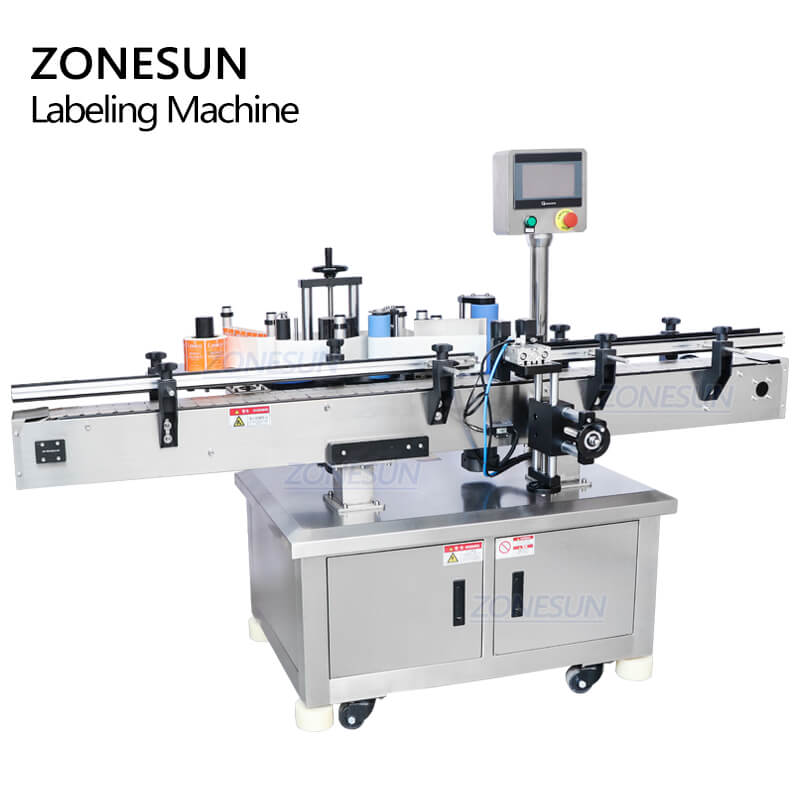

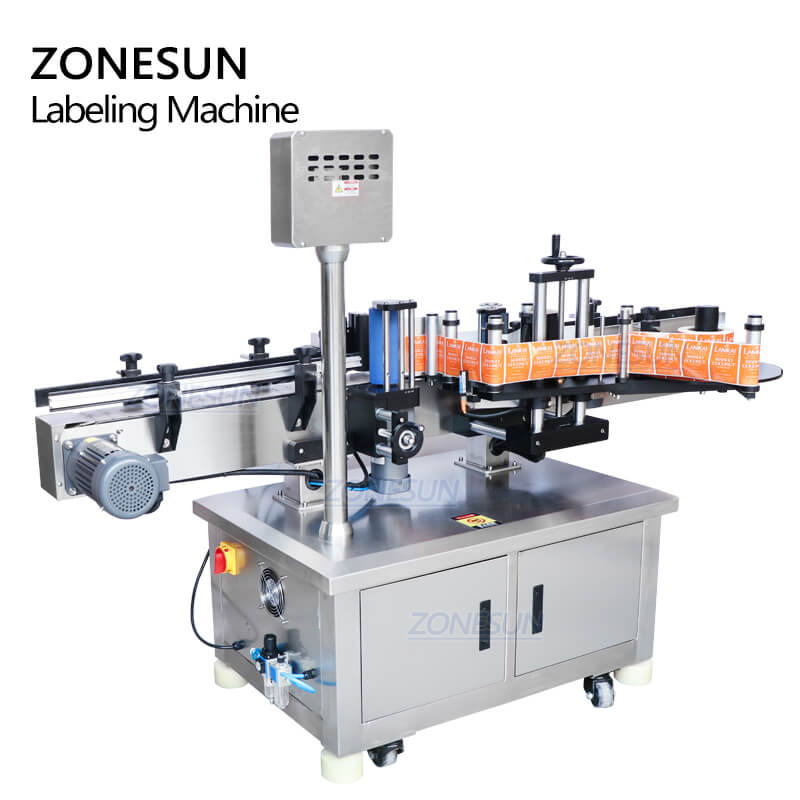

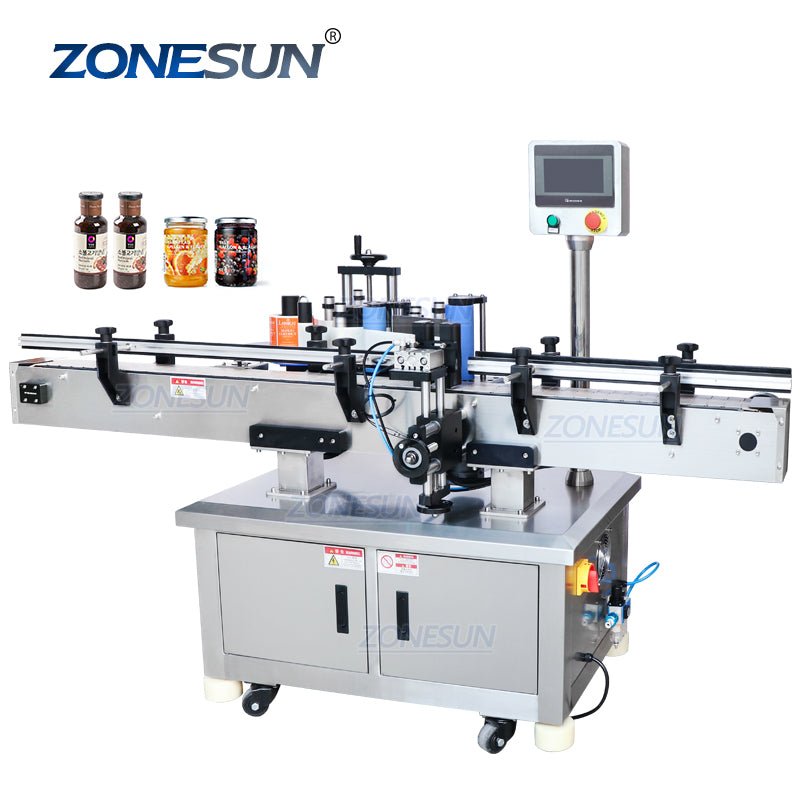

ZONESUN ZS-TB260R Automatic Round Bottle Labeling Machine For Beverage Milk Juice Plastic Bottles

This automatic labeling machine is equipped with PLC control panel, which can help you adjust working data easily. It can be used for single side or double side labeling stickers on round bottles. It is made of high quality material and imported machine parts. This machine is widely used in food, drinks, cosmetics and daily chemical industries.

Parameter

• Model: ZS-TB260R Labeling Machine

• Power supply: AC 220 V 50/60 Hz 1 KW

• Labeling capacity(bottles/min): 25-50 bottles/min(depends on bottle size)

• Labeling accuracy(mm): ± 1.0 mm

• Suitable Bottle Diameter: Φ30-100 mm H=30-200 mm

• Label size(mm): (L)20-300 mm (H)12-130 mm

• Roll inside diameter(mm): Φ76 mm

• Roll outside diameter(mm): Φ350 mm

• Conveyor Size: 112*2000 mm(W)

• Machine size: About (L)2000*(W)820*(H)1380(mm)

• Machine weight: About 180 kg

• Packing Size: About (L)2100*(W)890*(H)1520(mm)

• Package weight: About 250 kg

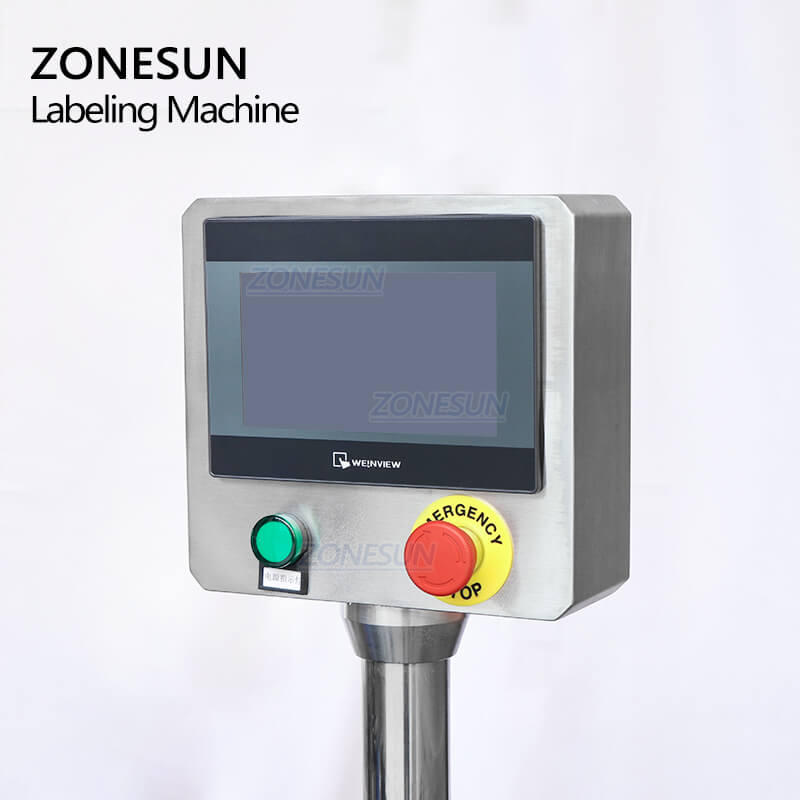

This machine is made with PLC control panel,digital display makes it more convenient to adjust working parameter like labeling speed,label length etc. The emergency stop button can be used to stop the machine in emergency and ensure the operation safety.

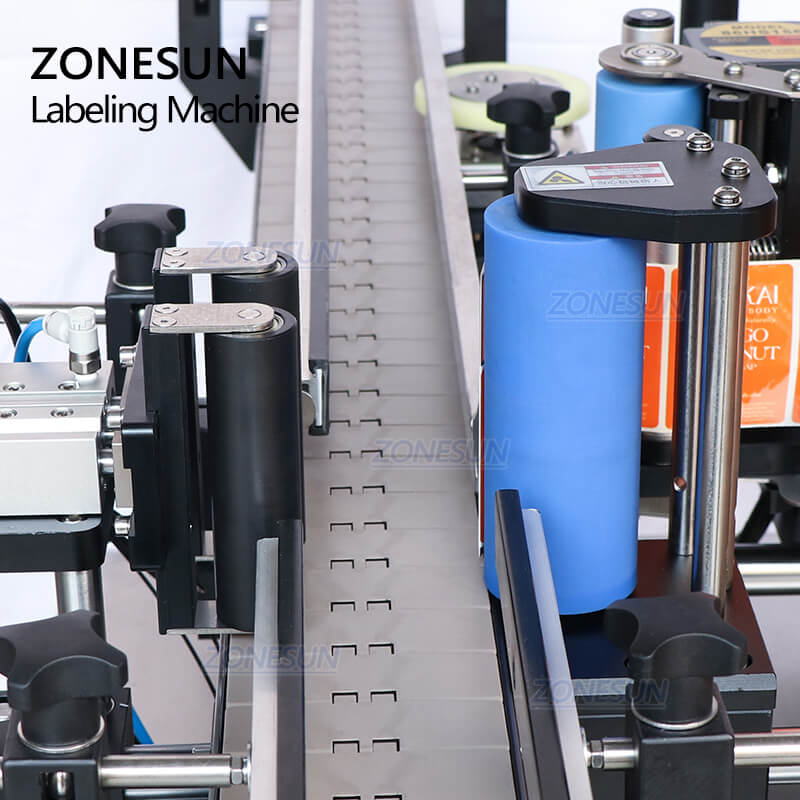

Equipped with bottle separating component,this can be used to separate bottle one by one,make the labeling work be in order.

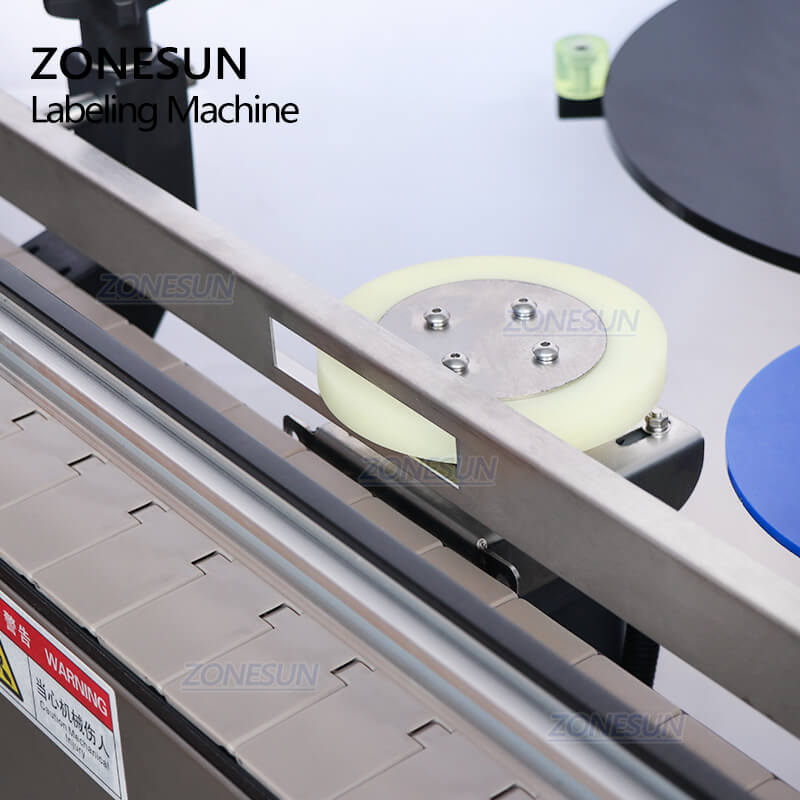

High quality labeling component,the height of labeling rolls can be adjusted according to labeling position, this can improve labeling accuracy, makes sure there is no bubble under label stickers.

The electric eye can detect bottles according to light transmittance,and the sensitivity can be adjusted if you need to label stickers on bottles which are in different kinds of colors. This ensures labeling quality.

High quality conveyor belt can help to transport bottle faster and more smooth, improve working speed and reduce production error.

High quality conveyor belt can help to transport bottle faster and more smooth,improve working speed and reduce production error.
