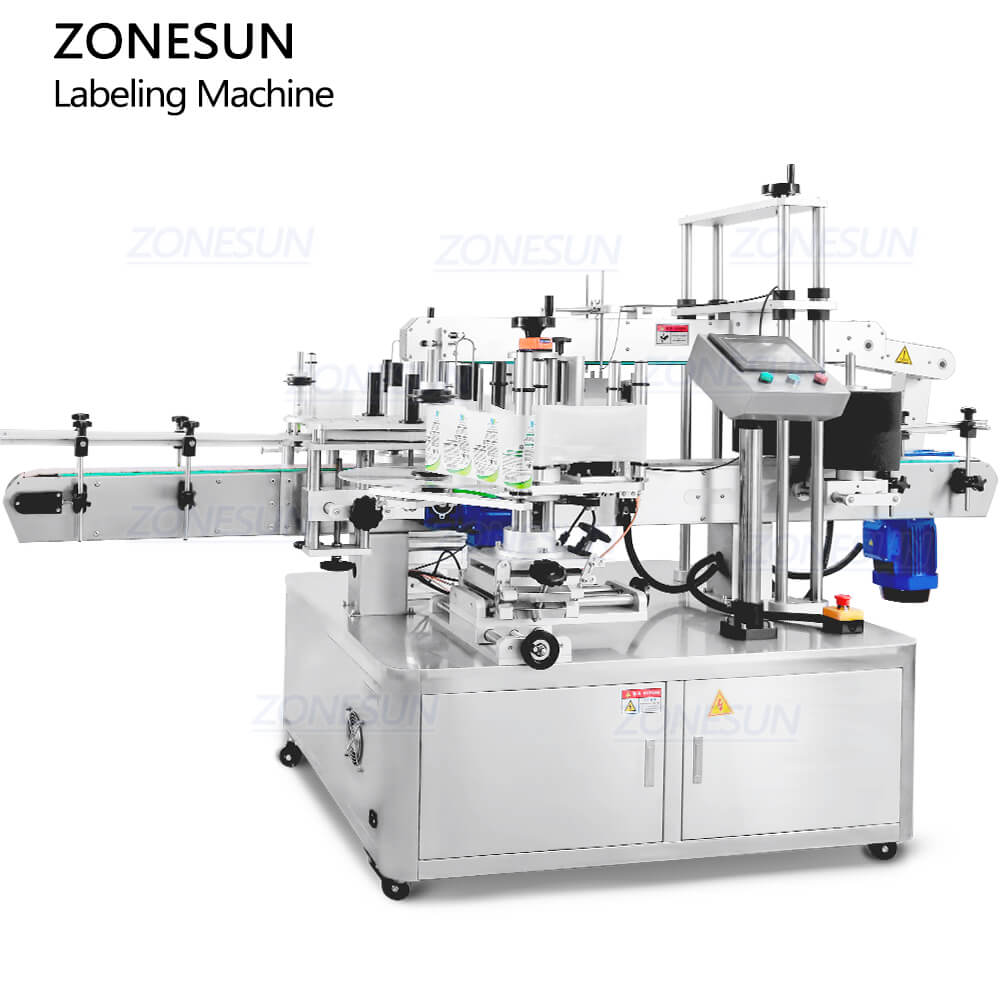

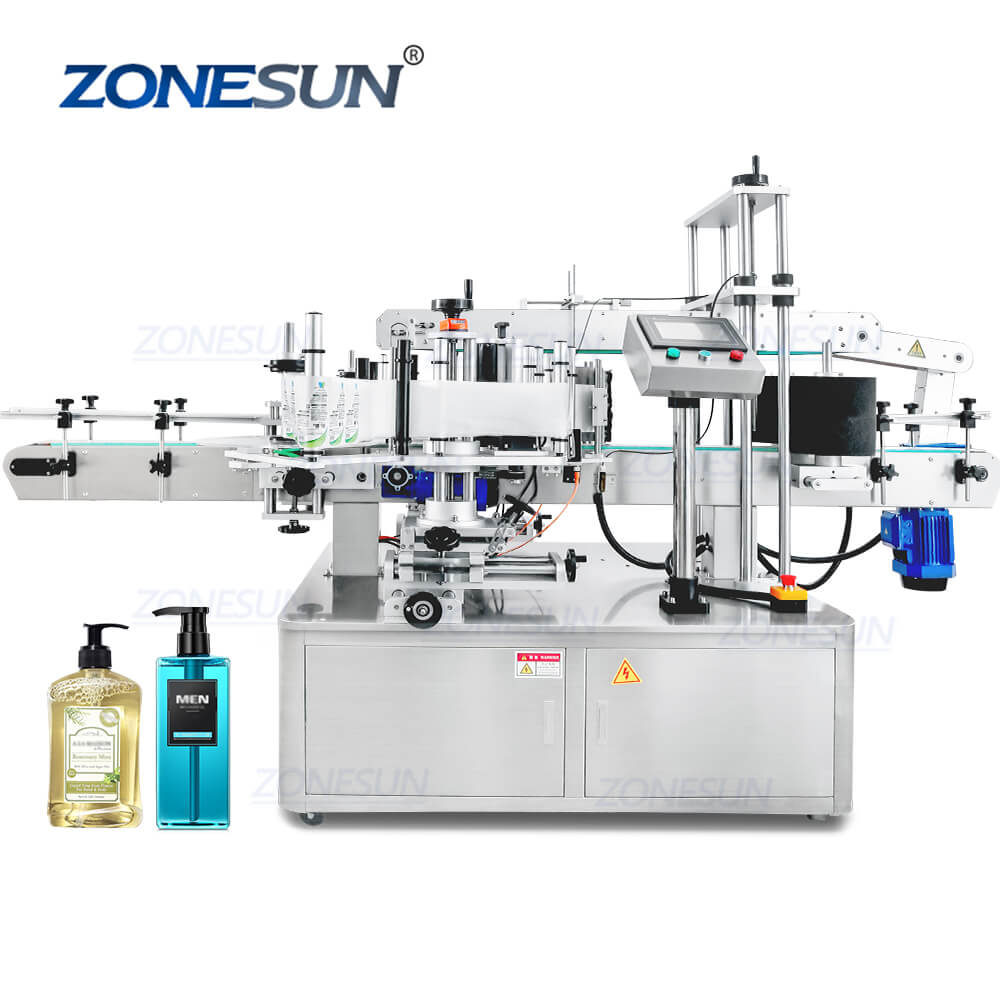

ZS-TB600 Automatic Square Flat Bottle Jerry Can Jug Labeler Double Sides Lanudry Detergent Vinyl Sticker Labeling Machine

Only designed for the flat bottle, it can detect passing by flat bottles and control the system to label stickers automatically.It is suitable for single side or double sides labeling on flat bottle like laundry detergent bottles, olive oil bottles, perfume bottles etc.It has high working speed and widely used in food, daily chemical and cosmetics industries.

Parameter

• Machine model:ZS-TB600
• Flat Bottle:Single/Double Side
• Power Supply:AC220V 50Hz/60Hz 1500W
• Labeling Capacity:60-350 bottles /min(depends on bottle size）
• Labeling Material Thickness:20-120mm
• Labeling Material Height:30-350mm
• Label Size:(L)25-300mm (H)15- 200mm
• Roll Inside:φ76mm
• Roll Outside Diameter(mm):φ350mm
• Machine Size:About 2120*940*1500mm
• Packing Size:About 2850*1300*1900mm
• Net Weight/Gross Weight:About 450KG/650kg

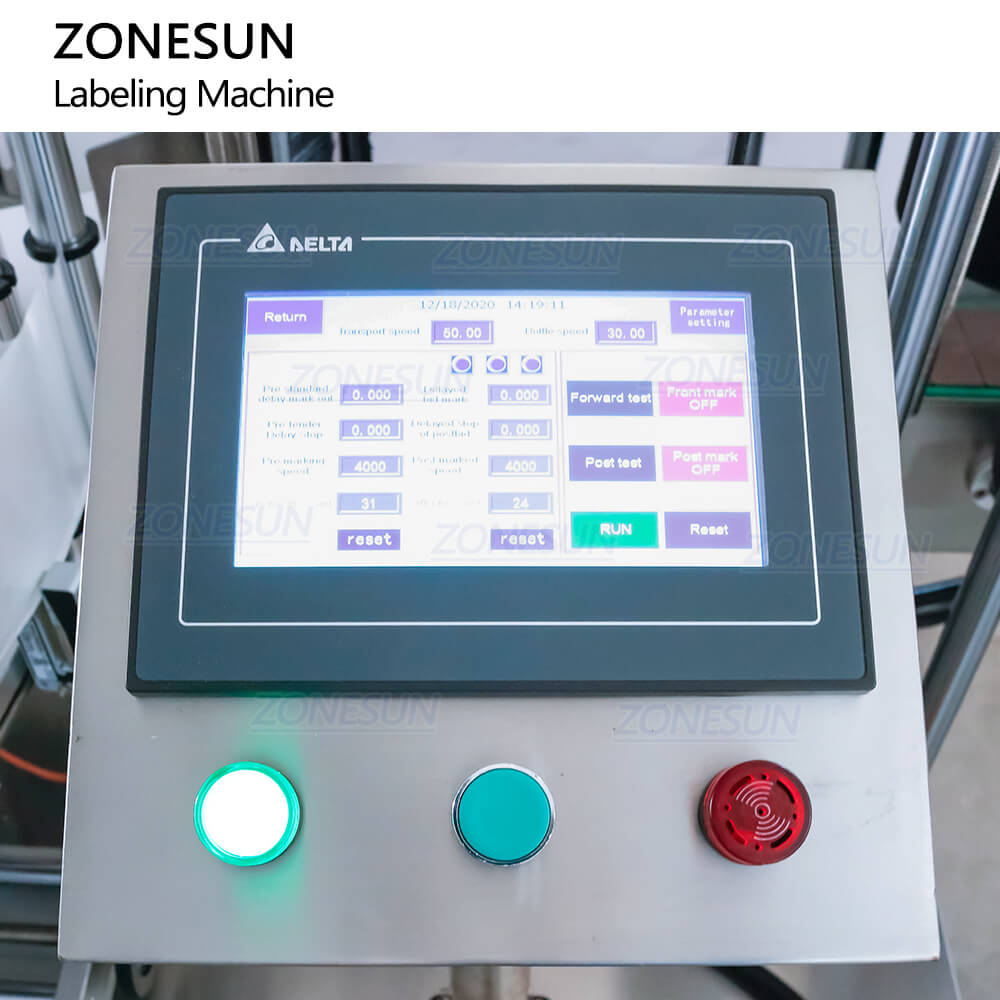

Touch screens eliminate the need for bulky buttons and switches, which can help to save space and simplify the overall design of a control panel.The customizable interface makes the machine is easier to navigate and use.

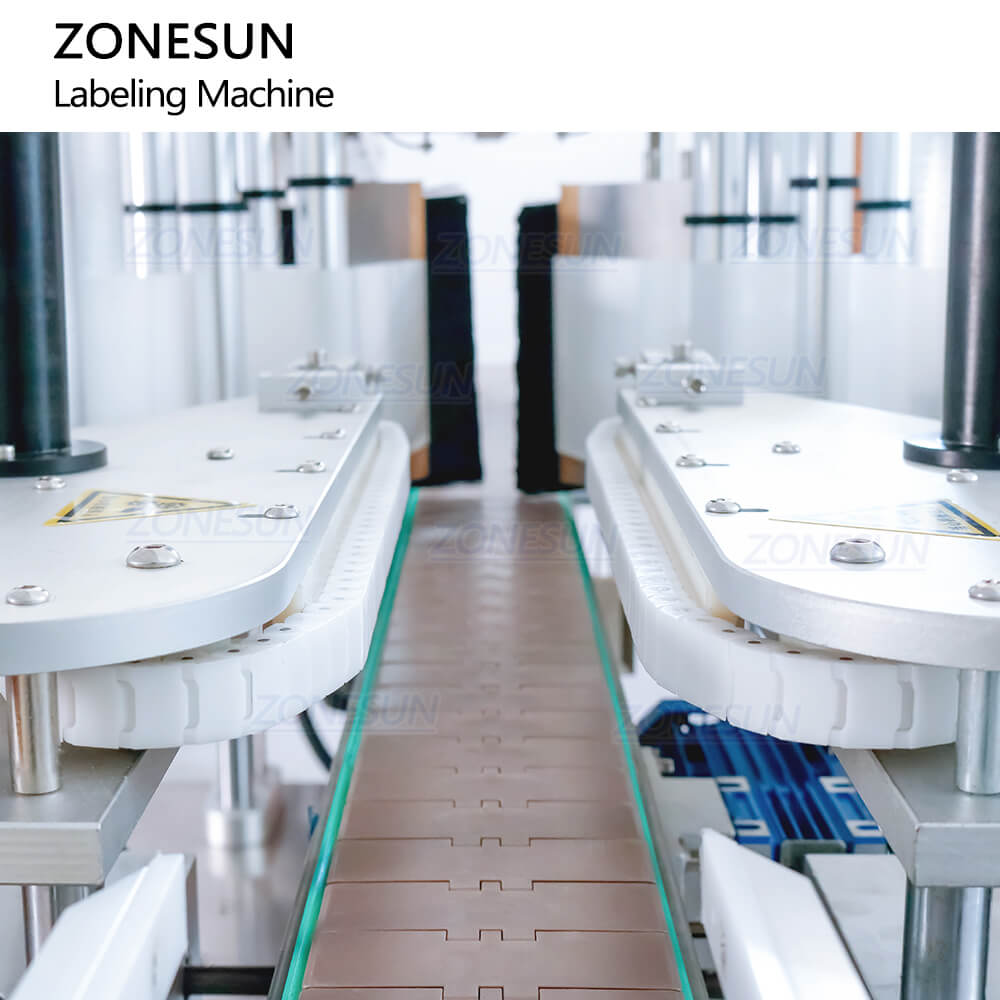

The bottle guiding structure can prevent bottles from falling down during transporting, it will be adjusted according to bottle width, this ensures labeling work can be processed stably.

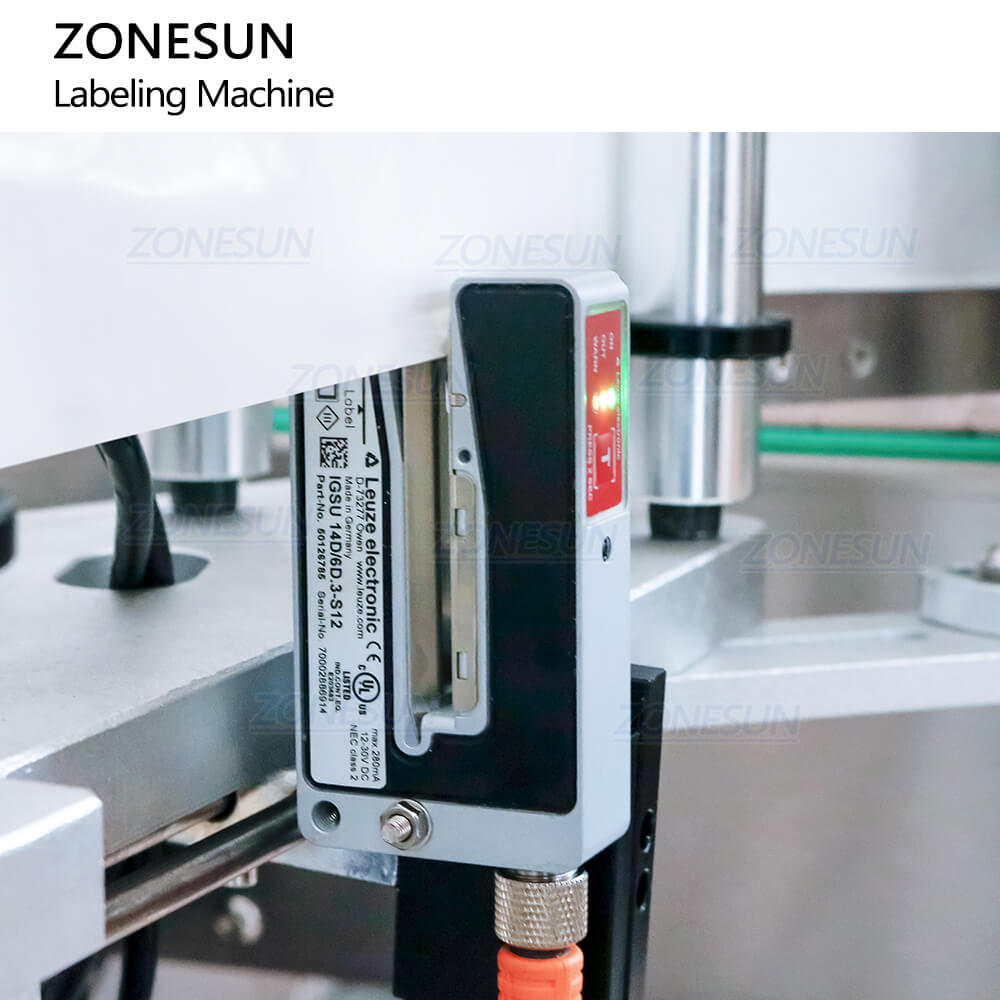

The electric eye is used to detect passing by bottles and control the machine to attach labels to bottles automatically.With this , the machine can work automatically and precisely

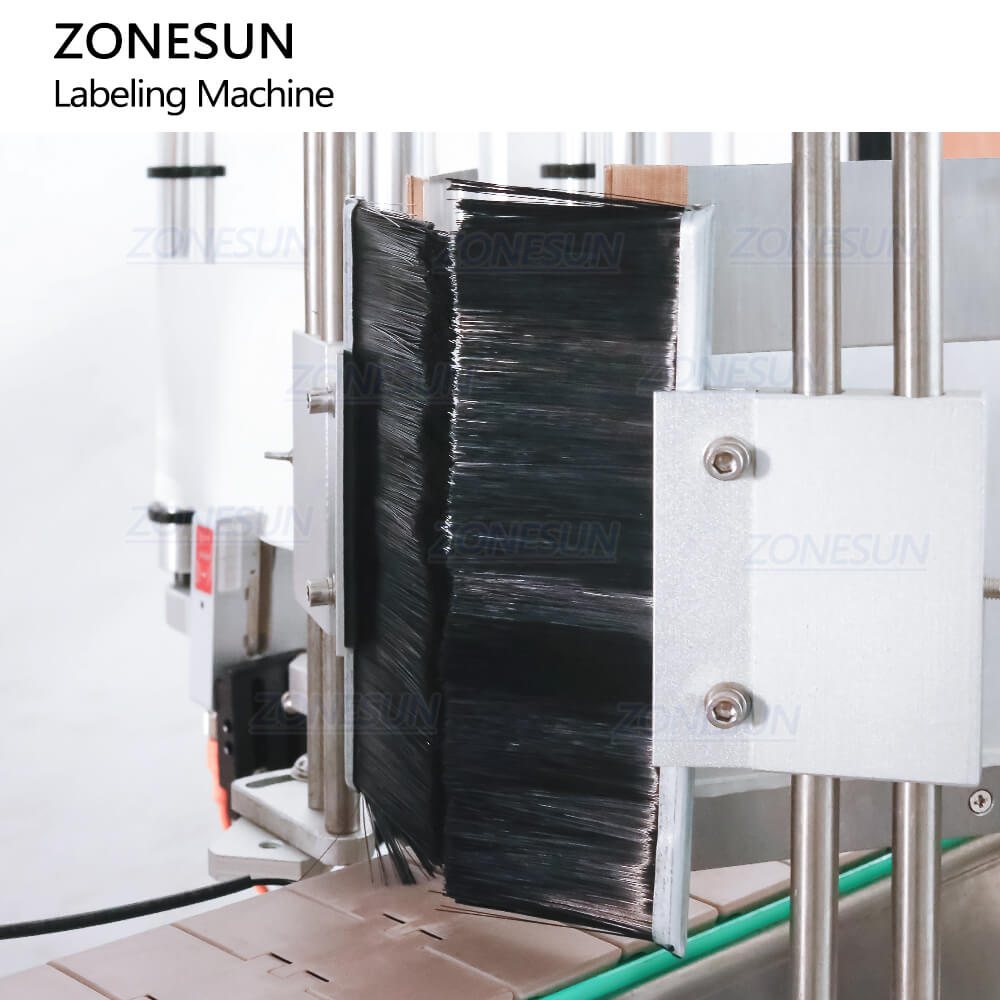

There are two brush which is designed to press labels and ensure there are no bubbles under stickers, it improves the labeling quality greatly.

The label sensor can detect the gap between label and label, this will help to control the label outputting length.The sensitivity of label sensor can be adjusted according to the label material, improves labeling accuracy.
