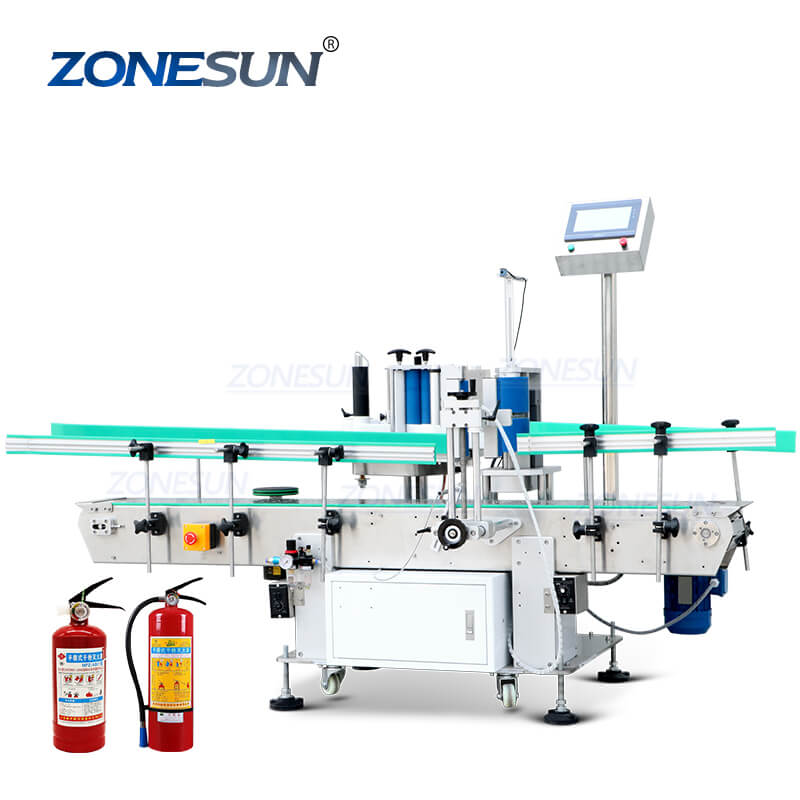

ZS-TB400 Automatic Sticker Fire Extinguisher Cylinder Round Bucket Gallon Drum Labeling Machine

This automatic labeling is used for labeling self-adhesive stickers on large diameter cylinder like fire extinguisher,bucket etc.It is suitable for single side and double sides labeling,and can work with automatic filling and capping machine to realize automated production.

Parameter

• Machine Model:ZS-TB400

• Machine Voltage:110/220V 50-60HZ

• Suitable Product Diameter:15-120mm

• Suitable Label Size:Customized

• Labeling Speed:25-40 pcs/min

• Labeling Accuracy:±1mm

• Air Pressure:0.4-0.6MpA

• Machine Size:About 2150*1100*1440 mm

• Machine Weight:About 222 kg

• Package Size:About 2150*1450*1590 mm

• Package Weight:About 470kg

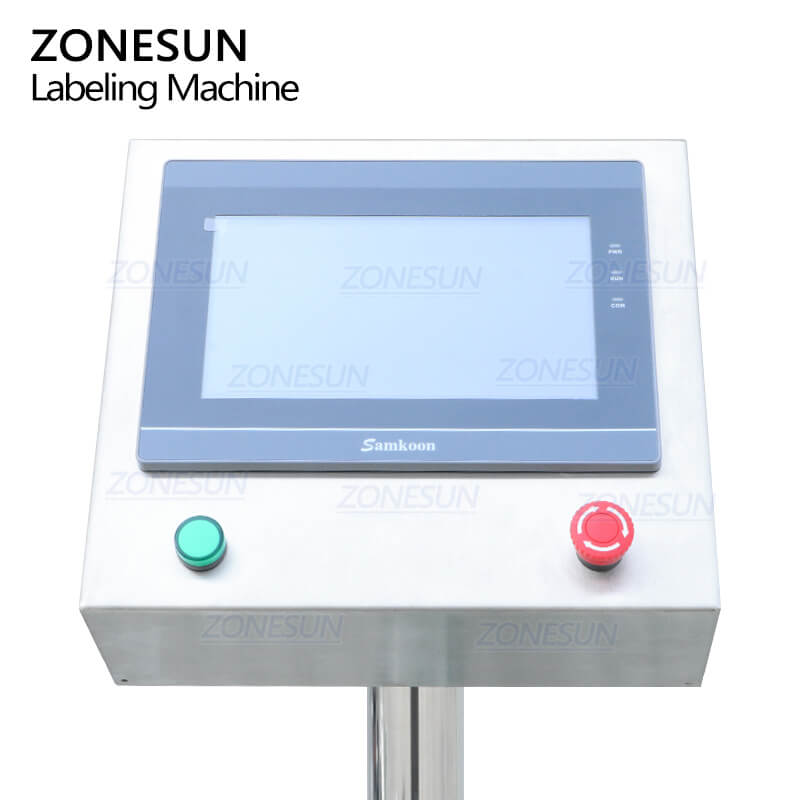

Equipped with touch screen control panel, different kinds of language can be customized as operation need.The visual working data makes it more convenient to debug machine.

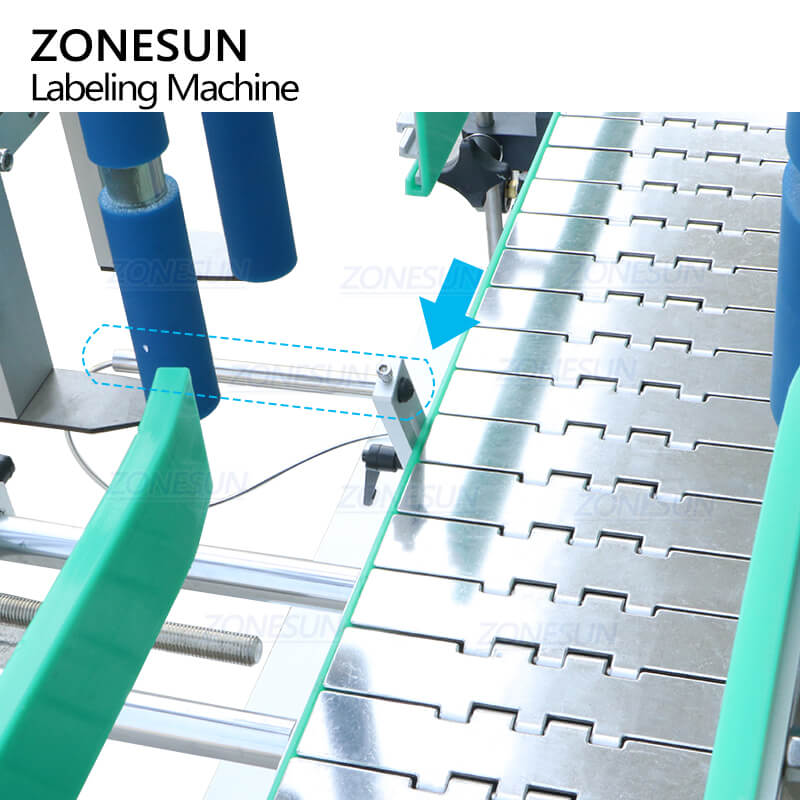

Equipped with electric eye, this can detect passing by bottles and control the machine to start to labeling work.It can reduce the production error and improves working efficiency.

Equipped with electric eye, this can detect passing by bottles and control the machine to start to labeling work.It can reduce the production error and improves working efficiency.

Equipped with electric eye, this can detect passing by bottles and control the machine to start to labeling work.It can reduce the production error and improves working efficiency.

Equipped with electric eye, this can detect passing by bottles and control the machine to start to labeling work.It can reduce the production error and improves working efficiency.

Equipped with stainless steel conveyor, it has larger weight capacity when transporting objects. The width of conveyor belt can be customized according to production need.
