ZONESUN ZS-SVFC1P Desktop Rotary Servo Rotor Lobe Pump Strawberry Jam Ketchup Tomato Paste Spout Pouch Filling Capping Machine

Earn 0 points on this purchase.

Learn more
Voltage
Price
Regular price $6,099.00 USD
Regular price $7,199.00 USD Sale price $6,099.00 USD
Save $1,100 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Designed for thick pastes like sauces, purees, and materials with soft particles, its servo-driven system ensures ultra-high precision filling (±2g) and seamless capping. The smart vibratory bowl sorter automates cap feeding, achieving speeds of 15-20 bags/minute. With an intuitive control panel for effortless operation, this space-saving machine maximizes productivity while fitting perfectly into small-scale production lines.

Parameter

  • Machine Model: ZS-SVFC1P
  • Voltage: 110/220V 50-60HZ 2KW
  • Filling Range: 100-2000 g(customizable, <5000g)
  • Working Capacity: 15-20 bags/min(based on filling range)
  • Filling Pump: Rotor Pump
  • Filling Accuracy: ±2 g
  • Air Pressure: 0.5-0.8 Mpa
  • Air Consumption: 0.5 m³/min
  • Hopper Size: 30L
  • Machine Size: About 1810*1320*1730 mm
  • Machine Weight: About 80 kg
pouch filling machine
application of pouch filling machine
component of pouch filling machine

navigation

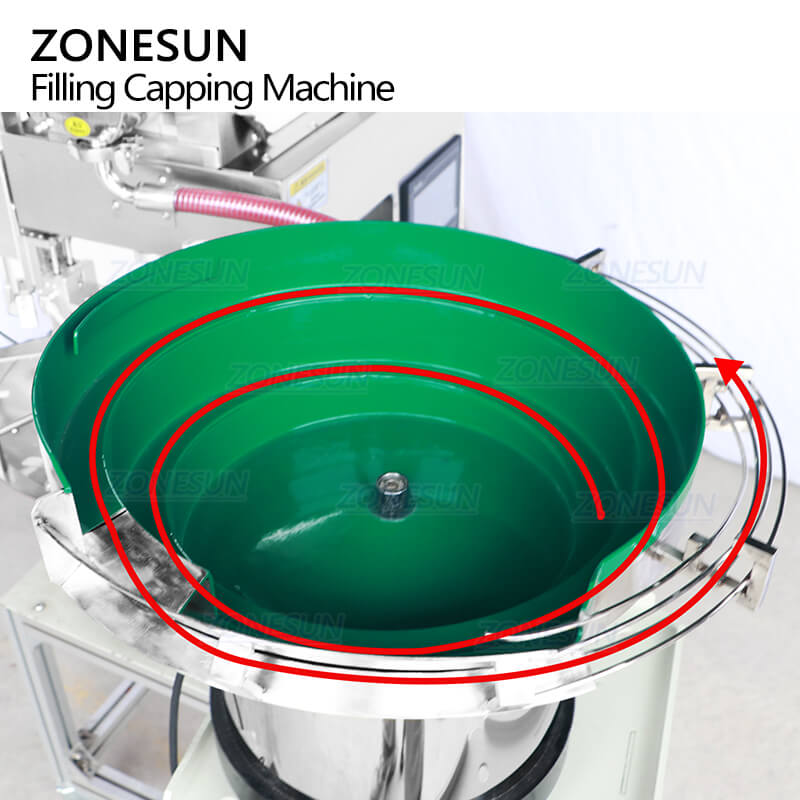

vibratory bowl sorter of bag filling capping machine
Vibratory Bowl Sorter
Can arrange caps and supply caps to cap placing structure, ensures smooth working.

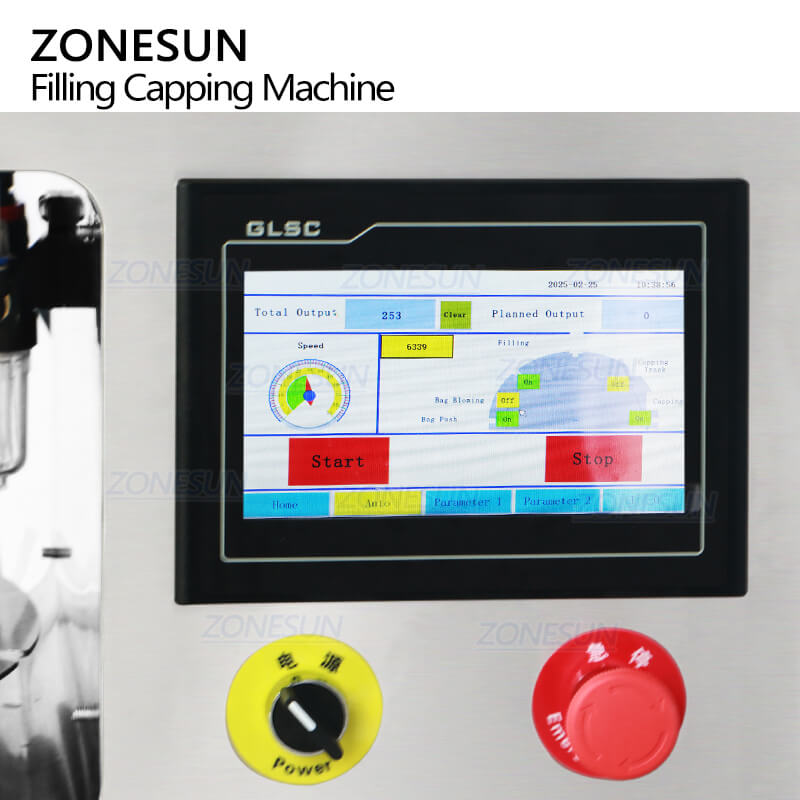

control panel of bag filling capping machine
Control Panel
Parameter setting shows more intuitive, set filling volume through control panel directly.

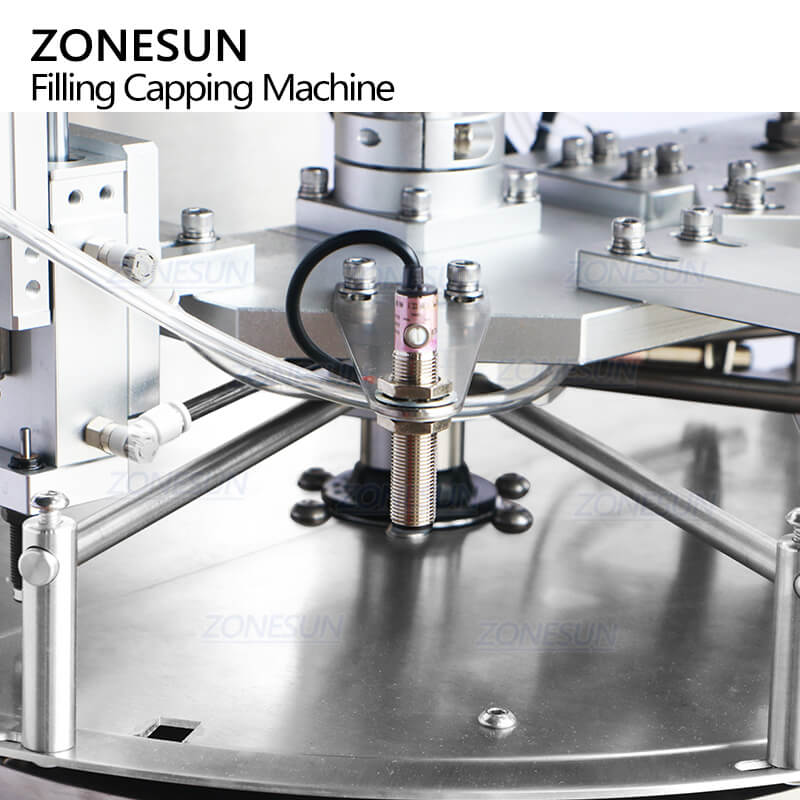

electric eye of bag filling capping machine
Electric Eye
Can detect passing by pouches and control the automated work.

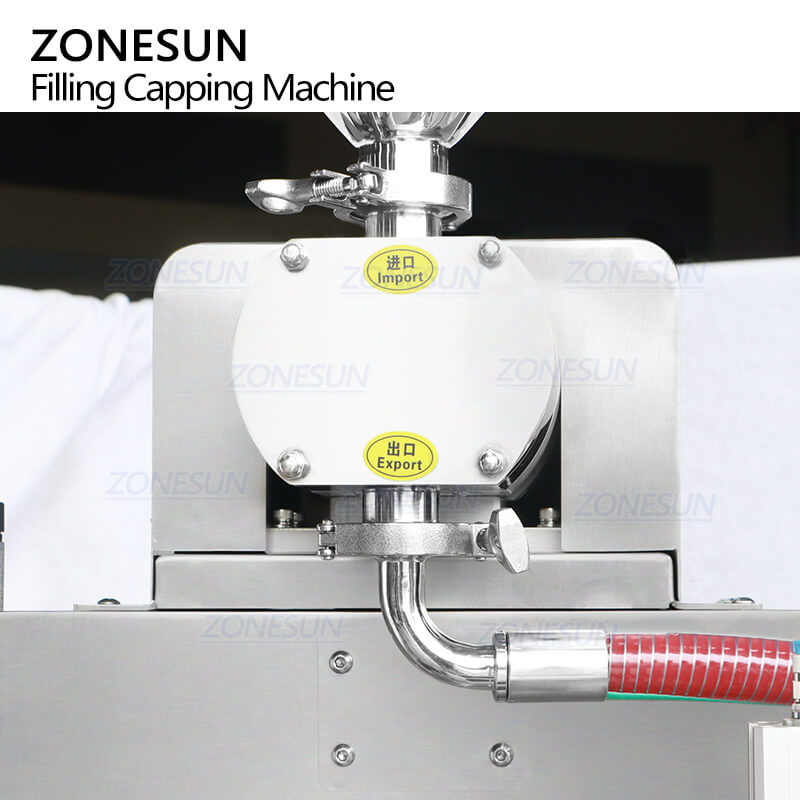

rotor pump of bag filling capping machine
Filling Pump
Using rotor lobe pump to fill paste into pouch, it has wider filling range (100-2000g), also suitable for paste with small soft particles.

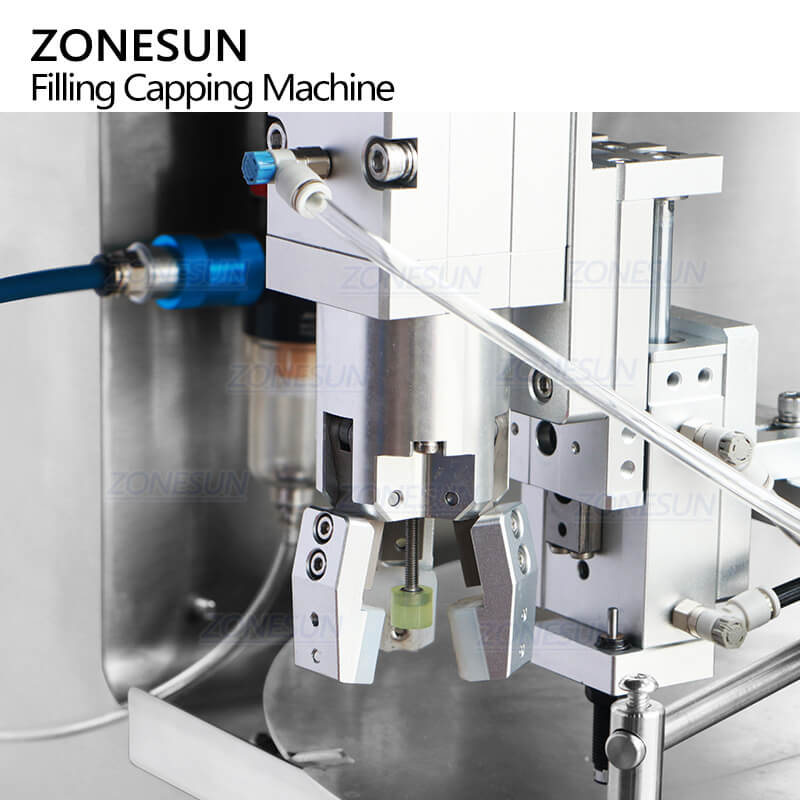

servo capping structure of bag filling capping machine
Servo Capping Structure
Suitable for screw-on caps, the servo motor controls capping work, this ensures capping accuracy.

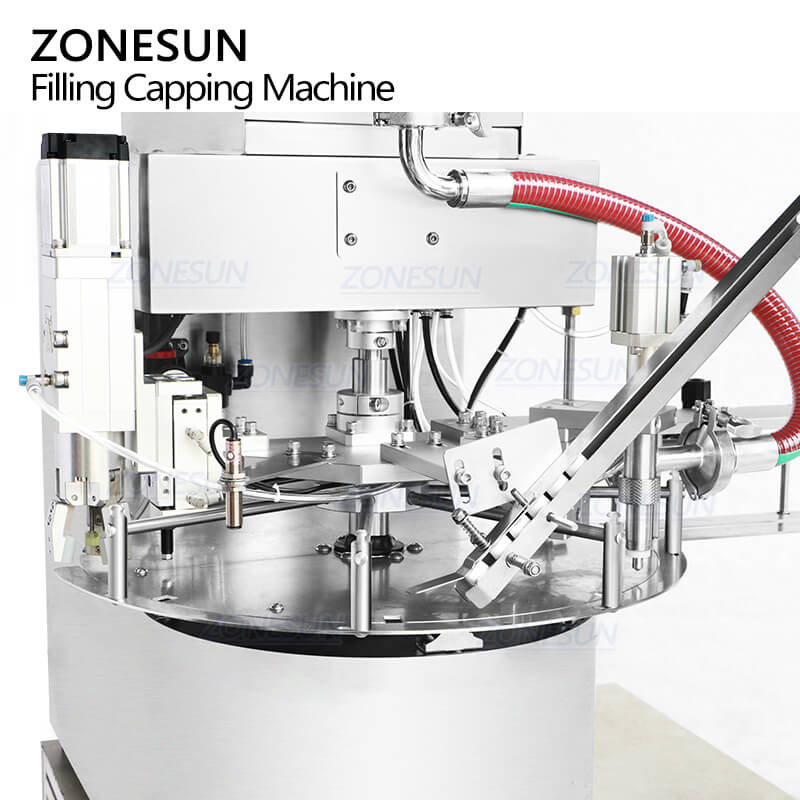

pouch filling capping machine
