ZONESUN ZS-FM710 Semi-automatic Auger Talcum Coffee Powder Sachet Filler Chemical Dry Powder Bottle Weighing Quantitative Filling Machine

Machine Video

This filling machine is designed for filling powder into bottles,the filling volume can be set by entering certain number or using the filling weight.It can work with conveyor belt and use it as a automatic machine,help you improve working efficiency.It is widely used in food,daily chemical industries.

Parameter

• Machine model:ZS-FM710
• Voltage:110/220/380V 50-60HZ
• Main motor power:1.25KW
• Filling type:Weight Control or Auger Filling
• Filling range:About 10-2000g
• Suitable bottle diameter:About 25-150mm
• Suitable bottle height:About 60-300mm
• Hopper size:About 25L
• Working speed:About 1-30 bottles/min
• Machine size:About 450*650*1860mm(Machine)
• About 265*265*570mm(Weighing Device)
• Machine weight:About 128kg
• Package size:About 1900*2170*820mm
• Package weight:About 171kg

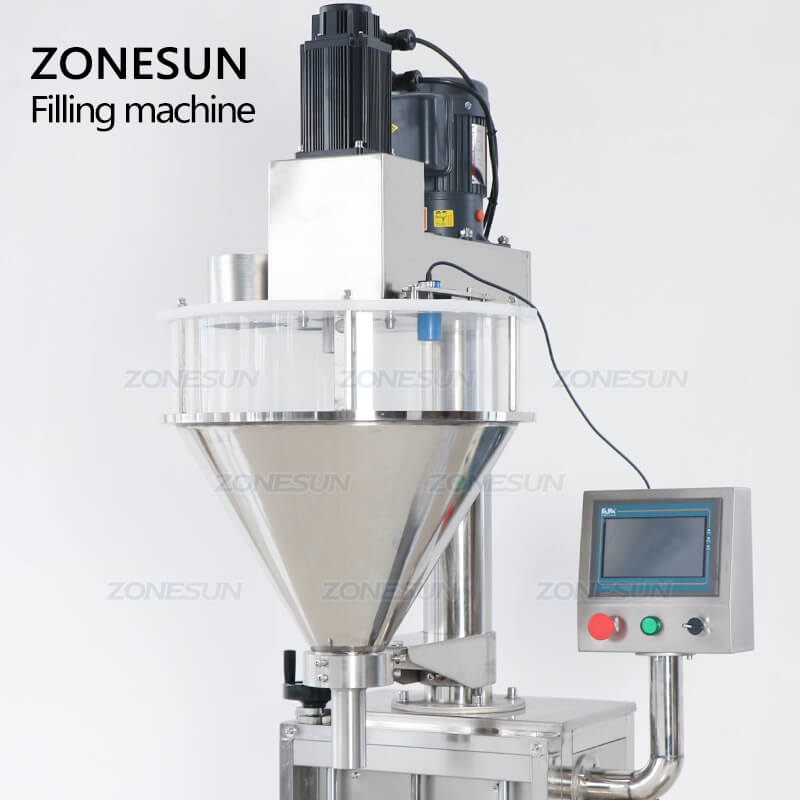

The touch screen control panel is more convenient to adjust working parameter like filling volume,working mode.The visual working parameter can help you watch the machine in real time.

With large hopper and large motor,the machine can work stably, and more convenient to pour filling materials, improves working efficiency.

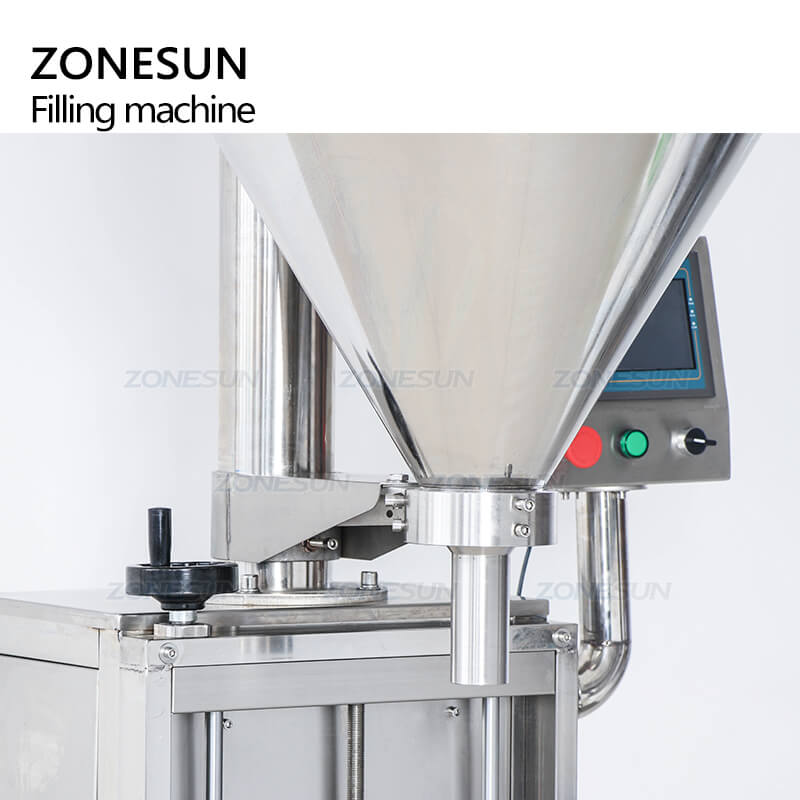

The position of placing plate can be adjusted according to bottle size by rotating the knob,improves filling accuracy..

Equipped with weighing device,it can be used to control filling volume after dismantling conveyor belt,offer multiple kinds of working mode and make the production be flexible.

The high quality electric eye can detect passing by bottles and control the machine to start work or not.This can prevent from missing bottles and improve filling accuracy.

When choosing quantitative filling,it will fill material according to controlling predetermined number of revolutions,this can control dust during working,which help you improve your product quality.Please notice that feeding powder as much as possible
before filling.
