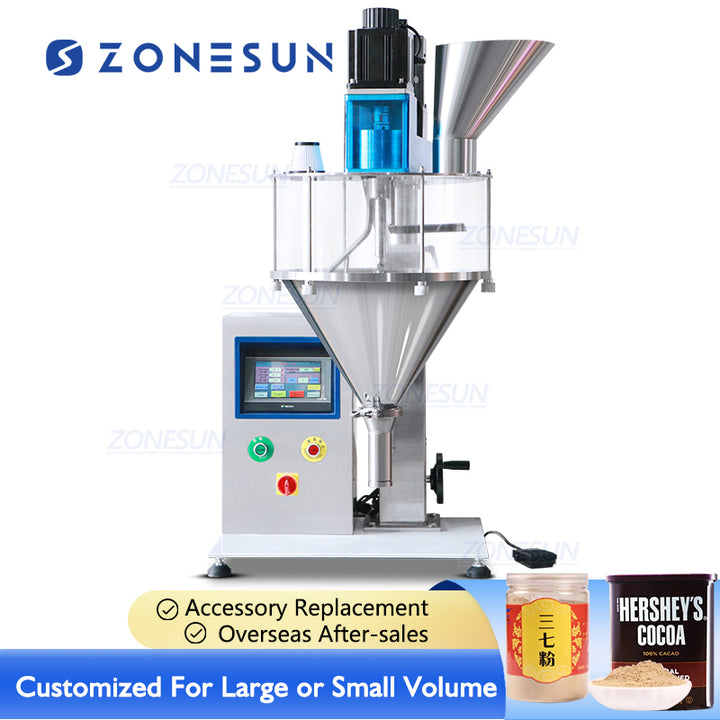

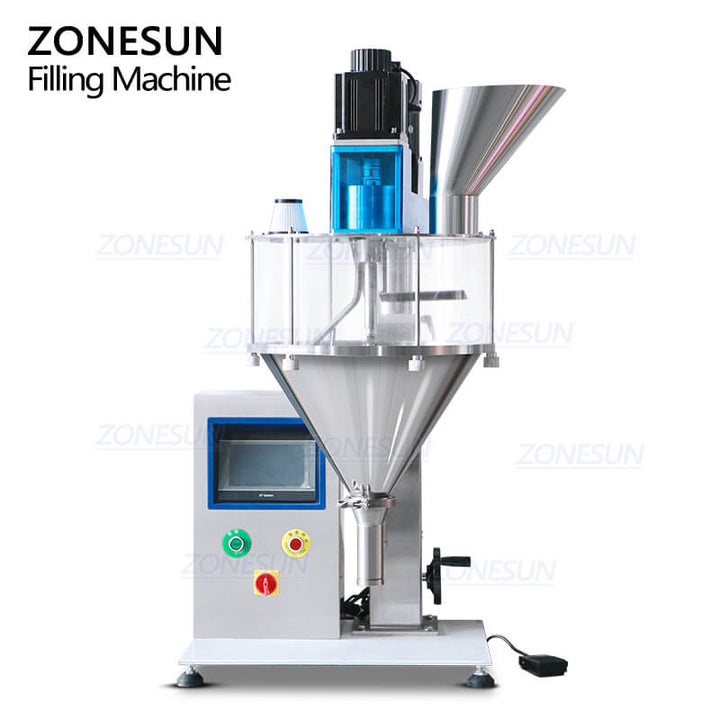

ZONESUN ZS-FM100B Semi-automatic Dry Acrylic Powder Screw Auger Powdered Milk Baking Powder Protein Powder Bottle Bag Pouch Filling Machine

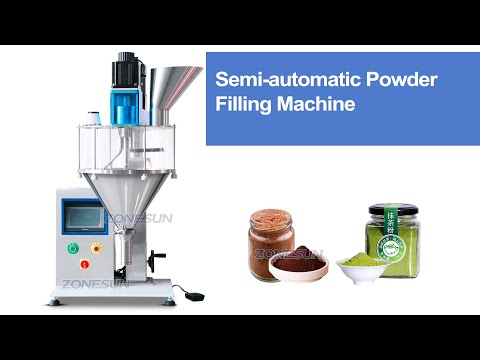

Video For Screw Auger Filling Machine

A semi-automatic powder filling machine is a type of equipment used in industries such as  food processing, cosmetics, and chemicals to fill containers with powdered substances. The filling volume of this machine can be customized as production need.It is designed to improve efficiency and accuracy in the filling process while reducing manual labor.

Parameter

• Machine model:ZS-FM100B
• Machine voltage:110/220V 50-60HZ
• Screw diameter & filling range:   φ19mm 0.5-10g/ φ25mm 2-15g/ φ32mm 10-30g/ φ38mm 20-50g/ φ51mm 30-100g/ φ64mm 100-500g/ φ76mm 200-2000g (for reference only, it will be different according to filling material)
• Hopper size:35L(customized)
• Hopper diameter:450mm(customized)

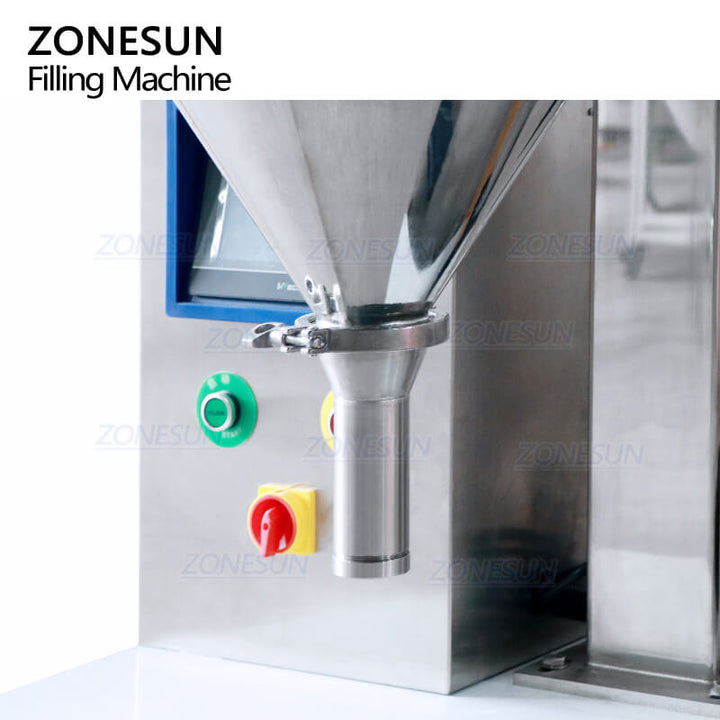

• Filling nozzle size:customized
• Working capacity:10-25 BPM(based on filling volume)
• Container height:H≤300mm
• Filling accuracy:±1%(based on filling range)
• Machine size:About 780*750*1150mm
• Machine weight:About 120kg
• Package size:About 810*810*1300mm
• Package weight:About 144kg

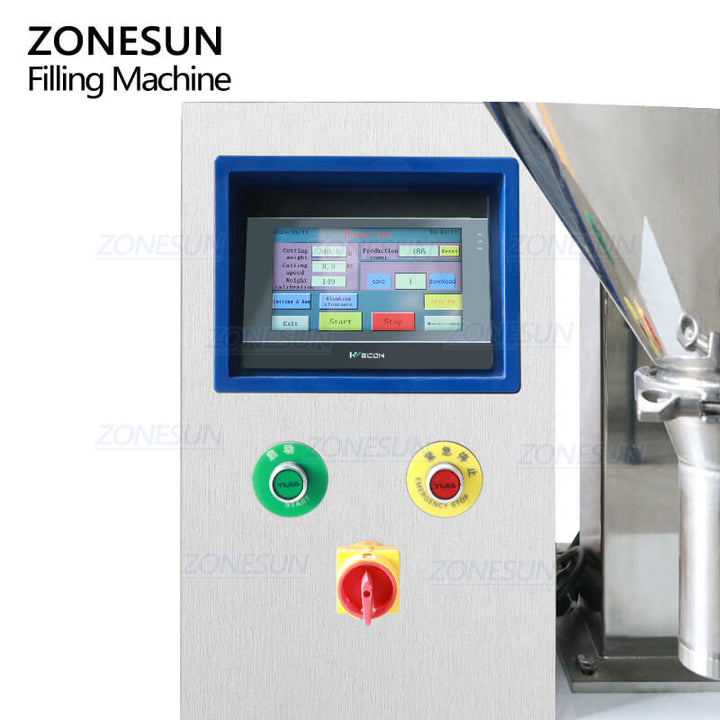

Touch screen panels can be easily customized to suit the specific needs of different products or production processes. Operators can adjust settings such as fill volume, speed, and other parameters directly from the screen, allowing for quick changes without the need for mechanical adjustments

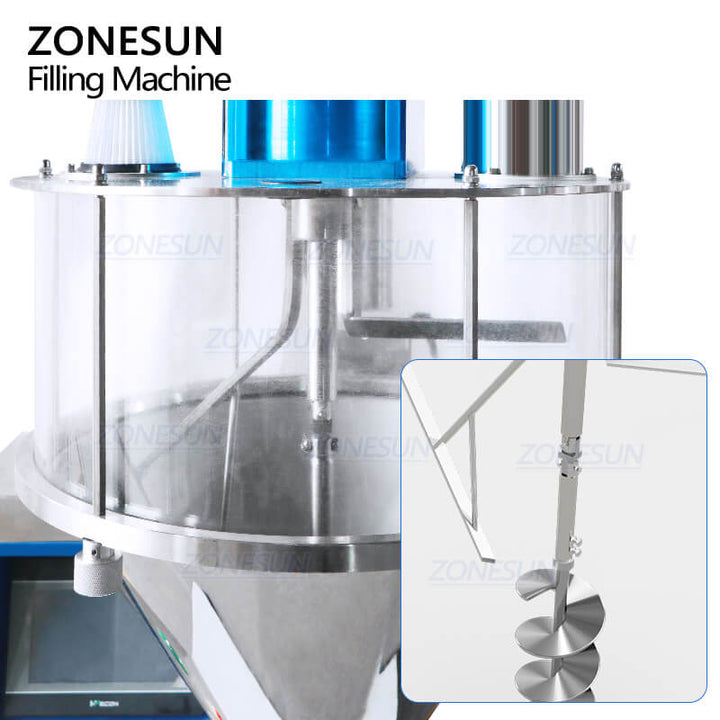

The hopper size can be customized according to filling range, ample storage capacity of the hopper enables the powder filling machine to operate continuously for extended periods without the need for frequent interruptions to refill the material. Filling range of this machine can be customized as production need.
