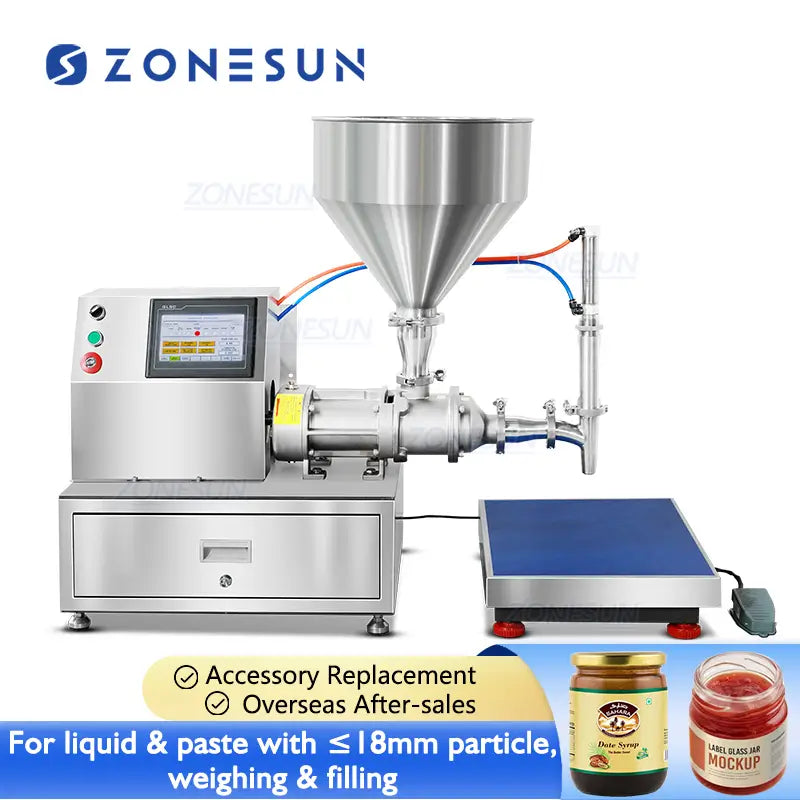

ZONESUN ZS-TSP5A Tabletop Semi-automatic Screw Pump Chili Sauce Fruit Thick Dates Paste Filling Machine
Earn 0 points on this purchase.
Regular price
$3,979.00 USD
Regular price
$4,299.00 USD
Sale price
$3,979.00 USD
Save $320 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
This is a screw pump filling machine. The machine has a strong performance. It can smoothly transport and fill the liquid and high-viscosity paste with particles. It is widely used in various industries such as chemical, industrial, and food processing, for dispensing liquids with particles including sauce, syrup, juice, dairy products, and so on.
Parameter
- Machine Model: ZS-TSP5A
- Power: 2.6 kw
- Machine Material: SUS304
- Filling Pump: Twin Screw Pump
- Filling Volume: 1 g-500 kg
- Filling Accuracy: ≤ 3‰(based on filling material & volume)
- Solid-Liquid Ratio: ≤70%
- Inlet and Outlet Diameter: DN51
- Suitable Particle Diameter: 0-18 mm
- Suitable Viscosity Range: 0-50000 cst
- Machine Weight: 100 kg
- Package Size: About 910*570*940 mm
- Package Weight: About 110 kg

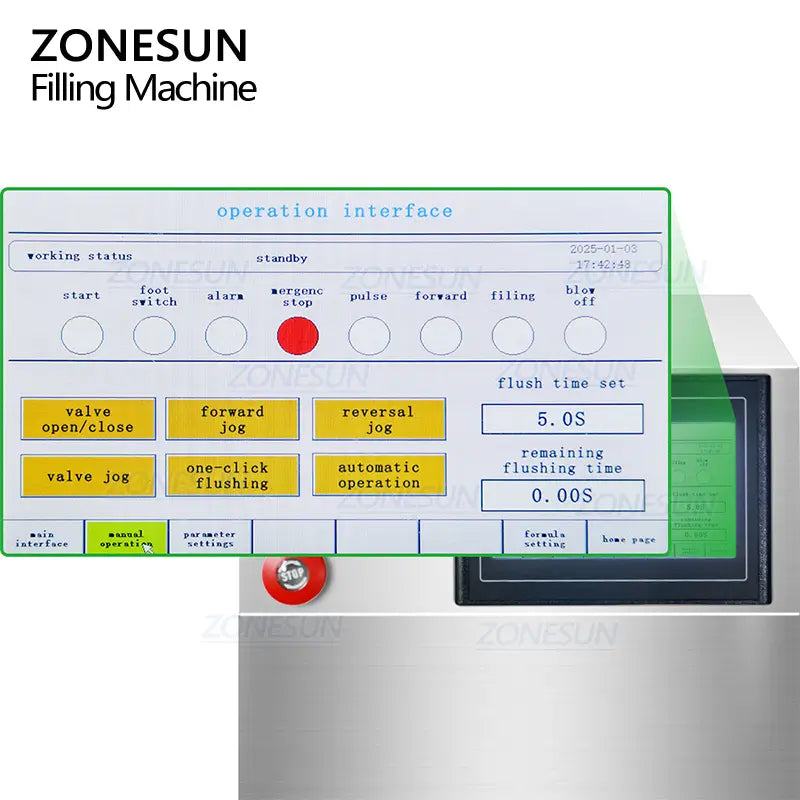

CONTROL PANEL
With touch screen control panel, which is easy set and adjust working parameter.
With touch screen control panel, which is easy set and adjust working parameter.

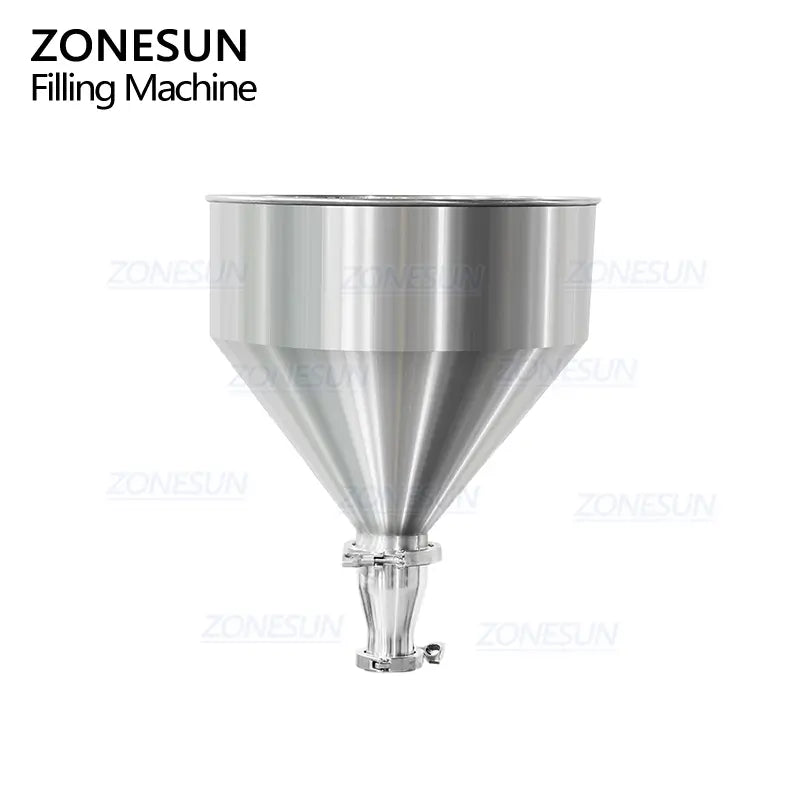

HOPPER
With large hopper, it is easy to add materials to improve work efficiency.
With large hopper, it is easy to add materials to improve work efficiency.

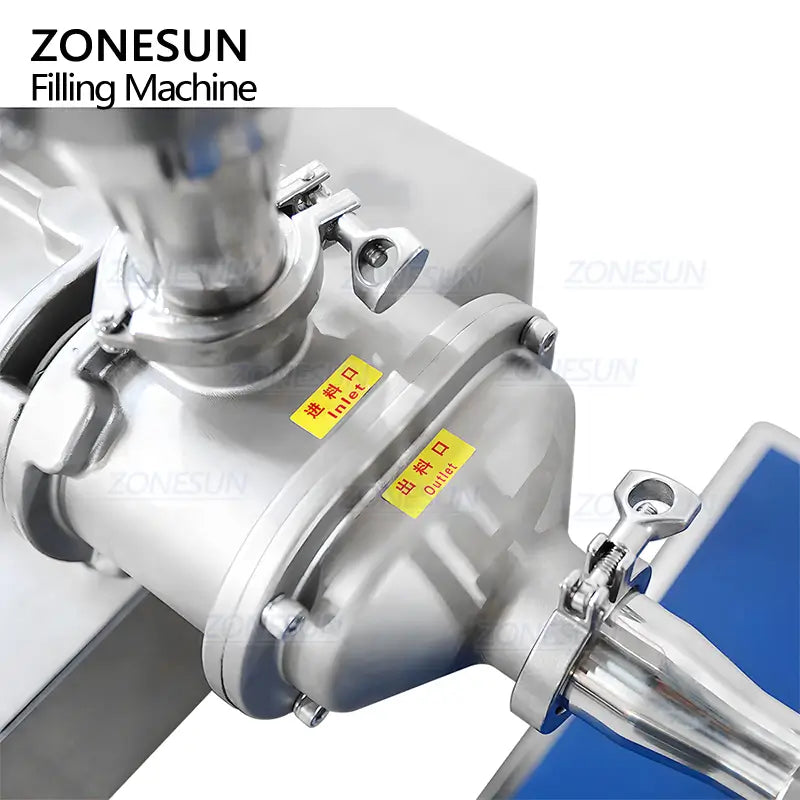

Twin Screw Pump
Controlled by twin screw pump, it suits liquid & high viscosity paste with small particle.
Controlled by twin screw pump, it suits liquid & high viscosity paste with small particle.

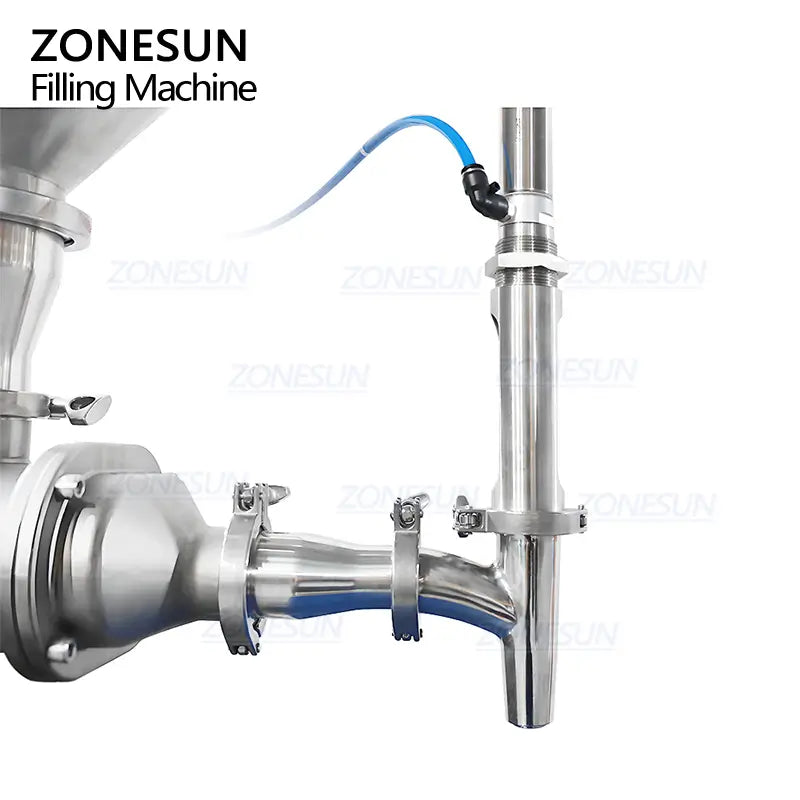

FILLING NOZZLE
Made with stainless steel material, featuring a wide nozzle diameter, it's perfect for effortlessly filling large quantities of liquid with particles.
Made with stainless steel material, featuring a wide nozzle diameter, it's perfect for effortlessly filling large quantities of liquid with particles.

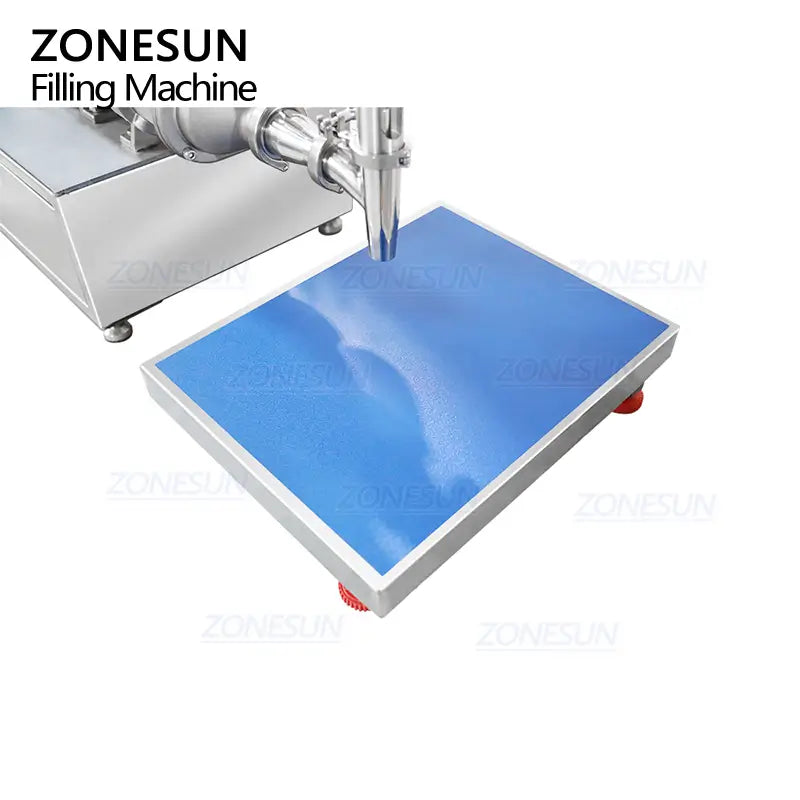

Weighing Scale
Equipped with weighing scale to control filling work, set filling volume directly to simplifies machine operation.
Equipped with weighing scale to control filling work, set filling volume directly to simplifies machine operation.

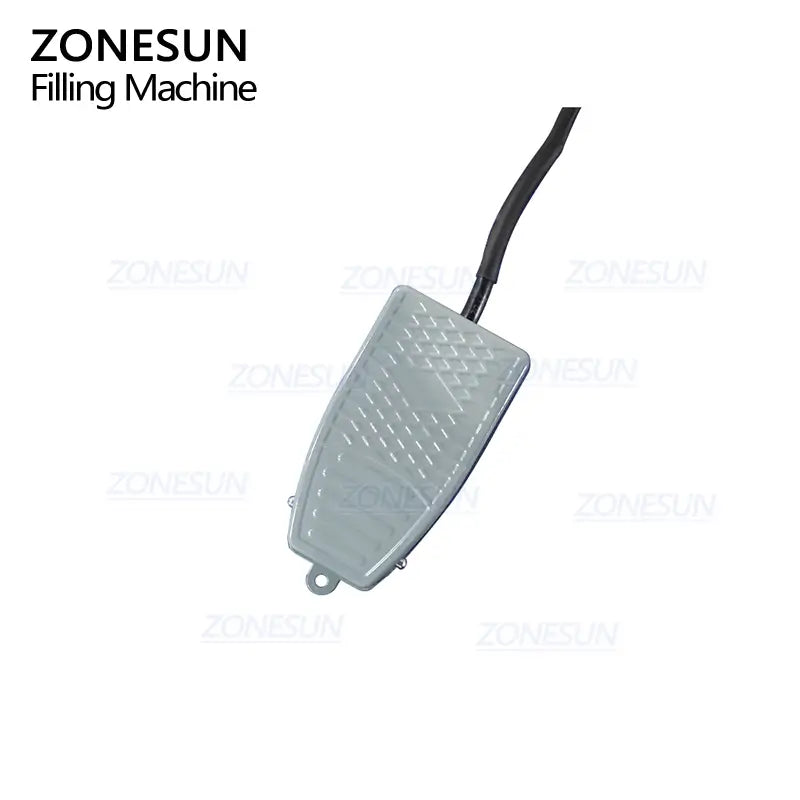

Pedal Switch
Can use pedal switch to control machine work, it can free operator hands to make work more smooth.
Can use pedal switch to control machine work, it can free operator hands to make work more smooth.
