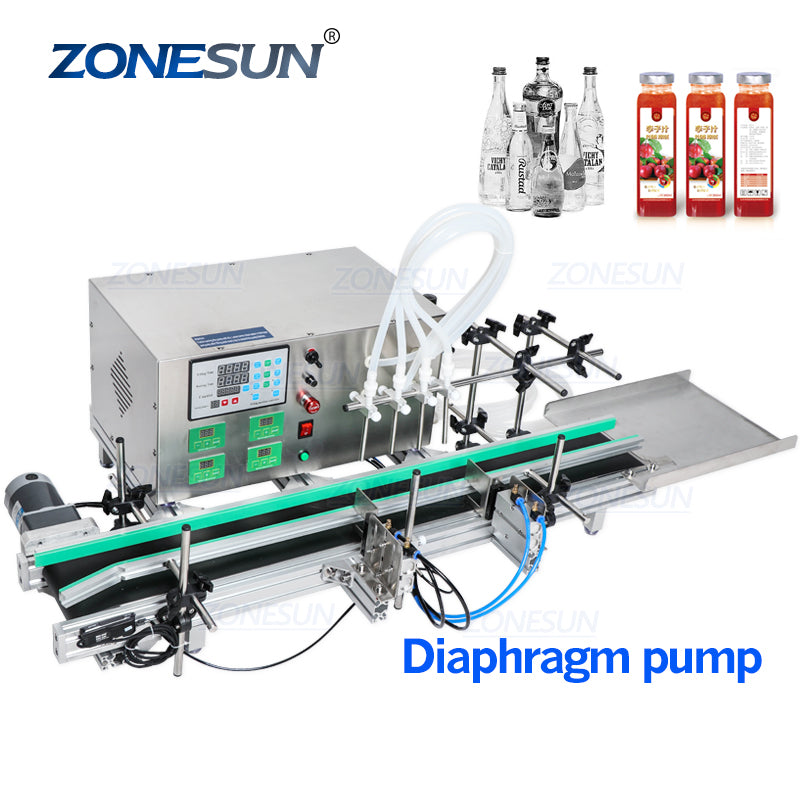

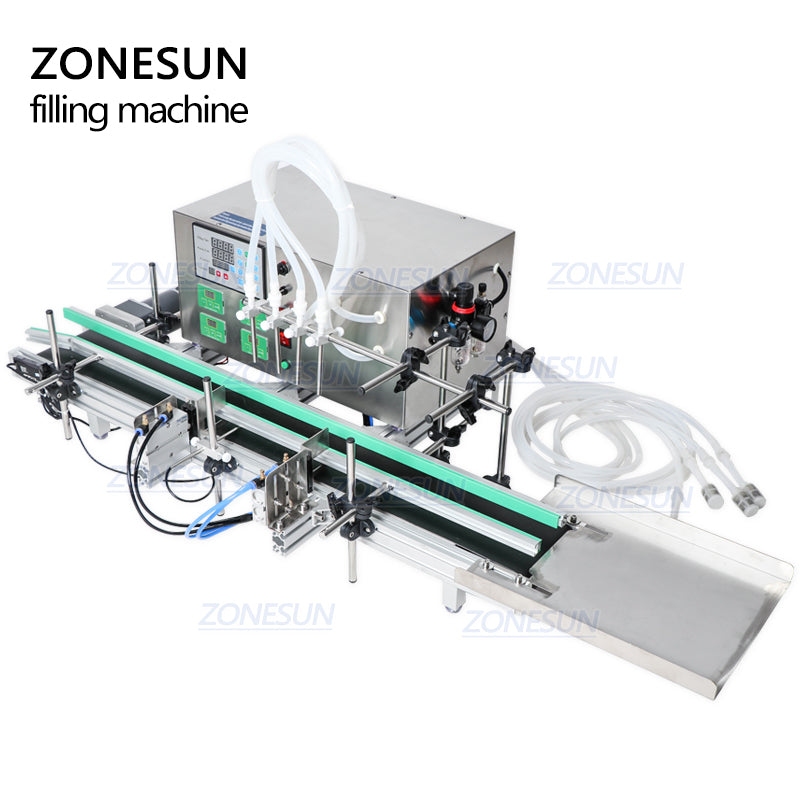

ZONESUN Full Automatic Desktop CNC Liquid Filling Machine With Conveyor 110V-220V For Perfume Filling Machine Water Filler

Regular price $2,260.00 $0.00

Product Description

Based on the advanced technology, we produce this full automatic filling machine whihc is a new type of electric self-priming, pneumatic induction positioning, automatic bottle changing machine



Parameter

Power supply voltage: AC220V /110V   50Hz/60HZ
Power: 250W
Air pressure: 0.3~ 0.4mpa
Maximum flow: 5000ml each nozzle per minute for water
Filling range:3-5000ml
Filling nozzles: 4 (we can customize the nozzles based on your demands)
Filling accuracy: ≤ ± 1%( for water)
Working efficiency:1500-3000 bottles/hour (based on bottles and liquids)
Size of filling nozzle: standard 8mm and 6mm
Body material: stainless steel
Delay range: 0.01s ~ 999.9s
Count range: 1 ~ 99999 times
Belt length: 1.0 m
Machine weight: about 50 kg
Machine Size: 1350*710*600mm


Feature:

1.This machine is with a conveyor,it can fill the liquid automatically and stop to work because of the  infrared sensor.The working seed of the conveyor is adjustable,what you need to do is just placing bottles
2.It is suitable for small-dose liquid filling equipment. And good for filling bottles of various round plastic bottles. It has the advantages of smooth bottom bottle, uniform filling speed, accurate metering, simple operation and high-speed dispensing.
3. All components of the device are high-quality, the machine body is all stainless steel, the model is small, and with reasonable design.It is economical and practical.
4.This machine is easy to operate,and really convenient for short run production.It will not work if there is no bottles because of the  infrared sensor.It fills accurately and can be quantitative filling
5.It can be used for production line.You can  customize multiple nozzles according to output

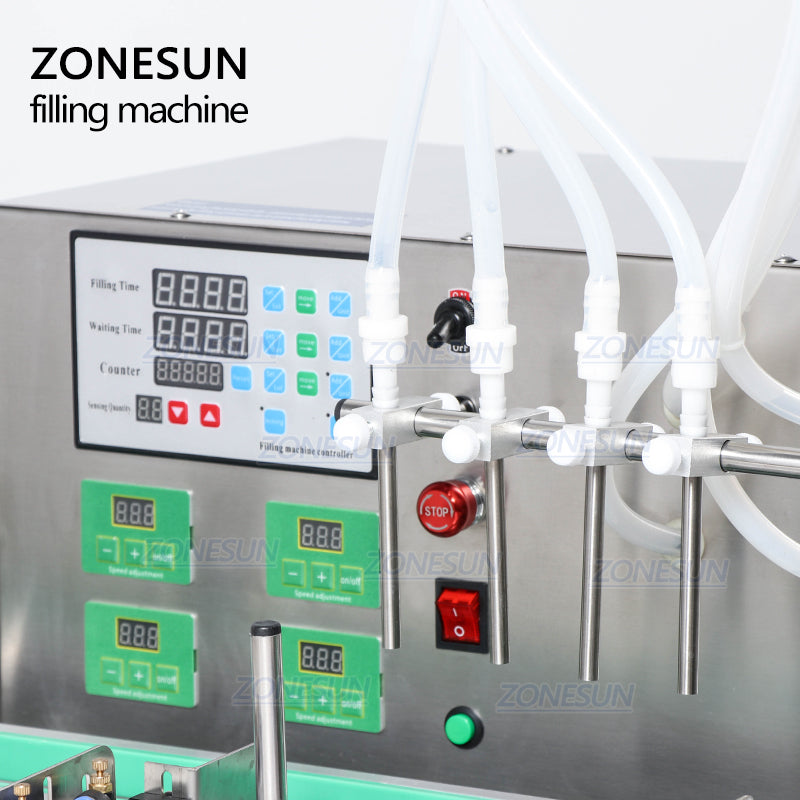

6.Digital conrtol panel,and it can eliminate failure intelligently which help you save a lot of time.
7.The machine is esy to operate and test,you don't need the professional technicist,which improves your working efficiency
8.The machine is lightweight and saving space,which is suitable for short run production


Application

It is widely used in medicine, daily chemical and other industries, such as essential oils, perfumes, smoke oils, oral liquids and various small metering liquids, etc., can be customized filling pesticides, acid-base non-particle low viscosity corrosive liquid magnetic pump filling machine, It is also possible to custom fill a peristaltic pump automatic filling machine containing granules or organic solvent-containing liquids. At the same time, it is equipped with automatic bottle unscrambler, storage machine and capping machine.



带输送带灌装机_01带输送带灌装机_02带输送带灌装机_03带输送带灌装机_04带输送带灌装机_05带输送带灌装机_06带输送带灌装机_07带输送带灌装机_08
