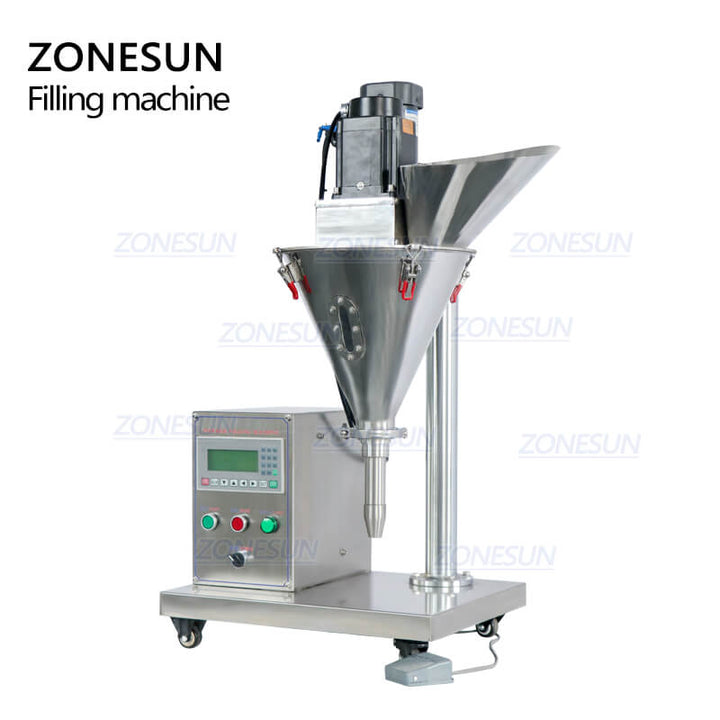

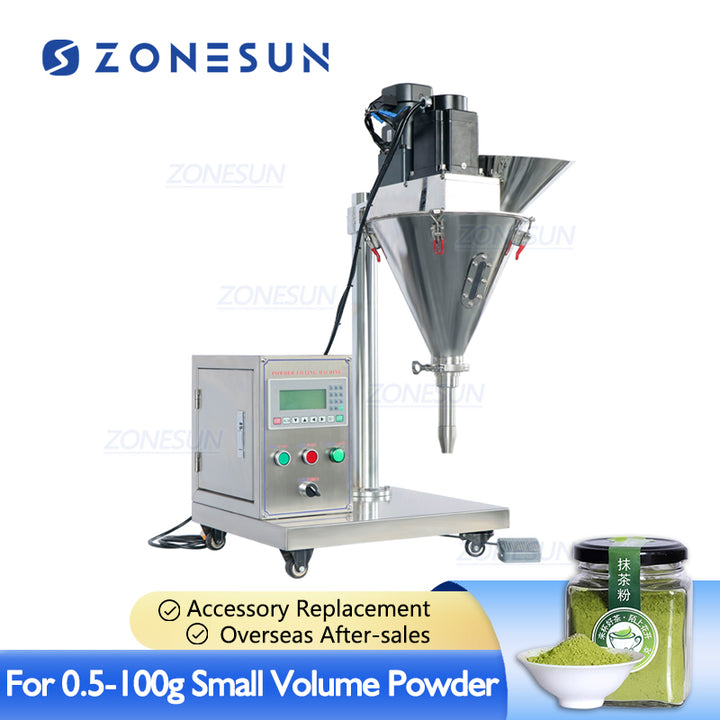

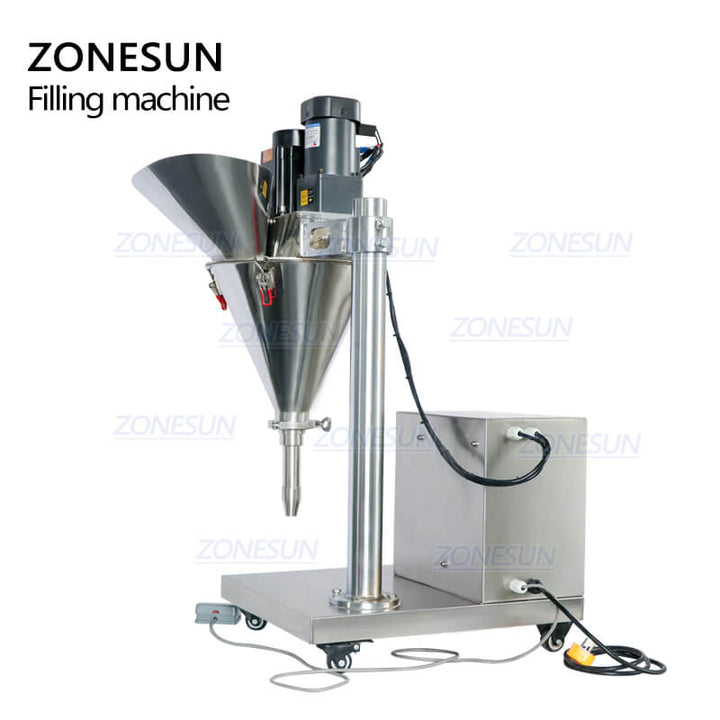

This small auger filling machine is suitable for filling milk powders, flour, fodder into bags or bottles. It is easy to operate and can fill powder accurately. This machine is widely used in food, cosmetic and daily chemical industries.

Parameter

• Machine model: ZS-FM100S

• Voltage: 110/220V

• Machine power: 0.5KW

• Hopper size: About 6L

• Hopper diameter: About 320mm

• Filling range: 0.5-100g

• Filling nozzle size: 20mm (Can be Customized)

• Filling accuracy: ±1%

• Filling speed: About 20-30 bottles/min

• Machine size: About 520*430*950mm

• Machine weight: About 59kg

• Package size: About 720*610*1030mm

• Package weight: About 84kg

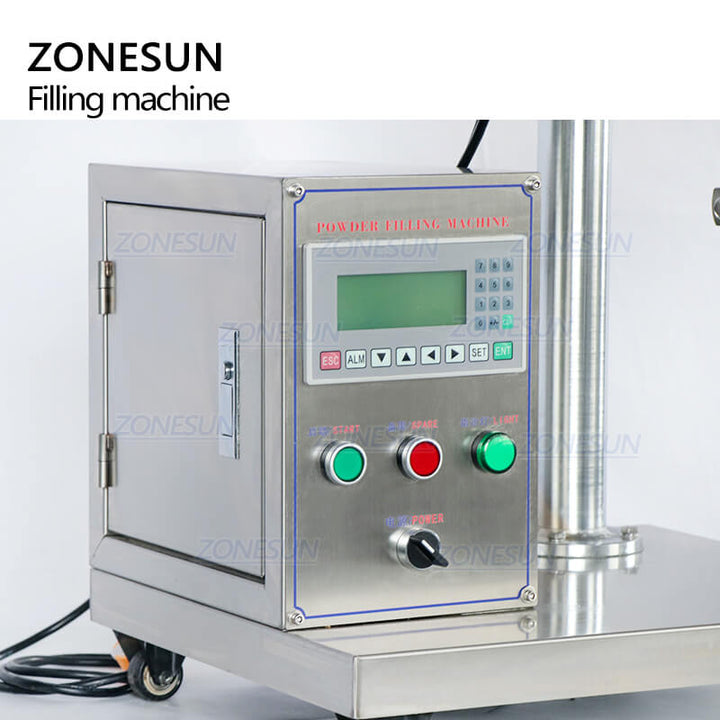

Simple control panel makes it easier to test and adjust machine parameter like filling time and filling speed.The visual parameter helps to adjust parameter precisely.

The filling nozzle can be customized according to bottle opening size,makes the material is hard to leak out,improve filling accuracy.

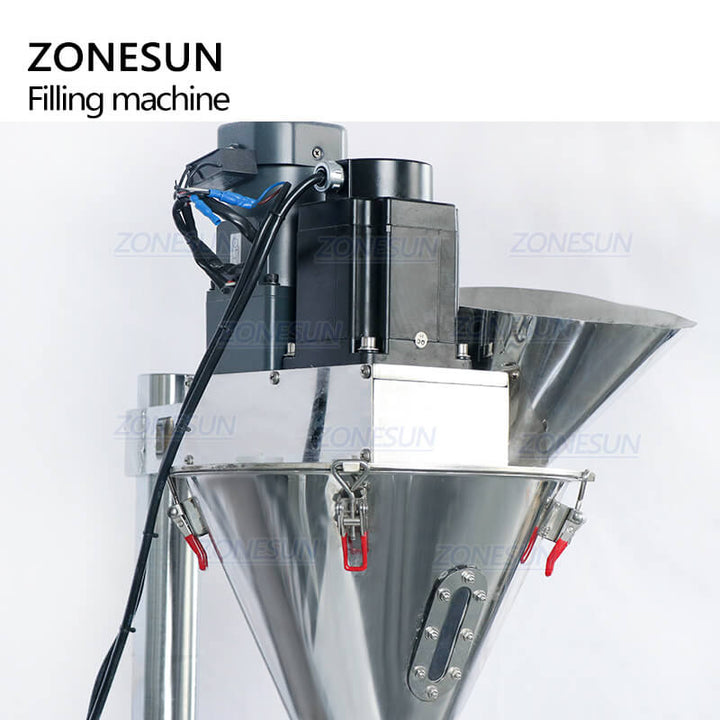

It is equipped with powerful motor,which can ensure the machine work stably during filling.

The machine can be controlled by pedal switch,this free operators’ hands, make the work more convenient.

The auger filling machine fills material according to controlling predetermined number of revolutions,the outside cylinder is designed into a good shape and size which can work with the auger and prevent from leaking out powder.Improve filling accuracy.
