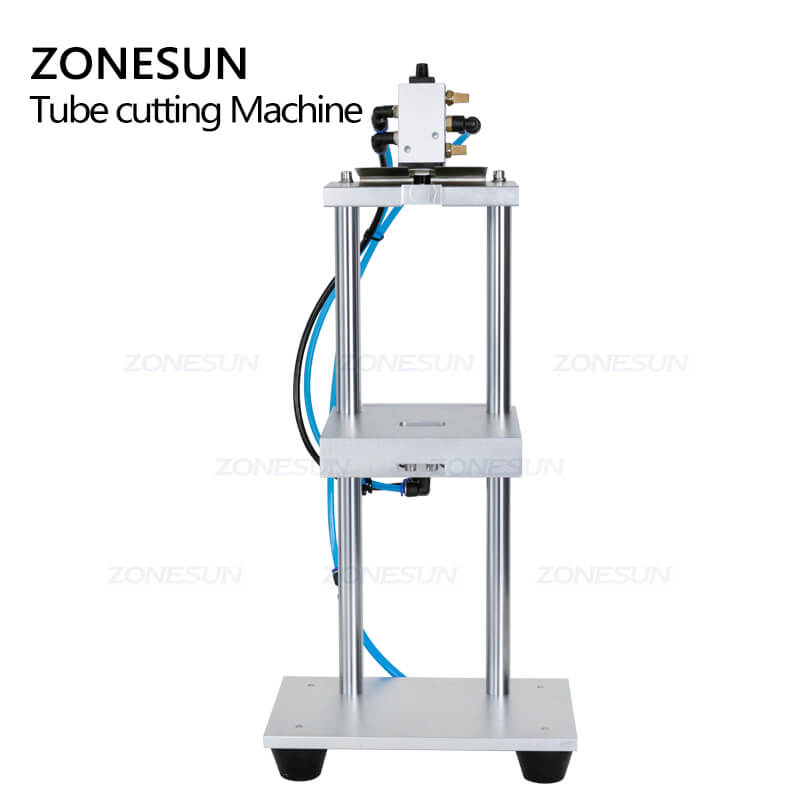

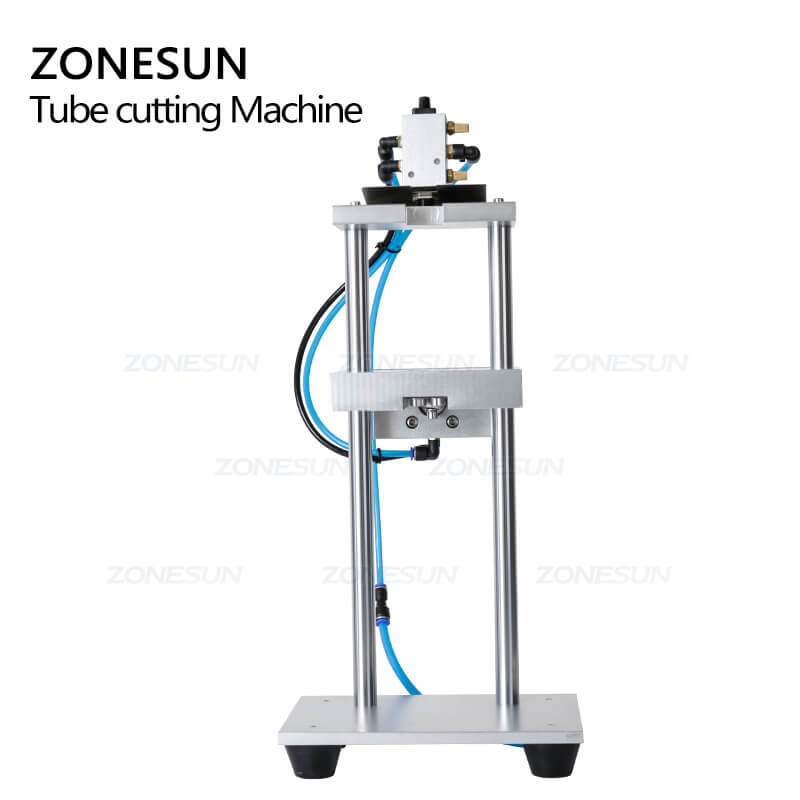

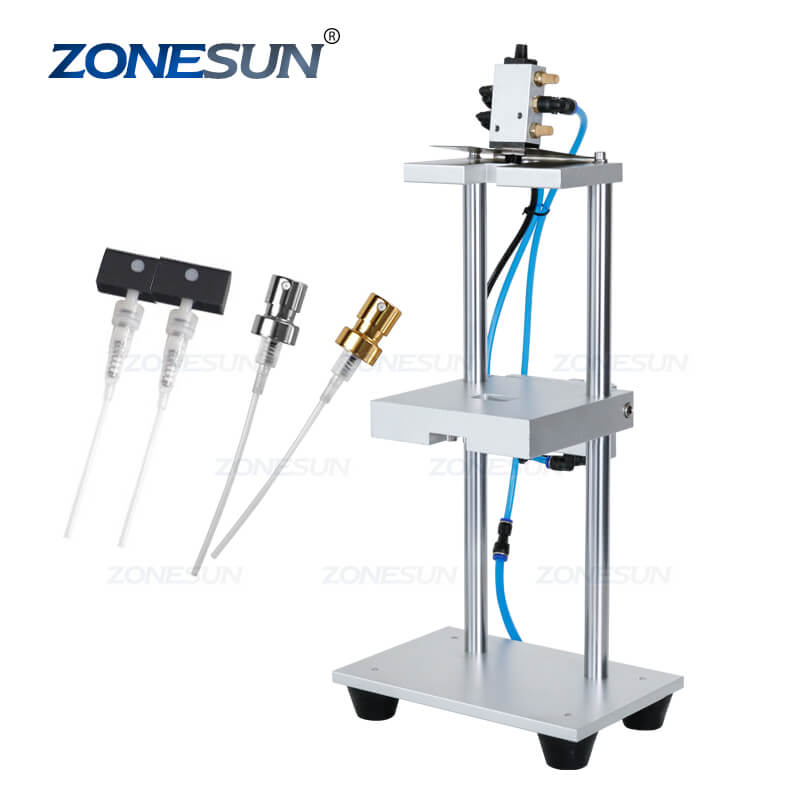

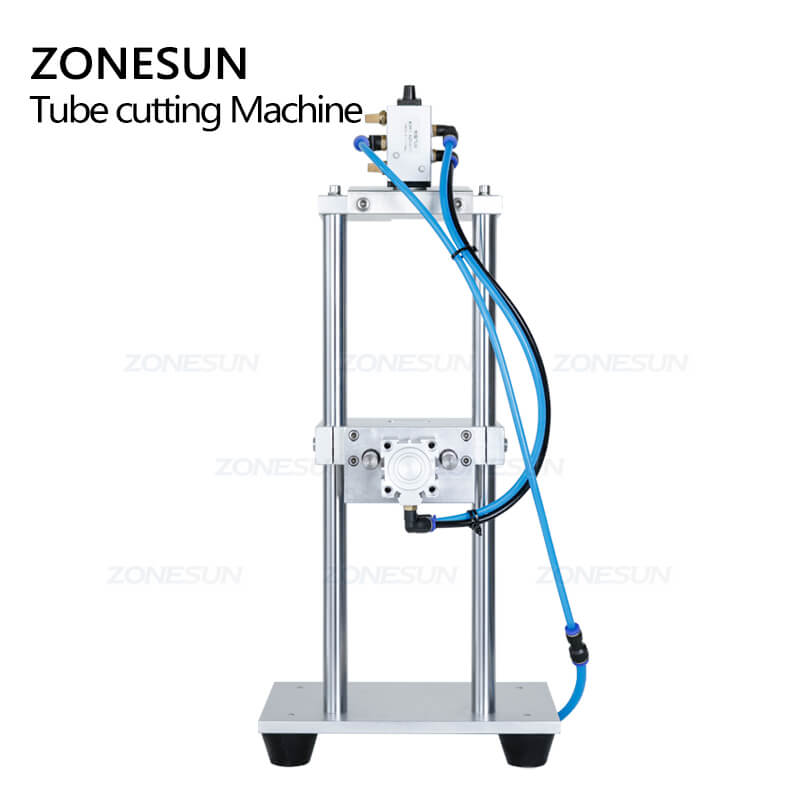

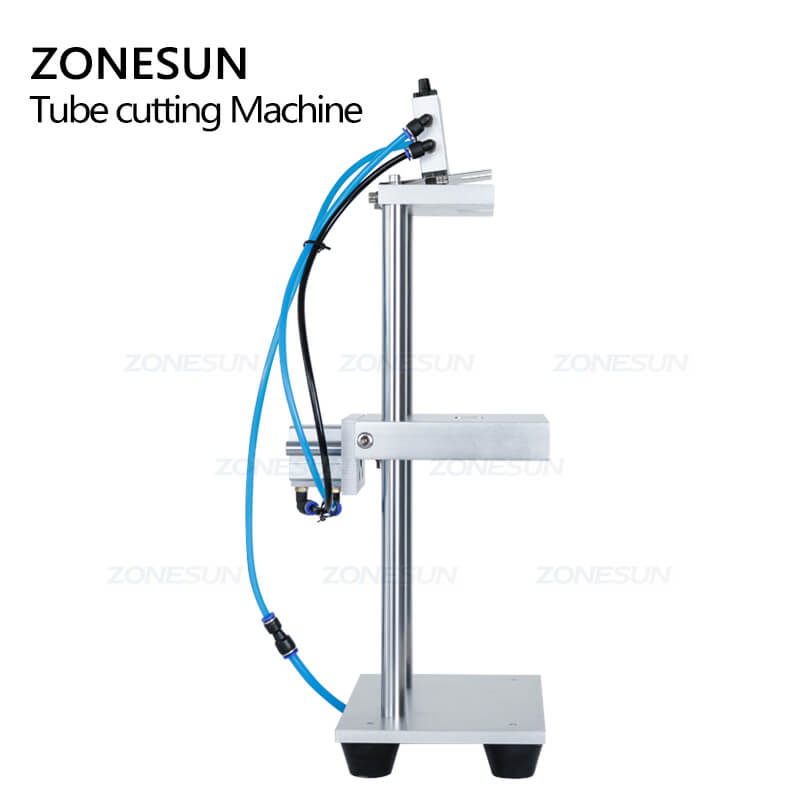

ZONESUN ZS-JG300V Tabletop Pneumatic Perfume Dip Tube V-shaped Cutting Machine

This pneumatic v-cut dip tube cutting machine is used to cut dip tubes with a v-shaped notch at the end. it operates using pneumatic system to drive the cutting mechanism, ensuring precision and efficiency, cutting length is adjustable.

Parameter

• Machine Model: ZS-JG300V

• Suitable Tube Diameter: ≤9.5 mm

• Suitable Tube Length (Before Cutting): 90-400 mm

• Tube Length (After Cutting): 70-380 mm

• Length Cutting Range: 0-310 mm

• Machine Size: 240*160*550 mm(L*W*H)

• Machine Weight: About 6 kg

• Package Size: 580*270*275 mm(L*W*H)

• Package Weight: About 11 kg

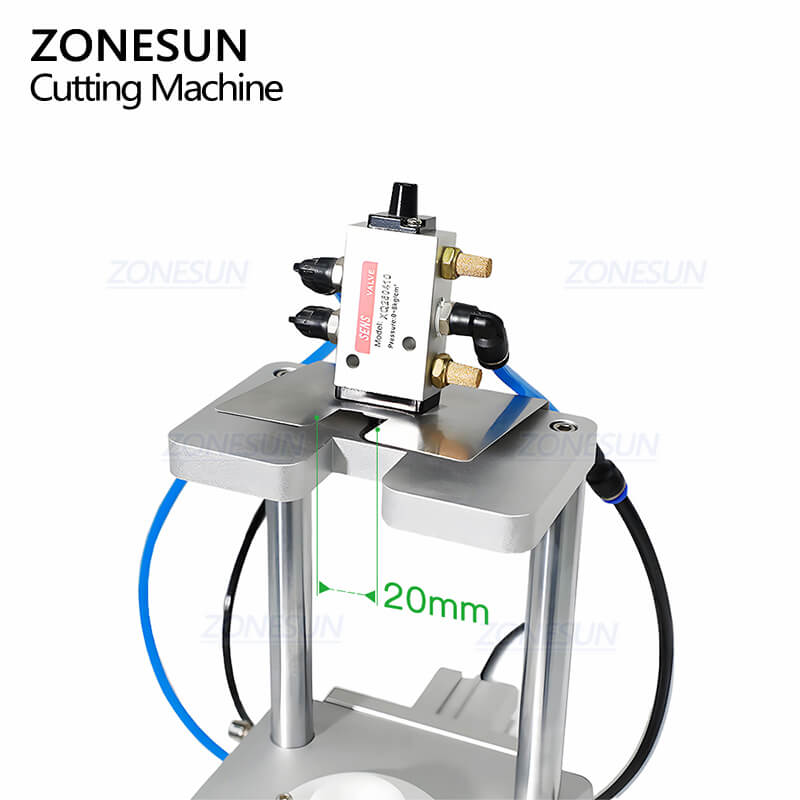

Guide Housing
Suitable for φ＜9.5mm tube, it can effectively position caps and improves cutting accuracy.

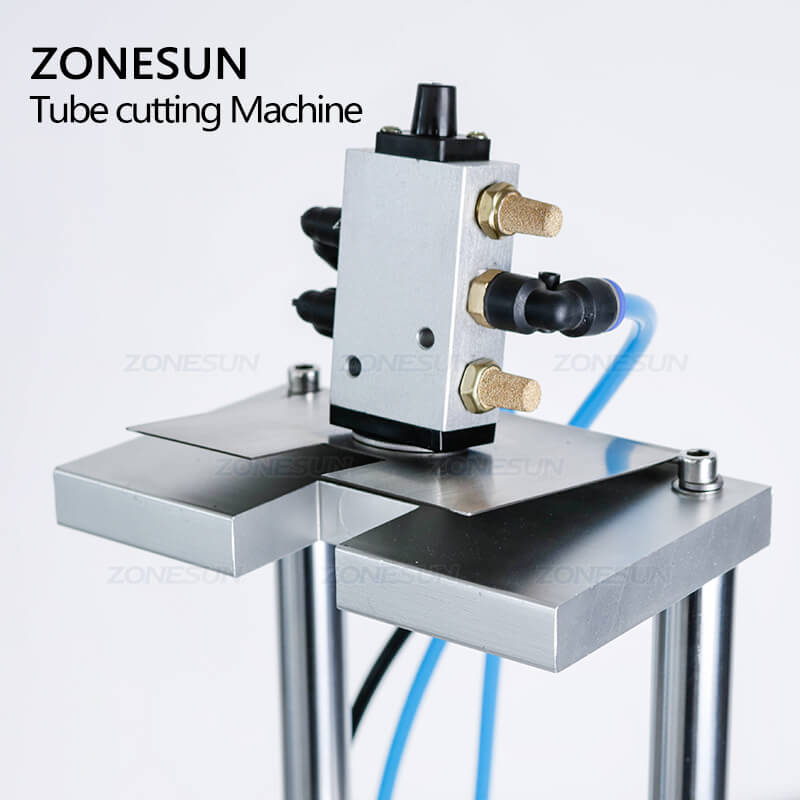

Cutting Structure
It can create a v-shaped notch at the tip of the dip tube for better fluid flow

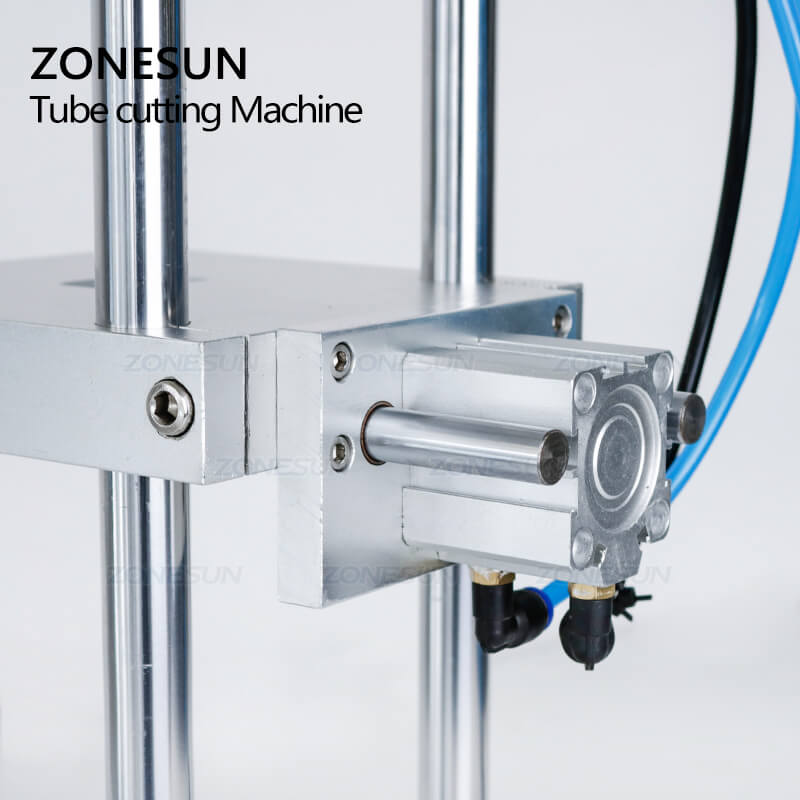

Full Pneumatic
Powered by compressed air, reducing manual effort.It needs to work with air compressor.
