ZS-YG11 Automatic Cosmetics Perfume Bottle Caps Sealing Crimping Pressing Capping Machine

Voltage
Price
Regular price $6,199.00 USD
Regular price Sale price $6,199.00 USD
Save $-6,199 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Click Video Link For Video

This automatic crimping machine is used to crimp perfume spray caps,change crimping head can be used for different sizes of spray caps(FEA15/18/20/22 etc).It can work with automatic filling machine and labeling machine to realize faster complete packaging production.

Parameter

  • Machine model:ZS-YG11
  • Machine voltage:110/220V 50-60HZ 130W
  • Capping speed:About 30-60 bottles/min
  • Suitable bottle height:35mm≤H≤100mm
  • Bottle mouth diameter:15/18/20/22(Can be customized)
  • Machine size:About 2030*750*1500mm
  • Machine weight:About 200kg

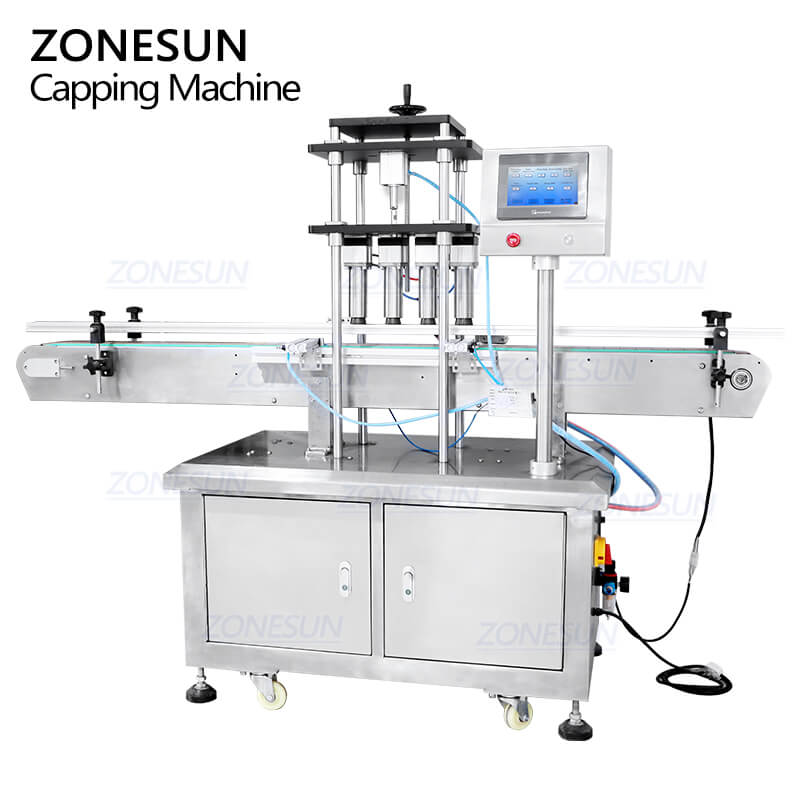

4 heads perfume crimping machine

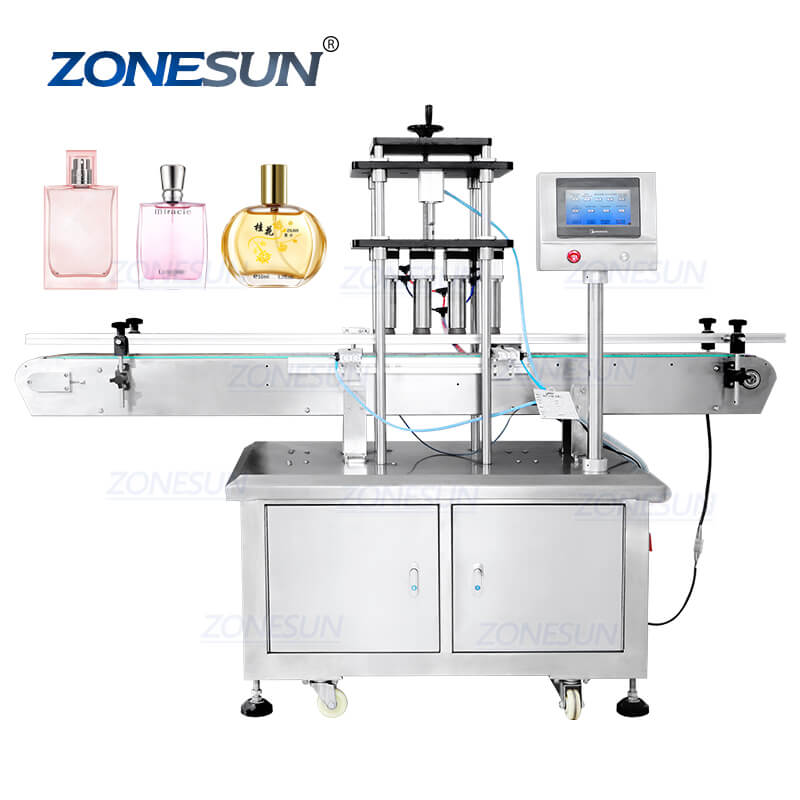

application of perfume crimping machine

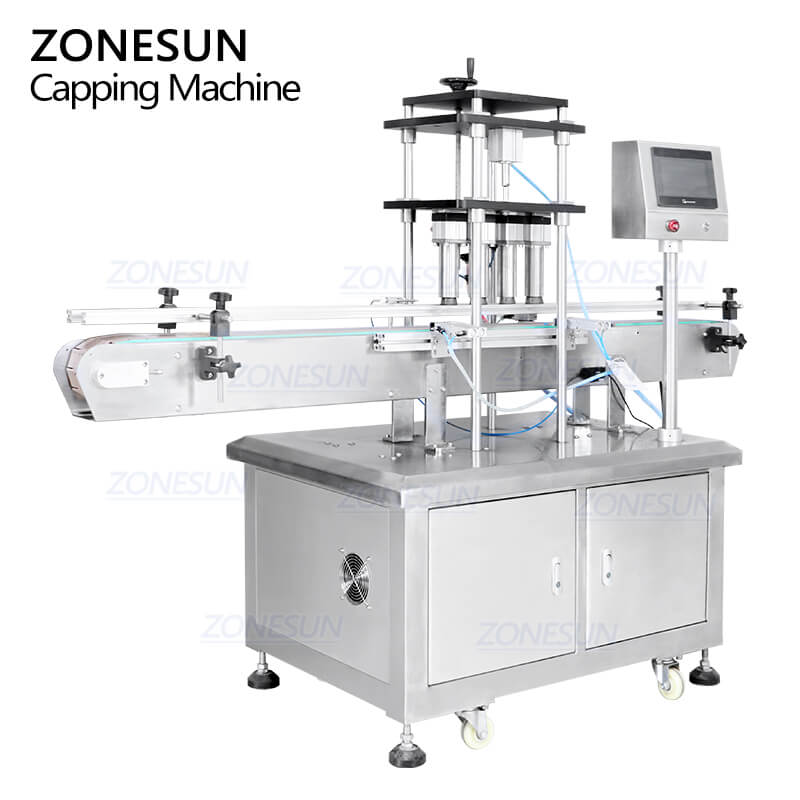

perfume bottle crimping machine

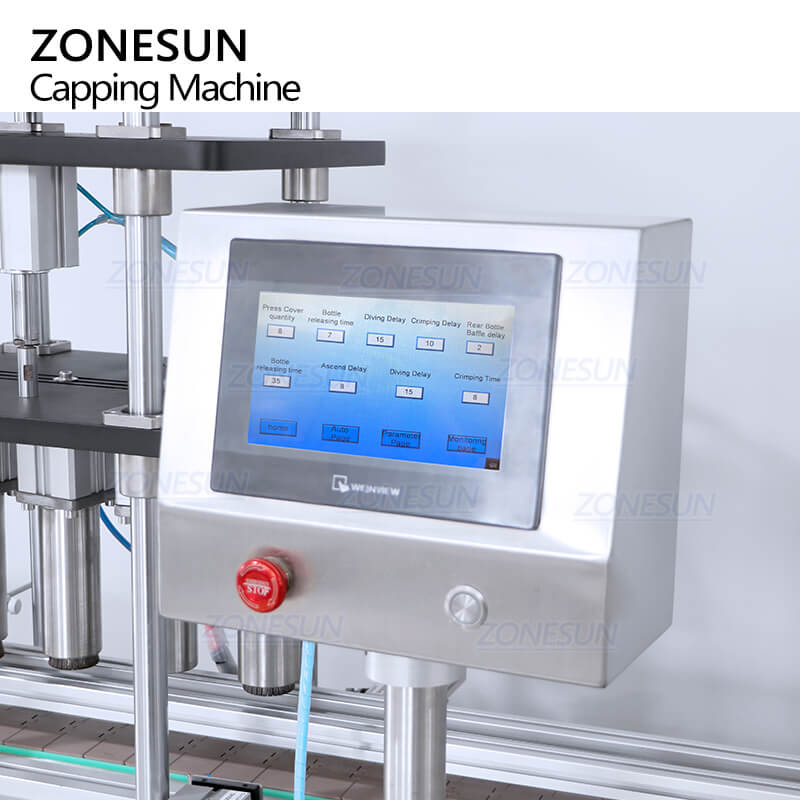

control panel of 4 heads perfume crimping machine
Equipped with touch screen control panel,this shows working parameter directly.The customizable interface makes it more convenient to adjust working data.

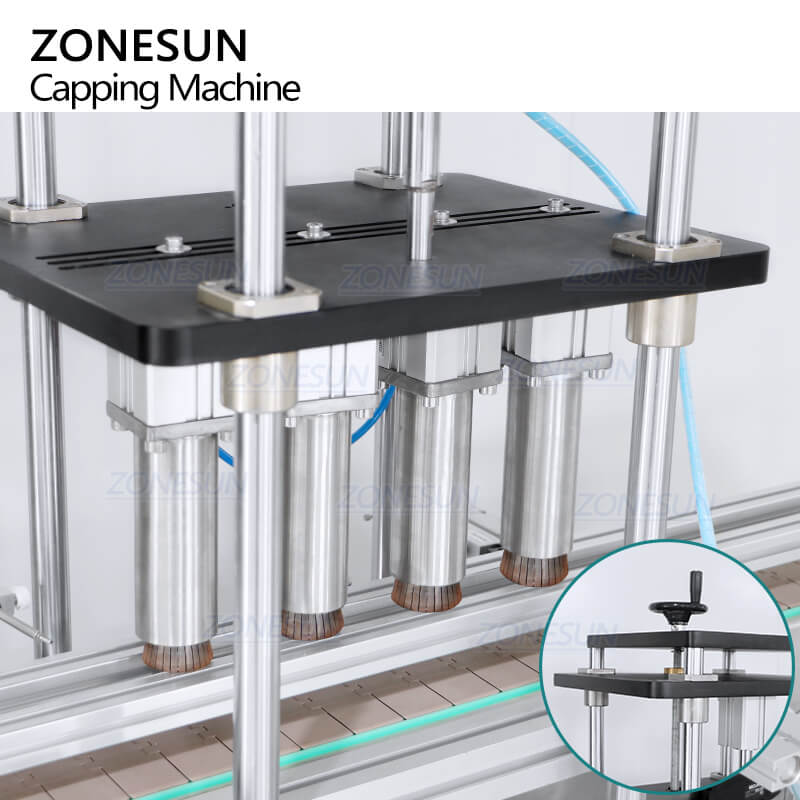

crimping head of 4 heads perfume crimping machine
The height of capping structure can be adjusted by rotary knob according to operation need.Change crimping head can be used for different sizes of perfume spray caps.This is easy to operate.

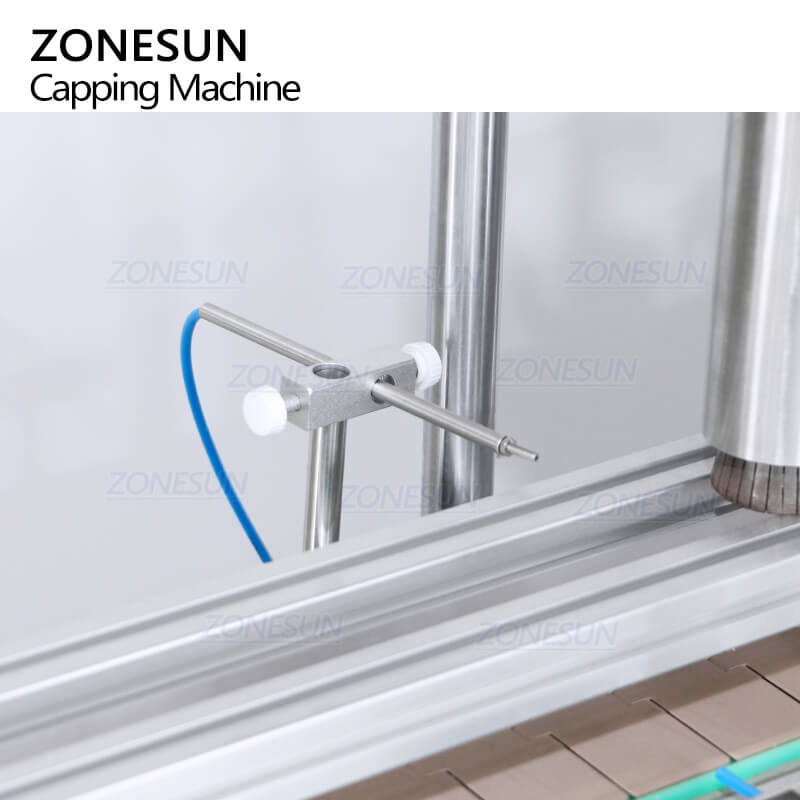

electric eye of 4 heads perfume crimping machine
The electric eye is used to detect passing by bottles and control the machine to start the capping work.With this, the machine can realize automated work and save working labor.

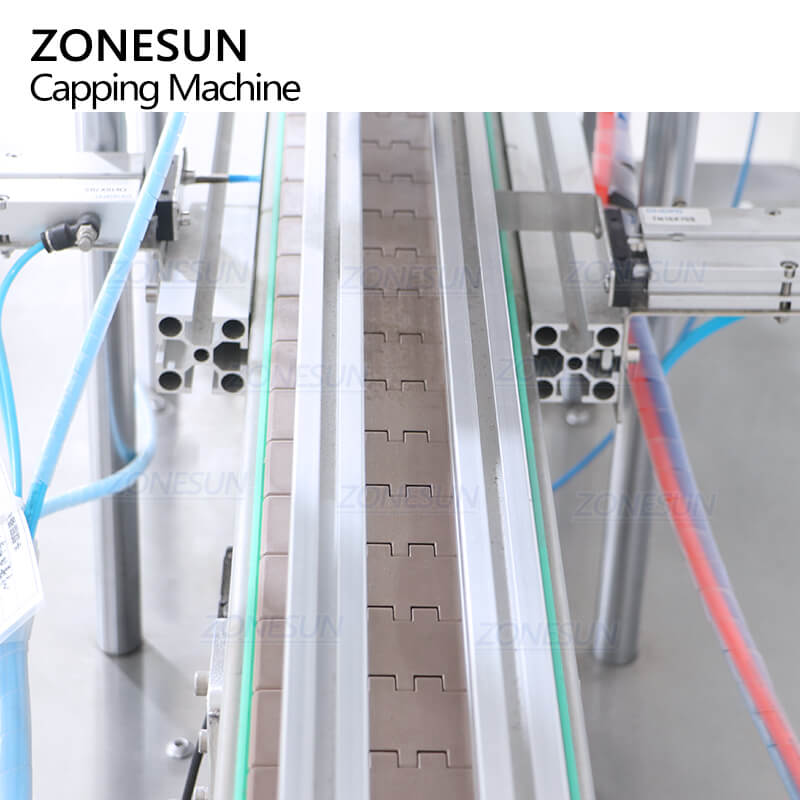

Conveyor of 4 heads perfume crimping machine
Equipped with chain conveyor,which has larger weight capacity,the conveyor width and length can be customized according to bottle diameter.It can transport bottles stably during the production work.
4 heads perfume crimping machine
